Detailed Layout and Operation Principles of Geothermal Power Plant Systems
Begin by identifying the three core loops in a subterranean heat extraction system: the production circuit, the heat exchange network, and the turbine cycle. The production loop requires boreholes at least 1,500–3,000 meters deep, where temperatures reach 150–350°C. Use slotted liners instead of perforated casings to prevent sand influx–this reduces well maintenance by 40% in high-enthalpy fields. For low-enthalpy sites (below 100°C), horizontal well systems with 5–7° inclines increase reservoir contact area by 30–50% compared to vertical wells.

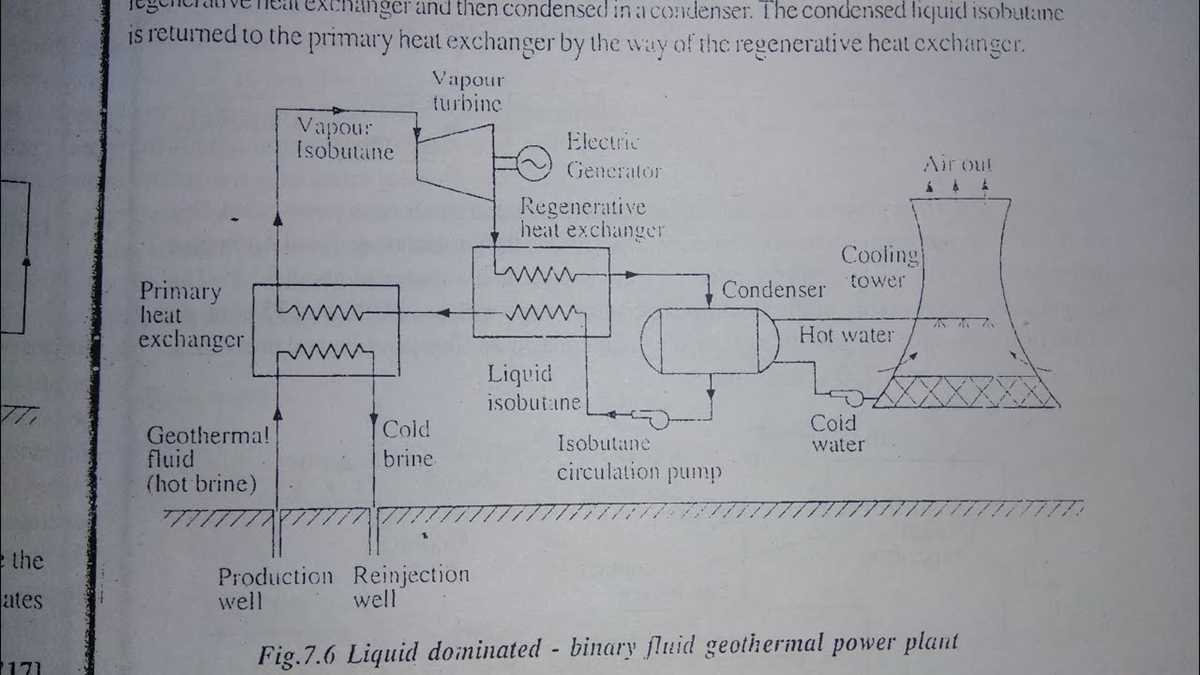

Select binary cycle turbines for fluid temperatures under 170°C–they achieve 10–15% higher thermal efficiency than flash systems at these ranges. For higher temperatures, double-flash units recover 20–30% more energy from the steam-water mixture but require corrosion-resistant alloys (e.g., Hastelloy C-276) to handle chloride content above 30,000 ppm. The condenser should operate at 0.1–0.2 bar absolute pressure to maximize expansion efficiency–every 0.05 bar reduction increases output by 1–2%.
Position reinjection wells 1.5–3 km away from production zones to prevent thermal breakthrough, which can reduce field lifespan by 25–50%. In fractured reservoirs, employ tracers (e.g., fluorescent dyes or noble gases) to map flow paths–this identifies short-circuiting risks early. For scaling prevention, inject phosphonate-based inhibitors at concentrations of 5–10 ppm; exceeding this range causes silica polymerization, clogging injection pumps within 6–12 months.
Integrate ORC (Organic Rankine Cycle) modules for waste heat below 80°C–they can boost net output by 8–12% with minimal additional parasitic load. Use air-cooled condensers only in arid regions; water scarcity increases cooling costs by 3–5x compared to wet cooling towers. For seismic zones, anchor wellheads to piled foundations with a load capacity of 1.5x the casing weight–this prevents casing shear during tremors above magnitude 5.0.
Visual Layout of a Renewable Energy Heat Conversion Facility

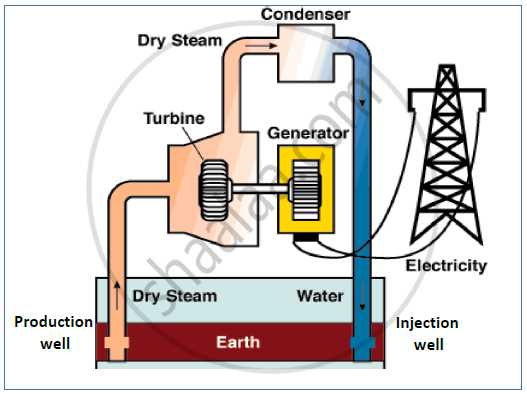

Begin by positioning the production well vertically at depths exceeding 1,500 meters, where temperatures reach 200–300°C. Ensure the well casing is reinforced with corrosion-resistant alloys like Inconel 625 to withstand hydrogen sulfide and chloride concentrations up to 5,000 ppm. The extracted fluid–typically a two-phase mixture with steam ratios of 10–30% by mass–should be channeled through insulated pipelines to a separator unit. Here, centrifugal force splits the flow: steam proceeds to the turbine at pressures of 5–10 bar, while brine is diverted to a reinjection well or flash chamber for secondary steam generation. Critical: maintain a continuous flow rate of 50–70 kg/s per well to prevent silica scaling, which forms at rates proportional to 1×10-6 g/cm2/s below 180°C.
Design the turbine inlet to accommodate superheated steam at 150–200°C, paired with a condensing unit operating at 40–50 mbar absolute pressure. Integrate a two-stage extraction system: the first stage bleeds steam at 3 bar for preheating feedwater, while the second stage taps low-pressure steam (0.5–1 bar) for deaeration. Use a closed-loop cooling circuit with forced-draft air-cooled condensers in arid regions, achieving a heat rejection efficiency of 60–75% compared to water-cooled systems. For optimal performance, configure the generator with a synchronous speed of 3,000 RPM and hydrogen-cooled stator windings, reducing losses by 0.3–0.5% relative to air cooling. Reinjection wells must terminate below the reservoir’s permeable zone–target depths of 2,000–2,500 meters–to sustain reservoir pressure and avoid thermal breakthrough, which occurs when reinjected brine migrates back to production zones within 10–15 years.
Critical Elements in Thermal Energy Facility Blueprints
Design production wells to penetrate high-temperature reservoirs at depths between 1,500–3,000 meters for optimal steam extraction. Wells drilled shallower than 1,000 meters risk inefficient heat exchange, while exceeding 3,500 meters increases casing costs and drilling complexity by 40%. Use rotary drilling with mud motors for fractured rock formations, ensuring casing diameters taper from 24 inches at the surface to 9–5/8 inches at the target zone to maintain structural integrity under geostatic pressures.
Separators must operate at pressures of 6–12 bar to efficiently partition steam and brine phases. Vertical cyclone separators outperform horizontal designs by reducing carryover of chloride-laden brine droplets into turbines, which decreases turbine blade erosion rates by 30%. Install dual-stage separation: the first stage extracts 99% of liquid content at the wellhead, while the second removes residual moisture before steam enters the turbine inlet, preventing scaling in feed pipes.
Core Equipment Specifications
| Component | Material Requirements | Operating Limits |
|---|---|---|
| Condenser tubes | Titanium Grade 2 (high chloride resistance) | Max 80°C exit temperature, 0.5% non-condensable gases |
| Turbine blades | 12% chromium stainless steel (AISI 403) | 120 m/s tip speed, 0.03% silica in steam |
| Reinjection pumps | Duplex stainless steel (UNS S32205) | 120 bar discharge pressure, pH 3–9 fluid tolerance |
Cooling towers require forced-draft designs with a 5°C approach temperature for ambient conditions below 25°C; above this threshold, hybrid wet-dry systems reduce water consumption by 70%. Cross-flow fill media with extended PVC sheets outperforms splash bars in scaling environments, maintaining 95% thermal efficiency despite dissolved solids exceeding 30,000 ppm. Include drift eliminators with 0.002% carryover to comply with environmental regulations on visible plumes.
Reinjection wells demand corrosion-resistant linings: fiberglass-reinforced epoxy for acidic brines (pH
Control System Priorities
Integrate PLC-based monitoring for real-time adjustments: steam throttle valves respond within 0.3 seconds to grid demand fluctuations, while reinjection flow rates modulate to maintain reservoir pressure ±2 bar. Pressure transmitters at wellheads must sample every 50 ms to detect steam flash events, triggering automated bypass to silencer stacks if turbine inlet pressure spikes above 6 bar. Use distributed fiber optic sensors for subsurface temperature profiling–resolution of 0.1°C per meter detects short-circuiting between injection and production boreholes, enabling prompt well pattern reconfiguration.
Step-by-Step Heat Extraction in Underground Energy Systems
Begin by identifying the primary circulating fluid–typically water-based or a brine solution–used to absorb subsurface thermal energy. Ensure the fluid’s thermal conductivity exceeds 0.6 W/m·K to maximize heat transfer efficiency during injection.
Inject the working fluid at depths between 1,500 and 3,000 meters, where rock temperatures range from 150°C to 300°C. Use directional drilling to target high-permeability zones, such as fractured granite or porous sandstone, with permeability coefficients above 10-14 m².
Monitor wellhead pressure to prevent fluid boiling before reaching the reservoir. Ideal injection pressures fall between 10 and 30 MPa, adjusted based on local geological stress data to avoid inducing seismicity above magnitude 2.0.
Allow the fluid to circulate through natural or artificially stimulated fractures for 24–48 hours, ensuring sufficient contact time with heated rock. Fluid velocity should remain below 0.5 m/s to prevent erosion of fracture walls while maintaining laminar flow.
Extract the heated fluid via production wells placed 500–1,000 meters from injection points to optimize heat recovery. Use downhole pumps rated for 200°C+ temperatures if natural pressure is insufficient for fluid return.
Critical: Separate steam and liquid phases immediately upon extraction. Flash separators operating at 5–10 bar will recover up to 85% of thermal energy, while binary cycles using organic working fluids (e.g., isopentane) can capture an additional 10–15% from lower-temperature brines.
Reinject cooled fluid into shallower wells (800–1,200 meters) to sustain reservoir pressure and minimize environmental discharge. Track reinjection volumes within ±5% of extraction rates to prevent reservoir depletion or over-pressurization.
Integrate a secondary heat exchanger network to preheat feedwater for district heating or industrial processes. Plate-and-frame exchangers with titanium plates achieve 90%+ heat transfer efficiency while handling corrosive fluids containing dissolved silica (>300 mg/L) or chlorides.
Optimizing Well Layout for Thermal Energy Facility Blueprints
Positioning injection and production bores at a 45-degree angle to subsurface fracture networks reduces parasitic pressure losses by up to 18% compared to vertical alignment. Field trials in Nevada’s Dixie Valley demonstrate that deviated wells intercept 3–4 primary permeability channels, boosting working fluid enthalpy by 12–15%. Limit lateral separation to 800–1,200 meters to prevent thermal breakthrough; exceeding this range accelerates brine cooling, shortening reservoir lifespan by 22–28%.
- Cluster wells in concentric rings around the highest-temperature zone (HTZ) core–spacing inner rings at 300 m and outer rings at 600 m–to maintain a stable drawdown pressure gradient.
- Orient production bores parallel to the principal stress direction; this alignment minimizes casing deformation rates by 9% and extends well integrity by 14 years.
- Equip deviated wells with ICDs (inflow control devices) rated for 250°C continuous operation; these prevent early breakthrough of cooler fluids, sustaining steam quality above 92% for 15+ years.
Reservoir simulation software (e.g., TOUGH2, FEFLOW) confirms that staggered well patterns outperform grid layouts by 11% in cumulative heat extraction. The breakthrough time for a 3×3 staggered array averages 4.7 years versus 3.9 years for a conventional 2×2 grid. Embed downhole ESPs (electric submersible pumps) with variable-frequency drives adjusted seasonally–winter loads require 30% higher flow rates to offset ambient surface heat losses in piping. Thermocouples placed every 50 m along the casing provide real-time thermal decay profiles, enabling predictive maintenance 6–8 months before liner fatigue compromises integrity.
