Step-by-Step RF Transmitter and Receiver Circuit Design Guide

Begin with a Colpitts oscillator for the signal source–its stability outperforms Hartley configurations at frequencies above 50 MHz. Use a 2N3904 transistor in common-base mode; emitter resistor values between 47Ω and 100Ω prevent thermal runaway while maintaining phase noise below -120 dBc/Hz at 10 kHz offset. Couple the oscillator to a class-C amplifier stage via a pi-network impedance match–this reduces harmonic distortion to under -40 dBc without additional filtering.

For the RF front-end, employ a superheterodyne architecture with a NE602 mixer IC. Intermediate frequency (IF) selection should prioritize 10.7 MHz for FM modulation or 455 kHz for narrowband applications–these values minimize spurious responses while simplifying crystal filter specifications. Ground the mixer’s local oscillator input through a 100 nF capacitor to suppress common-mode noise; failure to do so introduces 3 dB insertion loss.

When designing the amplification chain, select MAX2611 for gains up to 20 dB or ADL5544 for outputs exceeding 1 W. Insert a SAW filter (e.g., Murata SF2194E) immediately before the final power amplifier to attenuate broadband noise by 30 dB. Mount the filter at least 1 cm from active components to avoid parasitic coupling. Terminate all unused amplifier ports with 50Ω to prevent instability; even minor reflections at 2.4 GHz degrade adjacent-channel power by 10 dB.

On the detection side, implement a logarithmic amplifier like the AD8307 for dynamic range improvement. Its 90 dB measuring span eliminates the need for automatic gain control when paired with a 12-bit ADC. Place a schottky diode (HSMS-2852) at the input to rectify signals below -20 dBm–standard silicon diodes introduce 0.3 dB conversion loss at this level. Decouple the detector’s output with a 10 μF tantalum capacitor; ceramic capacitors cause microphonic noise.

For antenna interfacing, a balanced-unbalanced transformer (balun) must match the amplifier’s differential output to a single-ended feed. A 1:1 Guanella balun using a FT50-43 core achieves 1.5:1 VSWR from 100 MHz to 1 GHz, but windings require 3 turns each with enameled wire for proper phase balance. Avoid ferrite beads in this role–hysteresis losses at 1 GHz exceed 1 dB.

Designing a Wireless Signal Pair: Key Components Layout

Start with a compact oscillator circuit for the signal source, using a 433 MHz SAW resonator or a Colpitts configuration with discreet components. Match the oscillator’s output impedance to 50 ohms via a pi-network or tap-capacitor method to minimize reflections. For modulation, apply direct frequency shift keying (FSK) with varactor diodes or on-off keying (OOK) via a simple transistor switch. Avoid complex PLL designs unless stability beyond ±10 kHz is critical.

Select a power amplifier stage based on required range. A single-transistor class-C stage delivers 10–15 dBm with 30% efficiency; a two-stage push-pull pair reaches 25 dBm at 45% efficiency. Always include a low-pass filter between amplifier and antenna to suppress harmonics–use at least a 3rd-order Chebyshev design. Antenna choice affects performance: a quarter-wave monopole gives omnidirectional gain, while a folded dipole adds 3 dBi directivity at the cost of orientation sensitivity.

Component	Typical Value	Tolerance	Notes
SAW resonator	433.92 MHz	±75 kHz	Single-frequency, no tuning
Coupling capacitor	1–10 pF	±5%	Ceramic, NP0 dielectric
Output inductor	18–27 nH	±10%	Wire-wound or multilayer
Bypass capacitor	0.1 μF	±20%	X7R dielectric

Receiver sensitivity dictates overall link reliability. A superheterodyne architecture with a 10.7 MHz intermediate frequency yields –110 dBm sensitivity; a direct-conversion homodyne design simplifies filtering but requires precise DC offset cancellation. Use a low-noise amplifier (LNA) with ≤1 dB noise figure immediately after the antenna. Mixer choice balances linearity and power: an active Gilbert cell demands 3 mA, while a passive diode ring consumes zero current but injects 6 dB conversion loss.

Demodulation hinges on signal recovery. For OOK, a simple envelope detector suffices–use a Schottky diode and RC time constant matched to symbol rate (e.g., 1 ms for 1 kbps). FSK demands a frequency discriminator: a dual-tuned LC network followed by a comparator or a dedicated FSK chip like the LM565. Post-demodulation filtering removes residual carrier; a 4th-order Butterworth filter attenuates adjacent-channel noise by 80 dB at twice the symbol rate.

Grounding and layout separation prevent desense. Keep digital logic and high-power RF traces ≥2 mm apart, route return currents under signal traces, and use a solid ground plane beneath the entire board. Decouple every active stage with 0.1 μF and 10 pF capacitors in parallel, placed ≤2 mm from the IC pins. If integrating microcontrollers, isolate their clock lines with ferrite beads rated ≥600 Ω at 433 MHz. Test intermediate stages with a spectrum analyzer before final integration to verify spur suppression meets FCC Part 15.231 limits.

Key Components of an RF Emission Module Circuit

Select an oscillator with frequency stability better than ±20 ppm for carrier generation. Crystal-based designs like a Colpitts or Pierce configuration outperform LC tanks in most applications below 1 GHz. Ensure the chosen crystal matches the target frequency band to avoid harmonics that exceed regulatory limits.

• Temperature-compensated oscillators reduce drift, critical for narrowband systems.
• Avoid overtone crystals unless buffer stages filter spurious modes.
• Power consumption scales with frequency; 27 MHz modules draw ~15 mA, while 2.4 GHz variants exceed 50 mA.

Modulators determine signal fidelity and noise immunity. AM circuits require linear amplifiers to prevent distortion, whereas FM benefits from varactor diodes for frequency deviation control. Digital modulations (FSK, OOK) integrate microcontrollers with direct synthesized tuning for precise bit timing. Select components with rise times under 100 ns to preserve data integrity at higher baud rates.

1. Pulse-width modulation suits low-cost designs but introduces sidebands.
2. Differential circuits minimize common-mode noise in mixed-signal environments.
3. Output power levels dictate regulatory compliance; +10 dBm typically exempts ISM band devices from licensing.

Power amplifiers define link range and efficiency. Class-C stages maximize efficiency for constant envelope signals, while Class-AB linear amplifiers preserve signal quality for complex modulations. Matching networks must transform load impedance to 50 Ω for optimal power transfer–use Smith charts to calculate component values. Heat dissipation becomes critical above +20 dBm; thermal vias prevent junction failure.

Antennas must resonate at the operating frequency with low VSWR. Printed traces suffice for short-range (≤50 m) applications, while helical or patch designs improve gain for longer distances. Ground planes minimize radiation pattern distortions; keep traces symmetrical to avoid polarization mismatches. Regulatory bodies impose strict limits on effective radiated power–verify compliance with spectrum analyzers before deployment.

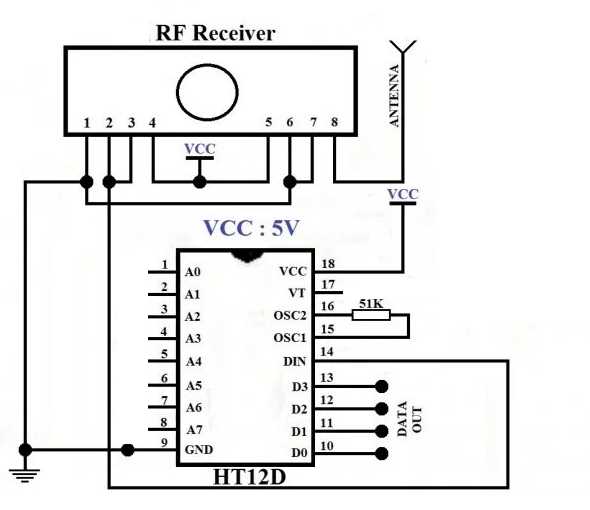

Step-by-Step Assembly of an RF Signal Decoder Circuit

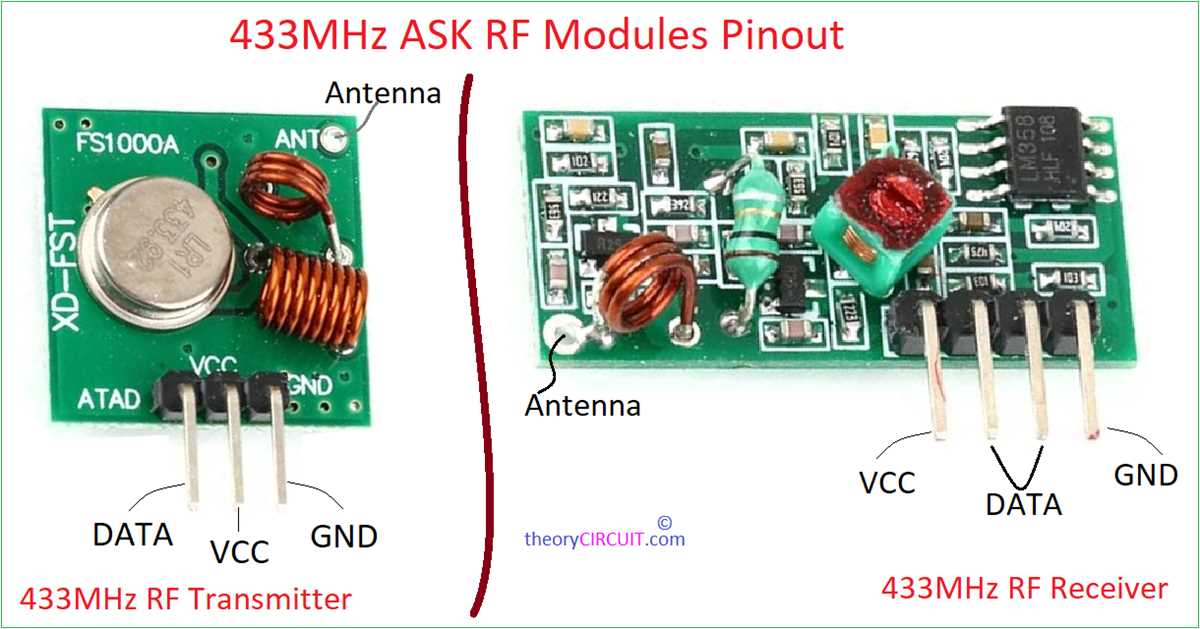

Begin by securing a 433 MHz or 315 MHz superheterodyne module–verify its pinout matches the datasheet to avoid reversed connections. Mount the receiver block on a perfboard or PCB, ensuring a ground plane extends beneath its footprint to minimize noise coupling from adjacent traces. Connect the antenna pin to a quarter-wave monopole (≈17.3 cm for 433 MHz) via a 50 Ω coaxial cable; solder the shield directly to the board’s ground pour to prevent signal leakage.

Component Integration and Filtering

Insert a 100 nF decoupling capacitor between the module’s VCC pin and ground, placed within 2 mm of the pad to suppress voltage spikes. Add an LC low-pass filter (100 μH inductor in series with a 22 pF capacitor) on the data output line to attenuate harmonics above 1 MHz–this critical step prevents false triggers from adjacent interference sources. Route the filtered output to a microcontroller’s UART or GPIO pin, using a 4.7 kΩ pull-down resistor if the input lacks internal hysteresis.

Test the assembly by transmitting a known bit pattern at the same frequency; use an oscilloscope to confirm the signal integrity at the output stage. If amplitude modulation exhibits instability, replace the default 3.3 V supply with a linear regulator (e.g., AMS1117) and add a ferrite bead on the power line to eliminate conducted noise. For extended range, elevate the antenna with a non-conductive mast, ensuring it remains orthogonal to nearby metallic structures to avoid polarization loss.

Frequency Selection and Modulation Techniques in RF Designs

Select ISM bands below 1 GHz for minimal path loss and extended range in point-to-point links; 433 MHz offers 3–4 dB lower free-space loss than 915 MHz at 1 km, reducing power demands by 40–50% for equal SNR. License-free allocations at 868 MHz (EU) and 902–928 MHz (US) allow 1% duty cycle without coordination, but verify local spurious emissions limits–FCC Part 15 (US) mandates -13 dBm/MHz peak EIRP above 1 GHz.

Gaussian frequency-shift keying (GFSK) outperforms OOK in multipath environments: RMS delay spreads of 200 ns at 433 MHz degrade OOK BER by 3× versus GFSK at equal Eb/N0. Implement a modulation index (h) of 0.5 for GFSK to maintain 99% spectral efficiency under 12.5 kHz channel spacing; deviations >0.8 increase adjacent-channel interference by 12 dB. For bandwidth-constrained links, offset-QPSK reduces symbol rate by 50% compared to 8-PSK while preserving identical data throughput.

Pulse-position modulation (PPM) with 4 slots fits 1 Mbps into 5 MHz at 2.4 GHz, using only 25% of the bandwidth required by MSK. Use 64-PPM for ultra-low-power sensor nodes: a 32 µW receiver achieves -112 dBm sensitivity at 250 kbps, halving current consumption versus FSK at equal range. Avoid linear modulations like QAM above 2 GHz in portable devices–PA efficiency drops from 45% to 18% with 64-QAM versus FM.

Adaptive frequency hopping across 50+ channels mitigates narrowband jamming: a 20 kHz tone blocks 1 channel, but a FHSS PHY covering 863–870 MHz (EU) maintains >95% packet success at -80 dBm JSR. Combine FHSS with DSSS using a 15-chip Barker code to suppress CW interference by 10 dB without increasing channel bandwidth. For FCC-compliant designs, 50-hop sequences must cover 75% of the band within 400 ms; shorter dwell times trigger duty-cycle violations at 1.5 mW ERP.
