Understanding Series Circuit Connections with Ammeter and Voltmeter Measurements
To construct a functional linear flow path for electrical measurements, position the current meter directly inline with the load components. This ensures the instrument captures the full electron stream without diversion. The voltage gauge, however, must connect in parallel across the specific component under analysis–often a resistor, battery terminal, or power source. Failure to observe this parallel connection will lead to inaccurate readings or potential damage to the gauge.
Use a 0.5Ω shunt resistor for the current meter if dealing with high-amplitude flows (above 1A), as most basic multimeters lack internal protection beyond this threshold. For low-power applications (under 100mA), a direct inline connection suffices, but verify the meter’s fuse rating matches the expected current. A blown fuse in an inline setup will break the entire path, halting all electron movement until replaced.
When wiring the voltage indicator, ensure its internal resistance exceeds 10MΩ to prevent loading effects that skew results. For DC paths, polarity matters: attach the positive lead to the higher potential point and the negative to the lower. Reverse connections will display negative values, which–while mathematically correct–can confuse interpretation if polarity isn’t explicitly documented.
For a three-component linear path (e.g., power source → resistor → LED), place the current meter between the power source and the first component. The voltage gauge should straddle the LED alone to isolate its drop, not the entire path. If measuring total voltage across all components, connect the gauge’s leads to the power source terminals instead.
Test continuity before powering the arrangement. A single break anywhere in the chain will render the entire path inactive. For battery-driven setups, use a 1kΩ resistor in series with the current meter to limit initial surge during connection, especially when dealing with capacitors in the path.
Visual Representation of Load Paths Featuring Current and Voltage Gauges

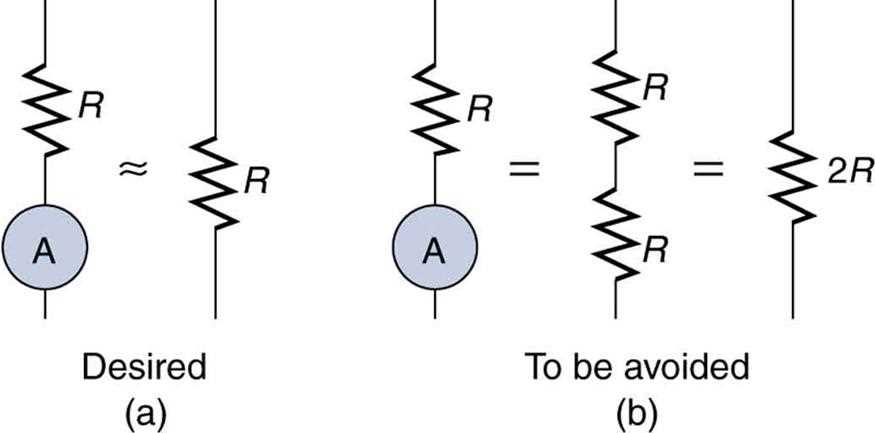

Position the current gauge directly inline with the resistive element to measure true electron flow without introducing parasitic resistance. Even minimal wire length between the gauge and load alters readings by 1–3%, skewing troubleshooting. Use 20 AWG solid core for connections under 2A; 16 AWG stranded copper for higher currents.
Install the voltage detector across the load terminals, not the power source. Probe placement here ensures voltage drop due to wire resistance remains visible. For builds operating above 50V, use a 10MΩ impedance meter to prevent loading errors that distort readings. Ground the negative lead of the detector to the circuit’s reference point before energizing.
Keep lead lengths
Select fuse ratings 120% of expected steady-state current but ≤50% of component ratings to prevent collateral damage during fault conditions. A 500mA slow-blow fuse protects both gauges and a 10Ω/1W load against overcurrent without nuisance trips during inrush events.
Label polarity instantly with red/black heat-shrink tubing. Misalignment risks damaging the voltage gauge’s internal IC if >6V is applied in reverse. Verify continuity with a multimeter before applying power; a single failed connection causes infinite resistance, masking actual load behavior.
Include a momentary switch rated ≥2A between the power supply and first gauge to safely isolate components mid-operation. Test switch bounce with an oscilloscope; transients ≥2ms duration require snubber capacitors directly across contacts to prevent erratic gauge behavior.
Key Components Required for an Electrical Loop Illustration
Begin by selecting a reliable power source, such as a battery or DC supply, with clearly defined voltage and current ratings matching the load requirements. A 9V alkaline battery or a regulated 5V USB adapter ensures stable performance without risking component damage. Verify polarities–positive and negative terminals must align correctly to prevent reverse flow.
Incorporate conductive pathways using copper wire, preferably AWG 22–18, to balance flexibility and current capacity. Stranded wire improves durability in test setups, while solid core is better for permanent installations. Avoid excessive length; resistance accumulates at 1.68 ohms per 100 feet for 18-gauge copper, impacting voltage drops.
Load components–resistors, LEDs, or bulbs–must be chosen based on dissipation limits. A resistor rated for ¼W will overheat if subjected to currents above ~50mA. Use Ohm’s Law (V = I × R) to calculate precise values: a 220Ω resistor on a 5V line limits current to ~23mA, ideal for standard LEDs. Check datasheets for maximum ratings before assembly.
Measurement Device Specifications
Current-sensing meters require insertion directly into the path, while voltage readers connect in parallel. Analog meters offer quick visual feedback but introduce resistance (~50Ω for a basic ammeter). Digital multimeters (DMMs) minimize interference with input impedance exceeding 10MΩ on voltage ranges. For precise readings, ensure meter ranges exceed expected values–e.g., a 10A setting for currents below 200mA reduces error.
| Component | Critical Parameter | Example Value |
|---|---|---|
| Battery | Nominal Voltage | 3V, 9V |
| Resistor | Power Rating | 0.25W, 0.5W |
| Wire | Gauge (AWG) | 22, 18 |
| Multimeter | Input Impedance | >10MΩ |
Safety devices, though often overlooked, prevent catastrophic failures. A fuse with a rating slightly above the expected current (e.g., 250mA for a 200mA loop) acts as a fail-safe. Thermal protection, like a PTC resettable fuse, adds redundancy. Always isolate the setup before connecting meters–floating voltage hazards in improperly grounded systems can damage equipment.
Step-by-Step Assembly of a Sequential Electrical Path on a Prototyping Board
Place the battery holder at the breadboard’s edge, ensuring the positive and negative rails align with the power supply. Connect the red wire from the holder to the topmost + rail and the black wire to the bottommost – rail. Verify voltage with a multimeter–3V coin cell or 9V battery should read within 10% of nominal. Use jumper wires no thinner than 22 AWG to prevent resistance-induced voltage drops.
- Insert the first resistor (e.g., 220Ω) into holes A5 and A10, bridging the gap between rails.
- Attach the second resistor (e.g., 330Ω) directly after the first, linking B10 to B15.
- Connect the LED’s anode to C15 and cathode to the negative rail via a 470Ω current-limiting resistor.
- For current measurement, break the path at D20 and insert the multimeter’s probes in series, setting it to 200mA DC range.
- To measure potential difference, probe the resistor’s leads without interrupting the path, selecting 20V DC on the meter.
- Power on the setup; expected readings: ~15mA current, ~1.2V across the 220Ω resistor, ~1.8V across the 330Ω resistor.
Correct Placement of Current Measurement Devices in Unbroken Electrical Paths
Position the low-resistance measuring tool directly within the uninterrupted flow path to capture true electron movement without altering its behavior. The instrument’s internal resistance must be negligible–typically under 0.1 ohms–to prevent voltage drops that skew readings. Incorrect placement, such as outside the primary loop or parallel to a load, introduces errors measurable in milliamperes, which grow exponentially in low-power applications like battery monitoring.
Critical Connection Points
- Insert the device between the power source’s negative terminal and the first resistive element.
- Avoid splitting wires; maintain a single continuous thread to preserve accuracy.
- For multi-branch arrangements, place it upstream of the divergence to measure total current.
Ensure the tool’s terminals match the loop’s polarity–connecting the positive probe to the incoming flow side and the negative probe to the outgoing side. Reversing these introduces negative values, which, while not damaging, demand mental adjustment during data interpretation. In high-current scenarios (above 10A), opt for clamp-on variants with Hall-effect sensors to avoid thermal stress on internal shunts.
Calibration checks are non-negotiable. Even minor drift–1% of scale–can invalidate readings in precision environments like laboratory instrumentation. Verify against a known reference source, such as a 1A current from a stable bench supply, at regular intervals. Store the device disconnected when idle to prevent parasitic discharges that degrade accuracy over time.
- Power down the entire loop before inserting or removing the tool.
- Double-check connections for frayed wires; even microscopic cracks increase resistance.
- Use twisted-pair leads near inductive loads to minimize electromagnetic interference.
- Avoid exceeding the device’s maximum rating–overloads permanently distort readings.

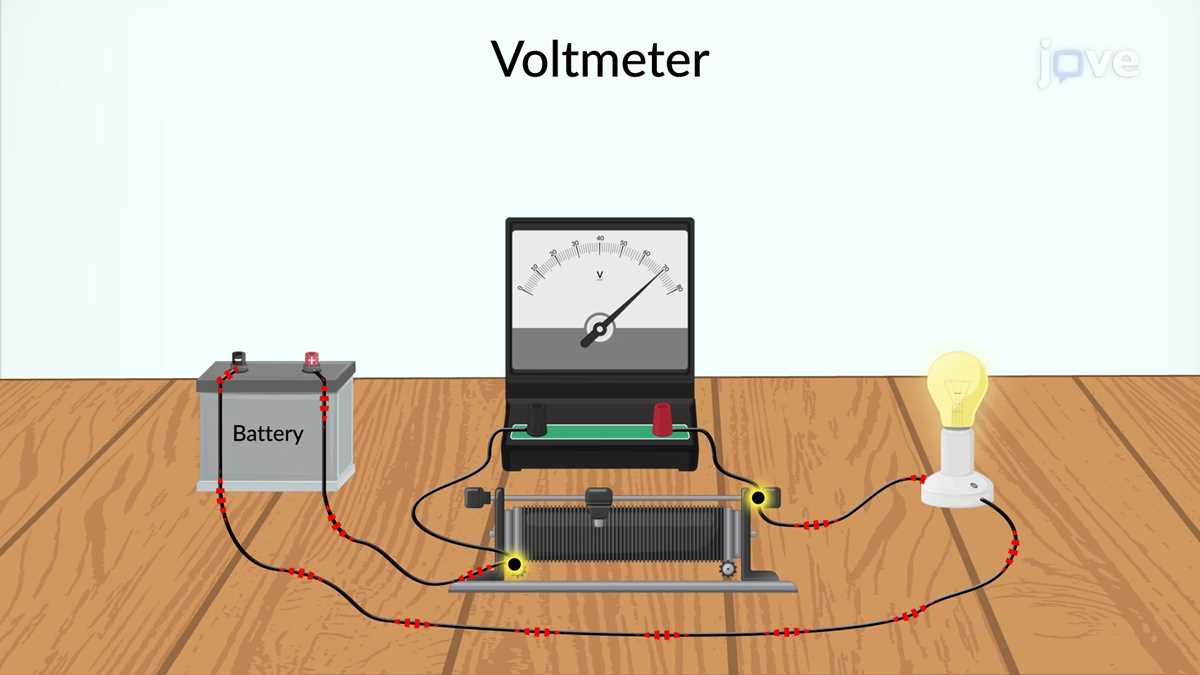

Proper Connection of Voltmeter Across Components

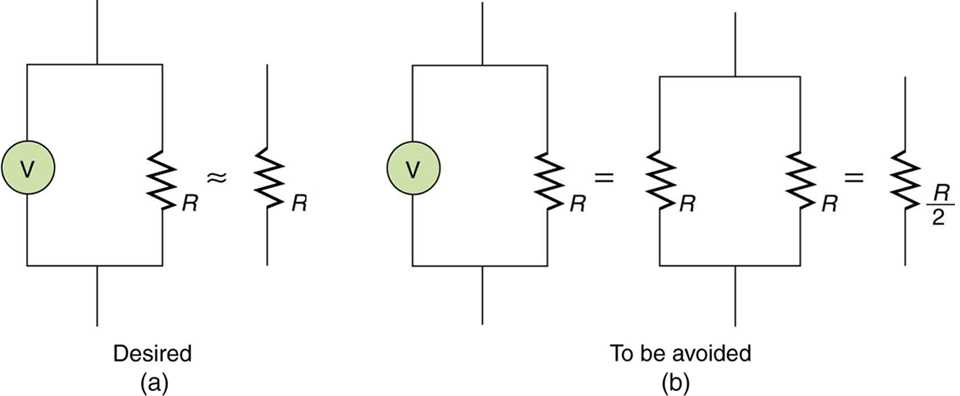

Place the voltmeter in parallel to the element under test to measure potential difference accurately. Its internal resistance must exceed the component’s resistance by at least 100 times to prevent loading effects–most modern meters achieve this with input impedances above 1 MΩ. For low-impedance elements (e.g., power resistors under 1 kΩ), use a meter with an input resistance of 10 MΩ or higher to minimize reading errors.
Connect the positive lead to the node at higher potential and the negative lead to the lower potential node. Reversing the leads inverts the reading, which can damage analog meters designed for unidirectional current. Digital meters typically display a negative value, but polarity reversal adds unnecessary stress to sensitive semiconductor components in the path.
Avoid connecting the voltmeter across a live wire and ground in high-voltage setups unless the meter’s rating exceeds the expected voltage by 20%. Many handheld meters are rated for CAT III 600 V or CAT IV 1000 V–exceeding these limits risks meter failure or electric shock. For mains measurements, use a dedicated isolated meter or differential probe with a bandwidth matching the signal’s frequency.
For transient voltage spikes, enable peak-hold mode if available. Some meters capture values as short as 200 µs, while others require a minimum pulse width of 1 ms. Check the datasheet for the meter’s response time–slow meters average readings, distorting dynamic signals like PWM outputs or relay bounce waveforms.
When measuring across inductive loads (e.g., relays, motors), use a meter with transient protection. Sudden voltage collapses can generate inductive kicks exceeding the meter’s input rating. A meter with built-in TVS diodes (transient voltage suppression) clamps spikes to safe levels, typically ±1000 V for CAT-rated devices.
Select the correct measurement range to avoid overload. Meters auto-ranging above 60 V often have slower response times–manual range selection can improve speed for repetitive measurements. For millivolt signals (e.g., thermocouples), use the lowest range with sufficient resolution; most 4½-digit meters resolve 10 µV on the 200 mV scale.
In noisy environments, enable the meter’s filtering or use an external low-pass filter. A 1 kHz filter attenuates high-frequency switching noise by 20 dB, but increases settling time to 1–3 seconds. For 50/60 Hz rejection, select a meter with dual-slope integration or fast Fourier transform (FFT) capability if analyzing frequency components.
Verify the meter’s calibration before critical measurements. Factory calibration drifts approximately ±0.1% per year for high-accuracy meters; annual recalibration is recommended for ±0.05% tolerance work. For field use, daily zeroing on a shorted input removes thermocouple effects and offset errors.
