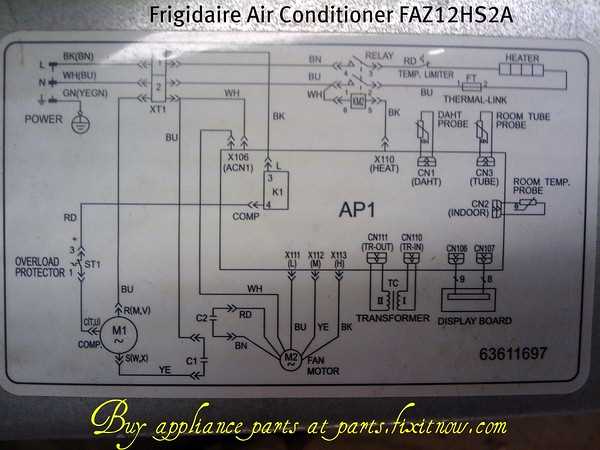

How to Read and Understand a Window Air Conditioner Wiring Schematic Guide

To avoid costly repairs or hazardous conditions, ensure all connections follow the manufacturer’s color-coding strictly. Most compact room coolers use a compressor, fan motor, capacitor, and thermostat as core components, wired in a specific sequence. Before handling any wires, disconnect power at the main circuit breaker to eliminate shock risk.

Begin with the power supply lines: typically black (live) and white (neutral) entering the unit’s control box. The live wire should first pass through a thermal fuse rated for the appliance’s current draw–usually 10–15 amps for standard models. If the fuse is missing or improperly sized, overheating can damage internal parts or create fire hazards.

The run capacitor (often two-terminal, 35–50 microfarads) connects directly to the compressor and fan motor. Incorrect polarity here can prevent startup or cause humming without operation. Verify capacitance with a multimeter; deviations above 10% of the labeled value indicate replacement is needed.

Thermostat wiring varies by model but generally includes two leads: one to regulate cooling cycles, the other sensing room temperature. Some units integrate a defrost control with additional wires (red/yellow) for reversing valve operation in heat-pump variants. Cross-wiring these leads will disrupt temperature regulation and may trigger error codes on digital displays.

Ground connections (green or bare copper) must terminate on the chassis at a dedicated screw–never daisy-chained. Exposed grounding points increase electrocution risk during maintenance or water exposure. After reassembling, test with a non-contact voltage detector before restoring power to confirm absence of residual current.

For troubleshooting, use a clamp meter to measure current draw: compressors should pull 5–8 amps at startup, dropping to 2–4 amps during normal operation. Values outside this range suggest motor faults or refrigerant issues. Keep a spare start relay and overload protector on hand–these fail frequently under voltage fluctuations.

Electrical Connection Plan for Room Cooling Units

Start by identifying the main power supply lines directly feeding the compressor and fan motor–these require separate, dedicated circuits to handle peak loads without overheating. Most single-phase units draw between 7 to 15 amperes, so ensure the wiring gauge matches this demand: 12 AWG for standard residential setups, 10 AWG if the run exceeds 50 feet to minimize voltage drop.

Connect the thermostat control wire (usually a 22 AWG multi-strand copper) to the unit’s internal relay–this small but critical link regulates cooling cycles. Verify the relay’s coil resistance sits between 120–240 ohms; deviations signal potential failure. Avoid daisy-chaining thermostat wires through multiple junctions, as this introduces resistance and erratic temperature control.

Ground the entire assembly to the chassis using a 10 AWG bare copper wire, secured with a star washer to prevent loosening from vibration. Corrosion-resistant terminals (tin-plated or nickel) extend lifespan, especially in humid climates. Test continuity between the ground terminal and the unit’s metal frame–values below 0.5 ohms ensure safety compliance.

Capacitors–both run and start–must match the motor’s microfarad rating (±5%). A failed start capacitor (bulging or leaking) forces the compressor into locked rotor, tripping the overload protector within minutes. Replace capacitors with exact voltage ratings (typically 370VAC for 230V systems) to prevent premature burnout.

Use crimp connectors instead of twist-on wire nuts for high-current connections; they maintain consistent pressure and resist thermal cycling better. Apply dielectric grease sparingly at connection points to prevent oxidation, but avoid overuse–excess grease attracts dust, forming conductive paths that risk short circuits.

Voltage-Specific Considerations

For 115V models, split-phase motors require two power leads (common and start/run) plus a neutral–confirm the neutral is not shared with other appliances to avoid nuisance tripping. In 230V dual-voltage units, verify the correct jumper configuration on the terminal block; reversal here fries windings instantly, as the split-phase motor lacks built-in protection against this error.

Transient voltage suppressors (MOVs) rated at 275VAC absorb voltage spikes from nearby appliances like refrigerators or power tools. Install them across the compressor’s power leads–without them, a single spike (as brief as 1 millisecond) can degrade winding insulation, leading to shorted turns within months.

Label every wire at both ends using heat-shrink tubing or numbered markers. A mislabeled yellow (start) wire connected to the run terminal burns out the motor in under 30 seconds. Cross-reference colors with the manufacturer’s wiring chart–some units use red for start, others reserve it for high-voltage input, and deviations here are unforgiving.

Understanding Critical Parts and Their Visual Representations in Cooling Unit Blueprints

Identify the compressor first–depicted as a circle with two horizontal lines or a labeled rectangle–then trace its connections to the capacitor (a curved line with parallel lines) and thermostat (a zigzag line with switch notation). Verify the routing of thick, double-lined paths for high-current circuits, ensuring they bypass the selector switch (depicted as intersecting lines with arrowheads) to prevent overload. Fan motors appear as shaded circles with internal winding symbols–confirm their supply lines split from the main power input via a dedicated fuse symbol (a small rectangle with a diagonal line).

Reading Control and Safety Elements

Locate the overload protector (a crescent shape with internal arcs) adjacent to the compressor; its placement dictates immediate disconnection under thermal stress. Relay switches (rectangles with internal coil and contact symbols) must show correct polarity–incorrect orientation risks reversing motor direction. Check that pressure sensors (wavy lines intersecting a rectangle) link directly to the control module (a grid of interconnected nodes), not through intermediary components. Ground connections (vertical lines ending in three descending strokes) require unbroken continuity to the chassis–test with a multimeter set to 200Ω.

Step-by-Step Process for Tracing the Power Circuit

Begin by locating the main power input terminal on the unit’s control board–typically marked with L (live), N (neutral), and Ground. Use a multimeter set to AC voltage mode to verify the incoming supply matches the device’s rated voltage (usually 220-240V or 110-120V). Probe between L and N; if readings deviate by more than 5%, inspect the wall outlet or breaker panel for faults before proceeding.

Follow the live conductor from the input terminal to the first safety device, often a fuse or thermal cutoff switch. Test continuity across these components; a blown fuse or tripped breaker interrupts the circuit–replace only with identical amperage ratings. Trace the path further to the capacitor; a failed capacitor (swollen or leaking) disrupts startup–discharge fully before handling by shorting terminals with a 20kΩ resistor.

Identify the compressor’s relay contacts–open the cover if necessary. With power disconnected, manually activate the relay (if mechanical) while checking for smooth engagement. Multimeter tests should show near-zero resistance when closed and infinite resistance when open. A defective relay clicks without engaging; swap with a matching model if faulty.

Examine the thermostat connections. Set the device to cooling mode and measure voltage across the thermostat terminals. Voltage should drop to near zero when the set temperature is reached–if not, the thermostat may be miscalibrated or broken. Calibrate by comparing sensor resistance (often 5-10kΩ at room temp) to manufacturer specs, replacing if readings drift beyond 10%.

Complete the tracing by verifying the fan motor and compressor windings. Disconnect leads and test resistance between each winding terminal; values should match those in the service manual (typically 2-10Ω for compressor windings, 10-50Ω for fan motors). Unbalanced readings indicate internal shorts–replace the motor or compressor if confirmed. Recheck all connections for tightness before restoring power.

How to Pinpoint Electronic Module Linkages and Circuit Traces

Locate the main power input terminals on the control module–these are typically labeled L (live), N (neutral), and G (ground). Use a multimeter in continuity mode to verify each path: probe the terminal while tracing the corresponding conductor back to its origin. For 230V models, expect a white or light-colored wire for neutral and a solid-colored (often brown, red, or black) for live. Ground usually routes to a green-yellow striped wire connected to the unit’s chassis or a dedicated screw.

• Fan motor connections appear as FAN or MOTOR on the module, frequently paired with a capacitor (round, cylindrical component). Follow the twin wires–one to the fan, the other looping through the capacitor–to confirm correct pairing. Incorrect pairing will prevent startup or cause humming.
• Thermistor circuits manifest as thin wires (often blue or gray) leading to a temperature sensor near the evaporator coil. Measure resistance: 5–10 kΩ at room temperature, increasing as the coil cools. A reading outside this range indicates sensor failure.
• Compressor linkages use thick wires, usually labeled COMP or HERM on the module. Trace these to the compressor relay, then to the start and run capacitors. Verify voltage at the relay contacts: 230V across the compressor terminals when active.

Check for fused links or varistors inline with power inputs–these appear as small box-like components soldered near the terminals. Use a magnifier to read markings: F1, F2 for fuses, MOV for varistors. Replace blown fuses with identical ratings (typically 5–10A for window units). Varistors failure results in visible burn marks or a cracked casing.

For signal traces, focus on low-voltage pathways between the microcontroller and peripheral sensors. These paths use thin, multi-strand wires (often white, gray, or purple). Test for 5VDC or 12VDC at sensor connectors–absence suggests a severed trace or faulty module output. Reflow suspect solder joints with a fine-tip iron, targeting cold-solder joints around component legs and edge connectors.
