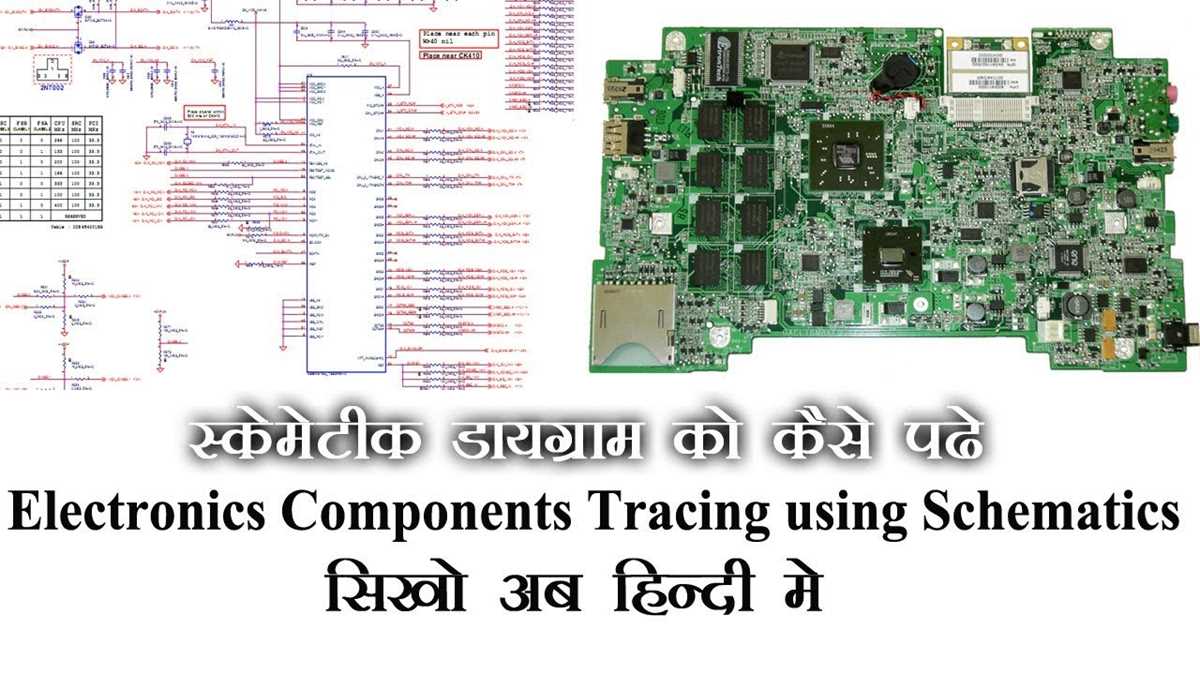

Complete Guide to Reading and Analyzing PC Motherboard Schematic Diagrams

Start by locating the power delivery network on the board layout. Critical components like the VRM (Voltage Regulator Module) require precise tracing–check for mosfets, inductors, and capacitors near the CPU socket. Modern ATX designs typically position these elements along the top-right edge, adjacent to the 24-pin power connector. Verify trace widths: 1 oz copper should handle up to 1.5A/mm²; exceeding this risks thermal failure.

Examine signal integrity paths next. PCIe lanes–especially x16 for graphics–demand controlled impedance (85-100Ω differential). Look for ground plane separation under high-speed traces; vias should maintain at least 0.25mm clearance from adjacent copper. DDR4/DDR5 traces require matched lengths (±2.5mm) to prevent timing skew–refer to the JEDEC standard for exact routing guidelines.

Identify firmware interfaces early. The BIOS/UEFI chip is often an 8-pin SOIC near the PCH (Platform Controller Hub). SPI bus traces should avoid crossing high-frequency sections; if unavoidable, use shielded vias. For debugging, probe the LPC (Low Pin Count) bus–it carries POST codes and is typically exposed on a 7-pin header labeled “TPM” or “SUPERIO.”

Isolate thermal zones last. CPU heatsink mounting points must align with four-layer boards’ copper pours–typically 30-40mm diameter pads. Check for thermal vias under the PCH; AMD and Intel reference designs specify minimum 10 vias per pad for adequate heat dissipation. VRM cooling relies on top-layer copper weight–3 oz is optimal for 250W+ TDP configurations.

Understanding Electrical Blueprints of Main Computer Boards

Start by isolating the power delivery section: examine the voltage regulator module (VRM) circuitry, typically clustered near the CPU socket. Look for designated lines labeled VCORE, VCCSA, or VCCIO–these dictate processor and chipset power distribution. Verify component placement against a reference design: for Intel platforms, expect 8-12 power phases; AMD boards often use 10-14. Check for parallel capacitor banks–low ESR ceramic units near inductors reduce high-frequency noise and stabilize output. Missing or misaligned capacitors cause transient voltage spikes, leading to random reboots or undervoltage lockouts.

Trace signal paths for memory controllers next. DDR4/DDR5 lanes operate at 1.2V/1.1V; confirm traces maintain consistent impedance (typically 34-50 ohms) by ensuring equal length and symmetrical routing. Memory lanes often snake beneath the CPU socket–shorter traces minimize latency but increase EMI susceptibility. Shielding techniques include ground pours and serpentine routing near clocks; deviations cause timing violations. Use a multimeter to verify continuity across address/command/control lines: broken paths manifest as RAM training failures during POST.

Peripheral Interfaces: Hidden Complexities

PCIe lanes demand rigorous inspection: Gen 3/4/5 traces require precise impedance matching–25 ohms for single-ended, 100 ohms differential. Check for AC coupling capacitors (typically 0.1µF) on each lane; their absence prevents link training. SATA ports appear simple but rely on strict 100Ω differential routing–violate tolerance by >5% and drives disconnect intermittently. For USB 3.2 Gen 2×2, look for redrivers or signal conditioners (e.g., TI TUSB546) placed within 5cm of connectors; ignore this and expect CRC errors or failed enumerations.

Embedded controllers (EC) like ITE IT8689 govern fan headers, power buttons, and battery charging. Locate the EC near the Super I/O chip; its firmware processes keyboard inputs, so corrupted EEPROM manifests as unresponsive BIOS menus. Check the 3.3V standby rail–interruptions disable wake-on-LAN or USB power delivery. Thermal sensors (NTC thermistors) connect directly to the EC; misreadings trigger throttling at incorrect thresholds, reducing system stability under load.

How to Interpret Critical Parts in a PCB Blueprint

Identify the power delivery network first by locating the voltage regulator modules (VRMs). Trace the paths from the 24-pin ATX connector to the inductors and MOSFETs–these components step down 12V to lower voltages like 3.3V, 5V, or 1.2V for CPU and RAM. Check for annotations like “VCORE” or “VDIMM” near capacitor banks; mismatched values here indicate potential overcurrent risks. Use a multimeter to verify output voltages match the schematic–deviations above 5% suggest faulty VRMs or dry joints.

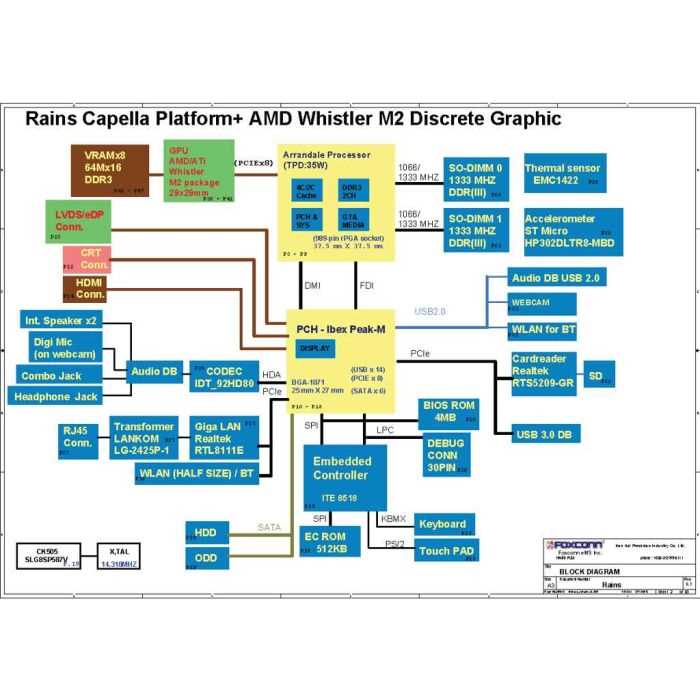

Decode the chipset hierarchy by finding the primary controller hub–typically labeled as “PCH” or “Southbridge.” This block connects peripheral interfaces (SATA, USB, PCIe lanes) and manages data flow between the CPU and slower components. Look for bus widths (e.g., “x16 PCIe”) in thin lines branching from the hub; narrower lanes like x1 limit expansion card performance. Cross-reference pinouts with datasheets–for Intel platforms, the PCH may list “DMI” (Direct Media Interface) linking it to the CPU at 4GB/s bandwidth.

Component Type	Schematic Symbol	Key Checks
Resistor	Rxx (e.g., R501)	Verify resistance matches silk-screened values; ±5% tolerance is standard
Capacitor	Cxx (e.g., C30)	Polarized caps show “+” near the positive terminal;check for ESR specs in datasheet
Diode	Dxx (e.g., D12)	Look for forward voltage drop (typically 0.6V–0.7V for silicon)
MOSFET	Qxx (e.g., Q8)	Gate-source voltage should exceed threshold (Vgs(th)) by 1V–2V for proper switching

Locate the BIOS/UEFI firmware chip–usually an 8-pin SOIC labeled “SPI Flash” or “W25Q128.” The chip’s pinout follows standard SPI signals: CS# (chip select), CLK, MOSI, MISO; ensure these traces are uninterrupted to avoid boot failures. Cross-check the chip’s capacity (e.g., 16MB) with the board’s firmware requirements–undersized chips cause compatibility issues with secure boot or TPM modules.

Trace signal integrity paths by following high-speed lines like DDR4 traces or PCIe lanes. These routes use impedance-controlled traces (typically 50Ω single-ended) and require matched lengths–look for serpentine patterns near the CPU socket or slot connectors. Measure trace widths: DDR4 signals hover around 0.1mm–0.15mm; narrower traces increase crosstalk risk. Termination resistors (e.g., 33Ω) at line ends prevent signal reflections; missing or incorrect values corrupt data transfers.

Verify grounding zones by checking copper pours labeled “GND” or “PGND.” These areas reduce noise and thermal buildup but must connect to all components via vias–ue a continuity tester to confirm no open circuits. Isolated grounding (e.g., analog/digital splits) appears in audio sections; merging these grounds causes hum or distortion. For debugging, probe ground points with an oscilloscope–noise above 50mVpp suggests inadequate filtering or EMI leakage.

Locating Power Delivery Networks on PCB Blueprints

Begin by tracing the main ATX 24-pin connector lines, specifically pins 12V (yellow wires) and ground (black wires). These form the backbone of CPU and VRM (Voltage Regulator Module) circuits. Look for labeled nets like VCC_CORE, VCC_SOC, or VCC_IN–these indicate key power rails. Use a multimeter in continuity mode to verify connections between the 24-pin and nearby power ICs or chokes.

Identify buck converters by locating their signature components: inductors (cylindrical or shielded coils), MOSFETs (often marked with Q or T prefixes), and PWM controllers (e.g., ISL637X, RT88xx). Check the datasheet for the controller IC to cross-reference pin assignments–typically, VIN (input voltage), SW (switching node), and FB (feedback) pins will be labeled. Measure resistance between SW and ground to confirm the presence of an inductor.

• CPU power delivery: Follow 12V rails from the ATX connector to a 4/8-pin CPU aux power connector, then to a multi-phase VRM. Each phase includes a driver IC, high/low-side MOSFETs, and an inductor. Common phases: 6-12 for high-end CPUs, 4-6 for mid-range.
• RAM power: Look for dedicated VRMs near DIMM slots, often using single-phase buck converters with labels like VCC_DDR or VDDQ.
• Chipset/SoC: Trace lines from the 24-pin to smaller linear regulators (AP2112, RT9056) or buck converters near the PCH, marked VCC_PCH.

Examine circuit protection elements like fuses (F prefix), TVS diodes (D prefix), and current-sense resistors (R with low resistance values, e.g., 0.005Ω). Fuses for CPU power are often located between the ATX connector and VRM input–blown fuses indicate overcurrent events. For RAM/SoC rails, check for small SMD fuses near the power ICs.

Decipher feedback loops by locating the FB pin on PWM controllers. This pin connects to a voltage divider (two resistors, e.g., R1=10kΩ and R2=2kΩ) between the output rail and ground. Calculate target voltage using Vout = Vref × (1 + R1/R2), where Vref is typically 0.6V-0.8V (check datasheet). For adjustable rails, potentiometers (R_POT) may replace fixed resistors.

Validate critical paths with an oscilloscope: Probe the SW node of each buck converter phase to observe switching waveforms (100kHz–1MHz square waves). Noise or irregular patterns suggest faulty MOSFETs or insufficient decoupling. Check input/output capacitors (C prefix, e.g., 22μF/25V)–bulk electrolytics near VRMs stabilize voltage, while ceramic capacitors (0.1μF–1μF) filter high-frequency noise near ICs.

Tracing Signal Paths Between CPU, RAM, and Chipset

Start by identifying the memory controller’s physical location on the PCB. In modern systems, it’s often embedded within the processor or the platform hub controller (PCH). Use a multimeter in continuity mode to confirm direct traces between the CPU’s memory interface (e.g., Intel’s IMG or AMD’s SDP lanes) and the DRAM modules. Look for vias tied to the same net, as they indicate a shared signal path.

Examine the signal layers in cross-section. High-speed traces (DDR4/5) typically reside on internal layers (L3-L4) to minimize interference. Low-loss dielectric materials like Megtron 6 or TU-883 are common for impedance control (40Ω single-ended, 80Ω differential). If the design uses striplines, expect ground planes directly above and below the traces; microstrips will have only one adjacent plane.

Pay attention to termination resistors. DDR4/5 signals often require on-die termination (ODT), but some layouts include discrete resistors (22Ω–47Ω) near the DRAM or controller. Measure resistance between signal pads and VTT (usually 0.75V) to confirm proper termination. Missing or incorrect values can cause signal reflections, visible as ringing on an oscilloscope.

• For Intel platforms, the ring bus connects the CPU’s integrated memory controller (IMC) to the PCH via Direct Media Interface (DMI). Trace DMI lanes (x4 PCIe 4.0 equivalent) to validate bandwidth–for desktop chips, expect 4 GB/s per lane; server-grade may use x8 configurations.
• AMD systems use Infinity Fabric (IF) to link the CPU’s memory controller (UMC) and I/O die. Probe the CCX-to-IF interface; IFOP/IFIS signals (serialized at ~16 GT/s) should show a clean eye diagram with <10% jitter. Check for via stitching around the IF traces, as discontinuities disrupt timing.

Decoupling capacitors are critical for signal integrity. Place 0.1µF–1µF caps within 2mm of each DRAM power pin (VDD, VDDQ) and memory controller. Verify their placement against the reference design–missing caps lead to voltage droop during burst transfers, causing bit errors. Use a spectrum analyzer to check for noise above 100MHz, which indicates inadequate decoupling.

Clock signals require special handling. The memory clock (CK_t/CK_c) and strobes (DQS_t/DQS_c) must maintain a 90° phase offset for proper data capture. Use a differential probe rated for 1.2GHz+ to measure skew; ideal skew should be <50ps. If the layout uses fly-by topology (DDR5), ensure stub lengths are minimized to <25mm to prevent signal degradation.

Common Pitfalls in Signal Tracing

1. Ignoring stubs: Branches off the main trace (e.g., to test points) act as antennas, distorting signals. Remove or minimize them.
2. Poor via placement: High-speed signals should use blind/buried vias to reduce capacitive loading. Through-hole vias introduce ~0.5pF each, degrading edge rates.
3. Ground bounce: Ensure solid reference planes with >60% copper fill. Gaps cause return-path discontinuities, increasing crosstalk.
4. Incorrect impedance: Measure trace width–DDR4 typically uses 4–6 mils for 50Ω single-ended. Use a time-domain reflectometer (TDR) to confirm.

For post-layout verification, inject patterns via an FPGA or memory tester. Use PRBS-7 (pseudo-random binary sequence) to detect bit errors. On the oscilloscope, trigger on DQS and verify data valid windows meet JEDEC specs–DDR4 requires >0.3UI (300ps), DDR5 >0.25UI (250ps). If margins are tight, adjust ODT values or retime the clock tree.
