Schumacher Battery Charger Wiring Diagram Schematic Guide and Connections
For optimal performance, connect the primary DC input directly to a 12V power source rated for at least 10A continuous current. Avoid spliced or undersized wiring–use minimum 10 AWG copper cables with heat-resistant insulation to prevent voltage drop under load. The rectifier bridge must handle 50V peak inverse voltage (PIV); replace generic 1N4007 diodes with 1N5408 for enhanced thermal stability during prolonged cycling.
Current-limiting resistors should be non-inductive wirewound types, calibrated to 0.1Ω ±5% for consistent output control. If modifying existing designs, bypass electrolytic capacitors with low-ESR ceramic units (≥10μF) to suppress high-frequency noise. The PWM controller’s feedback loop requires tight coupling between the voltage sense pin and the battery terminals–use shielded twisted pair (≤30cm) to minimize interference from motor-start transients.
Overcurrent protection must integrate a resettable polyfuse (e.g., MF-R110) in series with the positive output. For lithium-based cells, add a balancing circuit with individual cell monitoring (≤3.6V cutoff per cell). Failure to isolate the low-voltage circuitry from the main bus risks ground loops–use optocouplers (e.g., PC817) for signal separation where necessary.
Test final assembly under full load (5A) for ≥ 30 minutes using a precision shunt resistor (0.1Ω) to verify no thermal runaway in passives. Replace stock toggle switches with sealed rocker types (IP67-rated) to prevent contamination. Document every trace width in copper pours–minimum 2 oz/ft² for currents above 3A–to ensure sufficient thermal dissipation.
Understanding Electrical Repair Plans for Automotive Power Units
Verify component compatibility before assembling the circuit. Replace generic 1N4007 diodes with 10A bridge rectifiers for high-current setups. Check transformer secondary ratings–typically 12V–18V AC–matching the intended output amperage (e.g., 6A, 10A, or 20A). Confirm fuse values correlate with primary winding specs: use 2A for 120V inputs and 1A for 240V.
Wire the control board correctly using the following sequence:
- Connect the AC input to the transformer primary side with polarity-agnostic leads.
- Join transformer secondary taps to the rectifier input terminals, ensuring correct phase alignment.
- Attach smoothing capacitors–minimum 2200μF for 12V systems–to the rectifier output, observing voltage tolerance (at least 25V).
- Route DC output through a 15A thermal cutoff switch to prevent overload.
- Connect indicator LEDs via 470Ω resistors for status feedback.
Test individual sub-circuits before full integration. Use a multimeter in continuity mode to validate transformer winding resistance: expect 1–5Ω for primary coils and 0.1–0.5Ω for secondaries. Measure rectified voltage without load; a 12V AC input should yield ~16.8V DC. If readings deviate more than 5%, recheck diode orientation or capacitor connections.
Mount heat sinks on power transistors when modifying older 20A+ models. Apply thermal paste between the regulator and sink, securing with M3 screws. Use 5mm thick aluminum for sinks handling 30W+ dissipation; copper pads may be needed for 50W+ setups. Bolt directly onto circuit board traces or use insulated standoffs if traces carry high current.
Label all wires with heat-shrink tubing coded by function: red/black for DC+, DC–; blue/yellow for AC; white for signals. Install a 10-turn 5kΩ potentiometer for fine output adjustment–set to 50% during initial calibration. Secure loose connections with crimp terminals; avoid solder-only joints in high-vibration environments like automotive workshops.
Document every step with photographs and voltage readings. Keep a logbook noting:
- Transformer secondary voltage (AC, no load).
- Rectified voltage (DC, no load and full load).
- Current draw at 50% and 100% output settings.
- Ambient temperature rise after 30-minute operation.
Store spare 1A slow-blow fuses and 10A MOSFETs (IRFZ44N equivalent) for field repairs. Replace selenium rectifiers immediately if discoloration or sulfurous odor is detected–they degrade unpredictably after 8–10 years.
Key Components of an Automotive Power Supply Circuit

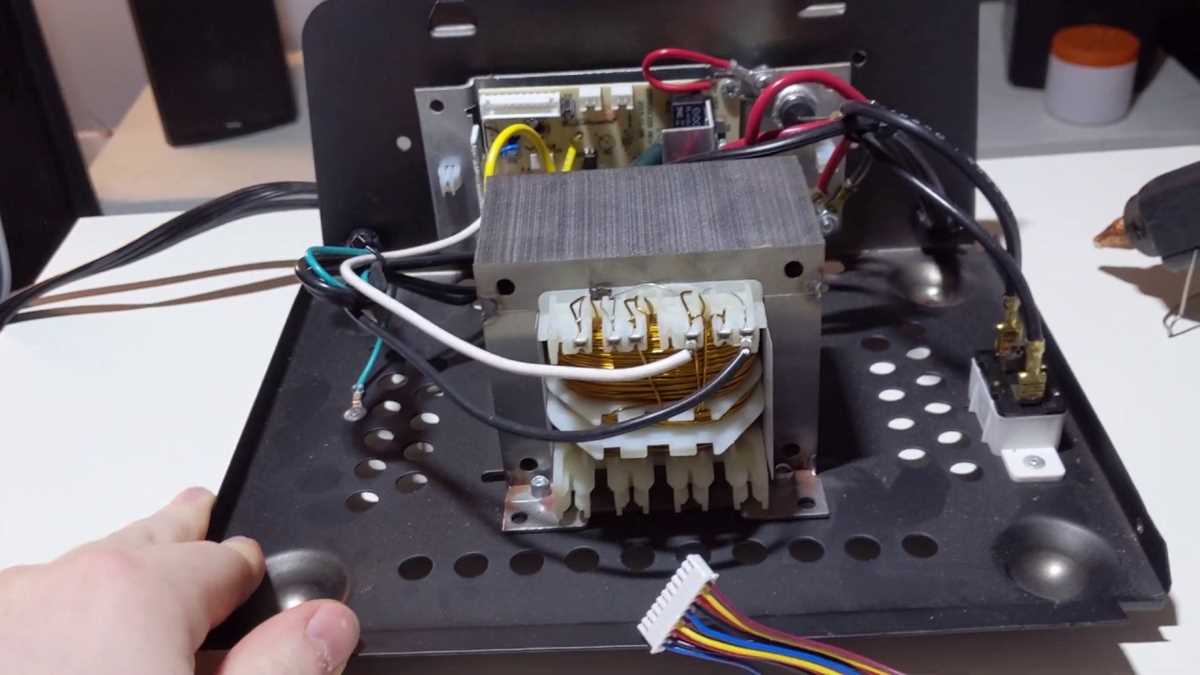

Begin by locating the transformer at the core of the device; it steps down AC voltage from 120V or 240V to a safer 12V-24V range for direct charging applications. Select a toroidal or laminated type with a 50Hz-60Hz rating matching the primary input–avoid undersized units, as they risk overheating under continuous load. Verify the secondary winding outputs at least 1.5-2 times the nominal voltage to compensate for diode drop and load fluctuations.
Rectification relies on a bridge configuration using four discrete diodes or a single integrated module, converting AC to pulsating DC. Silicon diodes rated for 100V reverse voltage and 10A forward current suffice for most 10A models, but upgrade to Schottky types for reduced heat loss in high-efficiency designs. Add a 1000μF 50V smoothing capacitor post-rectification to flatten ripples–undersizing increases stress on downstream components.
Current regulation hinges on a pulse-width modulation (PWM) controller, typically a TL494 or similar IC, paired with a power MOSFET (IRFZ44N or equivalent). The MOSFET must handle 50A surge currents; install it on a heatsink with thermal compound to prevent thermal runaway. Configure the IC’s feedback loop via a 10kΩ trimpot to adjust output between 2A float and 50A boost modes.
Amperage sensing occurs via a low-resistance shunt (0.01Ω 10W) placed in series with the positive output. Voltage across the shunt feeds a comparator (LM358) to trigger overload protection at 110% of rated current. Bypass the shunt with a 0.1μF ceramic capacitor to filter noise from high-frequency switching artifacts.
Reverse polarity protection requires a single MOSFET (IRF1404) in series with the positive output, controlled by a P-channel gate driver. Add a flyback diode (1N4007) across the MOSFET to dissipate inductive spikes during abrupt disconnects. For user feedback, incorporate a dual-color LED: red for charging, green for fully charged, driven by a 2N3904 transistor switch.
Overvoltage safeguards include a Zener diode (15V) across the positive and ground lines, clamping excess voltage to protect sensitive ICs. Pair it with a crowbar circuit–a thyristor (BT151) triggers if voltage exceeds 16V, shorting the output until manual reset. Ensure the thyristor’s gate threshold matches the Zener’s breakdown voltage for synchronized operation.
Thermal monitoring integrates a 10kΩ NTC thermistor mounted on the heatsink, wired to the PWM controller. Set the cutoff at 85°C via the IC’s thermal shutdown pin, ensuring rapid response to prevent component damage. For maintenance, include test points labeled TP1-TP5: AC input, rectified DC, PWM output, shunt voltage, and regulated output for quick diagnostics.
Step-by-Step Power Unit Linking Guide for Popular Devices
Connect the AC input terminals first using 14-gauge stranded copper wire. Most SE models require a polarized plug with the hot lead secured to the brass screw and the neutral to the silver one–verify polarity with a multimeter before energizing. For the DC output, attach the red clamp to the positive terminal ensuring a minimum 6mm clearance from the negative post to prevent arching. Ground the unit’s chassis to a clean metal surface on the vehicle’s frame using a dedicated 10-gauge braided strap if the manual specifies isolation from the battery bank.
Model-Specific Variations
The SC-1200 employs a thermal sensor wired in series with the primary thermal fuse–solder the sensor leads to the PCB pads marked “TH” with 0.5mm diameter rosin-core solder. The SE-5212A’s dual-rate circuit demands a momentary switch for 2A/10A selection; mount the switch through a 12mm knockout and route wires through spiral wrap to avoid pinching near the housing seam. For units with desulfation mode, confirm the feedback loop resistor (typically 1.5kΩ) is within ±1% tolerance before connecting the microcontroller’s ADC pin to avoid erratic pulsing.
After securing all connections, cycle power via the onboard breaker three times without engaging the output to test relay chatter–unusual clicking indicates misaligned contacts requiring adjustment with a non-conductive pry tool. Label each wire with heat-shrink markers matching the board silkscreen; retain 30cm slack for future servicing. For outdoor use, apply dielectric grease to Anderson connectors and torque terminal bolts to 10Nm with a calibrated driver, then wrap each joint in self-vulcanizing tape rated for -40°C to +85°C.
Identifying and Correcting Misconnections in Circuit Layouts
Verify polarity at every junction before energizing the system. Reverse connections, even momentary, can destroy components or create hazardous shorts. Use a multimeter in continuity mode to confirm paths between terminals–measure between the source terminal and its intended destination. If resistance reads near zero but the device fails to operate, check for accidental grounding or cross-talk between adjacent traces. Label each conductor with its function to prevent misrouting during reassembly or repairs.
Pinpointing Flaws in Terminal Assignments
Incorrect pin assignments often stem from misreading reference guides. Compare physical connectors against manufacturer datasheets–many errors occur when assuming standard pinouts without validation. A common mistake involves swapping control signals with power lines, causing erratic behavior or permanent failure. Use a reference table to map each connection:
| Terminal Identifier | Expected Signal | Fault Symptoms if Miswired |
|---|---|---|
| Pin 3 (Control) | Voltage feedback | Unstable output, overheating |
| Pin 5 (Power) | Input supply | No response, blown fuse |
| Pin 7 (Ground) | Reference return | Intermittent operation, noise |
Inspect solder joints and crimped terminals for cold connections–these manifest as voltage drops or intermittent faults. Excess flux residue can corrode contacts; clean surfaces with isopropyl alcohol and a stiff brush. Confirm that strain relief is intact on cables exiting the enclosure; mechanical stress fractures conductors internally long before external signs appear.
Test for unintended loops between high-current paths and sensitive circuitry. A single stray strand bridging a power rail to a logic trace can induce latch-up or permanent damage. Isolate problematic sections by disconnecting sub-circuits sequentially–if faults vanish when a specific module is unplugged, focus diagnostics there. Replace cables with damaged insulation immediately; exposed conductors invite shorts under load.
Calibrate test instruments before use. A misadjusted multimeter or oscilloscope can mislead diagnostics, pointing to phantom issues. Set probes to the correct scale–overvoltage on a low-range setting can damage meters. For switching regulators, verify ripple suppression components; improper values lead to erratic output or excessive electrical noise. Document each corrective action to avoid revisiting resolved faults during subsequent troubleshooting.
