How to Draw and Understand a Basic Series Circuit Example

Connect components in a single continuous loop to ensure uniform current flow through all elements. Use a 9V battery as the power source for small-scale projects–it provides sufficient voltage without risking overload. Place a resistor first in the path to limit current; a 220Ω resistor is ideal for LEDs with a forward voltage of 2V and a current rating of 20mA. Skipping this step will burn out sensitive parts like diodes or microchips.

Arrange lamps or other loads sequentially–current remains identical at every point, but voltage divides proportionally across each component. For example, three identical bulbs sharing 12V will each receive 4V. Measure with a multimeter: probe between the start and end of a single bulb to confirm its share of the total potential difference. Disconnecting any element breaks the entire flow, halting operation instantly.

Label connections clearly using color-coded wires: red for positive, black for negative, and green or yellow for ground. Solder joints for permanence or use breadboard clips for temporary setups–loose contacts cause intermittent failures. Keep wire lengths short to minimize resistance losses (each 1 meter of 0.5mm² copper wire adds ~0.034Ω). Verify total resistance with Ohm’s Law (R = V/I) before powering on to avoid overheating.

Test the setup in stages. Power on, then check each component with the multimeter’s continuity mode–an unbroken path should emit a tone. If a bulb fails to light, swap it with a known working one to isolate the fault. Add a push-button switch at the start of the loop to control power without disconnecting the battery. For safety, include a 1A fuse in series with the power supply to prevent damage from short circuits.

Building a Straightforward Sequential Connection Layout

Connect components end-to-end in a single path to ensure current flows uniformly. Use a battery, resistor, and LED as basic elements–this arrangement guarantees identical amperage through each part. Begin by sketching the layout on paper: mark the positive terminal, trace a line through the resistor, then the LED, and back to the negative terminal. This linear approach prevents parallel branching errors.

Measure voltage drops across each element to verify Kirchhoff’s Voltage Law (KVL). If the battery supplies 9V, the sum of drops across the resistor and LED must equal 9V. Use a multimeter in DC voltage mode, probing each component’s terminals while powered. Deviations indicate incorrect resistance values or faulty connections–recheck solder joints or wire twists.

• Battery (power source, 1.5V–12V typical)
• Resistor (220Ω–1kΩ for LED protection)
• LED (forward voltage ~2V–3.3V)
• Switch (optional, for on/off control)
• Wires (solid core for durability)

Calculate resistor value using Ohm’s Law: R = (V_source – V_LED) / I. For a 9V source and 20mA LED current, R = (9V – 2V) / 0.02A = 350Ω. Round up to the nearest standard value (330Ω or 470Ω). Higher resistance dims the LED; lower risks burnout.

Troubleshooting Sequential Loops

If the LED stays dark:

1. Confirm polarity–LEDs only conduct in one direction.
2. Test continuity with a multimeter–disconnected wires break the loop.
3. Check resistor value–incorrect values alter current flow.
4. Inspect the power source–dead batteries halt the entire chain.

Avoid exceeding component ratings. LEDs typically handle 20mA–30mA; resistors dissipate P = I²R watts. A 0.25W resistor (common) at 20mA and 350Ω dissipates 0.02² * 350 = 0.14W, safely under its limit. Exceeding this risks overheating–replace with a higher-wattage resistor if necessary.

Expand the arrangement by adding more elements: another resistor increases total resistance, reducing current; a second LED in sequence halves brightness (assuming identical forward voltages). Keep total resistance below V_source / I_min to maintain functionality. For example, two 2V LEDs in a 9V loop leave 5V for the resistor: R = 5V / 0.02A = 250Ω (use 220Ω standard).

Creating a Straightforward Sequential Electrical Path: A Practical Guide

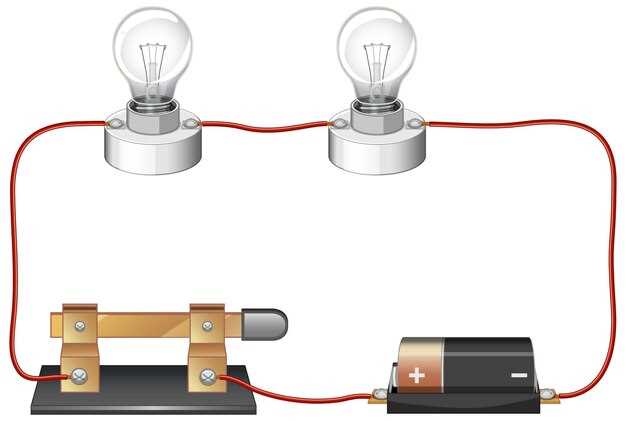

Begin by gathering the necessary components: a power source (battery), conductive wires, at least two resistive elements (resistors or bulbs), and a switch. Lay them out on a flat surface in the exact order you plan to connect them–sequential placement ensures clarity before committing to connections. For precision, use pre-stripped wires or strip approximately 1 cm of insulation from each end yourself.

Sketch a rough layout on paper first. Align the battery at one end, followed by the first resistor, then the second, and finally the switch–ending the path back at the battery’s opposite terminal. This closed loop ensures current flows through every element without branching. Label each part (e.g., “Battery +,” “Resistor 1,” “Switch”) to avoid confusion during assembly.

• Connect the positive terminal of the battery to one end of the first resistor using a wire.
• Attach the other end of that resistor to the next resistive element.
• Link the second resistor’s free end to one terminal of the switch.
• Complete the loop by connecting the switch’s remaining terminal back to the battery’s negative terminal.

Verify each connection by gently tugging the wires–secure contact prevents intermittent failures. If using bulbs, check for illumination; if using resistors, a multimeter set to continuity mode should confirm a closed path. For prototyping, breadboards simplify adjustments–insert components in adjacent rows to mimic direct connections.

Common Mistakes to Avoid

1. Loose contacts: Even slight gaps disrupt current flow. Press connectors firmly or solder joints for permanency.
2. Incorrect polarity: Batteries must align positive-to-negative. Reversed polarity can damage components.
3. Overloading: Ensure resistive elements match the power source’s voltage. Exceeding limits risks overheating.
4. Skipping the switch: Without it, the path stays live, wasting energy. Always include a control mechanism.

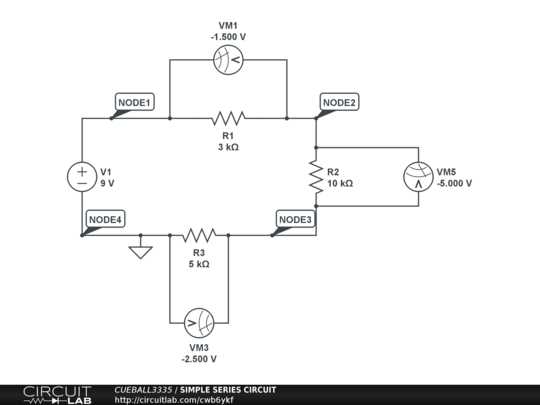

Document the final arrangement with a clear schematic using standard symbols: a long line for the battery’s positive terminal, zigzags for resistors, and a break in the line for the switch. Label each symbol (e.g., “R1 = 220Ω”) to standardize future reference. For durability, trace the layout on dotted PCB boards or solder connections permanently.

Essential Parts for a Basic Sequential Electrical Path

Start with a reliable power source–batteries rated at 1.5V to 9V work best for low-current setups. Match the voltage to the load requirements; exceeding capacity risks overheating small components. Alkaline cells last longer than zinc-carbon, making them ideal for prototypes testing multiple connections. Always verify polarity before attaching leads to prevent reverse current damage.

Select conductive wires with a gauge between 18 and 22 AWG for most setups. Copper strands offer lower resistance than aluminum but corrode faster; tin-plated copper resists oxidation better. Solid-core wires hold shape in fixed arrangements, while stranded types flex easily for temporary builds. Pre-cut segments to length to minimize waste and reduce short-circuit risks during adjustments.

Resistive Elements and Their Roles

Fixed resistors (¼-watt carbon film) handle currents up to 200mA safely–calculate values using Ohm’s law before insertion. Potentiometers allow adjustable resistance but introduce fragility; use sealed models for environments with vibration or dust. Light-emitting diodes need current-limiting resistors (220Ω–1kΩ) to prevent burnout. Verify forward voltage drop specifications for LEDs to avoid inconsistent brightness.

Switches determine flow interruption points–slide types suit breadboard testing, while rocker designs fit permanent installations. Single-pole single-throw variants suffice for basic loops; more complex paths may require double-throw configurations. Choose switches with contacts rated for at least 125% of expected current to prevent arcing. Always position switches after the power source for consistent control over the entire arrangement.

Solderless breadboards accelerate prototyping by eliminating permanent joins, but connections loosen under mechanical stress. For durable builds, use perforated boards with through-hole plating and solder joints. Apply flux before soldering to improve wetting and reduce cold solder defects. Inspect joints under magnification to detect hidden bridges that could create unintended parallel paths.

Avoiding Pitfalls in Sequential Electrical Linkages

Neglecting resistance calculations leads to unexpected voltage drops. Each component in a closed loop must have its impedance accounted for–omitting even one resistor alters current flow unpredictably. Use Ohm’s law (V = I × R) before assembling, not after failures occur. A 100Ω resistor paired with a 50Ω one may seem harmless, but the mismatch forces disproportionate energy dissipation, risking overheating.

Overloading a single path causes cascading failures. Components like LEDs tolerate specific milliamp ranges; exceeding these limits burns them out. A 20mA LED paired with a 9V source needs a current-limiting element (e.g., 470Ω resistor) to prevent surges. Ignoring this invites melted traces on PCB layouts or blown bulbs in homemade setups.

Loose connections create intermittent faults. A single poorly crimped wire or oxidized terminal introduces resistance, skewing measurements. Tin stranded wires before inserting them into screw terminals to ensure solid contact. Multimeters often misdiagnose these as “open loops” when, in fact, the issue lies in poor mechanical bonds.

Incorrect Polarity Sequencing

Connecting elements without respecting directional flow damages sensitive parts. Diodes and batteries demand specific anode-cathode alignment; reversing them blocks current or destroys components. Label leads before soldering–red for positive, black for negative–to avoid confusion. A reversed 1N4001 diode in a string of three will drop the entire 12V input across itself, exceeding its 1V forward voltage rating.

Mismatched voltage ratings across elements disrupts functionality. A 6V bulb paired with a 12V source burns brightly for seconds before filament failure. Calibrate all parts to the system’s lowest-rated component, then adjust with resistors or voltage dividers. Verify specs against datasheets, not assumptions.

Skipping continuity checks wastes hours of debugging. Test each segment individually before final assembly. A buzzer set to 1kHz may appear silent if a solder joint broke mid-chain. Probe between nodes with a multimeter; a beep confirms integrity, silence reveals a break. Document each step to isolate failures swiftly.
