Easy Chevy 350 Starter Wiring Guide with Diagram for Beginners
Connect the battery cable directly to the solenoid’s top post–this ensures immediate power without unnecessary resistance. The secondary wire from the ignition switch should attach to the smaller terminal, marked “S” on most GM solenoids. Verify wire gauge: 10 AWG for the battery lead, 12 AWG for the ignition input. Corrosion at these junctions causes intermittent failure; clean terminals with a wire brush and apply dielectric grease before reconnecting.
Ground the engine block to the chassis using a dedicated 4 AWG strap. Avoid relying on bellhousing bolts–these often loosen, creating voltage drops. For vehicles with remote solenoids, route the main power cable through a fusible link (8 AWG) positioned within 18 inches of the battery. This prevents fire hazards from short circuits. Test continuity with a multimeter: solenoid resistance should read 0.2–0.3 ohms; higher values indicate worn internal contacts.
Use a relay for heavy-duty applications, connecting its coil side to the ignition switch “S” terminal and the contact side in parallel with the starter motor. This reduces load on the ignition circuit. For GM HEI distributors, the solenoid’s “R” terminal (if present) powers the ignition coil during cranking–insulate this wire with heat-resistant sheathing to prevent chafing against exhaust components. If the engine cranks slowly, check for voltage drop: measure across the battery terminals while engaging the starter; readings below 10V suggest weak battery or faulty connections.
Label all wires with heat-shrink tubing before final assembly. Route harnesses away from moving parts and sharp edges, securing with nylon ties every 8–10 inches. Replace any frayed or brittle insulation immediately–exposed copper corrodes quickly in engine bays. For vehicles with manual transmissions, ensure the neutral safety switch is wired in series with the ignition input; automatic transmissions require a properly adjusted park/neutral interlock. Failure to correct these details risks unintended starter engagement, damaging the flywheel teeth.

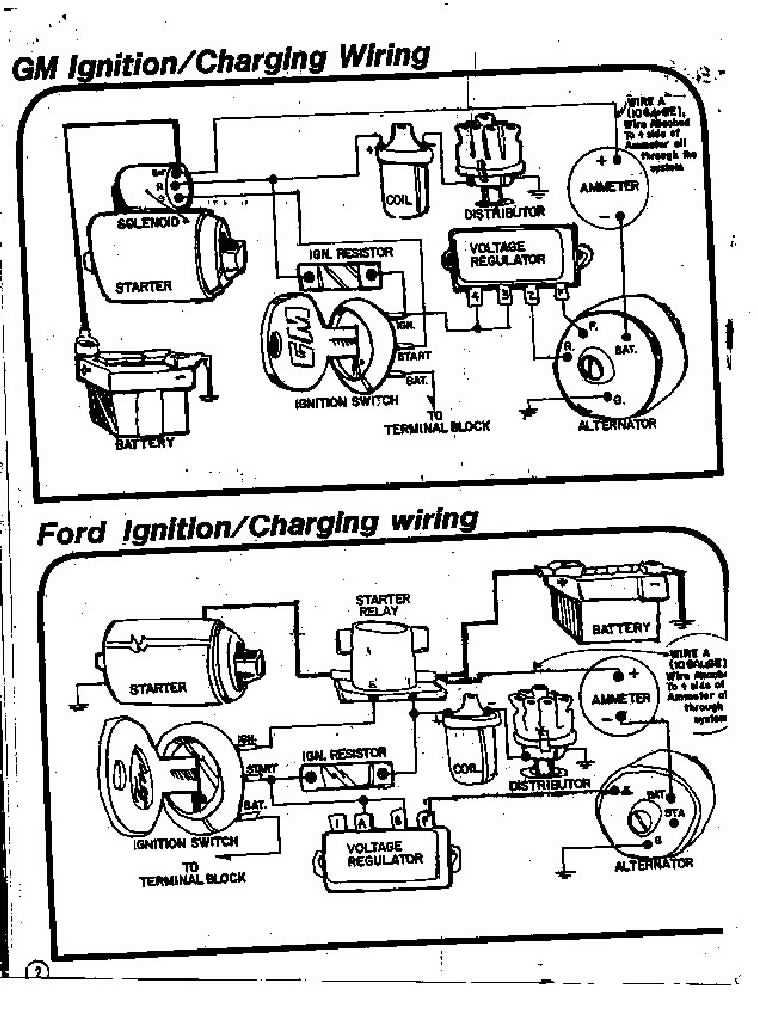

GM Small-Block Ignition Circuit Guide for Beginners
Locate the battery’s positive terminal and connect an 8-gauge red cable directly to the solenoid’s top post–avoid thinner wires that can overheat under 200-amp draw. Ensure the ring terminal is crimped and soldered for a vibration-proof connection, as factory crimps often corrode after 3-5 years.
Run a separate 10-gauge purple wire from the ignition switch’s “S” terminal to the solenoid’s smaller trigger post–length should not exceed 12 feet to prevent voltage drop. Add an inline 30-amp fuse within 7 inches of the switch to protect the circuit from shorts caused by chafed wires near the exhaust manifold.
Ground the engine block to the chassis using a braided 4-gauge strap–clean both contact points with a wire brush and apply dielectric grease to prevent oxidation. Avoid relying on the transmission or bellhousing bolts, as paint or sealant can create intermittent resistance exceeding 0.5 ohms, leading to slow cranking.
For dual-battery setups, use a heavy-duty relay (Cole Hersee 44500 or equivalent) to isolate the starting circuit–this prevents parasitic drain during long-term storage. Wire the relay’s coil to the ignition switch’s “R” terminal and the contacts to the auxiliary battery’s positive post, ensuring the main battery remains dedicated to the cranking motor.
Test solenoid operation by bridging the large and small posts with a screwdriver–if the motor engages but the engine doesn’t turn, inspect the starter drive’s Bendix gear engagement or flywheel ring gear teeth, focusing on the 3 o’clock position where wear is most common.
Locating Critical Elements in Small-Block V8 Ignition System Circuits
Begin by tracing the solenoid input terminal–a heavy-gauge post typically marked “S” or “50” on the Bendix housing. This connection carries the activation signal from the ignition switch and must link directly to a 14-16 AWG wire, often insulated with red or purple sheathing. Verify the terminal isn’t corroded; clean with a wire brush if oxidation is present, as resistance here causes delayed engagement.
- Battery feed: The large post labeled “B” or “30” delivers full voltage from the positive battery cable. Use 4-6 AWG copper wiring with crimped ring terminals; aluminum wire requires dielectric grease to prevent galvanic corrosion. Check for 12.6V+ with a multimeter before startup.
- Ground strap: Locate the engine-to-chassis bond near the mounting flange. A minimum 4 AWG braided strap ensures proper return path; bolts must be torqued to 18-22 ft-lbs to avoid intermittent faults.
- Neutral safety switch: On automatics, this inline connector interrupts the circuit unless in Park/Neutral. Test continuity with the shifter engaged; replace if resistance exceeds 0.5 ohms.
Inspect the flywheel ring teeth under the lower bellhousing cover. Missing or chipped teeth create a telltale metallic grinding during cranking–replace the flexplate if damage spans more than three adjacent teeth. For manual transmissions, confirm the clutch safety switch isn’t bypassed; even slight pedal travel misadjustment leads to premature solenoid wear.
Step-by-Step Guide to Connecting the Power Source Cable to the Motor Solenoid
Disconnect the vehicle’s negative terminal first–this prevents accidental sparks near fuel lines or other live circuits. Use a 10mm wrench to loosen the clamp, then twist the cable free and secure it away from the battery post. Verify the terminal is clean; corrosion buildup can cause poor conductivity. If present, scrub with a wire brush and baking soda solution, then rinse with water and dry thoroughly before proceeding.
Trace the thick positive cable from the battery to the solenoid–it should be 4-gauge or thicker. Inspect for fraying, cracks, or heat damage; replace if compromised. The solenoid’s larger terminal (typically marked “B” or “BAT”) receives this cable. Slide a ring terminal over the solenoid post, ensuring it sits flush against the mounting surface. If the existing hardware is corroded, replace it with a stainless steel bolt, nut, and washer (M8 or ¼” thread, depending on the motor model).
| Tool/Material | Specification | Purpose |
|---|---|---|
| Wrench set | 10mm, 13mm, adjustable | Loosening/tightening terminals |
| Wire brush | Stiff brass or steel bristles | Cleaning corrosion |
| Ring terminal | 4-gauge, tin-plated copper | Ensuring solid connection |
| Dielectric grease | Silicone-based | Preventing future corrosion |
Apply dielectric grease to both the solenoid post and the ring terminal before attaching. This repels moisture and reduces oxidation. Position the ring terminal over the post, align the washer, then thread the nut by hand to avoid cross-threading. Use a wrench to tighten until snug–over-torquing can strip threads. For a V8 engine, torque to 12–15 ft-lbs; for inline-six variants, 8–10 ft-lbs is sufficient. Double-check the connection by gently tugging the cable; it should not rotate or slide.
Reconnect the negative terminal last. Before doing so, ensure no tools or conductive materials bridge the battery posts. Crank the ignition briefly to confirm engagement–listen for a sharp click from the solenoid. If relay chatter occurs, inspect the cable for loose fits or internal breaks. For vehicles with aftermarket ignition systems, verify the positive lead isn’t grounded elsewhere; stray currents can trigger false engagement or fuse blowouts.

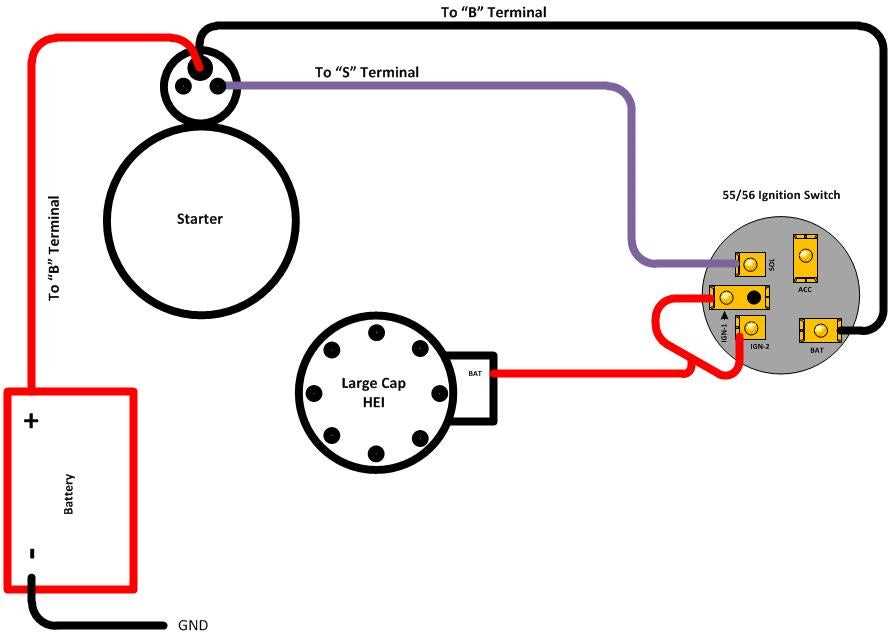

Connecting the Ignition Switch to a GM Small-Block Engine Solenoid
First, identify the two primary terminals on the solenoid: the Battery (+) post (thickest wire) and the S (Start) terminal (smaller, typically marked). Cut an eight-gauge insulated wire to a length matching the distance from the ignition switch to the solenoid–no shorter than 40 cm, no longer than 90 cm to prevent voltage drop.
Strip 6 mm of insulation from both ends of this wire. Crimp a ring terminal onto one end, then secure it tightly to the solenoid’s S terminal using a 10 mm socket. Ensure the connection is snug; a loose joint can cause intermittent starting failures due to arcing.
The opposing end attaches to the ignition switch’s Start terminal. Most switches have two spade connectors–one for Run, one for Start. Verify the correct terminal by tracing the factory harness or consulting the switch’s datasheet (common part numbers: AC Delco D3041 or Standard Motor Products S611).
Route the wire away from moving parts, exhaust manifolds, and sharp edges. A convoluted path through the firewall grommet often works, but keep bends gradual–no tighter than a 40 mm radius–to avoid damaging the conductor. Secure the wire every 15 cm with black nylon zip ties, avoiding metal clips that can chafe the insulation over time.
Test the circuit with a multimeter before finalizing. With the ignition off, check for continuity between the switch’s Start terminal and the solenoid S terminal–resistance should be under 0.5 ohms. Then, measure voltage at the S terminal while cranking: it must match battery voltage (±0.3 V) for reliable engagement. If readings deviate, inspect for corroded connectors or broken strands inside the wire.
For vehicles with automatic transmissions, integrate a neutral safety switch into this circuit. Locate the switch on the transmission housing (usually a two-wire plug near the shift linkage), then splice its output into the wire leading to the solenoid. Use solder and heat-shrink tubing for this joint–crimps can loosen under vibration, risking a “no-start” condition at highway speeds.
Final verification: Start the engine five times consecutively, allowing 30 seconds between attempts. If the starter engages smoothly each time, the connection is sound. If not, disconnect the battery immediately and recheck every joint–even a minor misstep can drain a fully charged battery in under an hour or damage the solenoid’s internal contacts.
