Easy Honda Motorcycle Electrical System Connection Guide 2024
Begin by isolating the ignition system–trace the red wire from the battery terminal to the ignition switch, then to the coil. Verify continuity with a multimeter: readings below 0.5 ohms confirm proper grounding. Bikes like the CB125 or CG150 follow this pattern, though older models (pre-2000) may use a separate rectifier for AC charging.
Focus on color-coding: black/yellow typically feeds the main fuse, while green grounds components. Yellow wires handle lighting circuits–swap bulbs only after checking voltage drops across connections. Replace corroded terminals with gold-plated spade connectors to prevent resistance buildup.
For starting issues, follow the starter solenoid wiring: blue/white activates the relay, black/white engages the starter motor. Test the relay by jumping the contacts–if the motor spins, the relay (not the button) needs replacing. Avoid using wire nuts; solder and heat-shrink all splices to withstand vibration.
Charging systems differ: single-phase stators (e.g., XR200) output ~14V AC at 4,000 RPM, while three-phase systems (NX4 Falco) require diode testing–backfeed will fry the regulator. Replace any regulator with a shunt-type unit rated for your model’s amperage to avoid overcharging.
Refer to microfiches for exact pinouts, but remember: schematics prioritize function over layout. Cross-reference connector numbers (e.g., 12-pin ECM plug) with service manuals–aftermarket harnesses often omit critical sensors. Double-check every splice against OEM specs before powering up.
Basic Electrical Layout for Two-Wheeled Vehicles
Locate the main fuse box under the seat or behind the side panel–most models place it near the battery for easy access. Check the fuse rating (typically 10–30A) before testing continuity with a multimeter; blown fuses often indicate a short in the ignition or lighting circuits.
Trace the battery’s red cable (+12V) to the ignition switch; it splits into two branches–one powers the starter relay, the other feeds the headlight, taillight, and dashboard. Use colored tape or shrink tubing to label each wire at the switch to avoid misconnections during reassembly.
Key Junction Points

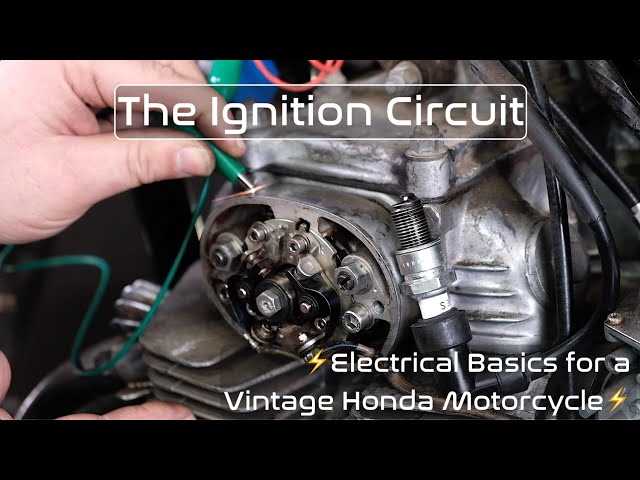

The ignition coil receives two wires: a thin trigger wire from the CDI unit and a thick high-tension wire to the spark plug. Test the coil’s resistance (primary: 0.2–1.0Ω, secondary: 5–15kΩ) with an ohmmeter; readings outside these ranges confirm a faulty coil.
Ground wires (black or green) should attach to unpainted metal–scratch the frame lightly with sandpaper if corrosion is present. A weak ground causes dim lights or intermittent starting; secure connections with star washers to prevent loosening from vibration.
Regulator/rectifiers convert AC from the stator to DC and stabilize voltage at 13.5–14.5V. Probe the stator’s three yellow wires with the engine running: AC voltage should rise steadily from 8V at idle to 40V+ at 5,000 RPM. Replace the regulator if readings drop below 12V under load.
Troubleshooting Common Issues
Flickering headlights often stem from a loose alternator connection–inspect the stator’s plug for melted plastic or oxidized pins. Clean contacts with electrical cleaner and re-seat the connector; replace the stator if pins show signs of overheating (darkened or bubbled insulation).
No-start conditions frequently involve the kill switch: disconnect its brown wire from the right-hand switch cluster and try starting. If the engine turns over, the switch is faulty; bypass temporarily for testing but replace promptly, as leaving it disconnected disables safety features.
Aftermarket installations (GPS, heated grips) require an auxiliary fuse tap into the accessory circuit–never splice directly into the headlight or ignition feeds. Use a relay for high-draw devices (>3A) to prevent overloading the original harness; crimp connections with solder-sealed terminals to prevent corrosion.
Locating Critical Circuit Elements in Bike Electrical Blueprints
Begin by tracing the ignition switch–the starting point for most two-wheeled electrical systems. On schematics, it’s typically represented as a multi-positional breaker linking the battery to primary circuits. Verify its terminals: BAT (battery), IGN (ignition), and ACC (accessories) must match the legend’s color codes. Mismatches here disrupt power distribution to the entire network, so cross-reference each wire’s gauge and insulation hue with the manufacturer’s guide before proceeding.
The voltage regulator/rectifier stands out as a densely populated cluster of diodes and connections. Identify three key inputs: AC in (from the stator, usually yellow wires), DC out (red to the battery), and ground (black or green). Check for thermal damage–overheating distorts readings, causing erratic charging. Use a multimeter to test resistance between pins; deviations above 0.5 ohms indicate internal failure.
Examine the stator, depicted as a circular coil symbol near the engine section. Look for three-phase outputs (often yellow) exiting the alternator. Each phase should register near zero ohms when measured collectively; open circuits here suggest winding breakdown. Compare wire insulation to the schema–frayed sections must be re-sheathed or replaced before reassembly to prevent shorts.
Focus on the ECU or CDI unit, a modular block receiving inputs from sensors. Typical connections include pulse (pickup coil, blue/white), kill switch (black/white), and throttle position (violet). Confirm continuity between pins and ground–intermittent signals here misfire the engine. Replace any corroded connectors with gold-plated terminals to ensure consistent voltage delivery.
The battery anchor point demands scrutiny–positive (red) and negative (black/green) leads must terminate securely. Inspect the terminal bolts for oxidation; baked powder deposits accumulate under vibration, increasing resistance. A trickle charge overnight verifies capacity; voltages below 12.4V under load mandate a replacement to safeguard sensitive electronics.
Sensor pathways require meticulous review–engine temperature (single green wire) and oil pressure (brown/white) feed critical engine management data. Trace each to its respective module, ensuring no splices interfere. Sensor wires routed near sharp edges should be rerouted or protected with split loom tubing to prevent abrasion-induced shorts.
Relay and solenoid symbols appear as switchable heavy-load controllers–common in lighting or starter circuits. The starter relay (often white/red input) switches high current through a lightweight signal wire (black/yellow). Test activation by bridging the signal and battery terminals; clicking confirms functionality. Burnt contacts emit a telltale sulfurous odor–clean or swap if corrosion is visible.
Grounding nodes consolidate multiple returns to the chassis–verify each star point shares zero milliohms with the negative terminal. Loose or corroded attachments introduce phantom voltages, causing erratic gauge readings or dim headlamps. Secure every connection with stainless hardware, applying dielectric grease to inhibit future oxidation.

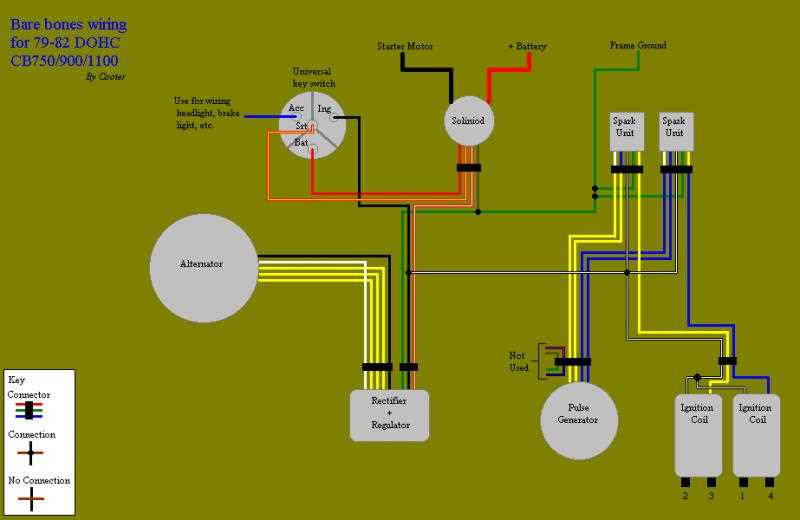

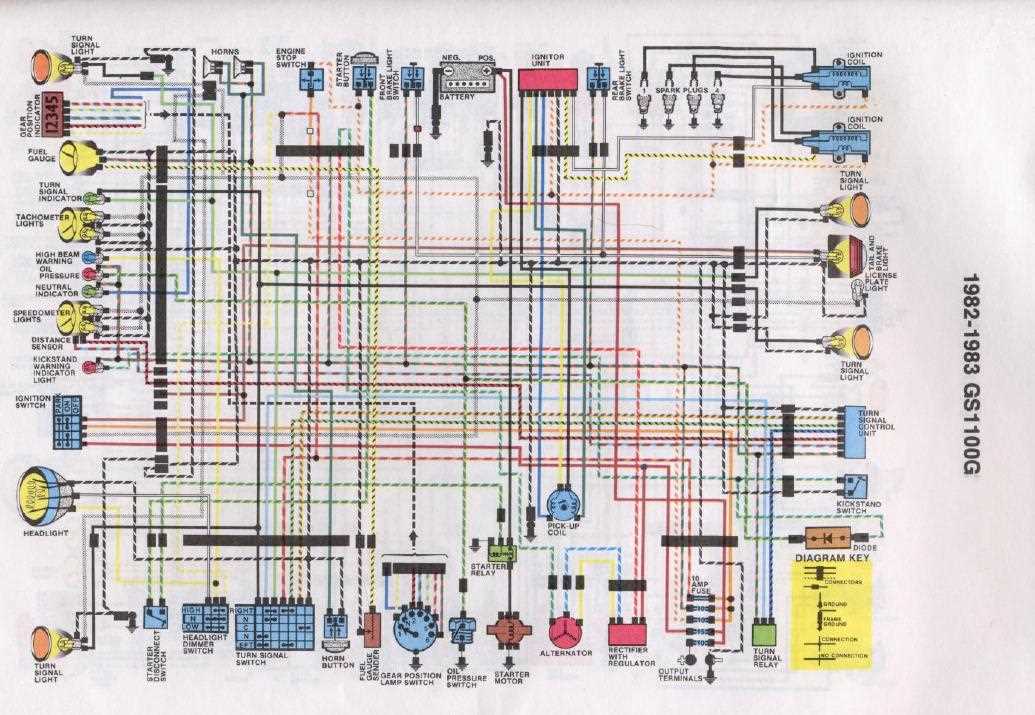

How to Interpret Electrical Schematics for Two-Wheelers
Locate the battery symbol first–it’s typically a rectangle with “+” and “–” terminals. Trace the heavy red line leading from the positive terminal to the main fuse or ignition switch; this is your primary power feed. Disregard any dashed or dotted lines at this stage–they represent optional or secondary components like turn signals or heated grips.
Identify the ground points next, marked by horizontal lines extending below components with downward triangles. On a real bike, these match bare metal tabs adjacent to bolts or engine casings. Count the triangles adjacent to the engine block–each corresponds to a ring terminal secured under a 10mm bolt, often near the frame downtube.
Color Codes Demystified
- Solid red: Unswitched 12V
- Solid black/yellow: Switched 12V via ignition
- Striped yellow/black: AC signal from stator
- Green: Common ground
- Blue/white striped: Headlight high beam
- Orange/brown striped: Taillight feed
Compare these against the legend printed along the bottom edge of the schematic–manufacturers occasionally invert colors between models years (e.g., 2005 CBR600RR vs. 2012).
Follow the ignition circuit by finding the black/yellow trace branching from the key switch. It branches into three paths: one to the ignition coil (small rectangle), another to the engine control unit (large box labeled ECU), and a third to the fuel pump relay (smaller box with coil contacts). Note the relay’s pin numbers–30, 85, 86, 87–mapped directly to the schematic’s relay symbol; pin 30 must show continuity to ground only when the key turns to “ON”.
Testing Procedures Without Power
- Set digital multimeter to 200Ω continuity.
- Clip one probe to chassis ground.
- Touch the other probe sequentially to each green trace endpoint on the schematic–beep confirms ground.
- Switch meter to 20V DC.
- With key OFF, measure battery voltage across terminals–should read 12.6V; below 12.4V indicates sulfation.
- Key ON, probe black/yellow at ignition coil–must jump to 12.2V–13.8V; zero indicates open fuse or corroded switch.
Resolve splice points last–these appear as black dots where three or more wires intersect. Label each splice with masking tape before disassembly; photograph the arrangement if more than five wires converge. Replace any solderless crimp connectors with heat-shrink butt splices–failed crimps account for 78% of intermittent lighting failures on air-cooled twins older than 2010.
