How to Build a Basic LDR Light Sensor Circuit Step by Step
Start with a photoresistor rated between 5 kΩ and 10 kΩ in ambient light–this ensures sufficient sensitivity without requiring high-precision components. Connect one terminal to a 5V power rail and the other to a 10 kΩ pull-down resistor leading to ground. The junction between the photoresistor and pull-down resistor serves as your output node, delivering a voltage swing of approximately 0.5V (dark) to 4.5V (bright), ideal for direct microcontroller input without additional conditioning.
For stability, use a 0.1 µF ceramic capacitor across the photoresistor terminals to filter high-frequency noise, particularly in environments with fluorescent or PWM-controlled lighting. If linearity matters, replace the pull-down resistor with a 100 kΩ potentiometer and calibrate until the output voltage tracks light intensity smoothly between 10 lux (dim room) and 1000 lux (direct sunlight). Avoid lengthy traces–keep the photoresistor and load resistor within 2 cm of each other to minimize parasitic capacitance.
Avoid common pitfalls: photoresistors respond slowly (tens of milliseconds), so sample at ≤10 Hz for reliable readings. If the ambient light fluctuates rapidly, add hysteresis by inserting a Schmitt trigger (e.g., 74HC14) between the output node and your processing unit, ensuring clean, noise-resistant transitions between light states. Test the setup with both incandescent and LED bulbs–their spectral differences can shift sensitivity by ±15%, requiring separate calibration curves for each.
Building a Basic Light-Sensing Schematic
Start with a cadmium sulfide photoresistor–its resistance drops under brighter conditions, making it ideal for detecting ambient illumination. Pair it with a 10kΩ resistor in a voltage divider configuration to translate light intensity into measurable voltage changes.
Connect the photoresistor to a 5V power supply, grounding one leg while routing the other to an analog input pin on a microcontroller like an Arduino or ATtiny. The resistor should bridge this node to ground, ensuring a stable reference for accurate readings.
For consistent performance, calibrate the sensor’s output by logging values in total darkness and direct light. Adjust the resistor value if the voltage swing is too narrow–lower resistance widens the range, while higher values sharpen sensitivity to faint light shifts.
Avoid placing the sensor near heat sources or fluctuating currents, as thermal drift distorts readings. If noise becomes an issue, add a 0.1µF ceramic capacitor between the signal node and ground to filter high-frequency interference without delaying response time.

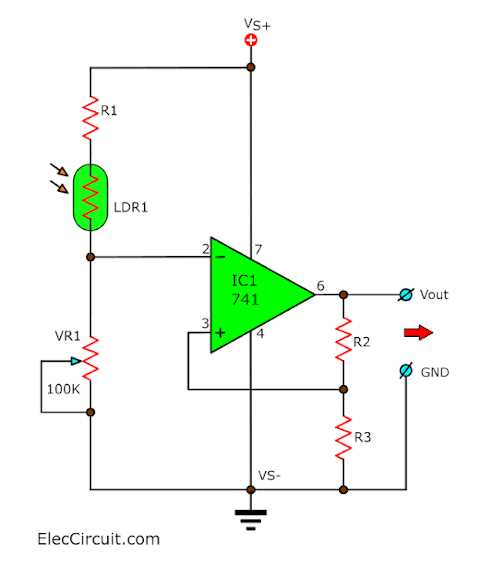

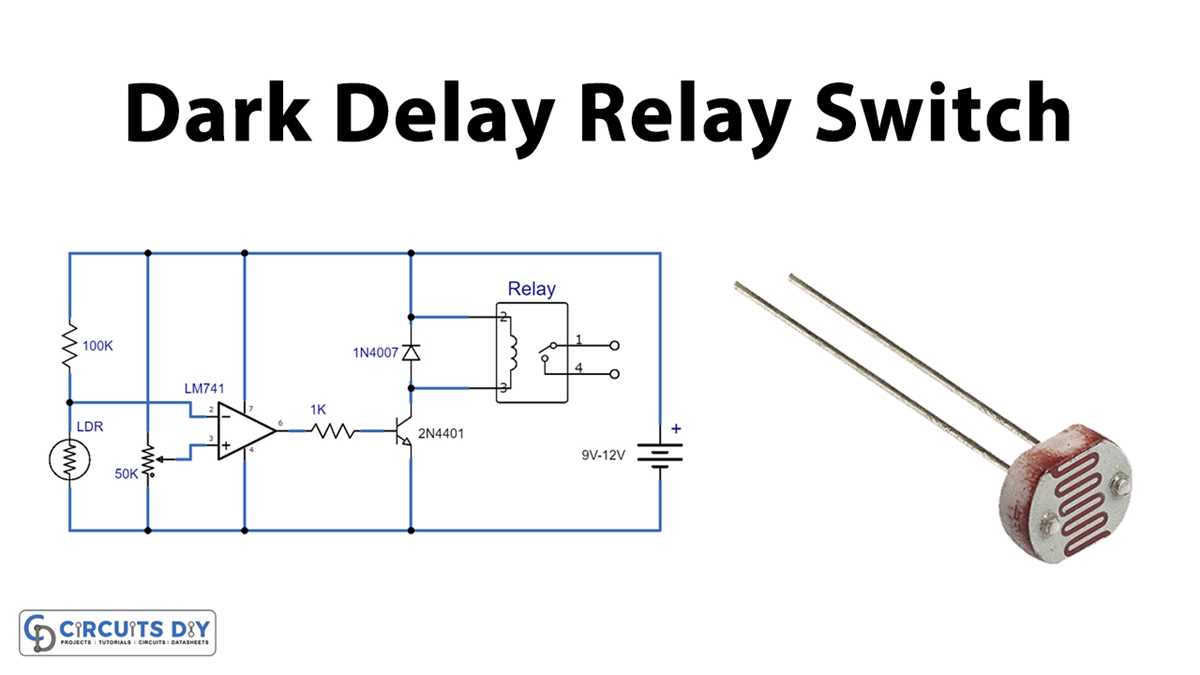

Amplify weak signals using an LM358 operational amplifier set to a non-inverting configuration. A gain of 10x will boost a 0.5V signal to 5V, suitable for low-light applications like streetlight automation or twilight detection systems.

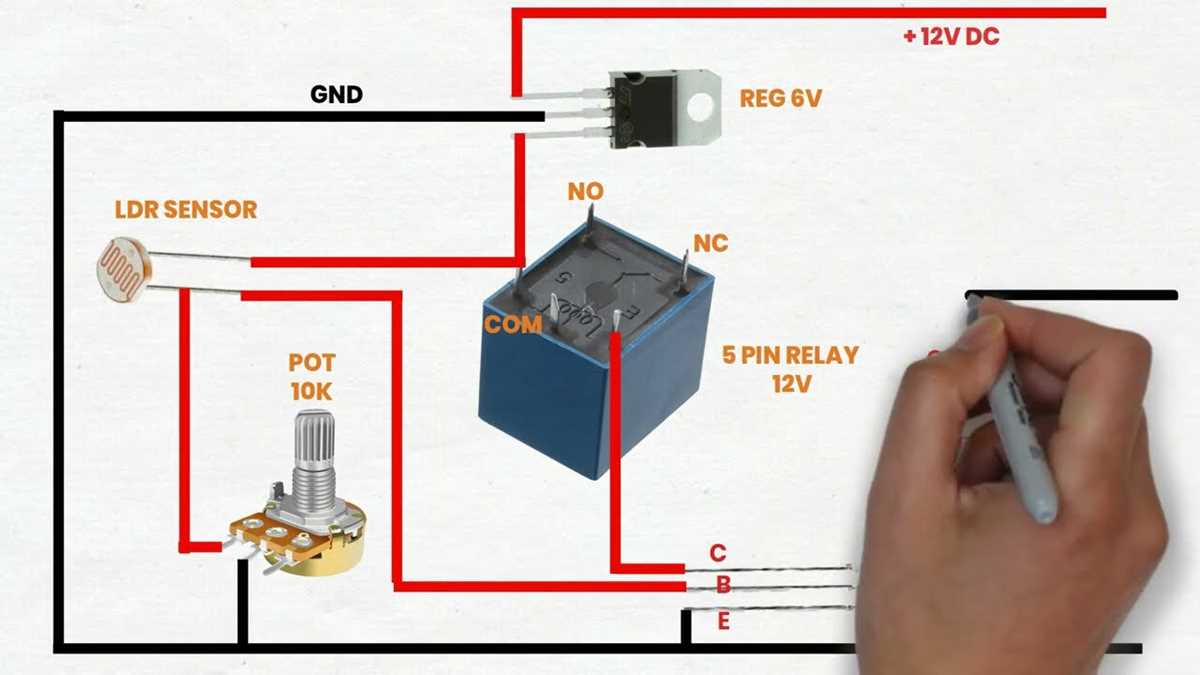

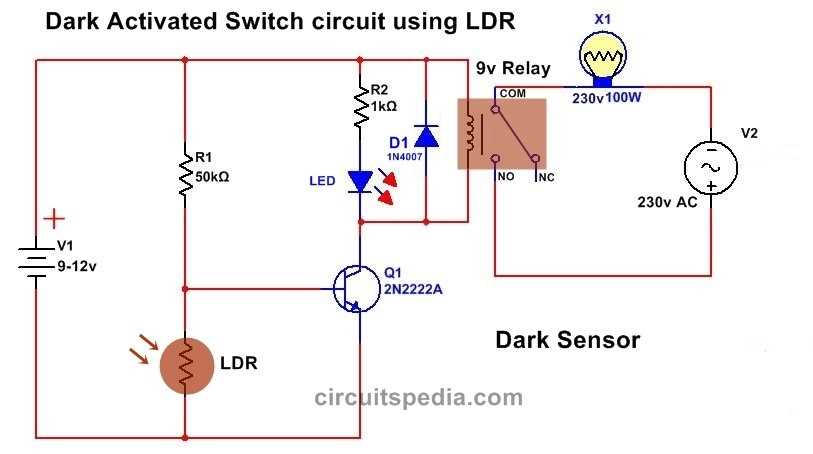

Test the setup with a multimeter before integrating it into larger projects. Probe the output node while covering the sensor with your hand–voltage should rise in darkness and drop sharply when exposed to light. Use this behavior to trigger relays or PWM-controlled LEDs directly.
For battery-powered designs, replace the op-amp with a low-power comparator like the TLV313 to reduce current draw below 1µA. Combine this with a MOSFET or BJT to switch loads efficiently, extending runtime in solar-powered or IoT devices.
Key Parts for a Photoresistor-Based Setup
Gather a cadmium sulfide (CdS) sensor with a resistance range between 500Ω (bright light) and 10MΩ (darkness) – models like GL5528 or VT90N offer predictable response curves. Pair it with a 4.7kΩ–10kΩ pull-down resistor to stabilize readings, adjusting the value inversely to the sensor’s expected illumination conditions. For power, use a 5V DC source (USB or regulated supply) to prevent voltage drops affecting sensitivity. Include a 1µF–10µF capacitor across the sensor’s output to filter electrical noise, especially in environments with fluorescent lighting or switching power supplies.
Component Specifications at a Glance
| Part | Model/Value | Critical Parameters |
|---|---|---|
| Photoresistor | GL5528, VT90N | Spectral response: 400–700nm; Response time: 20–30ms |
| Resistor | 4.7kΩ–10kΩ (1%) | Power rating: ¼W; Tolerance: ±1% |
| Capacitor | 1µF–10µF (X7R) | Voltage rating: 16V; Low ESR for noise suppression |
| Power Supply | 5V DC (±5%) | Current limit: ≥200mA; Ripple: |
Opt for a microcontroller with at least one analog input (e.g., Arduino Uno’s A0–A5 or STM32’s 12-bit ADC) to process the sensor’s voltage divider output. If mechanical stability is required, mount the photoresistor in a 3D-printed or metal enclosure with an aperture sized to match the sensor’s active area (typically 5–10mm), using matt-black paint to reduce stray reflections.
Building a Light-Sensing Setup: Hands-On Guide
Select a cadmium sulfide photoresistor rated for 5–10 kΩ under ambient brightness and 500 kΩ+ in total darkness–models like GL5528 or VT90N2 fit most microcontroller boards without additional biasing. Solder one leg directly to the positive rail of a breadboard, ensuring the junction remains flush to avoid loose connections that skew readings.
Cut a 220 Ω carbon-film resistor to size; bend its leads at 90° 2 mm from the body to form a clean inline hook. Insert the free end into the ground bus, then bridge the photoresistor’s unbent leg to the resistor’s remaining lead with a jumper wire–this forms the voltage divider whose midpoint feeds analog input A0. Skip jumper wires if working on perfboard; instead, apply a thin bead of solder between component legs to reduce parasitic capacitance below 5 pF.
- Place a 10 µF electrolytic capacitor in parallel to the divider output if rapid light fluctuations exceed 100 Hz; polarity stripe must face the ground side.
- Use a 0.1 µF ceramic capacitor across the microcontroller’s power pins to suppress high-frequency noise generated by switching regulators.
- Cover the photoresistor surface with a matt-black heatshrink sleeve extending 3 mm beyond the optical window; shrink with a heat gun at 120 °C for 5 seconds to eliminate stray reflections.
Map the raw analog span (0–1023 for most 10-bit converters) onto lux levels using a two-point calibration: record output at 0 lux (photoresistor enclosed in a light-tight box) and at 500 lux (measured with a calibrated meter). Plot values on semi-log paper; derive the formula lux = 10^((raw - B)/m) where m = (log(500)-log(0))/(500_value – 0_value) and B = log(0) lumen baseline.
Secure the assembly inside an IP65-rated enclosure; drill a 6 mm aperture precisely aligned with the photoresistor’s active area. Apply a single layer of UV-resistant acrylic sheet (3 mm thick) over the aperture using RTV silicone adhesive–cure for 24 hours at 23 °C before exposing to moisture or dust. Power the setup from a 9 V battery regulated to 5 V via a linear dropout stabilizer (LD1117V); measure current draw–typically 2–4 mA idle, 8–12 mA during LED indicator flashes–and confirm sleep-mode current remains below 50 µA.
Connecting a Photoresistor to a Microcontroller: Practical Steps
Choose a voltage divider configuration for reliable readings. Connect one leg of the light-dependent resistor to the microcontroller’s power pin (typically 3.3V or 5V) and the other to an analog input. Ground the middle point through a fixed resistor (10kΩ is standard) to stabilize measurements. This setup ensures proportional voltage changes as ambient light fluctuates.
Select the resistor value based on expected lighting conditions. A 10kΩ resistor works well for indoor environments, while 4.7kΩ or lower may suit outdoor or low-light scenarios. Test different values with an oscilloscope if precise sensitivity is required–adjust until the voltage swing covers the full analog input range (0V to VCC).
Enable the microcontroller’s internal pull-up or pull-down resistors if external components must be minimized. For AVR-based boards like Arduino, use INPUT_PULLUP mode on the analog pin, but expect inverted readings. ESP32 and STM32 offer configurable pull-downs, though external resistors remain the more predictable choice.
Avoid long wire runs between the photoresistor and microcontroller. Capacitive coupling from nearby signals can distort readings–keep traces under 10cm for breadboard prototypes or use shielded cable for permanent installations. For noisy environments, add a 0.1μF ceramic capacitor between the analog input and ground to filter high-frequency interference.
Calibrate the sensor during initialization. Read the minimum and maximum values in complete darkness and direct light, then map the input range to your application’s needs. Store these thresholds in EEPROM for situations where ambient conditions change infrequently. Dynamic calibration adjusts for drift over time but requires periodic re-sampling.
Handling Edge Cases
Account for power supply variations–if the microcontroller’s VCC drops below 3V, analog readings may clip unpredictably. Use a voltage reference chip (like the LM4040) for consistent scaling across supply fluctuations. Disable unused analog inputs to reduce noise coupling, especially on multi-channel ADCs like those in STM32.
Isolate the photoresistor’s ground from high-current components. A separate ground plane or star topology prevents current loops from skewing measurements. For battery-powered devices, add a sleep mode–poll the sensor only when needed to conserve energy. Use interrupts where possible (e.g., ESP32’s ADC interrupt) instead of continuous polling.
Code Implementation Essentials
Read the analog value in a loop, averaging multiple samples to smooth jitter. Store 10–20 readings in an array, discard the highest and lowest, then compute the mean. For critical applications, implement hysteresis–ignore small fluctuations below a threshold to avoid false triggers. Example pseudocode for AVR/Arduino:
c
uint16_t read_light_sensor() {
uint32_t sum = 0;
for (uint8_t i = 0; i
sum += analogRead(A0);
delayMicroseconds(50);
}
return (sum >> 4); // Return average
}
Scale the raw ADC value to a usable range (e.g., 0–100%) based on pre-measured min/max thresholds. Log unexpected outliers–sudden drops below the dark threshold may indicate hardware failure. For multi-sensor setups, handle each photoresistor’s unique non-linearity with individual calibration curves.
