Step-by-Step Guide to Building a Basic LED Circuit for Beginners

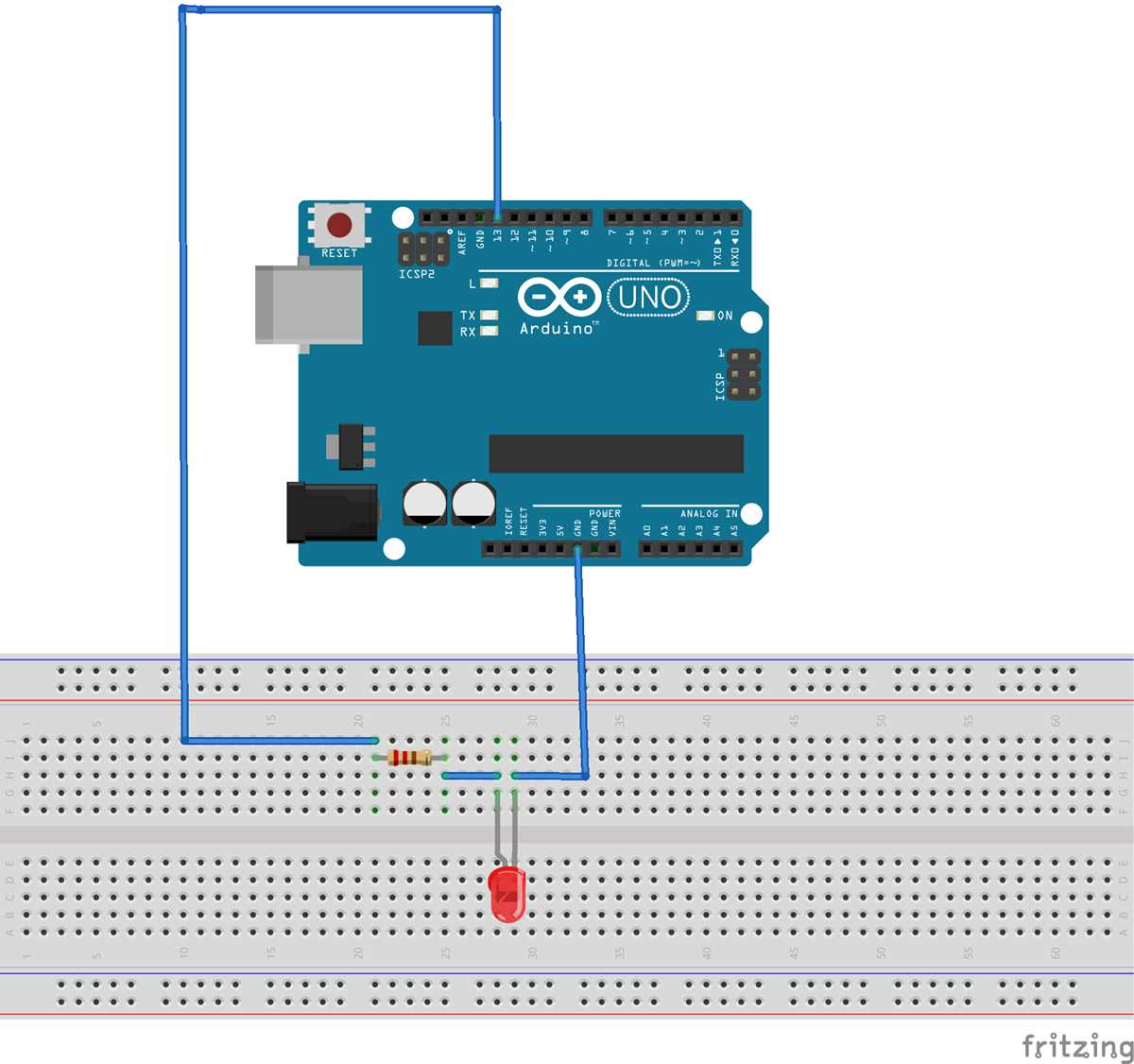

simple led circuit diagram

Start with a 220-ohm resistor for standard 5V applications to prevent component burnout. Connect the anode (longer leg) of your indicator directly to the power source, ensuring polarity aligns with the voltage drop–typically 2V for red, 3V for blue/white. For battery-powered setups, a 9V block provides stable current, but add a 470-ohm resistor if brightness exceeds safe operating limits (20mA).

Use breadboards for prototyping: arrange the resistor on the same row as the cathode (shorter leg), then link to ground. Avoid jumper wires thinner than 0.6mm–voltage sag can cause flickering. For multi-color variants, employ PWM signals (300Hz–1kHz) to blend hues without thermal overload. Verify connections with a multimeter: 2.0–2.2V across the component confirms proper forward voltage.

Solder joints should withstand 1.5A surges–use 60/40 rosin-core solder and clamp leads during cooling. For outdoor use, enclose in epoxy resin to prevent moisture-induced short circuits. If driving arrays, pair with a transistor (2N2222) to handle higher loads (10+ elements). Test thermal dissipation: max 85°C surface temp ensures longevity.

Creating a Basic Illuminator Setup

Select a resistor based on your power source voltage to prevent burnout. For a 5V supply, use a 220-ohm resistor; for 9V, opt for 470-ohm. Values straying from these ranges risk damaging the component or dimming output unnecessarily. Measure voltage directly at the battery terminals before finalizing choices–unregulated sources often deliver less than stated.

Polarity correctness dictates functionality. The longer leg connects to the positive terminal, while the shorter leg or flat side of the housing aligns with ground. Reversing these leads results in immediate failure. Test continuity with a multimeter if the housing lacks visual indicators.

Component Compatibility Table

Source Voltage (V) Resistor Value (Ω) Current (mA) Brightness Level
3.3 100 20 Moderate
5.0 220 15 Bright
12.0 820 12 Bright

Avoid soldering wires directly to the illuminator–heat degrades internal connections. Instead, use breadboards for prototyping or crimp connectors for permanent installations. For outdoor use, seal all exposed connections with waterproof silicone to prevent short circuits from moisture ingress.

Brightness varies by color even at identical current levels. Red variants typically require less voltage, while blue and white demand higher thresholds. Refer to manufacturer datasheets for exact specifications–generic assumptions lead to inefficient setups. Pair blue variants with a 9V source and 470-ohm resistor for optimal luminescence.

Troubleshooting Common Issues

If the illuminator fails to activate, verify the following steps in order:

  1. Check power source voltage with a multimeter.
  2. Confirm resistor value matches calculated requirements.
  3. Inspect for reversed polarity.
  4. Test the resistor itself for continuity.
  5. Replace the illuminator–internal damage often isn’t visible.

Critical Elements for a Fundamental Illuminator Setup

Select a power supply with output matching the voltage drop of your indicator: for most standard 5mm diodes, a 3V coin cell (CR2032) or 5V USB adapter provides sufficient margin without requiring a dropping resistor under low-load conditions. Verify the forward voltage (Vf) on the datasheet–common values range from 1.8V (red) to 3.5V (blue/white)–and ensure the source exceeds this by at least 0.5V to avoid dimming or thermal instability. For precision, use a regulated source; unregulated adapters may introduce ripple exceeding 200mV peak-to-peak, shortening component lifespan.

Incorporate a series resistor sized via Ohm’s Law: (Vs – Vf) / If, where Vs is supply voltage and If is the target current (typically 20mA for 5mm indicators; high-brightness variants may tolerate 30mA). Carbon film resistors (1/4W, 5% tolerance) suffice for prototypes, but metal film (1% tolerance) reduces drift in environments with ±5°C temperature swings. Bypass the resistor with a 100nF ceramic capacitor across the diode terminals to suppress transient spikes–this prevents premature degradation in circuits exposed to inductive loads or PWM-driven dimming.

Step-by-Step Assembly of a Lone Illuminator

Select a 5mm luminescent component with a forward voltage matching your power source–typically 2V for red variants, 3V for blue or white. Pair it with a current-limiting resistor calculated via Ohm’s law: R = (Vsource - Vforward) / Idesired, where Idesired should not exceed 20mA for standard options. For a 9V battery, this yields a 330Ω resistor for red or a 470Ω for blue.

Strip 5mm of insulation from both ends of two 22-gauge wires. Twist one wire’s exposed tip to the resistor’s unshaded lead, solder it within 2 seconds to prevent heat damage, and insulate the joint with 3mm heat-shrink tubing. Repeat for the second wire, attaching it to the luminescent component’s longer (anode) leg–identified by its flat side or shorter cathode counterpart.

  • Position the resistor adjacent to the anode to minimize interference.
  • Verify polarity by holding the assembly to the power source briefly–a reverse connection risks immediate burnout.
  • Use rosin-core solder (60/40 alloy) to avoid corrosive flux residue.

Mount the resistor directly onto the battery’s positive terminal using a miniature crocodile clip if prototyping. For permanent setups, crimp a 2mm ring terminal to the free resistor lead and secure it under a bolt on a breadboard bus–ensure no exposed copper contacts other conductive surfaces. The luminescent component’s cathode (shorter leg) connects to the negative terminal via the second wire.

  1. Test continuity with a multimeter: resistance should read ~330Ω (or 470Ω) across the resistor.
  2. If the component fails to glow, check for reversed polarity or an open circuit.
  3. Dim illumination indicates excessive forward current–swap the resistor for the next higher standard value (e.g., 560Ω).

For enclosed installations, encase the joint between the cathode wire and battery terminal in epoxy putty, excluding only the luminescent dome. Exposed leads on the negative side must be doubled-layered with electrical tape to prevent shorting against metal enclosures. Seal the entire assembly in conformal coating for humidity resistance if used outdoors.

Resistor Sizing for Optimal Semiconductor Performance

Select a dropping resistor based on the semiconductor’s forward voltage (Vf) and supply voltage (Vs). Subtract Vf from Vs, then divide by the desired current (I) in milliamps to obtain resistance in kilohms. For example, a 2 V Vf semiconductor driven from a 5 V source at 20 mA requires (5 – 2) / 20 = 0.15 kΩ (150 Ω).

Common Vf values for compact solid-state indicators are 1.8 V (red, infrared), 2.1 V (green), 3.0–3.3 V (blue, white). Typical supply rails range from 3.3 V for low-power microcontrollers to 12 V in automotive applications; always measure actual Vs rather than relying on nominal ratings.

Current ratings vary: low-intensity devices tolerate 5–10 mA, while high-brightness types require 20–30 mA. Overdriving shortens lifespan; calculate derating at elevated temperatures using the manufacturer’s thermal impedance curves.

Nearest E24 resistor values (±5 %) should be selected: if exact resistance is 132 Ω, choose 130 Ω; if 367 Ω, select 360 Ω. Wire-wound or thin-film types are preferred for currents above 50 mA to avoid overheating carbon composition units.

Verify operation with a multimeter: measure voltage across the resistor and semiconductor to confirm calculated dropout, then adjust if ambient conditions deviate from the datasheet’s 25 °C baseline.

Frequent Errors in Assembling Light-Emitting Setups

Skipping current-limiting resistors burns out semiconductors almost instantly, causing permanent failure. A 220-ohm resistor suffices for a 5V supply with standard 20mA indicators; higher voltages need recalculations. Ignoring datasheets leads to guesswork, often exceeding maximum forward currents–typically 30mA for small components–resulting in overheating and reduced lifespan.

  • Incorrect polarity destroys diodes instantly. Cathodes must connect to negative terminals.
  • Using mismatched resistors creates uneven brightness; each emitter needs individual calculation.
  • Assuming all indicators operate at identical voltages introduces errors–red typically runs at 1.8V, blue at 3.6V.

Overloading power sources stems from ignoring wattage ratings. A 9V battery struggles with six 20mA emitters, totaling 120mW, exceeding its capacity. Reliable alternatives include bench supplies with adjustable limits–set to 50mA minimum for three small components to avoid voltage drops.

Neglecting heat dissipation shortens operational life. Surface-mount packages under sustained current generate heat visibly; thermal pads help, but switching to pulsed operation (50% duty cycle) prevents thermal stress. For continuous use, metal-core PCBs improve dissipation significantly, lowering junction temperatures by 15°C.

  1. Test continuity before applying power–shorts through breadboards cause hidden failures.
  2. Check solder joints for cold connections; even micro-gaps disrupt current flow.
  3. Verify source stability; cheap wall adapters fluctuate within ±10%, risking inconsistent brightness.
