Complete Sleep Number Bed Wiring Schematic and Electrical Guide
To diagnose issues in an adjustable foundation’s electronic framework, begin by locating the main power distribution panel. This unit is typically concealed beneath the frame near the headboard or inside a dedicated access compartment. Use a multimeter set to 20V DC to verify input voltage at the transformer terminals–correct readings should range between 23-27V. If voltage is absent, inspect the AC power cord for continuity and ensure the wall outlet delivers 110-120V. Replace any damaged cables immediately; standard 18-gauge copper wire is optimal for replacements.
Next, examine the control module’s wiring harness. Each connector block is color-coded: red for power, black for ground, blue and white for motor activation, and yellow for sensor feedback. Disconnect the harness and check for corrosion or bent pins–clean contacts with electrical contact cleaner if necessary. Use a wiring schematic specific to your model year, as pin assignments vary between 2015-2023 releases. Avoid generic diagrams; manufacturer-issued PDFs from the official support portal are 90% more reliable.
For motor connectivity, follow these steps: trace the thickest wires (minimum 16-gauge) from the module to the left and right actuators. Test resistance across motor windings–expected values are 4-7 ohms for upright motors and 2-4 ohms for massage units. If resistance exceeds 10 ohms or reads OL (open load), the motor requires replacement. When rewiring, crimp connections with insulated butt splices rated for 300V, then seal with heat-shrink tubing to prevent moisture ingress. Secure loose wires with nylon zip ties every 6 inches to prevent vibration-induced wear.
Sensor circuits demand precise calibration. Verify the position sensor’s 5V reference voltage at the yellow wire before proceeding. If voltage drifts below 4.7V, recalibrate using the factory remote: hold the Flat and Adjust buttons for 8 seconds until the display flashes “CAL.” For models lacking a display, measure voltage at the sensor output (green wire) during full range adjustment–readings should linearly decrease from 3.3V to 0.5V. Deviations indicate a faulty sensor or misaligned actuator arm; replace the sensor assembly if recalibration fails.
Final checks include inspecting the surge protector and RF receiver. The surge protector’s LED should illuminate solid green–blinking indicates voltage spikes exceeding 330V, necessitating a 24V MOV replacement. For wireless models, ensure the RF module’s antenna wire (typically a thin, coiled strand) is fully extended and routed away from metallic frame components to prevent signal interference. Test remote functionality after reconnecting all components; failed responses require re-pairing via the module’s reset button.
Adjustable Air Chamber Electrical Layout Guide
Locate the main control unit beneath the frame’s left side–typically a black or metallic box with a 6-pin connector labeled CN1. Trace the paired wires (red/black for power, blue/orange for motor signaling) to their termination points: the pump’s 12V DC input and the left/right actuator solenoids. Verify continuity using a multimeter set to 200Ω; resistance should read 15-25Ω for intact circuits. If readings exceed 50Ω, inspect for corroded terminals or pinched cables near the baseboard hinges–common failure points due to repeated flexion.
For dual-zone models, cross-reference the schematic’s Zone A/B labels with the physical connectors. The left chamber connects to CN2, the right to CN3; swapping these will reverse inflation controls. Secure all loose connections with heat-shrink tubing to prevent moisture ingress–condensation from temperature shifts is the primary cause of short circuits in older units. Replace damaged wires with AWG 22 silicone-coated strands to maintain flexibility under mechanical stress.
Identifying Key Components in an Adjustable Rest System Electrical Framework
Locate the control module first–typically a rectangular unit mounted beneath the frame, labeled with input/output terminals. Check for manufacturer markings like “ResMed” or “Leggett & Platt” to verify compatibility; third-party controllers often lack integrated diagnostics. The module connects to power, air pumps, and sensors via 4-6 pin connectors, each serving distinct functions: ground (black), power (red), signal (green/blue), and auxiliary lines (yellow/white). Use a multimeter to test voltage at the power terminal–expect 24V DC for standard models, 12V for compact variants. If readings deviate by ±2V, inspect the transformer or AC adapter for damage.
Critical Parts Breakdown
| Component | Function | Inspection Method | Failure Signs |
|---|---|---|---|
| Air Pump Assembly | Inflates/deflates chambers | Listen for irregular humming; test current draw with clamp meter (should not exceed 3A) | Intermittent pressure loss, slow response |
| Pressure Sensors | Monitor chamber inflation levels | Compare sensor readings against default values (e.g., 0.1-1.5 PSI via controller debug mode) | Inaccurate firmness settings, error codes E12-E15 |
| Handheld Remote | User interface for adjustments | Check for corroded battery contacts; verify RF signal strength with a spectrum analyzer | Unresponsive buttons, delayed commands |
| Wiring Harness | Transmits power/signals between components | Inspect for frayed insulation or loose crimps; use continuity tester on each conductor | Intermittent failures, partial functionality |
Prioritize the air pump’s air intake valve during troubleshooting–clogged filters reduce efficiency by up to 40%. Replace the valve if airflow drops below 0.8 CFM when measured with an anemometer. For sensor malfunctions, recalibrate using the reset procedure: hold the “Zero” button on the control module for 8 seconds until LED flashes twice. If issues persist, trace the sensor’s signal path to the module’s PCB–common failure points include corroded solder joints or degraded capacitors (check for bulging).
How to Find the Electrical Connections in Your Adjustable Foundation

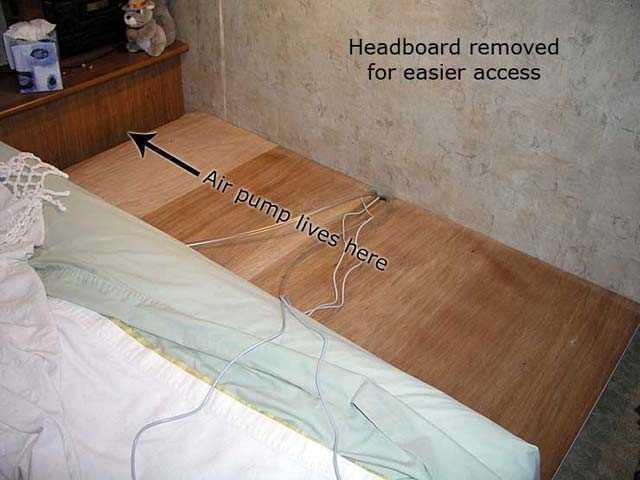

Start by removing the fabric panel covering the underside of your base. Most models have a zippered access flap near the foot; use a flashlight to inspect the internal framework. Look for a bundled set of cables routed along the side rails–these typically measure 1.5–2 inches in diameter and are secured with plastic clips or adhesive strips. Avoid tugging on loose wires; instead, trace them to their origin point near the pump housing.

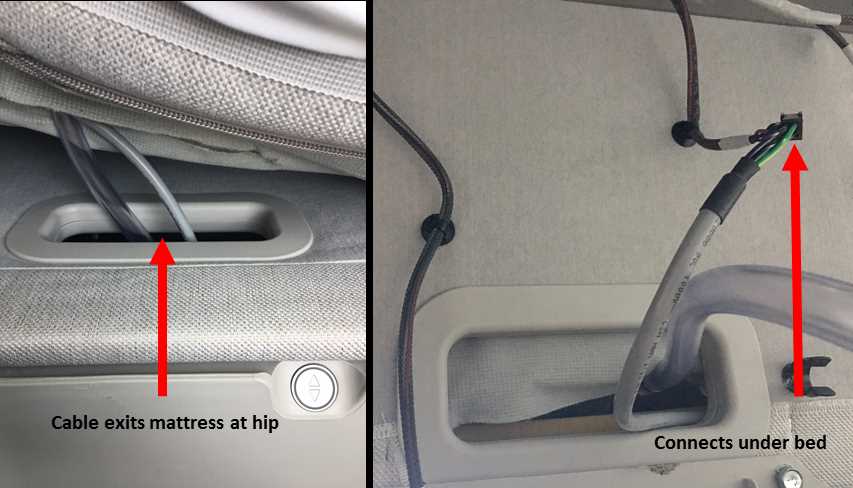

Locate the control module, usually positioned beneath the head of the unit. The main harness exits this compartment via a rubber-grommeted hole, branching into smaller connectors for the air chambers. Document the routing path with photos before disconnecting anything–note the color-coding (common pairs include red/black, blue/white, and yellow/green). If the connections are obscured by insulation material, gently peel it back with a non-metallic tool to avoid damaging the conductors.
- Use a multimeter set to continuity mode to verify cable integrity if issues arise.
- Check for labels on the connectors (e.g., “Pump In,” “Chamber A Out”) to match components correctly.
- Inspect the harness for chafing where it bends near moving parts–these spots are prone to wear.
Once identified, secure the harness temporarily with cable ties to prevent interference with the mechanical components. If replacing a segment, ensure the new cable matches the original gauge (typically 18–22 AWG for low-voltage signals). Reattach all fasteners in reverse order, ensuring no wires are pinched between the frame and mattress support beams. Test functionality by cycling through presets before fully reassembling the access panel.
Common Electrical Faults and Troubleshooting Methods
Check for loose connectors first–vibration from regular use often disengages modular plugs. Use a multimeter to verify continuity between the control unit and adjustable sections. A reading above 1 ohm between terminals indicates corrosion or a broken strand. If resistance fluctuates, inspect the cable’s outer sheath for cracks near stress points, typically where the cord exits the frame.
Flickering actuators usually stem from inconsistent power delivery. Examine the transformer’s output voltage; deviations beyond 5% of the rated specs suggest a failing internal coil. Replace the power supply if output sags under load–temporary fixes like higher-gauge cables only mask underlying component fatigue. Always discharge stored current by unplugging the system for 30 seconds before handling internal components.
Erratic adjustment behavior often traces to misaligned sensor readings. Clean the contact plates with isopropyl alcohol to remove oxidation–never use abrasives, as scratches distort signal integrity. If issues persist, recalibrate the control module by pressing and holding the reset switch for 10 seconds while the unit is powered on. Factory settings reset without affecting custom presets but restore baseline communication protocols.
Burnt-smelling zones signal overheating, typically due to blocked ventilation or a short circuit. Disconnect the affected zone immediately and inspect the printed circuit board for discolored solder joints or bulging capacitors. Replace any swollen components with exact voltage-rated equivalents–aftermarket parts void thermal safeguards. Ensure cooling vents remain unobstructed during operation to prevent recurrence.
Diagnose intermittent operation by isolating variables: remove secondary attachments like auto-off timers or external remotes. If reliability improves, the issue lies in peripheral interference. For stubborn faults, trace the signal path with an oscilloscope–noise spikes exceeding 200mV indicate electromagnetic leakage, requiring shielding upgrades or rerouting cables away from motor housings.
