Key Components and Design Tips for Compact Circuit Schematics
Begin by selecting a reference ground point no larger than 5mm in diameter–this ensures signal integrity without unnecessary bulk. Use a 0.254mm (0.010″) trace width for power lines delivering under 500mA; wider traces increase copper costs and board size disproportionately. For mixed-signal boards, isolate analog and digital grounds with a single-point star connection to prevent ground loops measuring >0.5Ω.
Place decoupling capacitors (100nF ceramic) within 2mm of each IC power pin–violation of this rule introduces voltage ripple exceeding 50mV PP at 1MHz. Route high-speed signals (>10MHz) on inner layers between solid ground planes to contain EMI emissions below FCC Class B limits (45° miters to prevent impedance discontinuities of >10%.
Implement thermal vias (0.3mm diameter, 1mm pitch) under heatsinks sinking >2W; each via increases thermal conductivity by 0.5°C/W. For SMD resistors under 0402 size, ensure a minimum landing pad clearance of 0.1mm to comply with IPC-A-610 solder fillet criteria. Use differential pair routing for USB 2.0 traces with 100Ω ±15% impedance; mismatches cause bit errors at rates >1×10-12.
Label all connectors with solder-side silkscreen (minimum 0.7mm font height) to avoid assembly errors documented in 12% of rework incidents. For boards thinner than 1.2mm, reinforce mounting holes with 0.8mm annular rings to prevent fracture under torque loads >0.5Nm. Store Gerber files in a read-only archive with checksums–corrupted files account for 30% of production delays.
Compact Circuit Blueprints: Practical Design Tips
Use a grid layout with 2.54 mm spacing for through-hole components to simplify prototyping. This matches standard breadboard dimensions, reducing errors during testing. For surface-mount devices, stick to 1 mm pitch or wider to avoid shorts when hand-soldering.
Label every net with a unique identifier, even in minimal layouts. Replace generic names like “VCC” or “GND” with 3V3_SENSOR or GND_MCU to prevent accidental connections between isolated circuits. Verify labels match the bill of materials before ordering PCBs.
- Place decoupling capacitors (
- Route high-frequency traces as short as possible, preferably under 15 mm.
- Use 0.25 mm traces for signal lines and 0.5 mm for power rails in compact designs.
Add test points for critical signals–0.8 mm vias work well for probing. Color-code them: red for power, blue for ground, and white for signals. Include a basic debug header with SPI/I2C pins and reset lines if space allows.
For mixed-signal boards, split analog and digital ground planes, then connect them at a single point near the power input. Keep analog traces on one layer and digital on another to minimize noise. If using a two-layer board, route digital signals over a continuous ground plane.
Avoid acute angles in trace routing–use 45° turns instead of 90° to reduce EMI and acid traps during etching. Check gerber files with a viewer like gerbv before fabrication, focusing on silkscreen alignment and drill hole registration.
Include a version number and date on the silkscreen, preferably near the edge. Use 1 mm text height for readability. Reserve a small area (10×10 mm) for regulatory markings (CE, FCC) if needed, even if the current project is a prototype.
Core Elements of a Compact Circuit Layout
Limit your component count to no more than five active parts per section. A microcontroller, voltage regulator, crystal oscillator (if precision timing is required), and two supporting passives form the backbone. Exceeding this threshold introduces unnecessary failure points while complicating routing and troubleshooting.
Select SMD packages sized 0603 or smaller for resistors, capacitors, and inductors. These offer minimal parasitic effects while maintaining hand-soldering feasibility. Larger footprints like 0805 or 1206 consume excessive board space and complicate high-density traces, especially in four-layer designs.
Implement power rails with at least 2-ounce copper thickness for currents exceeding 500 mA. Standard 1-ounce traces risk voltage drops and thermal overload in compact arrangements. For sensitive analog sections, isolate power planes and use stitching vias spaced no further than 2.5 mm apart to maintain integrity.
Place decoupling capacitors within 2 mm of each IC’s power pins. A 0.1 µF ceramic capacitor in X7R dielectric neutralizes high-frequency noise, while a 10 µF tantalum or polymer unit handles bulk energy demands. Avoid mixing dielectrics–X5R exhibits capacitance shifts at low temperatures, disrupting stability.
Use 0.2 mm (8 mil) trace widths for signal paths below 10 MHz, widening to 0.5 mm for differential pairs or impedance-controlled lines. Ground pours should cover at least 70% of unused board area, with thermal reliefs spaced every 5 mm to prevent solder wicking during reflow.
Integrate test points at every critical node: MCU reset, clock output, analog inputs, and power nets. Assign hierarchical labels (e.g., TP_VCC_IN, TP_ADC_CH1) and position them along board edges for probe accessibility without magnification. Skip this step and debugging time multiplies tenfold.
For RF-sensitive designs, employ serpentine or L-shaped ground traces to minimize loop area. Keep antenna feeds perpendicular to digital traces, separated by at least three substrate thicknesses. Failing to isolate these paths invites crosstalk that corrupts signal integrity beyond recovery.
Document every connection with net labels and reference designators directly on silkscreen. Omit “R1” or “C3” without corresponding values–annotate tolerances (e.g., “1µF ±20% X7R”). Single-line schematics with cryptic markings guaranteeassembly errors and prolong validation cycles.
How to Create a Minimalist Circuit Blueprint: Practical Steps
Select a grid-based drafting tool with 1 mm precision–engineering paper or digital software like KiCad or Eagle work best. Avoid freehand sketches; consistency in spacing ensures clarity and avoids overlaps in dense layouts. Start by defining the primary power rails first, keeping them horizontal and aligned with the top and bottom edges of your workspace. Use 0.5 mm lines for these and label them immediately with voltage levels (e.g., +5V, GND) in bold 8 pt font, placed 2 mm above or below the line.
Group components by function. Place resistors, capacitors, and ICs within a 30 mm radius of their related signals. For microcontrollers or processors, position supporting passive elements like decoupling capacitors (typically 0.1 µF) no farther than 5 mm from the power pins. Use vertical lines for signal paths, maintaining 3 mm spacing between adjacent traces to prevent short circuits during prototyping. Avoid diagonal connections unless essential–straight lines reduce fabrication errors.

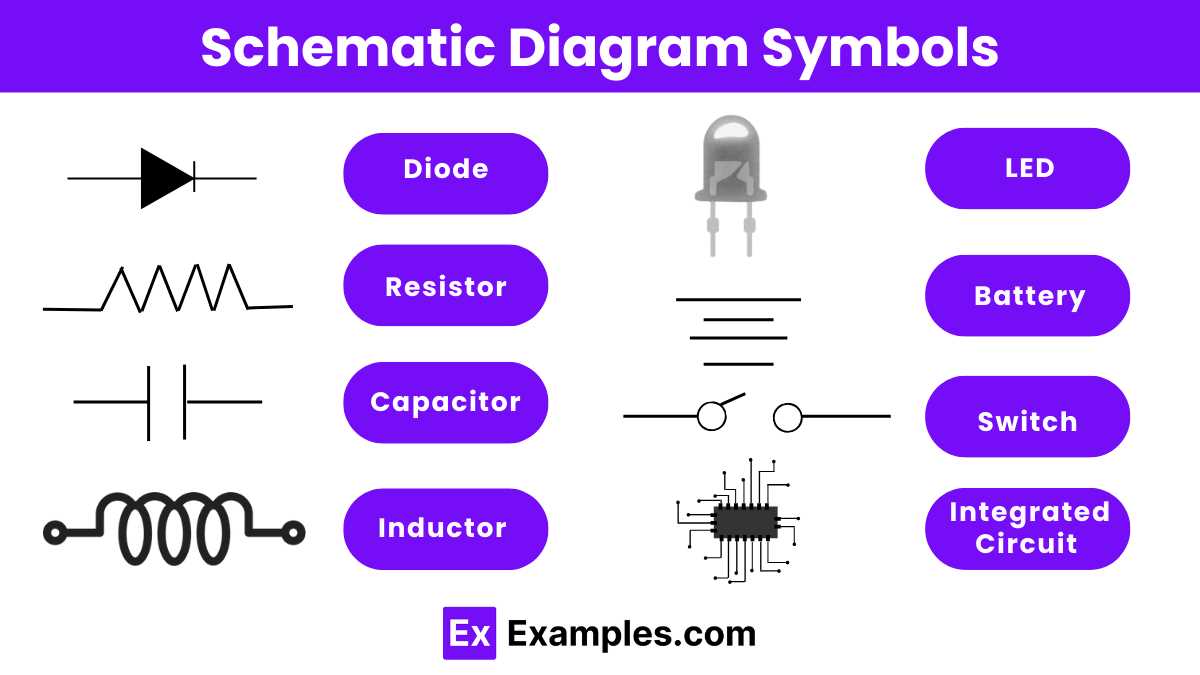

Adopt standardized symbol dimensions: resistors at 6 x 2 mm, capacitors at 5 x 3 mm with polarity marked, and ICs as rectangles with pin numbers outside the outline. Use text labels sparingly–only for reference designators (e.g., R1, C2) and critical values (e.g., 10k, 100nF). Omit redundant details like brand names or tolerances unless required for debugging. For operational amplifiers, draw the non-inverting input on the left side and the inverting input on the right to match common conventions.
Verify connections with a netlist checker before finalizing. Cross-check every node against the original design intent–missing a single ground connection can render a circuit inoperable. Use a separate layer for annotations if working digitally, keeping them distinct from active traces. Print a test copy at 1:1 scale; if components don’t align with breadboard holes, adjust spacing. For surface-mount devices, ensure pad sizes match the datasheet dimensions exactly.
Add test points strategically. Place them near high-impedance nodes or signals that require debugging (e.g., oscillator outputs, analog inputs). Use 1.5 mm diameter circles with a short 1 mm stub line, labeled TP1, TP2, etc. For circuits involving microprocessors, include reset and programming header traces early–these often complicate layout if added last. Keep high-frequency traces (
Color-code layers if the tool allows it. Reserve red for power, black for ground, blue for signals, and green for annotations. This reduces interpretation errors during review or collaboration. Export the draft in PDF and Gerber formats if sharing with manufacturers–vector-based files scale without losing resolution. For peer review, include a simplified bill of materials listing component values, footprints, and quantities.
Finalize by checking for single-point failures. Ensure no trace relies on a single via or jumper; redundancy in power distribution prevents voltage drops. Use a multimeter in continuity mode to trace connections on a printed draft–this catches errors faster than visual inspection alone. Store the master file in a version-controlled repository, with separate branches for revisions. Delete obsolete drafts to avoid confusion.
Key Errors in Compact Circuit Designs and Solutions
Avoid placing components too close to the edge of the board. A minimum 5mm gap prevents solder bridges during assembly and reduces risk of damage from handling. Use grid snapping in your EDA tool to enforce consistent spacing–0.1″ (2.54mm) is standard, but 0.05″ (1.27mm) works for high-density layouts.
| Component Type | Minimum Clearance (mm) |
|---|---|
| Resistors, capacitors | 1.0 |
| ICs (SOIC, TSSOP) | 1.5 |
| Connectors | 2.0 |
| Edge-sensitive (crystals, antennas) | 3.0 |
Neglecting decoupling capacitors creates noise-sensitive designs. Place 0.1µF MLCCs within 2mm of every IC power pin–1µF for digital ICs with high transient currents. For mixed-signal circuits, separate analog and digital ground planes and join them at a single point near the power source.
Trace width miscalculations lead to overheating or signal degradation. Use 1oz copper with 10 mil (0.254mm) traces for 500mA currents; increase to 20 mil (0.5mm) for 1A. For high-speed signals like USB or HDMI, maintain 50Ω impedance by adjusting trace width, dielectric thickness, and spacing to adjacent traces.
Unlabeled nets complicate debugging and assembly. Adopt a naming convention: prefix signals with functional groups (e.g., “SENS_I2C_SCL” instead of “Net-(R3-Pad2)”). Include polarity markers for diodes, electrolytic capacitors, and IC orientation pins. Export Gerbers with readable silkscreen–minimum font size 1mm, stroke width 0.15mm.
Ignoring thermal reliefs traps heat in pads, causing soldering failures. Set thermal spokes to 12-15 mil width with 2-4 connections per pad. For ground planes under high-power components (e.g., voltage regulators), use stitching vias spaced ≤5mm apart, sized 0.3mm drill/0.6mm pad.
Failing to add test points wastes debugging time. Reserve 1mm diameter unmasked pads for critical nets: power rails, clock lines, and I2C/SPI buses. Group test points near the edge of the board for accessibility. For 4-layer boards, dedicate an inner layer for test points to free up surface space.
Assembly Pitfalls
Asymmetric footprints break automated assembly. Verify land patterns match IPC-7351 standards–especially for QFN packages, where thermal pad dimensions must equal the component’s exposed pad ±0.1mm. Run a DFM check in your CAM tool before ordering; most EMS providers flag discrepancies.
Validation Shortcuts
Skipping ERC/DRC checks introduces subtle errors. Configure rules for: minimum annular ring (0.15mm), drill-to-copper clearance (0.2mm), and acid traps (acute angles). Export netlists in both human-readable (ASCII) and machine-readable (IPC-D-356) formats–some fabs overlay them onto Gerbers for validation.
