Practical Guide to Building a DIY Smoke Detection Circuit Schematic

For rapid response to combustion byproducts, integrate an MQ-2 gas module with an Arduino Nano. Position the module at least 30 cm below ceilings where airborne particulates concentrate. Connect the sensor’s AO pin to analog input A0, adjusting threshold values between 300–500 (clean air) and 700–900 (hazardous levels). A 10 kΩ pull-down resistor stabilizes readings.

Power the assembly with 5V via USB or a LiPo battery (3.7V) stepped up through an MT3608 boost converter. Add a 12V piezoelectric buzzer to pin D3, triggering at readings above 800. Test response time by introducing extinguished match fumes–it should activate within 3 seconds.

For false-alarm resilience, pair the analog output with an LM393 comparator on the module’s DO pin. Set the onboard potentiometer to 1.5V reference voltage. Use optocouplers (PC817) to isolate high-current loads like relays or 120mm cooling fans, preventing voltage spikes from damaging the microcontroller.

To log incidents, wire an I2C OLED display (128×64) to pins A4 (SDA) and A5 (SCL). Code sample: display.println(analogRead(A0));. For outdoor use, encase components in a PVC junction box (IP65 rated), drilling 5mm ventilation holes 15 cm apart to allow airflow while blocking insects.

Calibrate the system by exposing it to wood smoke for 24 hours–ideal resistance drift should remain under 5%. If response weakens, replace the sensitive element with a sharp GP2Y1010AU0F, which detects particles as small as 0.5 microns. Avoid placing near kitchens or garages to prevent saturation from cooking fumes or exhaust.

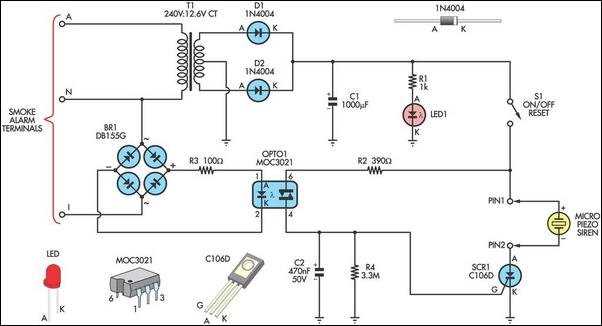

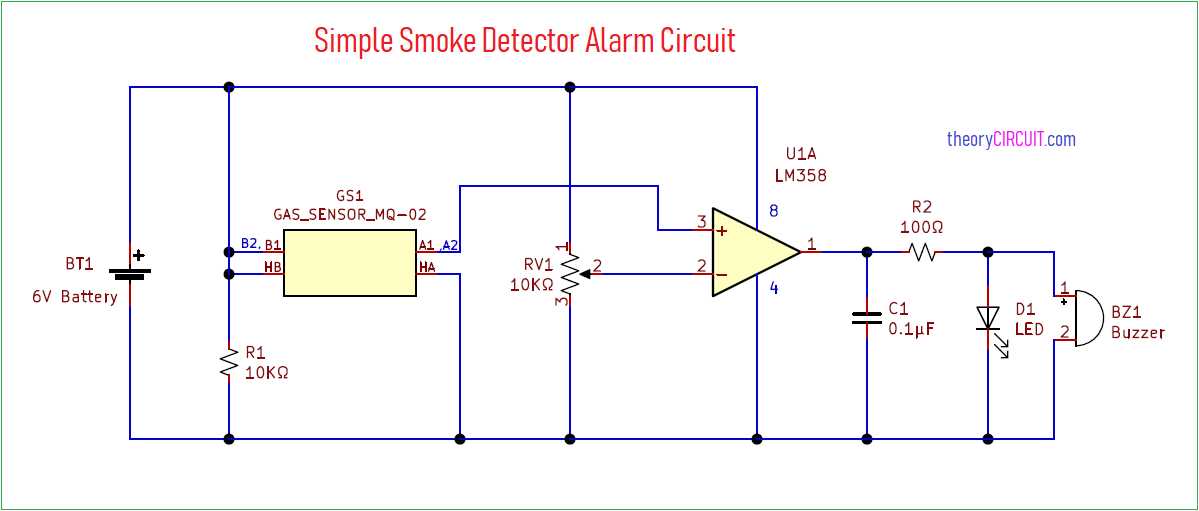

Designing a Fire Detection System: Schematic Essentials

Start with an MQ-2 gas detector as the core component–its analog output simplifies signal processing for early hazard alerts. Configure the module’s heating element with a 5V DC supply to ensure stable readings within 30 seconds of activation, avoiding false positives from transient gases.

Integrate a LM393 comparator IC to convert the detector’s analog signal into a binary output. Use a 10kΩ potentiometer to set the reference voltage; adjust it to trigger at 2.5V for optimal sensitivity to combustion byproducts like carbon monoxide and methane.

Add a 2N2222 transistor to drive a piezoelectric buzzer or relay. The transistor’s base connects to the comparator’s output via a 1kΩ resistor, while the collector links to the buzzer’s positive terminal. A 100μF capacitor across the buzzer reduces voltage spikes, preventing erratic alerts.

Opt for a 9V battery as the power source to ensure portability. Include a 7805 voltage regulator with input/output capacitors (0.33μF and 0.1μF) to maintain a clean 5V supply, critical for consistent detector performance in variable environments.

Solder a red LED in parallel with the buzzer, using a 220Ω current-limiting resistor. This visual indicator reinforces the auditory alert, helping users locate the hazard source quickly in low-visibility conditions like thick fumes or darkness.

For wireless capability, interface the comparator’s output with an HC-05 Bluetooth module. Transmit alerts via a custom mobile app when voltage exceeds the threshold, enabling remote monitoring in industrial or residential settings. Secure the module’s RX/TX pins with pull-up resistors (4.7kΩ) to avoid floating states.

Test the schematic in a controlled environment using incense or a lighter flame at a 30cm distance. Record response times–MQ-2 typically reacts within 10–15 seconds–and adjust the potentiometer incrementally to fine-tune sensitivity for different particle densities.

Document the final layout with clear labels for each node: mark voltage rails, signal paths, and ground connections. Use colored wiring (red for power, black for ground, yellow for signals) to minimize debugging during assembly or maintenance. Store calibration settings digitally for reproducibility.

Key Elements for a Fundamental Fire Alarm Assembly

Select a MQ-2 or MQ-9 gas detector module for reliable particulate detection. These units operate at 5V DC and include analog/digital outputs, simplifying integration with microcontrollers like the ATmega328P. Ensure proper preheating–allow 24–48 hours after initial power-up–to stabilize baseline readings before deployment.

Incorporate a microcontroller with sufficient I/O pins and ADC resolution (10-bit minimum). The ESP8266 offers Wi-Fi for remote alerts, while the PIC16F877A provides cost-effective analog processing. Use interrupt-driven handling for instant response, avoiding polling delays that could exceed 200ms in critical scenarios.

Power Supply Considerations

Use a linear regulator (e.g., LM7805) for 5V output, filtering with a 470μF capacitor at the input and 100μF at the output to suppress noise. For battery-powered setups, opt for a 3.7V LiPo cell with a boost converter (e.g., MT3608) set to 5.1V, ensuring ≥80% efficiency under load. Include a low-voltage cutoff at 3.3V to prevent battery damage.

Alert and Signal Conditioning

Add a piezo buzzer (e.g., PS1240) with a 2kHz tone for audible alerts, driven via a 2N2222 transistor to handle currents >20mA. For visual cues, use a 5mm LED with a 220Ω resistor in series. Calibrate sensitivity by adjusting a 10kΩ potentiometer on the detector’s analog output, targeting a 0–3.3V range for optimal false-trigger rejection.

Step-by-Step Wiring Guide for MQ-2 Detector

Connect the module’s VCC pin to a 5V power supply–typical microcontrollers like Arduino or ESP8266 deliver sufficient current, but verify limits if using other boards. Avoid exceeding 5.5V to prevent damage to the internal heater.

Attach the GND pin to the common ground rail. Ensure all grounds–power source, microcontroller, and detector–are linked to prevent floating readings and erratic behavior. A shared ground reduces noise interference.

• DO (Digital Out): Connect to a digital pin if using a threshold trigger. This output goes LOW when gas concentration crosses a preset level, adjustable via onboard potentiometer.
• AO (Analog Out): Connect to an analog input (e.g., A0 on Arduino) for precise concentration measurements. The output voltage (0–5V) correlates with gas levels–calibrate using known concentrations.

For stable operation, power the module for 24–48 hours before first use. The MQ-2’s tin dioxide layer requires this warm-up to reach optimal sensitivity. Skip this step, and readings may drift or respond sluggishly.

Use a 10kΩ pull-down resistor on the DO pin if interfacing with a high-impedance input. This prevents false triggers in noisy environments. Alternatively, enable internal pull-ups on compatible microcontrollers (e.g., pinMode(A0, INPUT_PULLUP) in Arduino).

Calibration Tips

1. Expose the detector to clean air (no flammable/combustible gases) for 20 minutes. Record the AO voltage–this defines the baseline.
2. Introduce a known gas concentration (e.g., 1000 ppm butane) in a sealed container. Measure AO voltage again–this is the reference point.
3. Calculate the ratio: (V_ref - V_base) / ppm. Invert to find ppm per volt (ppm/V) for real-time conversions.

Avoid placing the module near heat sources or in direct airflow. Temperature and humidity fluctuations distort readings. If ambient conditions vary, incorporate environmental compensation via thermistors or hygrometers in your code.

For long-term reliability, add a 0.1µF decoupling capacitor between VCC and GND, close to the module. This filters power supply noise, especially critical in battery-powered or industrial settings. Check connections for corrosion or loose contacts every 3–6 months.

Power Supply Options and Voltage Requirements

Use a 5V regulated DC source for low-power detection modules like MQ-2 or TGS2600, ensuring stable operation without risking overheating. These devices typically draw 150–200 mA under normal conditions, so a 1A adapter provides sufficient headroom for transients during alarm triggers.

For battery-operated setups, 3.7V Li-ion cells are optimal, offering ~1200–3500 mAh capacity. Pair them with a TP4056 charger module (set to 500 mA max current) to prevent degradation. Ensure the detection device’s quiescent current stays below 50 µA to avoid frequent recharging–most modern breakout boards include low-dropout regulators for this purpose.

Industrial applications often demand 24V DC for long wiring runs (>50 meters) to minimize voltage drop. Use a buck converter (LM2596) to step down to 5V at the endpoint, maintaining ≤1% ripple for reliable signal processing. Below is a comparison of common voltage sources:

Source Type	Voltage	Current Capacity	Best For	Drawbacks
USB-A Port	5V	500–2000 mA	Prototyping, portable units	Limited current for high-power loads
Li-ion (18650)	3.7V	2600–3500 mAh	Wireless deployments	Requires charging circuit
AC-DC Adapter	12V–24V	1A–5A	Fixed installations	Noise injection without filtering
Solar + Lead-Acid	6V–12V	7–20 Ah	Off-grid locations	Bulkier, slower recharge

For high-precision detection units, avoid unregulated wall adapters–opt for linear regulators (7805) or LDOs (AMS1117) to eliminate switching noise. Ripple should not exceed 10 mVpp to prevent false positives in analog front ends. Test power lines with an oscilloscope before deployment.

In environments with unstable mains power, combine a 12V lead-acid battery with a maintenance charger (e.g., NOCO Genius10). Set float voltage to 13.6V to extend battery lifespan while ensuring consistent output. Add a TVS diode (P6KE20CA) to clamp transients exceeding 20V, protecting downstream components.

For PoE-powered nodes, use an 802.3af module (output: 48V → 5V/12V) with a minimum 15W rating. Verify the detection module’s startup current–some draw >300 mA during initialization, requiring PoE+ (IEEE 802.3at) compliance. Check cable length limits () to avoid voltage sag.

Mobile applications benefit from supercapacitor banks (e.g., 5.5V/1F) as backup power. These recharge in seconds and handle 500+ mA bursts, bridging gaps during temporary disconnections. Ensure charging IC (e.g., MAX17503) supports ≤100 mΩ ESR capacitors for efficient energy transfer.

Always decouple power rails with 10 µF (tantalum) + 0.1 µF (ceramic) capacitors near the detection module’s input. This filters both low-frequency fluctuations and high-frequency noise. For industrial-grade deployments, add a ferrite bead (600 Ω @ 100 MHz) to suppress EMI from motor-driven equipment or RF transmitters.
