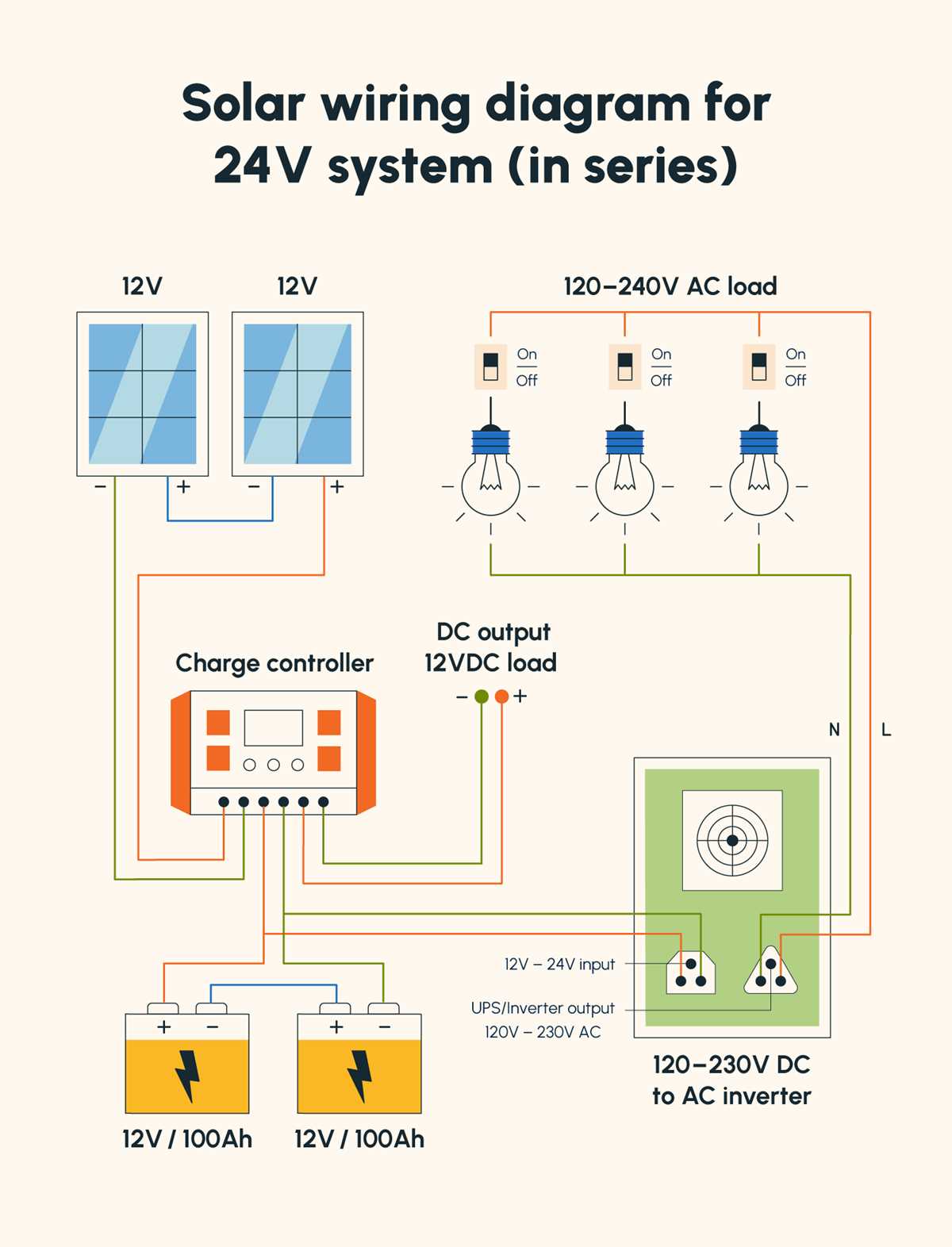

How to Read and Understand Solar PV System Wiring Diagrams Step by Step

Begin by locating the array configuration at the heart of your layout. Group panels in series strings to match the inverter’s voltage window–typically 300–600V for residential setups or 800–1000V for utility-scale projects. Each string should terminate with a DC combiner box, where surge protection devices (SPD) and fuses (rated at 1.2× the short-circuit current, I_sc) are mandatory. For rooftop deployments, orient strings along a north-south axis in the northern hemisphere to minimize shading losses, which can reduce output by 10–30% even from small obstructions like chimneys or vents.

Position the inverter no farther than 15 meters from the combiner box to limit resistive losses in 6–10mm² DC cables. Select inverters with two independent maximum power point trackers (MPPTs) if the array includes multiple orientations or partial shading. Ensure the AC disconnect–rated at 1.25× the inverter’s continuous output–is installed between the inverter and the meter/base. For grid-tied setups, confirm local codes require a ground fault protection device (GFPD) with a trip threshold of 30mA to prevent fire hazards from DC arcing.

Sketch grounding paths before wiring: drive a copper-clad rod (minimum 2.4 meters deep) within 1.5 meters of the inverter. Bond all metallic components–racking, module frames, junction boxes–to this rod using 6AWG bare copper wire (minimum cross-section 16mm²). For rooftop systems, add a separate equipment-grounding conductor (EGC) sized per NEC Table 250.122 to handle potential fault currents. Label every conductor with voltage (DC/AC) and current ratings; most jurisdictions mandate PVC-insulated THWN-2 cables for buried runs to resist moisture ingress.

Verify balancing capacitors (if included) are sized at 1μF per 1kW of inverter capacity to suppress voltage spikes. Include a bypass diode across each module string–typically rated at 15A/1000V–to mitigate shading losses during cloud cover or debris accumulation. For off-grid hybrids, incorporate a charge controller with incremental conductance algorithms, which outperform PWM types by 15–25% in energy harvest. Size the battery bank to provide 3–5 days of autonomy at 50% depth of discharge (DoD) for lead-acid or 80% for lithium-ion.

Conclude the layout with a single-line electrical drawing using IEC 60617 symbols. Specify cable lengths, voltage drops (target <2% on DC, <1% on AC), and breaker trip curves (e.g., C-type for inductive loads). Add a lightning arrestor–typically an air-gap or MOV type–at the array input if the site’s isokeraunic level exceeds 20 thunderstorm days per year. Include a fire safety disconnect accessible to emergency responders, with remote shutdown capability if battery storage is present.

Key Components of a Photovoltaic Installation Blueprint

Start by positioning the inverter as close as possible to the battery bank–ideally within 3 meters–to minimize voltage drop, which can exceed 3% in 12V setups with undersized cabling. Use 50mm² copper wire for a 4kW array at 48V to handle peak currents of 83A without overheating, referencing IEC 60364-5-52 for derating factors in ambient temperatures above 30°C. Label every breaker, fuse, and disconnect with rated voltage, current, and polarity (e.g., “63A DC Isolator – Input: 48V/100A – Output: MPPT”) to comply with NEC 690.5(C) and simplify troubleshooting during shutdowns.

Grounding and Surge Protection Placement

Install a Class II surge protector (e.g., ABB OVR PV T2 1000V) at the combiner box, not the inverter, to intercept lightning-induced transients before they reach sensitive electronics. Ground the array frame and mounting rails with 16mm² green/yellow conductor to a dedicated earth rod buried at least 2.4m deep, supplemented by a second rod spaced 1.8m away if resistance exceeds 25Ω (test with a megohmmeter post-installation). Avoid attaching grounding wires to aluminum frames without stainless steel washers–galvanic corrosion can increase resistance by 40% within 18 months in coastal climates.

Integrate string monitoring at the combiner box with Hall effect sensors (e.g., Victron SmartShunt) to detect imbalances down to 0.5A per string. Wire three-phase AC outputs (if applicable) in a “star” configuration, not “delta,” to prevent circulating currents that reduce efficiency by 7-12% in inverters over 10kW. For hybrid setups, place the charge controller between the PV panels and batteries, not batteries and load, to prevent deep discharge during grid outages–prioritize models with dynamic MPPT tracking (e.g., EPEVER AN Series) that adjust scan intervals every 5 seconds instead of 15.

Key Components of a Photovoltaic Installation Circuit Design

Select DC isolator switches with a voltage rating at least 1.25 times the open-circuit voltage (Voc) of the panel array. For a 600V Voc setup, use a 750V-rated switch to prevent arcing during disconnects under load. Mount switches within 1 meter of the array combiner box to minimize voltage drop and comply with NEC 690.15.

Use stranded copper conductors sized for 2% combined voltage drop across the entire DC circuit. A 10kW setup at 400V with 50-meter runs requires 35mm² cables to stay within spec. Employ photoreactive insulation–halogen-free XLPE–to resist UV degradation and thermal cycling up to 90°C conductor temperature.

Integrate bypass diodes in junction boxes at every 20-cell grouping to prevent hot-spot formation. For monocrystalline panels, place three Schottky diodes (15A/100V) in a star configuration to handle reverse currents during partial shading. Test diode integrity yearly with a 1kVDC insulation megohmmeter.

Configure microinverters in parallel strings with dedicated branch circuit breakers (2-pole, 10kAIC) for each 3kW segment. Ground-mounted units require weatherproof enclosures (NEMA 4X) with condensation heaters if ambient humidity exceeds 70%. Include lightning arrestors–class II, 15kA surge rating–on both DC and AC sides.

Position data acquisition modules (DAM) at the midpoint of each series string to monitor individual panel performance. Use RS-485 daisy-chained wiring with UV-resistant Cat5e jacket (plenum-rated) for 1-second logging intervals. Calibrate sensors quarterly against a handheld multimeter (±0.5% accuracy) to maintain MPPT tracking precision.

Specify load disconnects rated for 1.15× inverter continuous output current. A 5kW inverter with 22A output requires a 25A breaker to handle inrush currents during inductive load switching. Install breakers no more than 10 feet from the inverter AC terminals to meet rapid shutdown requirements.

Label every conductor within 3 inches of termination points using engraved stainless steel tags–black text on white background, minimum 4.7mm letter height–per UL 61082. Include: circuit ID, voltage (DC/AC), conductor gauge, and insulation type. Maintain a 2-inch separation between DC positive/negative runs and AC conductors to prevent inductive coupling.

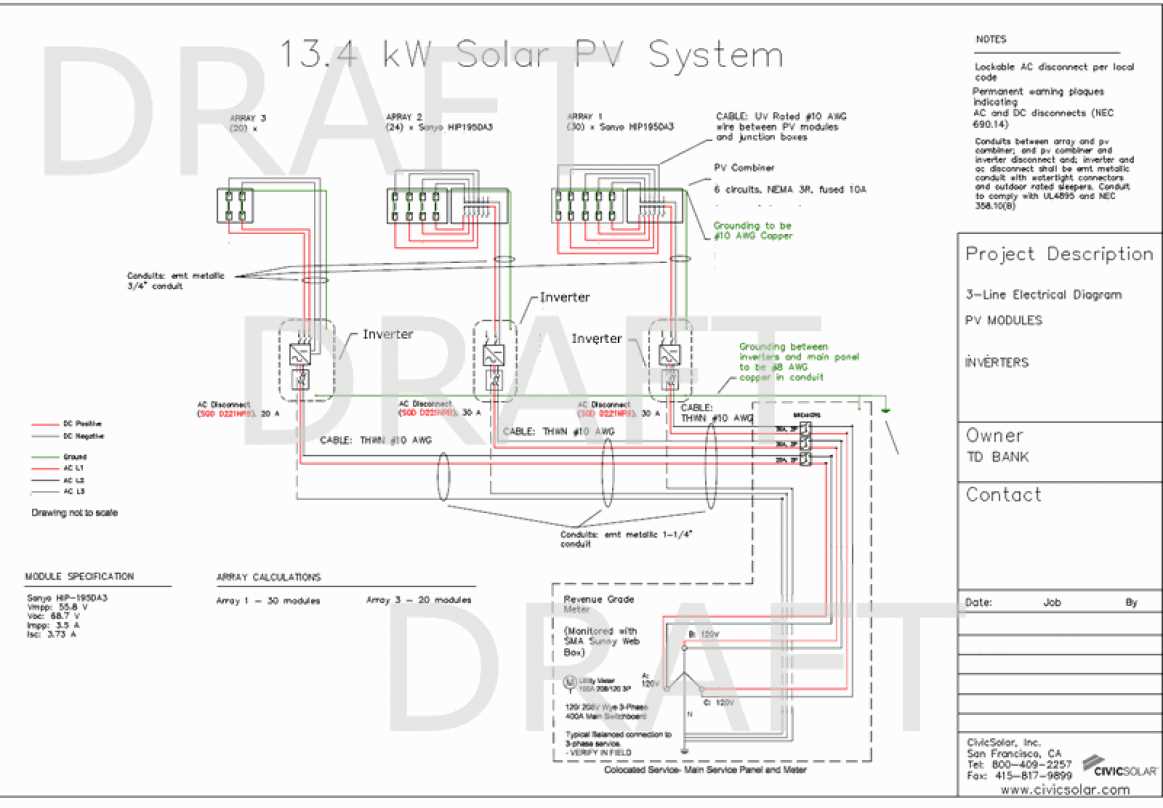

How to Read and Interpret Photovoltaic Installation Blueprints

Begin by locating the module layout–the grid showing panel placement on rooftops or ground mounts. Each rectangle typically represents one unit, with arrows or dashed lines indicating tilt angle. Note series strings: panels connected in a row will share a single line, while parallel groups use branching symbols (e.g., “Y” splits). Voltage and current ratings appear next to strings, helping verify compatibility with inverters.

Check the wiring color codes: red usually denotes positive, black or blue negative, and green/bare copper the grounding. Fuses and disconnect switches are marked with standard electrical symbols–a triangle with a line for fuses, a rectangle with an “X” for switches. Ensure these components align with local codes; many jurisdictions require rapid shutdown devices within 10 feet of arrays.

Identify the inverter type–string, micro, or hybrid–from its symbol (a circle with internal lines). String models show multiple panel rows converging into one inverter, while micro-inverters attach directly to individual panels, often depicted with smaller circles beside each module. Hybrid setups include a battery bank, denoted by stacked rectangles or a battery icon.

Examine the data labels for critical specs: maximum power point tracking (MPPT) ranges, open-circuit voltage (Voc), and short-circuit current (Isc). Voc must never exceed the inverter’s input limit–overvoltage risks irreversible damage. Use a multimeter to cross-verify these values after installation; discrepancies often reveal wiring errors or mismatched components.

Step-by-Step Guide to Drafting a Photovoltaic Installation Single-Line Blueprint

Start by aligning all components along a central vertical axis to mirror real-world wiring topology. Sketch the PV array at the top using three parallel rectangles, each representing a string of 8–12 modules; label voltage (e.g., 400V DC) and current (e.g., 10A) per string. Connect strings to a combiner box (depicted as a small rectangle with input/output terminals) using 6 mm² cables, marking cable lengths (≤3 m) beside lines. Below the combiner, draw the charge controller as a trapezoid with MPPT specs (e.g., 60A, 150V DC max) and link it via 10 mm² wires, indicating polarity (+/–) at each terminal.

Key Components Sequence

1. Inverter: Position a larger rectangle 10 cm below the controller, sized 30×20 cm, labeling AC output (e.g., 5 kVA, 230V, 50 Hz). Use a dashed line for grounding (
2. Battery bank: Add two 12V batteries side-by-side (label Ah rating, e.g., 200Ah) below the inverter, connected in series with 50 mm² copper cables; note voltage drop calculations (≤2%) on inter-battery links.
3. Load panel: Draw a vertical busbar 5 cm left of the inverter, listing critical loads (e.g., refrigerator: 600W, lights: 200W) with dedicated breakers (CB 10A–32A). Include surge protection devices (SPD Class II) adjacent to the panel.

Verify diagram accuracy by tracing current paths: start from module strings → combiner → controller → battery bank → inverter → load panel → ground. Use arrowheads every 3 cm along cables to denote flow direction. Cross-check all labels against manufacturer datasheets for component compatibility (e.g., inverter max DC input voltage vs. string open-circuit voltage).
