Complete Guide to Designing a PC Sound Card Circuit Schematic

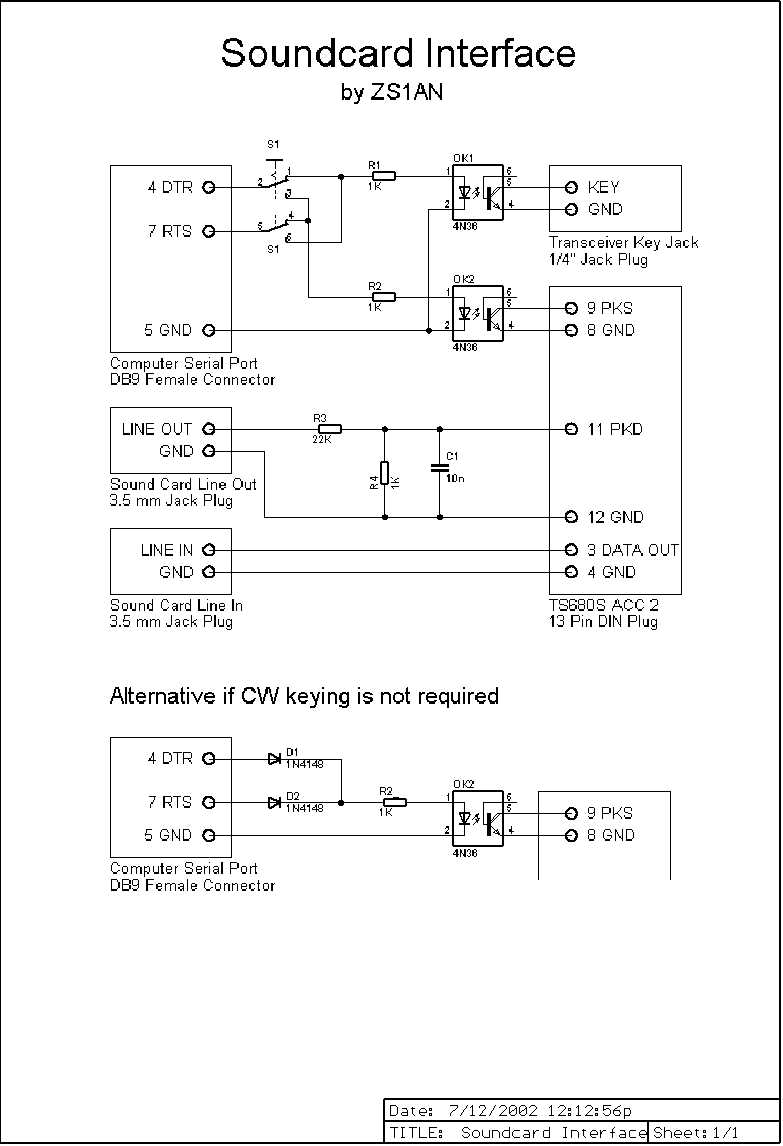

Start with the PCM1808 ADC for 24-bit, 96kHz analog-to-digital conversion–its 107dB dynamic range ensures minimal noise floor in recordings. Pair it with the CS4398 DAC for symmetrical output performance; its 120dB THD+N spec surpasses most commercial boards. Route both chips through a dual op-amp stage–use NE5532 or OPA2134 for impedance matching and signal conditioning before hitting line-level outputs.
Power regulation demands three isolated rails: ±5V for analog sections, +3.3V for digital logic, and +12V for phantom power (if including XLR inputs). Install LM317/337 regulators with 22µF tantalum capacitors at input/output stages to suppress ripple. Ground planes must separate analog and digital sections–split at the AD/DA boundary and connect via a single 10Ω resistor to prevent high-frequency interference loops.
For connectivity, integrate a WM8804 S/PDIF transceiver if optical/coaxial outputs are needed. Keep traces under 0.5mm width and maintain 30mil clearance on sensitive paths to reduce crosstalk. Add 2.2nF coupling capacitors on all audio inputs/outputs to block DC offset; bypass with 100nF ceramics at each IC’s power pin. Test with a 1kHz sine wave at -20dBFS–THD should measure below 0.003% on a spectrum analyzer.
Software configuration requires firmware initialisation of I²S registers. Set the CS4398’s sample rate control via its mode pins; for 48kHz, pull M0 high and M1 low. Validate clock sources by probing the MCLK, BCLK, and LRCLK lines with an oscilloscope–jitter must stay below 50ps. Use Altera Max 10 FPGA or STM32 microcontroller to handle USB audio class compliance if digital streaming is required.

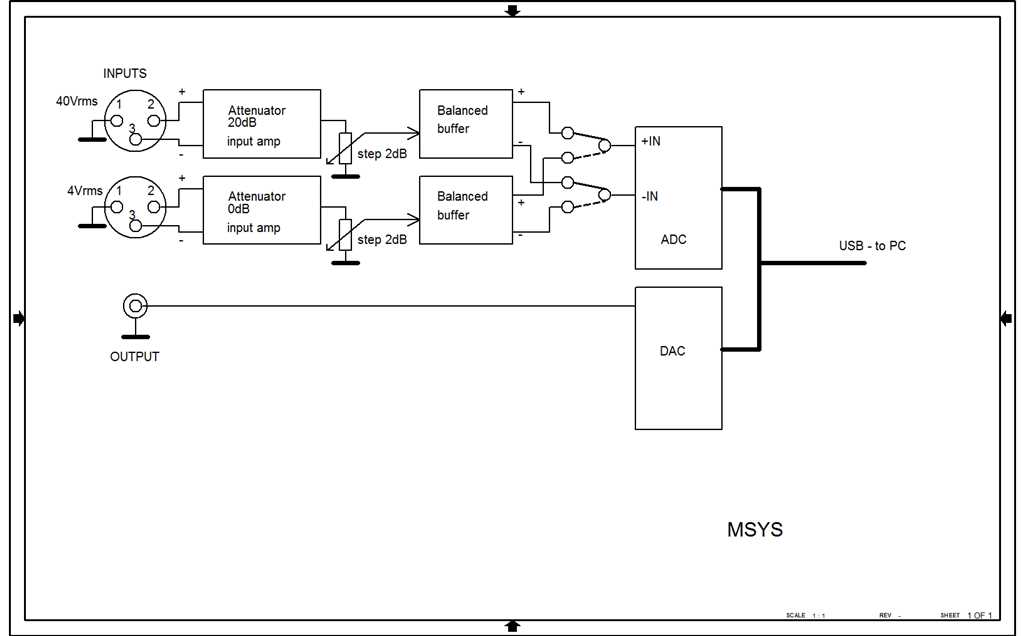

Building a High-Fidelity Audio Interface Layout
Start with a low-noise linear voltage regulator for the analog sections–LM317 or LT1086 deliver cleaner power than standard LDOs, cutting ripple below -100 dB. Position the regulator *immediately* adjacent to the DAC chip to minimize trace inductance; use 22 μF tantalum capacitors on both input and output, with a 100 nF ceramic bypass directly on the DAC’s power pin.
Route all digital signals (I²S, SPI) with controlled impedance–50 Ω single-ended or 100 Ω differential–using 6-mil traces spaced at least 12 mils apart. Keep clock lines (MCLK, BCLK, LRCLK) under 2 inches long; if longer, terminate them with a 33 Ω series resistor at the driver end. Avoid parallel runs with analog traces; cross at 90° if unavoidable, and shield with ground fills on both sides.
Use a separate ground plane for analog and digital domains, connecting them at a single point near the DAC’s analog ground pin. For op-amps (e.g., OPA1612, NE5532), bypass each supply pin with a 10 μF electrolytic and 100 nF ceramic in parallel, placed within 2 mm of the device. Routes to output jacks should be symmetrical, with matched trace lengths to prevent phase shifts above 20 kHz.
Implement a star grounding topology for the analog outputs: each channel’s return path should connect directly to the central ground point rather than daisy-chaining. Shielded twisted-pair cable works best for external connections; solder the shield only at the PCB end to prevent ground loops. For I/O connectors, use gold-plated contacts to reduce oxidation-induced noise at the sub-millivolt level.
Add a ferrite bead (e.g., Murata BLM18PG121SN1) on the USB/PCIe power input to suppress HF noise above 10 MHz. If including a headphone amplifier, use a dedicated rail with ±12 V for the output stage–TL072 or LME49600 handle 100 mW into 32 Ω without clipping. Test for crosstalk by injecting a 1 kHz sine wave into one channel and measuring adjacent channels; -90 dB or better is achievable with proper layout.
For ADC inputs, use a low-capacitance analog switch (e.g., MAX4612) to mux between sources, followed by a 1st-order anti-aliasing filter (10 kHz cutoff). Keep sampling traces short; route the clock signal on an inner layer if possible, sandwiched between ground planes. If using an external clock source, lock it to the system clock with a PLL (e.g., Si5351) to avoid jitter above 5 ps RMS.
Post-layout, verify power integrity with a spectrum analyzer–target -95 dB noise floor across 20 Hz–20 kHz. Check for ground bounce by scoping the ground plane near high-current ICs; spikes should not exceed 50 mV. Finalize with a 4-layer stackup: signal-power-ground-signal, using 1 oz copper for critical traces and 0.5 oz for fills. Export Gerbers with explicit layer designations to avoid fab errors in impedance control.
Critical Elements of an Audio Interface Board Design
Place the DAC (Digital-to-Analog Converter) at the center of the PCB, minimizing trace lengths to the analog output stage. Use a four-layer board with dedicated power and ground planes to reduce noise coupling. Keep high-speed digital lines, like I²S, away from sensitive analog regions, ensuring a 30°–45° angle crossing if unavoidable. Decoupling capacitors (0.1µF X7R ceramic) must sit within 2mm of each DAC power pin, with additional bulk capacitance (10µF) for stable voltage.
Avoid routing clock signals (e.g., MCLK, BCLK) near power rails or switch-mode regulators. Use differential pairs for clock traces, maintaining 50Ω impedance with consistent spacing (1.5x trace width). If a crystal oscillator is on-board, position it adjacent to the DAC’s clock input, shielding it with a ground pour to prevent EMI from disrupting phase-locked loops. Keep vias to a minimum–each adds ~1nH inductance, degrading signal integrity.
The analog output stage requires strict component placement. Op-amps (e.g., NE5532, OPA1688) should be oriented to minimize feedback loop lengths, with input/output traces no longer than 20mm. Use star grounding for analog and digital sections, tying all grounds at a single point near the main power connector. RF filters (LC low-pass, cutoff 20kHz).
Power delivery must isolate analog and digital domains. LDOs (e.g., LT3045 for analog, TPS7A47 for digital) should feed separate rails, each with its own decoupling (0.1µF + 1µF tantalum near the LDO). Avoid sharing vias between analog/digital grounds–dedicate vias to each plane. For boards with multiple voltage rails (e.g., ±12V, +5V, +3.3V), use PI filters (ferrite beads + capacitors) at the entry point of each section to block conducted noise.
EMI mitigation demands a contiguous ground plane under all components, with no slots or cutouts that could act as antennas. High-speed traces (I²S, USB) must follow the 3W rule (spacing ≥3x trace width) and avoid sharp bends (>45°). Shielding cans (if used) should connect to the ground plane via multiple vias to prevent resonance. Test pads for critical signals (e.g., clock, DAC outputs) should be minimized–exposed copper radiates interference.
Final validation requires a vector network analyzer to check impedance matching (target:
Step-by-Step Guide to Drawing DAC and ADC Circuit Blueprints
Begin with the digital-to-analog converter by selecting a precision resistor ladder network such as the R-2R configuration. Use resistors with tolerances of ±1% or lower–values of 10 kΩ and 20 kΩ are standard for typical 8-bit implementations. Place the ladder vertically, connecting each node to a corresponding GPIO pin on your microcontroller, ensuring pull-up resistors (4.7 kΩ) are added if open-drain outputs are used. For noise suppression, decouple each stage with a 0.1 µF ceramic capacitor to ground, positioned within 2 mm of the resistor connections.
Critical ADC Circuit Design Parameters
Choose a successive approximation register ADC (e.g., MCP3208) for balanced speed and resolution (12-bit). Route analog input traces away from high-frequency digital lines, maintaining a minimum clearance of 3 mm or using a guard ring connected to analog ground. Implement anti-aliasing by pairing the ADC’s input with a low-pass RC filter–combine a 1 kΩ resistor and a 470 pF capacitor for a 340 kHz cutoff frequency. Power the ADC with a dedicated 3.3 V linear regulator (e.g., AMS1117), bypassed with a 10 µF tantalum capacitor at the input and a 0.1 µF ceramic at the output.
| Component | Recommended Value | Tolerance/Note |
|---|---|---|
| R-2R Ladder Resistor (R) | 10 kΩ | ±1% (matched pairs) |
| Decoupling Capacitor | 0.1 µF | X7R dielectric |
| Anti-Aliasing Resistor | 1 kΩ | ±5% |
| Anti-Aliasing Capacitor | 470 pF | NP0, ±5% or better |
For ADC reference voltage stability, use a precision reference IC (e.g., REF3025) instead of the supply rail. Connect its output via a low-impedance trace to the ADC’s VREF pin, bypassing with a 1 µF ceramic capacitor to analog ground. If using differential inputs, ensure the signal-to-ground impedance is below 1 kΩ to minimize errors–add a 100 nF capacitor across differential pairs for common-mode rejection. Terminate unused ADC channels with a 0.1 µF capacitor to ground to prevent floating inputs from increasing noise.
Finalize the layout by segregating analog and digital grounds with a single-point star connection near the ADC. Route clock traces (SCLK, CS) with controlled impedance (50 Ω), avoiding vias or sharp bends. For the DAC, buffer the output with an op-amp (e.g., OPA2134) in a non-inverting configuration, using a gain of 1 + (10 kΩ/10 kΩ) = 2 to match line-level signals. Verify all connections with a continuity tester before powering the circuit.
Power Supply and Ground Plane Design in Audio PCB Layouts
Isolate analog and digital power rails with separate voltage regulators. Linear regulators like LM317 or LT1086 reduce noise for op-amps, while switching regulators suit digital components. Keep analog traces under 0.5Ω impedance; use 2oz copper for high-current paths.
Ground planes must follow a star topology. Connect all grounds at a single point near the main power input to prevent ground loops. Avoid daisy-chaining grounds–each sensitive circuit (e.g., preamps, DACs) should have its own return path to the star point.
- Split ground planes between analog and digital sections, bridging them with a ferrite bead or 0Ω resistor.
- Place decoupling capacitors (10µF + 0.1µF) as close as possible to each IC’s power pins.
- Use thick traces (minimum 20 mils) for power delivery to minimize voltage drops.
Differential signaling for audio lines reduces interference. Route ± signals symmetrically, maintaining consistent trace width and spacing (e.g., 10 mils width, 15 mils spacing). Shield clock lines with ground guard traces on both sides.
Thermal management dictates component placement. Locate power-hungry parts (e.g., output drivers) near heat sinks or PCB edges. Avoid running power traces beneath sensitive components–capacitance coupling can introduce noise. Use thermal vias (12 mils diameter, 0.8mm pitch) for efficient heat dissipation.
- For dual-rail supplies, use ±15V for op-amps and ±5V for ADCs/DACs.
- Add reverse-polarity protection with a Schottky diode (e.g., 1N5822) on each rail.
- Test power integrity with an oscilloscope at 20MHz bandwidth; ripple should stay below 5mVpp.
Ferrite beads (e.g., Murata BLM18PG121SN1) on digital lines suppress high-frequency noise before it reaches analog sections. Pair beads with a 100nF capacitor to form a low-pass filter. Avoid placing beads on power traces feeding op-amps–inductance can destabilize feedback loops.
