How to Wire an SPST Switch Simple Circuit Layout Guide

Start by sourcing a mechanical toggle rated for at least 3A at 125VAC if the application involves household appliances or lighting. For low-power electronics under 5V, a lightweight slide or push-button variant will suffice–opt for models with gold-plated contacts to prevent oxidation in high-humidity environments.

Wire the input terminal directly to the power source, ensuring the conductor gauge matches the expected current draw (e.g., 18AWG for 5A loads). The output terminal must connect to the load without intermediate junctions; any splices increase resistance and introduce failure points. Use solder or crimp connectors rated for the target voltage–avoid twist-and-tape methods outside temporary setups.

Place a flyback diode (1N4007) across inductive loads like relays or motors to suppress voltage spikes. For DC applications below 12V, a Schottky diode (1N5822) reduces forward voltage drop and improves efficiency. If the load exceeds 500mA, add a 0.1µF ceramic capacitor in parallel to stabilize transient responses.

Mount the control element on a non-conductive panel (e.g., polycarbonate or phenolic resin) with a cutout precision of ±0.5mm to prevent mechanical stress. Position the fixing nut 2mm below the surface to allow flush operation–over-tightening distorts the housing and misaligns contacts. Test activation force before final installation; readings between 100gf and 300gf confirm consistent engagement.

Include a 10kΩ pull-down resistor if interfacing with microcontrollers to eliminate floating inputs during disconnect states. For AC mains circuits, insert a 10kΩ NTC thermistor in series to limit inrush current–this prolongs contact lifespan by reducing arcing during transitions. Verify isolation with a multimeter set to 1000V DC; readings above 1MΩ between terminals and ground indicate safe operation.

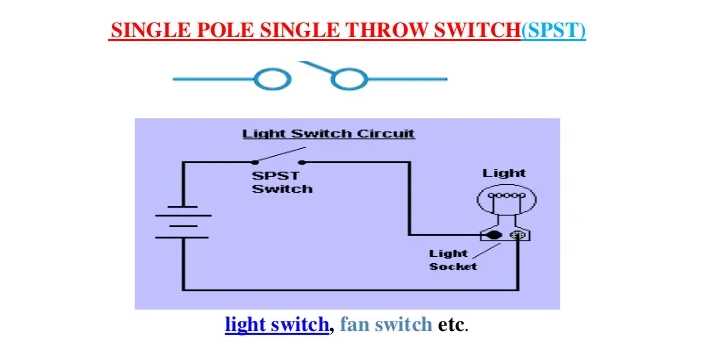

One-Pole Single-Throw Control Schematic: Practical Wiring Steps

Connect the power source directly to one terminal of the mechanical contact–polarity matters only for DC applications. For AC layouts, ensure the live wire links to the input side; reverse wiring risks shorting when activated. Use a 2.5mm² copper conductor for loads up to 10A to prevent voltage drop under continuous use. Solder joints with 60/40 tin-lead alloy for corrosion resistance, or crimp with insulated butt connectors if the setup demands field servicing. Position the toggle within 200mm of the load to minimize line inductance.

Verify the absence of parallel paths before energizing–phantom conduction through improperly routed neutrals can cause unintended activation. For inductive loads like relays or motors, place a flyback diode in antiparallel (cathode to positive) rated at 1.5× the load current. Panel-mounted variants require a 2mm clearance from adjacent metal surfaces to meet IEC 60947-1 spacing standards. If ambient temperatures exceed 40°C, derate the maximum current by 3% per degree Celsius below the component’s 85°C rating.

Label each terminal with heat-shrink tubing or embossed tags–use “L” for line input and “Load” for output to simplify troubleshooting. Test continuity with a multimeter in diode-check mode: open contacts should read OL, closed contacts near 0Ω. For waterproof enclosures, seal entry points with IP67-rated cable glands and apply dielectric grease on screw terminals to displace moisture.

Basic Wiring Layout for a Single Pole Single Throw Control

Connect the power source’s live wire directly to the input terminal of the mechanical control. Use a 14-gauge copper wire for standard 15-amp residential setups; ensure the insulation is rated for 600V minimum. Strip 5/16 inch of insulation from the wire end before inserting it into the terminal screw–secure with a clockwise twist to prevent loosening under slight vibrations.

Attach the output terminal to the load wire leading to the fixture, securing the connection with a wire nut for strain relief. Test continuity before energizing the system using a multimeter set to ohms–resistance should measure under 1 ohm. For outdoor or damp locations, use a weatherproof housing rated NEMA 3R and seal all entry points with silicone gel to prevent moisture ingress.

Grounding and Safety Measures

Link the grounding wire from the power source to the green screw on the device’s yoke–this applies even if the device lacks a dedicated ground terminal. For metal junction boxes, bond the box to the grounding conductor using a pigtail wire no smaller than 12-gauge. Avoid relying solely on the box’s threaded hole as a grounding path; confirm compliance with NEC Section 250.148 for all connections.

Label each wire with heat-shrink tubing marked with the circuit identifier to simplify future maintenance. For 20-amp circuits, upgrade to 12-gauge wire and ensure the device’s ampacity matches the load requirements–derate conductors by 20% for continuous loads exceeding 3 hours. Replace any corroded terminals immediately to maintain stable contact resistance below 0.2 ohms.

Building a Single-Pole Control in a Direct Current Setup

Select a mechanical lever rated for at least 125% of your load’s maximum current. For a 5A load, a 7A-rated toggle ensures thermal margin during prolonged engagement. Verify the actuator’s contact material–copper alloy with silver plating minimizes resistance buildup under frequent cycling (up to 10,000 operations). Avoid unsealed units in high-dust environments; opt for sealed actuators with IP65 ingress protection to prevent arcing.

Component Placement and Wiring

• Load path isolation: Connect the positive DC supply directly to one terminal, then route the other terminal to the device (e.g., LED panel, motor). Never split the return path via the control element–keep ground returns direct to the power source.
• Wire gauge: For 12V systems, use 18AWG stranded copper for currents under 10A; upsize to 14AWG for 10-15A. Tin-stranded ends to prevent oxidation at terminal screws.
• Polarity: Reverse polarity can destroy inductive loads (e.g., solenoids). Confirm direction with a multimeter in continuity mode before finalizing connections.

Mount the actuator on a non-conductive panel (e.g., 3mm PVC or phenolic board) using #4-40 stainless steel screws. Secure wiring with nylon cable ties spaced ≤150mm apart to prevent stress on terminals during vibration. Apply dielectric grease to terminals in humid climates to inhibit corrosion, extending operational life to ∼15,000 cycles.

Testing and Safety Validation

1. De-energize the setup. Measure contact resistance with a milliohm meter; values above 50mΩ indicate contamination or wear–disassemble and clean with isopropyl alcohol.
2. Activate the lever while monitoring voltage drop at the load. A 0.5V or higher drop signals excessive connection resistance–re-crimp or solder joints.
3. Verify grounding: Attach a 10kΩ resistor from the chassis to the DC negative. Absence of current flow confirms proper isolation. Remove resistor post-test.

Common Mistakes to Avoid When Wiring a Single-Pole Control

Reverse polarity ranks as the most frequent blunder during installation–connecting the input wire to the terminal meant for the load and vice versa instantly renders the path non-functional. Verify terminal markings (COM for common, NO for normally open) before securing any conductors; misalignment here guarantees disrupted signal flow even when the actuator is engaged. Use a multimeter in continuity mode to confirm connectivity after mounting: probes on COM and NO should register zero resistance when toggled on, infinite resistance when off.

Error	Detection Method	Corrective Action
Loose termination	Visual: conductor wobble; meter: intermittent beep	Tighten screw terminal to 0.8 Nm, solder stranded wires if gauge ≤ 22 AWG
Improper gauge pairing	Current draw exceeds 80% of max ampacity	Match wire cross-section to device specs: 16 AWG for ≤ 10 A, 12 AWG for ≤ 20 A
Heat damage from solder	Melting insulation ± discolored PCB trace	Keep iron tip ≤ 350°C; use heatsink clip on adjacent traces

Verifying a Single-Pole Toggle Mechanism for Operational Integrity

Disconnect power from the wiring assembly before conducting any checks. Use a multimeter configured to continuity mode–place probes on the input and output terminals of the control component. A functional device will produce an audible tone or display near-zero resistance when engaged; silence or an open reading confirms inactivity or failure. Always cross-test both positions to rule out intermittent faults.

Key Diagnostic Steps for Reliable Assessment

Inspect terminal connections for oxidation or loose wiring–corrosion increases resistance and can simulate a false negative. For soldered contacts, reheat joints with a low-power iron if cold solder is suspected. Mechanical wear in the actuator should be evaluated by cycling the device 20–30 times while monitoring response consistency. Replace if erratic behavior persists.

A voltmeter set to DC/AC (matching system voltage) can validate proper voltage delivery when the system is live. Measure across the active contacts in both states: expected readings should mirror supply voltage when open, and drop to zero when closed. Deviations suggest internal contact degradation or incorrect wiring configuration.

For battery-powered setups, introduce a known-load resistor (e.g., 100Ω for 12V systems) in series. Voltage drop under load should remain stable during operation. If readings fluctuate beyond 5% of nominal, suspect faulty contacts or insufficient spring tension in the toggle mechanism. Replace components exhibiting persistent instability to prevent downstream failures.
