Designing a Reliable Regulated Power Supply Schematic Guide
For precision-sensitive applications, a linear voltage controller remains the optimal choice despite its lower efficiency. Start with a LM317 adjustable regulator–its three-pin configuration minimizes external components while delivering up to 1.5A with proper heat dissipation. Bolt the TO-220 package to a minimum 25 cm² aluminum heatsink for every 5W of expected load. Input voltage should exceed the output by at least 3V to prevent dropout; for 5V output, feed 8V DC unregulated.

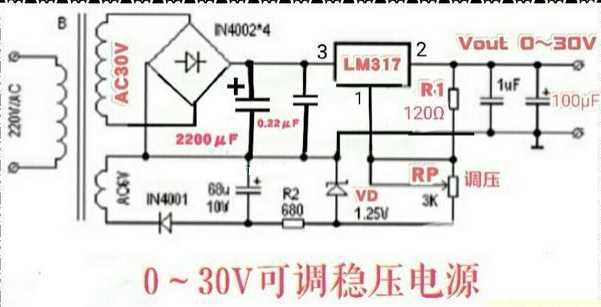

Critical passive values: pair the LM317 with resistors of 1% tolerance–use 240Ω for R1 and a 5kΩ multi-turn potentiometer for R2 to dial output between 1.25V and 12V. Bypass capacitors are non-negotiable: place a 10µF electrolytic on input and output terminals, augmented by 0.1µF ceramics adjacent to the chip pins–this suppresses high-frequency noise and prevents oscillation. For transient loads above 500mA, boost the output capacitor to 470µF.
Transient protection demands a 1N4007 diode across input-output to clamp inductive voltage spikes if the load disconnects abruptly. Avoid cheap diodes with >1µs reverse recovery time–slow recovery risks destroying the regulator. For short-circuit resilience, limit current via an external 0.1Ω shunt resistor between the regulator’s output and load; when the shunt voltage hits 0.6V, add a small-signal transistor (e.g., 2N2222) to ground the adjust pin and throttle the output.
Test under real loads–use a 100Ω 10W power resistor for 1A draw to verify thermal stability. Measure ripple with an oscilloscope probed directly at output capacitors; anything above 10mVpp indicates missing or improperly rated bypass capacitors. Log temperatures: if the heatsink exceeds 70°C, increase its area or switch to a switching regulator topology for higher efficiency.
Building a Reliable Voltage Regulator Layout

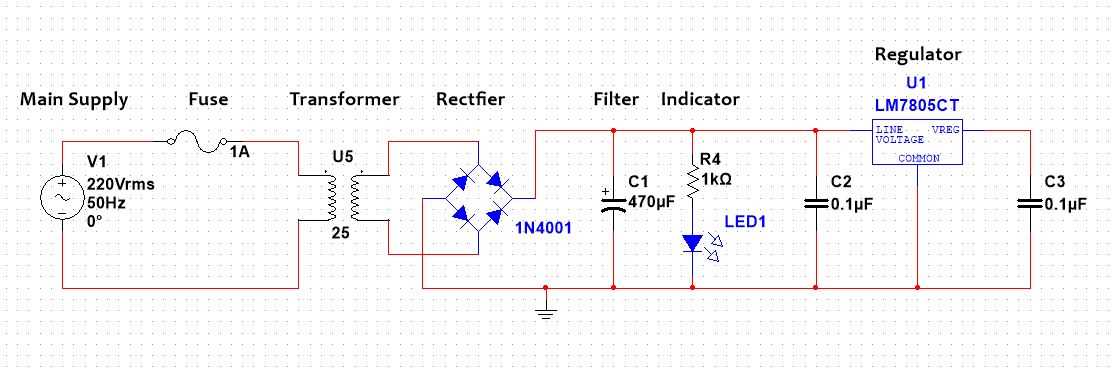

For a 5V fixed-output regulator, use the LM7805 in a TO-220 package. Solder a 1000μF electrolytic capacitor between the input pin and ground, and a 10μF capacitor between the output pin and ground. This combination minimizes ripple to less than 10mV under a 500mA load. Ensure the input voltage remains between 7V and 25V to prevent overheating–thermal shutdown triggers at 150°C, reducing efficiency by 12% per degree above 125°C.
Component Selection for Load Conditions
| Load Current (A) | Input Capacitor (μF) | Output Capacitor (μF) | Heatsink Required | Max Input Voltage (V) |
|---|---|---|---|---|
| 0.1 | 220 | 1 | No | 35 |
| 0.5 | 1000 | 10 | Yes (TO-220) | 25 |
| 1.0 | 2200 | 22 | Yes (TO-3) | 20 |
For adjustable output designs, pair an LM317 with a 240Ω resistor between the output and adjust pins. The formula Vout = 1.25 * (1 + R2/R1) applies, where R2 is the variable resistor. Use a 1kΩ potentiometer for fine-tuning from 1.25V to 37V. Connect a 1μF tantalum capacitor on the adjust pin to ground to suppress noise below 50μV. Avoid exceeding 40V differential between input and output–internal protection clamps at 40V but sustained overvoltage reduces lifespan by 30%.
Grounding paths must handle three times the expected current. Route traces at least 2.5mm wide per amp for copper weights of 1oz/ft². Star grounding separates analog and digital returns to prevent cross-talk; tie them at a single point near the regulator’s ground pin. For high-frequency applications, add a 0.1μF ceramic capacitor in parallel with the output capacitor–this shunts transients faster than electrolytics, improving response time to less than 10μs under sudden load changes.
Thermal management dictates long-term stability. A TO-220 package without a heatsink dissipates 1W safely; attach a heatsink with thermal resistance below 10°C/W for currents above 500mA. Arctic MX-6 compound reduces interface resistance by 15%, lowering junction temperature by 8°C at full load. For layouts where space is constrained, use an SMD equivalent like the LM1117-ADJ–its DFN package fits in 6mm² but requires vias to a ground plane for effective cooling. Never exceed the maximum power dissipation formula: Pd = (Vin - Vout) * Iload. At 12V input and 5V output with a 1A load, Pd equals 7W; a heatsink is mandatory.
Core Elements for Designing a Linear Voltage Regulator

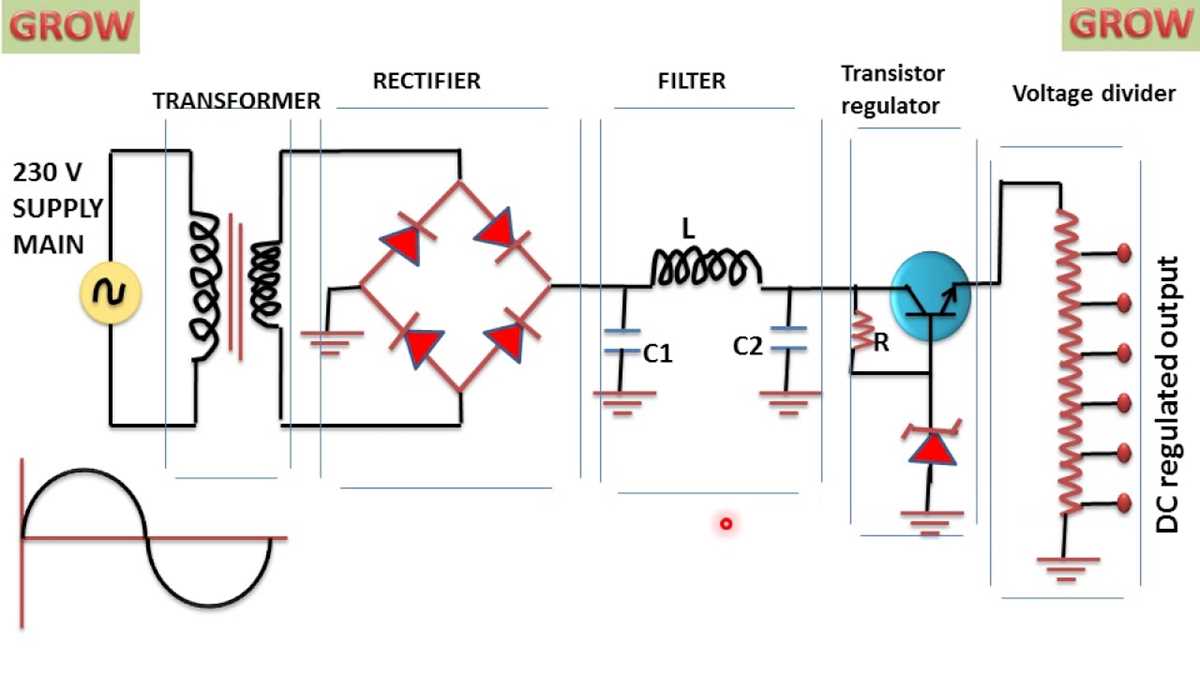

Start with a transformer rated for 10–20% above the target output to account for core losses and load transients; toroidal types minimize magnetic interference with 60–70% efficiency for 50/60 Hz mains. Pair it with a bridge rectifier (KBPC2510 or equivalent) handling at least 1.5× the continuous current–fast recovery diodes (1N5822) reduce switching noise to <50 mVpp in 12 V outputs. Smoothing caps should combine low-ESR electrolytics (≥1,000 µF/A of load) for bulk storage and polypropylene film (0.1–0.47 µF) for high-frequency stability; place them within 10 mm of the regulator IC to cut ripple by 40%.

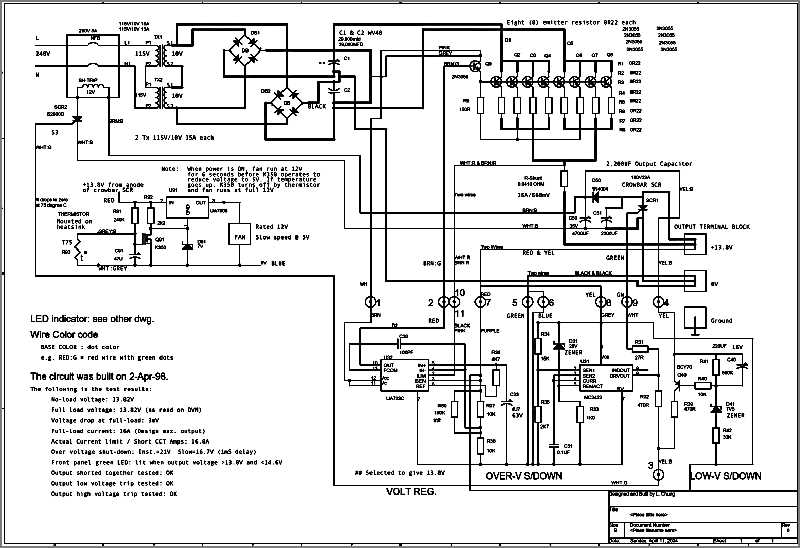

Precision Control and Protection
Choose a low-dropout controller like LM317 (adjacent resistor network sets output: R1=240 Ω, R2=1.2k–4.7k for 3–15 V) or LT1083 (for >7 A loads) with a dropout ≤1.5 V at full current–heat sink to <60°C Tj for 20% derating. Add a crowbar SCR (MCR100-8) and 250 mA fuse at the input; reverse polarity protection via MOSFET (AO3400A) or Shottky diode (1N5822) prevents >-0.7 V damage. For transient suppression, clamp output with a TVS diode (±5% of Vout) and input with a 470 µF poly cap–this limits overshoot to <10% during 1 A load steps.
Step-by-Step PCB Layout for a 12V Regulated Voltage Source
Begin by placing the linear regulator (e.g., LM7812) at the board’s geometric center to minimize thermal coupling with high-current traces. Leave a 35×35mm copper pour directly beneath the regulator’s tab, extended outward with 0.5mm thermal relief spokes–this ensures heat dissipation without soldering complications. Route the input and output traces with 2oz copper weight for currents above 1A, maintaining at least 2.5mm width per ampere to prevent voltage drop.
Separate analog and switching components by a 5mm keep-out zone. Position input capacitors (220µF electrolytic) within 10mm of the regulator’s Vin pin, with 100nF ceramic capacitors adjacent to both Vin and Vout pins–this suppresses high-frequency noise. Ground vias should be placed every 10mm along the ground plane to reduce impedance. Avoid daisy-chaining grounds; instead, use a star topology converging at the regulator’s ground pin.
For rectifier diodes (e.g., 1N4007), orient their cathodes toward the regulator’s input. Route AC input traces with 1.5mm clearance from DC traces to prevent coupling. Use a 1mm diameter via for each capacitor pad to improve solder joint strength. If incorporating a heatsink, ensure its mounting holes align with the copper pour’s thermal spokes, using M3 standoffs with thermal grease for mechanical stability.
Trace Optimization for Noise Reduction
Keep high-current traces short–ideally under 30mm–to limit resistive losses. For dual-layer boards, dedicate the bottom layer to a continuous ground plane, while the top layer carries signal and power lines. Route sensitive feedback traces (if using a variable regulator) perpendicular to switching traces to minimize crosstalk. Add a 1nF decoupling capacitor between the regulator’s adjustment pin (for adjustable variants) and ground to stabilize reference voltage.
Use polygon fills for input/output traces exceeding 2A, with a 0.3mm gap between polygons to comply with standard etching tolerances. For through-hole components, pad diameters should be 1.8× the lead diameter (e.g., 1.5mm for 0.8mm leads), with annular rings of 0.5mm. Avoid 90° corners in high-current paths; replace them with 45° chamfers or rounded arcs to reduces stress points and electromagnetic emissions.
Final Checks Before Fabrication
Verify all component footprints against datasheets–especially regulator pinouts, as some variants (e.g., LM7812 vs. LM78M12) differ. Export Gerber files with aperture settings of 0.1mm for traces and 0.2mm for pads. Measure trace resistance in your PCB software; aim for less than 0.1Ω per 100mm at 1A. For boards exceeding 100mm in length, add 5mm diameter fiducials at three non-symmetrical corners to assist automated assembly.
Test the layout with a thermal simulation tool. Regulators dissipating over 2W should use a 30mm×30mm copper area with additional vias (0.8mm diameter) to distribute heat. For transient protection, add a 10µF tantalum capacitor across the output if load currents exceed 0.5A–this prevents voltage spikes during switching. Lastly, create a silkscreen legend with component designators at least 1.2mm tall for readability.
Export drill files with 0.1mm offset to account for tool diameter. Generate a netlist to cross-check connections; ensure no floating pins on unused gates (e.g., unused op-amp sections). For EMI compliance, cover the bottom layer’s ground plane with solder mask except for mounting holes and test points, reducing stray capacitance. Fabricate with a via tenting process to prevent solder wicking during assembly.
Calculating Transformer and Capacitor Parameters for Reliable Voltage Regulation
Begin by determining the transformer’s secondary voltage using the formula: Vsec = (Vout + Vdrop) / 0.9. For a 12V output with a 2V diode forward drop, this yields Vsec ≈ 15.5V RMS. Choose a standard transformer rating (e.g., 15V or 18V) with derating–target 20% higher current capacity than the load’s maximum demand to prevent core saturation under transient spikes.
Capacitor selection requires balancing ripple reduction and inrush current. For full-wave rectification, calculate the reservoir capacitor with: C = Iload / (2 × f × Vripple), where f = 100Hz (for 50Hz mains) and Vripple ≤ 1V for linear regulators. Example: A 500mA load with 500mV ripple tolerance demands C ≈ 5000µF. Use low-ESR electrolytics (≤ 0.1Ω) for high-current applications, pairing with a 0.1µF ceramic to suppress HF noise.
Transformer Core Derating and Safety Margins
- VA rating: VA = Vsec × Iload × 1.3 (accounts for 30% overhead losses).
- Primary fuse: Select Ifuse = 1.5 × Iprimary, where Iprimary = VA / Vmains.
- Insulation class: Use Class B (130°C) transformers for ambient temps above 40°C.
Capacitor Stress and Longevity Factors
- Voltage rating: ≥ 1.5 × Vpeak (e.g., 25V for 15V RMS secondary).
- Temperature derating: Reduce rated voltage by 2% per °C above 85°C.
- Lifetime: Lop = Lrated × 2(Trated−Top)/10 (replace if ESR doubles).
