Complete 5-Wire Trailer Lighting Connection Guide and Diagram
Begin by identifying the connector type on your vehicle–most light-duty tow setups use a 4-pin flat plug, while heavier loads require a 7-pin round connector. Match the pin configuration to the standard: ground (white), tail/running lights (brown), left turn/brake (yellow), and right turn/brake (green). For 7-pin systems, add auxiliary power (blue), electric brakes (red), and reverse lights (purple).
Test each circuit before finalizing connections. A multimeter set to continuity mode confirms wire integrity–probe the pins while activating vehicle signals. If readings fluctuate, inspect for frayed cables or corroded terminals. Replace damaged sections with marine-grade wire (16-14 AWG) for outdoor resilience. Crimp connectors tightly; solder joints offer superior durability but require heat-shrink tubing for moisture protection.
Route cables through grommeted holes in the chassis to prevent chafing. Secure wires every 18 inches with nylon clamps–avoid zip ties directly on insulation. Ground the white wire to bare metal, preferably near the tow hitch, using a star washer for optimal conductivity. For brake controllers, mount the module within 12 inches of the driver’s seat for accessibility.
Verify voltage output matches the towable’s requirements. A 12V system should deliver 11.8V-14.5V under load. If dim indicators persist, check the alternator output or install a separate power line from the battery. Use a diode-based isolator when connecting dual battery setups to prevent drain. Label all wires at both ends–color-coding alone is unreliable over time.
Final inspection includes simulating real-world conditions. Engage brakes, hazard lights, and reverse signals simultaneously to confirm no interference occurs. If flickering happens, separate the brake and turn signal wires–most modern vehicles combine these circuits, requiring a converter module. Store spare fuses (20-30A) and a wiring schematic inside the vehicle’s glovebox for quick troubleshooting.
Understanding Your 5-Pin Connector Configuration

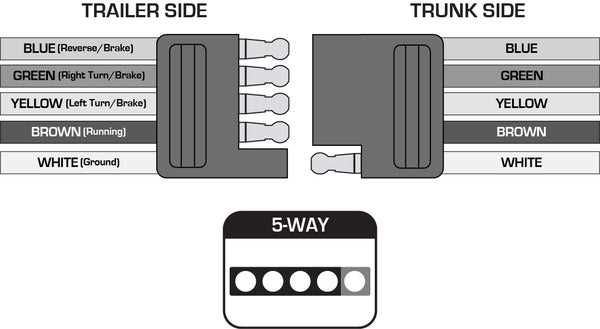

Start by identifying the color-coding on your 5-pin harness: white (ground), brown (running lights), yellow (left turn/brake), green (right turn/brake), and blue (electric brakes or auxiliary). Verify compatibility with your tow vehicle’s output–some systems reverse yellow and green, while others include a separate brake wire. Use a multimeter to confirm voltage (12V DC) at each pin before connecting to avoid signal mismatches that could damage components.
For brake-equipped setups, ensure the blue wire connects to a brake controller capable of handling 20+ amps. If your setup lacks brakes, repurpose the blue wire for auxiliary power (e.g., interior lighting or a 12V charger) by installing an in-line fuse (10-15 amps) near the connection point. Skip this step if the wire terminates at an unused pin–insulate it with heat-shrink tubing to prevent shorts.
Ground connections demand attention: attach the white wire directly to the frame using a self-tapping screw (minimum #12 gauge) or an existing chassis bolt. Sand paint down to bare metal for a solid contact; corrosion here causes intermittent failures like flickering lights or erratic brake signals. Avoid daisy-chaining grounds–each component should tie back to the main ground point independently.
Test every function before final assembly. Activate running lights, turn signals, and brakes separately while observing the rear lighting assembly. If LEDs remain dim or flash incorrectly, check for voltage drop with a load tester–poor connections or undersized wire (below 16 AWG) are common culprits. Replace degraded connectors with weatherproof molded plugs rated for outdoor use.
Document each connection with photos or a labeled sketch. Note deviations from standard schematics, like aftermarket additions (reverse lights, battery charging circuits). Store this reference with your vehicle’s manual for future troubleshooting–preemptive labeling saves hours during diagnostics or upgrades.
Identifying the Correct 5-Way Vehicle Towing Connector Pinout
Begin by verifying the pin functions using a multimeter set to DC voltage (20V range). Probe each contact while activating the corresponding light or function on the towing vehicle–tail lamps typically register 12V when engaged, while brakes or auxiliary circuits may pulse or maintain a steady signal. If readings deviate from expected values, trace the harness back to the fuse block or control module to rule out power delivery issues.
Standard Pin Assignments by Configuration
| Position | Flat/Blade (US) | Round (European) | Typical Voltage |
|---|---|---|---|
| 1 (Center) | Ground | Ground | 0V |
| 2 (Left) | Left Turn/Stop | Tail Lamps | 12V (pulsing or steady) |
| 3 (Right) | Right Turn/Stop | Brake Lamps | 12V |
| 4 (Top/Front) | Tail Lamps | Left Turn/Stop | 12V |
| 5 (Bottom/Rear) | Auxiliary/Battery | Right Turn/Stop | 12V (continuous or switched) |
European round connectors often swap turn signal and brake lamp functions compared to North American blade types–confirm regional standards before splicing wires. For dual-function pins (e.g., turn/brake), isolate each function by testing separately: toggle the turn signal *without* braking, then apply brakes *without* signaling. Conflicting signals here indicate crossed circuits, usually resolved by separating the wires at the first junction box.
Label each wire at both ends with heat-shrink tubing and permanent marker before cutting or crimping. Use color-coded adhesive labels if the OEM harness lacks clear identifiers: red for power, black for ground, yellow for left signals, green for right, and blue or white for auxiliary lines. Avoid relying solely on wire color–most aftermarket adapters repurpose existing wiring, leading to mismatches like green wires serving as ground in some Ford systems but right-turn signals in GM setups.
Troubleshooting Non-Standard Setups
For vehicles with integrated brake controllers (e.g., electric over hydraulic), pin 5 may deliver a 12V *output* to engage the controller rather than accepting an input. Check the controller’s installation manual–some units require a separate fused circuit directly from the battery. If pin 5 shows no voltage during testing, examine the under-dash harness for a dangling pigtail or inline fuse holder–many manufacturers route auxiliary power through this path rather than the main connector.
Step-by-Step Connection Guide for 5-Pin Vehicle Connectors
Begin by separating the five wires from the harness: brown, green, yellow, white, and blue. Label each wire at both ends to prevent misalignment during installation. Use a multimeter set to continuity mode to verify correct pairing–probe the socket terminals while testing the corresponding wires on the harness side.
Strip 5mm of insulation from each wire using strippers calibrated for 16-18 AWG gauge. Twist the exposed strands tightly to avoid fraying. Apply heat-shrink tubing (3/8″ diameter) over each wire before crimping–slide it back 10cm to keep it clear of connectors during soldering.
Attach the connectors in this order: white (ground) to pin 1, brown (running lights) to pin 2, green (right turn/brake) to pin 3, yellow (left turn/brake) to pin 4, and blue (auxiliary function) to pin 5. Crimp each butt connector with a ratcheting crimper, ensuring a 45 kg pull force to confirm secure attachment. Solder the connection for added reliability, then slide the heat-shrink tubing over the joint and apply heat until it seals completely.
Test each circuit before final assembly. Connect a 12V test light to the white wire (ground) and probe each colored wire individually–running lights should activate with all others, while turn signals and brakes should illuminate only their respective circuits. If the test light flickers or burns dimly, check for loose crimps, cold solder joints, or corroded terminals.
Securing the Assembly
Bundle the wires into a spiral wrap, spacing loops every 10cm to prevent chafing. Route the harness away from sharp edges, rotating parts, and exhaust components. Secure with nylon zip ties (4″ length) every 20cm, cutting excess length flush to avoid snagging. Apply dielectric grease to the plug terminals to prevent moisture ingress and corrosion.
Verify final functionality with a live system check. Use a portable brake controller simulator for the blue wire if towing a unit with reverse lights or electric trailer brakes. Confirm all lights–marker, turn, and brake–operate in sequence without cross-interference. Recheck after 50 km of driving to ensure no loose connections developed under vibration.
Common Mistakes When Hooking Up 5-Pin Electrical Setups
Mixing up the auxiliary and reverse light circuits causes immediate malfunctions. The fifth pin–often mistaken for a backup lamp–should only carry power for electric brakes or charging. Swapping these disrupts braking synchronization and may trigger false alerts on the tow vehicle’s dashboard.
Ignoring wire gauge leads to overheating under load. Using 18 AWG for brake circuits, which demand 14-16 AWG, risks melted insulation and intermittent failures. Verify specifications for each circuit before crimping connectors.
- Skipping ground testing with a multimeter. Corrosion on mounting points or loose connections create high resistance, weakening all functions. Scrape paint, sand surfaces, and secure terminals with star washers.
- Overlooking fuse requirements. Even low-power circuits need protection; a short in turn signals can fry the entire harness if unprotected. Insert 5-10 amp fuses in the power feed lines.
- Assuming universal color codes. Manufacturers differ–green may denote either left turn or auxiliary depending on the model. Always cross-check with the tow vehicle’s manual and label each wire before splicing.
Routing wires near moving parts invites abrasion. Exhaust pipes, suspension components, or sharp edges chafe through insulation within days. Use nylon looms and secure cables every 18 inches with zip ties rated for UV resistance.
Critical Failure Points During Installation
Non-waterproof butt connectors corrode inside days, especially in salty environments. Solder joints or heat-shrink terminals prevent moisture intrusion–avoid twist-and-tape methods entirely.
- Incorrect ball mount height misaligns plugs, straining connectors over time. Adjust the hitch so the socket sits level when coupled.
- Forgetting to disconnect the battery before attaching. A live circuit can short when inserting the plug, blowing fuses or damaging modules.
- Tightening terminal screws too much crushes wire strands, reducing current capacity. Snug is sufficient; over-tightening also strips threads.
Omitting dielectric grease on connections accelerates corrosion. Apply a thin coat to all metal contacts to repel moisture and prevent oxidation.
Long-Term Maintenance Oversights
Failing to inspect after heavy use results in undetected wear. Check for frayed wires, loose connections, and melted terminals after each trip exceeding 100 miles. Replace damaged components immediately–temporary fixes like electrical tape lead to roadside breakdowns.
Using automotive-grade wire instead of multi-stranded marine-rated wire in damp conditions shortens lifespan. Marine wire resists water ingress and corrosion better, despite higher cost.
