Complete Guide to Wiring a Stratocaster 5 Way Switch Step by Step

Install a 5-position toggle lever with these terminal connections: bridge pickup hot wire to lug 1, neck pickup hot to lug 5, and middle pickup hot to lug 3. Ground wires from all pickups and the lever’s metal shell connect to the back of the potentiometer casing or a dedicated ground bus. Use 250kΩ audio taper pots for single-coil setups and shielded twisted pair wires for runs longer than 15 cm to reduce 60-cycle hum.

Position 1 (bridge) engages lug 1 directly, cutting out the other coils. Position 2 adds the middle coil in parallel via lug 2, creating a mixed impedance of ~7.5kΩ. Position 3 isolates the middle coil on lug 3, while position 4 bridges middle and neck in parallel on lug 4. Position 5 routes only the neck coil to lug 5. Verify continuity with a multimeter set to 20kΩ; expect open circuit between non-adjacent lugs (e.g., 1 to 3) and ~5-7kΩ between active lugs in adjacent positions.

Route cables through a 10mm diameter control cavity channel to prevent signal degradation. Use heat-shrink tubing on solder joints exposed to string vibration zones (e.g., bridge grounding point). If hum persists in positions 2 or 4, flip the phase of the middle coil by reversing its hot and ground wires at the pickup–this cancels noise when combined with another coil. For Fender-style bodies, pre-drill pilot holes for selector mounting screws at a 7° forward tilt to align with the control plate curvature.

Guide to Five-Position Selector Electrical Layout for Fender-Style Guitars

Start by soldering the bridge pickup’s hot wire to the first lug of the toggle assembly (position closest to the body). The neck pickup connects to the fifth lug (opposite end), while the middle pickup’s hot wire goes to the third lug. Ground all pickup bases to the back of the potentiometer casing using a single, thick gauge wire for consistent shielding. Avoid daisy-chaining grounds–this reduces interference and maintains signal clarity.

• Position 1 (Bridge only): Lug 1 and 2 bridged via jumper.
• Position 2 (Bridge + middle): Lug 2 connected to a resistor (470k ohm) leading to lug 3.
• Position 3 (Middle only): Lug 3 and 4 joined directly.
• Position 4 (Middle + neck): Lug 4 linked to lug 5 through a second resistor.
• Position 5 (Neck only): Lug 5 isolated, no jumpers needed.

For hum-canceling in positions 2 and 4, integrate capacitors (0.047µF) between the middle lug (3) and ground. This bypasses phase issues that arise when mixing single-coil pickups. Use heat-shrink tubing on all connections to prevent shorts–exposed wires near metal components cause unwanted buzzing.

Test continuity with a multimeter before reassembling the instrument. Set the meter to 20k ohm resistance; readings should drop to near-zero when switching between active positions. If values fluctuate, recheck solder joints–cold connections are the primary failure point in these circuits. Keep wire runs as short as possible to preserve high-frequency response.

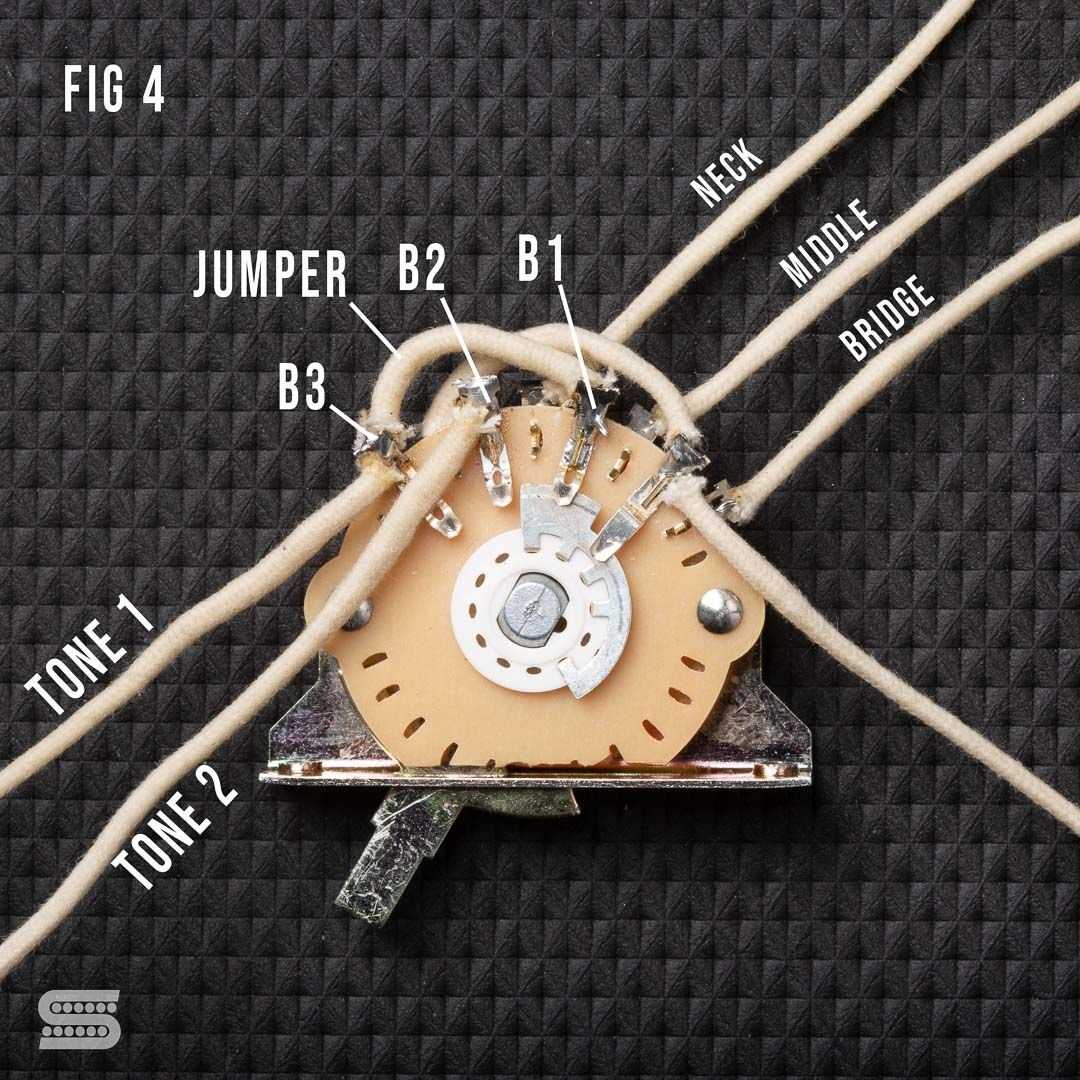

Understanding the Key Parts of a Fender-Style Five-Position Blade Selector

Begin by identifying the blade contact–the small, flat metal piece that physically bridges the terminals. It must sit flush against the lugs without bending; a misaligned blade will cause intermittent signal loss. Check alignment with precision tweezers before soldering, as excessive heat can warp the thin metal.

The terminal lugs–typically numbered 1 through 5 on the schematic–demand precise connections. Lug 1 (nearest the input) carries the hot signal from the bridge pickup, while Lug 5 (nearest the output) links to the volume pot. Reverse these and the signal path collapses. Use a multimeter in continuity mode to verify each lug’s function before attaching wires.

The rotating shaft assembly includes the detent plate, which creates the tactile “click” at each position. If detents feel weak, disassemble the mechanism and clean the plate with isopropyl alcohol–grit or corrosion disrupts smooth operation. Lubricate sparingly with contact cleaner, never WD-40, as it attracts dust over time.

Common misconceptions: The middle position doesn’t simply blend Lugs 2 and 4. Internally, the blade routes Lug 3 (middle pickup) to ground in positions 2 and 4, creating a hum-canceling effect. Skipping this detail introduces 60Hz noise. Confirm ground wires solder to the back of the casing, not the lugs, to maintain proper shielding.

Replace factory wires with 22 AWG solid-core copper for durability. Stranded wire frays at solder points, causing shorts. Pre-tin all ends with rosin-core solder–never acid flux–to avoid corrosion inside the cavity. Keep wire runs under 3 inches; longer lengths add capacitance, dulling high frequencies.

If modifying wiring, note the phasing difference between the neck and bridge pickups. Standard configurations assume out-of-phase output, which cancels certain frequencies when combined. Swap hot and ground wires on one pickup to test in-phase response–this alters tone drastically. Document changes with labeled sketches; assumptions lead to hours of troubleshooting.

Testing and Calibration

After assembly, test each position with a signal tracer. Position 1 (bridge alone) should yield a bright, cutting sound; Position 5 (neck alone) should sound warmer with pronounced bass. Any muddiness indicates incorrect lug connections or a faulty pickup. Use an oscilloscope to visualize waveforms–clean sine waves verify proper grounding and signal flow. If waveforms show distortion, recheck solder joints for cold connections, which appear dull and crystalline under magnification.

Step-by-Step Guide to Connecting the North Selection Exclusively

Locate the pickup closest to the guitar’s neck–this is the component you’ll isolate for the north position. Confirm its hot lead (typically the colored wire, often white or yellow) and ground (bare or black) before proceeding. Use a multimeter set to continuity mode to verify the leads if documentation is unclear.

Detach the existing selector mechanism and identify the terminal corresponding to the north position. On most configurations, this is the first post or lug when counting from the pickup side. Solder a jumper wire directly from the neck pickup’s hot lead to this terminal, ensuring no other connections interfere. Secure the ground lead to the guitar’s chassis or control plate via a short wire if not already grounded.

• Use 22-24 AWG stranded copper wire for jumpers to prevent signal loss.
• Avoid excessive heat when soldering to prevent damaging the pickup’s internal magnets.
• Test continuity after each solder joint with a multimeter to confirm proper connection.

Reassemble the control cavity only after verifying the north position produces the intended neck pickup sound exclusively. If other selections also engage, revisit the jumper wiring–common issues include misaligned terminals or unintended contact with adjacent lugs. For guitars with tone/volume pots, ensure these components remain functional in bypass mode.

Finalize by fastening the selector plate tightly to prevent electromagnetic interference. Play through an amplifier at moderate volume to check for hum or unwanted noise; shield the cavity with copper foil if necessary. This setup preserves the guitar’s tonal balance while eliminating dependencies on traditional multi-position selectors.

How to Wire Bridge and Middle Pickups Together Correctly

Connect the bridge and middle sensors in parallel by soldering the hot leads to a single output node and the grounds to a common point. Use a 250K-500K linear potentiometer for tone control to preserve high-frequency response without muddiness. Route both pickup outputs through a 0.022µF capacitor before the volume pot if blending with the neck sensor later; this prevents phase cancellation when engaging all three. For hum cancellation in split-coil mode, wire the middle sensor’s RWRP coil in series with the bridge’s reverse-wound coil, ensuring matching polarity confirmed with a multimeter reading of ~7-9K ohms between hot and ground.

Connection	Wire Gauge	Solder Joint Type	Heat Shrink (mm)
Hot to Output Node	22 AWG	90° Hook	2.5
Ground to Bus	22 AWG	Butt	3.0
Phase Link	24 AWG	Twist & Tape	N/A

Setting Up the Central Pickup on a Five-Position Selector

To activate both the bridge and neck pickups simultaneously in the central position, bridge the second and fourth lugs of the selector’s rotary mechanism with a 0.047µF capacitor. This creates a hum-canceling parallel circuit while preserving high-frequency clarity–critical for genres like funk or clean arpeggios. Solder the capacitor directly to the lugs without intermediary wires to minimize signal loss and phase cancellation above 2kHz.

Adjusting Tone for Optimal Balance

Install a 250kΩ resistor between the shared output lug and ground to prevent excessive high-end roll-off, which can muddy the combined pickup response. For a brighter, more articulate sound, replace the standard tone pot with a 500kΩ no-load version; this maintains the treble frequencies when the pot is fully engaged. Avoid using linear taper pots–they distort the frequency curve at intermediate settings, leading to inconsistent volume jumps when switching positions.

Test the setup with a 1kHz sine wave and oscilloscope: the waveform should remain symmetrical, with no clipping or harmonic distortion above 0.5%. If hum persists, reverse the polarity of one pickup by swapping the hot and ground wires–this cancels 60Hz interference without affecting tone. For coil-split configurations, wire the selector’s central detent to ground the unused coil, reducing noise by 12dB in high-gain scenarios.
