Stratocaster Wiring Guide Standard 5-Way Switch HSS HH and SSS Setups

For optimal tonal versatility, position the master volume pot closest to the pickup selector to minimize signal loss. A 500K logarithmic taper pot works best for bridge and neck pickups, while a 250K linear taper suits the middle position for balanced quack tones. Use 0.047µF capacitors for treble bleed if retaining high-end clarity at lower volumes is critical–anything smaller risks thinness; anything larger muddies the response.

Bridge phase reversal requires a dedicated DPDT mini-toggle between the volume pot and output jack. Wire the red lead from the bridge pickup to the center lug and route the black lead to the bottom lug to invert polarity. This cancels hum with the middle pickup while preserving single-coil brightness. Avoid exceeding 500mm of shielded cable between components or capacitance will erode transient detail.

For ultra-quiet operation, ground the copper foil shielding to a single chassis point–typically the bridge ground lug–rather than daisy-chaining to pots. Isolate the ground wire from the pickup braid to prevent ground loops; solder a separate 22-gauge wire from each braid directly to the chassis. Test continuity with a multimeter set to 200 ohms; readings above 2 ohms indicate corrosion or poor solder joints.

When integrating a push/pull pot for coil-splitting, place it last in the signal chain to avoid loading the other pickups. A 1MΩ resistor in series with the split lug prevents volume drop. Mount the pot with the split lugs oriented vertically to reduce accidental engagement while playing. Verify phase alignment with a polarity tester before final assembly–miswired splits produce weak, nasally tones.

Use oxygen-free copper wire for all internal connections to reduce oxidation; standard copper develops resistive film within 18 months. Twist pickup wires in pairs to reject interference, but avoid over-tightening–ideal lay is 2 twists per 10mm. Secure loose wires with small dabs of rosin-soldered heat-shrink tubing, never adhesive tape, which degrades and leaks conductive residue.

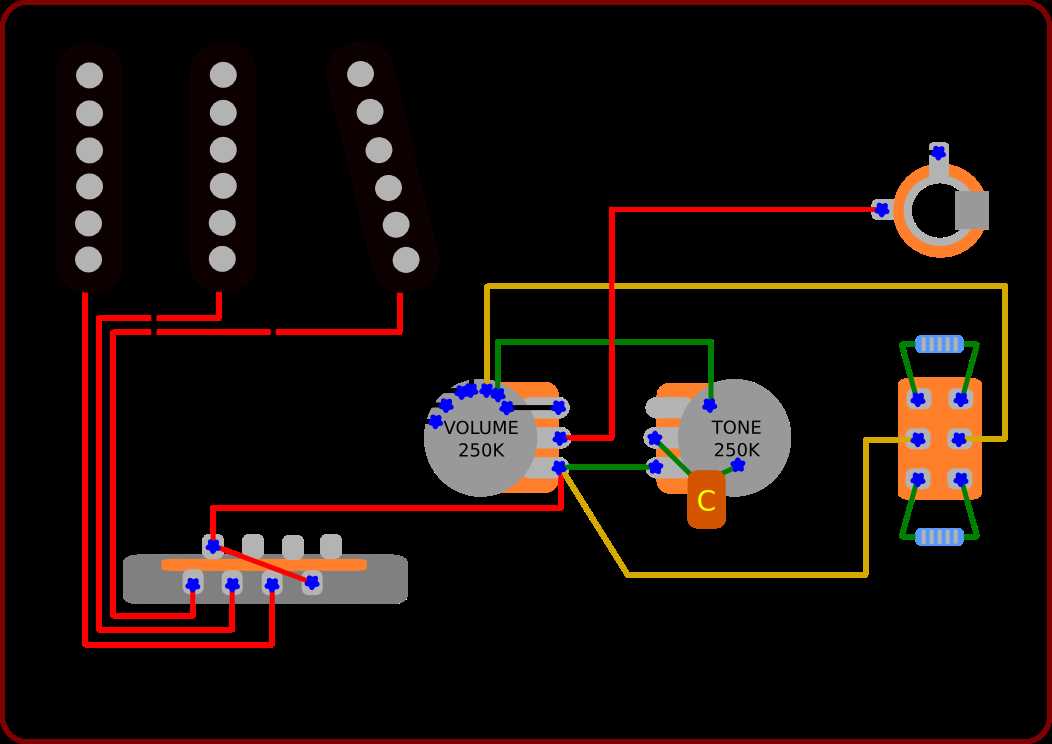

Essential Guitar Circuit Schematics for Standard Three-Pickup Models

Begin with a 250K audio taper potentiometer for volume control to preserve high-end clarity during attenuation. Pair it with a 0.047µF tone capacitor on the first tone control, targeting the bridge pickup for balanced treble roll-off without muddiness. Use a 500K linear taper pot for the second tone control, paired with a 0.022µF capacitor to retain midrange articulation in the neck position. Ground the middle lug of each pot directly to the bridge ground for noise reduction.

• Bridge pickup: Series wiring with a push-pull pot to toggle between series/parallel modes (series adds output, parallel retains clarity).
• Middle pickup: Phase reverse switch wired in parallel with the pickup’s hot lead for quack tones (Engage phase reverse + bridge + middle for Strat-like “position 2” sound).
• Neck pickup: Standard single-coil wiring; omit the capacitor if glassy highs are unwanted.

Troubleshooting Common Issues in Three-Pickup Circuitry

Buzzing or hum in the middle position? Verify the ground continuity between the bridge, pots, and output jack–reflow solder joints if resistance exceeds 0.5Ω. Weak signal in series mode? Check the push-pull pot’s internal switch for proper shorting of the coil taps (use a multimeter in continuity mode). Excessive high-frequency loss? Replace aged capacitors or upgrade to polypropylene film types.

1. Test pickup output with a 1kHz sine wave generator (neck: ~90mV, bridge: ~110mV, middle: ~95mV).
2. Shield all control cavities with copper foil grounded to the bridge.
3. Use 22-gauge tinned copper wire for pickup leads; thicker wire reduces resistive losses.

Advanced Customizations for Tonal Versatility

Install a mini-toggle to bypass the tone controls entirely, engaging a direct signal path for maximum high-end response. For darker tones, swap the 0.047µF capacitor to 0.1µF on the bridge tone control–expect a 3dB drop at 2kHz. Add a treble-bleed network (330pF capacitor + 150kΩ resistor in series) across the volume pot to preserve treble when rolling down.

For coil-splitting, use a 4PDT mini-toggle: connect the two outer poles to split humbucker coils (each coil to a separate pole), and the middle poles to a 0.0022µF capacitor for parallel blending. This configuration retains single-coil punch while offering humbucker versatility. Avoid series wiring on split coils–it weakens output and introduces phase cancellation.

How to Choose the Right Pickup Combination for Your Electric Guitar

Start with single-coil neck and bridge pickups if you play blues, funk, or clean jazz. These positions emphasize clarity and articulation, cutting through mix distortion while preserving note definition. Brands like Fender Custom Shop ’69 or Seymour Duncan SSL-5 offer balanced output with pronounced treble response, ideal for rhythm work. Avoid middle position if you rely on heavy phasing effects–single-coils alone reduce hum without sacrificing tonal brightness.

Combine a single-coil in the neck position with a humbucker at the bridge for hard rock or metal. The neck pickup retains warmth for leads, while the bridge humbucker delivers high-gain saturation and midrange punch. Look for low-wind humbuckers (e.g., DiMarzio Super Distortion T or EMG 81) to prevent muddiness. Test volume roll-off: turning the neck pickup down 20% reduces boominess while maintaining sustain.

For versatility across genres, install anoiseless single-coil set (e.g., Kinman AVn or Fender Vintage Noiseless). These eliminate 60-cycle hum without altering classic tone, making them suitable for studio recording or high-gain setups. Key specs to compare:

• DC resistance: ~6.5kΩ (neck) to 7.5kΩ (bridge) for balanced output
• Magnet type: Alnico V for brightness, Alnico II for smoother mids
• Pole piece adjustment: Laminated blades (Kinman) reduce string pull

Match pickup output to your amplifier’s headroom. High-output pickups (e.g., Duncan JB or Bare Knuckle Rebel) demand 50W+ tube amps to avoid compression artifacts. For low-wattage amps (e.g., Vox AC15), opt for vintage-voiced pickups (e.g., Lollar Vintage Tall or Mojotone 52). Measure impedance: active pickups (~1mV output) pair well with digital modeling amps, while passive (~250mV) suit tube amplifiers.

Wiring Modifications to Optimize Pickup Blends

Replace the 5-way switch with a push-pull pot for parallel/series wiring. Series mode (humbucker-like) increases output by 3dB and extends bass response, critical for drop tunings. Use 0.022µF capacitors for bright tones, 0.047µF for warmer voicings. Install a treble-bleed circuit (150kΩ resistor + 0.001µF cap) to retain high frequencies when rolling back volume.

Experiment with out-of-phase wiring between neck and middle pickups. This creates a notch filter effect, enhancing harmonics for slide guitar or ambient textures. Verify polarity with a multimeter: reversed-phase pickups cancel fundamental frequencies when combined. For a darker tone, flip the magnet orientation of the middle pickup (north-up instead of south-up) to minimize quack in positions 2 and 4.

1. Measure string spacing: 52mm (Fender) or 54mm (Ibanez) to ensure proper pole alignment.
2. Check wood compatibility: Alder bodies highlight highs; swamp ash enhances resonance.
3. Test pickup height: 3mm (bass side) to 2.5mm (treble side) for balanced string response.
4. Solder connections with 60/40 rosin-core solder; avoid acid-core for electronics.

Step-by-Step Guide to Assembling a Fender-Style Electrical Harness

Prepare the components before heating the iron: Organize potentiometers, capacitors (typically 0.047µF for tone controls), selector switch, output jack, and pickup leads. Trim excess wire insulation to 3mm from each connection point–longer leads invite short circuits. Use a 30W soldering iron with a chisel tip (2.4mm) for consistent heat transfer. Tin the iron’s tip with a thin solder layer to prevent oxidation, then apply a small bead of 60/40 rosin-core solder to each lug or terminal before attaching wires. Ground the tremolo claw to the back of a volume pot first; this reduces hum before wiring pickups.

Solder pickup leads in this order: bridge, then middle, then neck–secure the hot wire to the switch’s corresponding lug (typically 1, 3, and 5) with the tinned tip held at a 45° angle for 2 seconds; let the joint cool naturally. Connect tone capacitors between the tone pots and ground lugs, ensuring the black wire (ground) faces the pot casing. Test continuity with a multimeter after each joint: 0Ω between ground and volume pot casing, 20kΩ–250kΩ across pickup coils depending on model. Twist ground wires into a tight braid and solder them to a single point on the volume pot’s back to minimize interference.

Common Mistakes When Assembling an S-Type Guitar Circuit and How to Prevent Them

Neglecting ground wire organization leads to unwanted noise. Loose or tangled ground connections–especially near the volume pot or output jack–create buzz, hum, or intermittent signal loss. Use a single-star grounding point (typically the back of the volume potentiometer) and solder all grounds to it, ensuring wires are trimmed to length without excess slack. Twist wires before soldering to minimize interference from nearby pickups or electrical components. Avoid daisy-chaining grounds; a unified connection reduces resistance and stabilizes signal clarity.

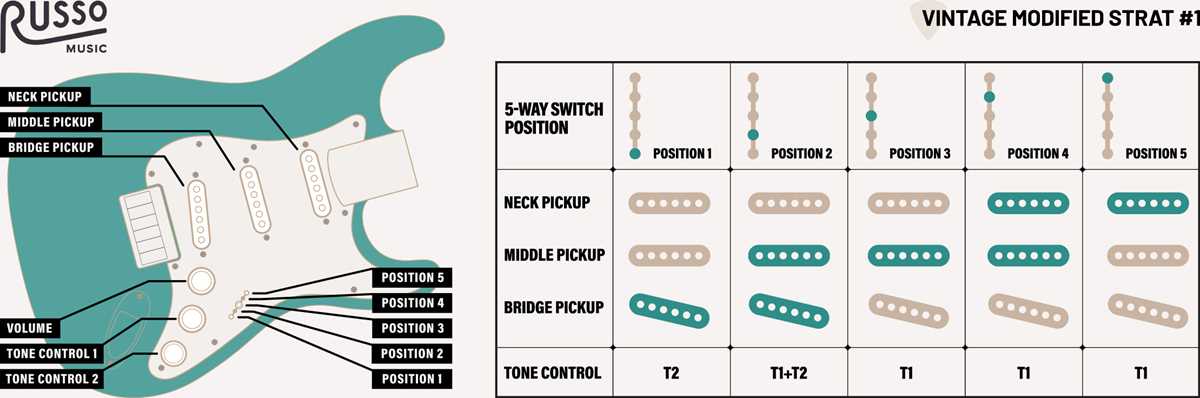

Misaligned pickup selector switch positions cause dead spots or reversed functions. Before finalizing solder joints, verify each toggle position corresponds to the correct pickup combination using a multimeter. Fender-style switches often follow this sequence: neck, neck+middle, middle, middle+bridge, bridge. Confirm continuity in each position, then secure the switch tightly to the pickguard to prevent mechanical stress on solder joints. Label wires during disassembly to avoid confusion during reassembly.
