Building and Understanding a Stylophone Circuit Schematic for DIY Projects

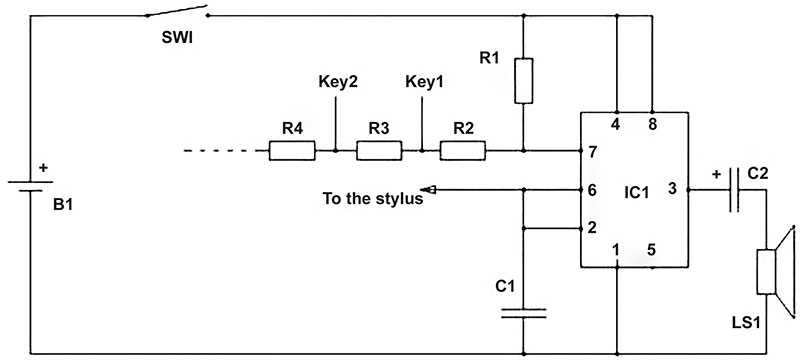

Start with a 555 timer IC in astable mode–this forms the core oscillator for pitch generation. Wire pin 2 (trigger) to pin 6 (threshold) with a 10 kΩ resistor, then connect a 0.1 µF capacitor from pin 6 to ground. Adjust frequency by placing a 1 MΩ potentiometer between pin 7 (discharge) and the capacitor. For stability, add a 100 nF decoupling capacitor near the IC’s power input.

Integrate a resistive touchpad matrix by arranging conductive traces in a grid. Use carbon-based ink or copper tape for the columns and rows, spaced 2 mm apart. Connect each row to a 4051 analog multiplexer for scanning–this reduces component count while maintaining responsiveness. A 1 kΩ pull-down resistor on each row prevents floating inputs.

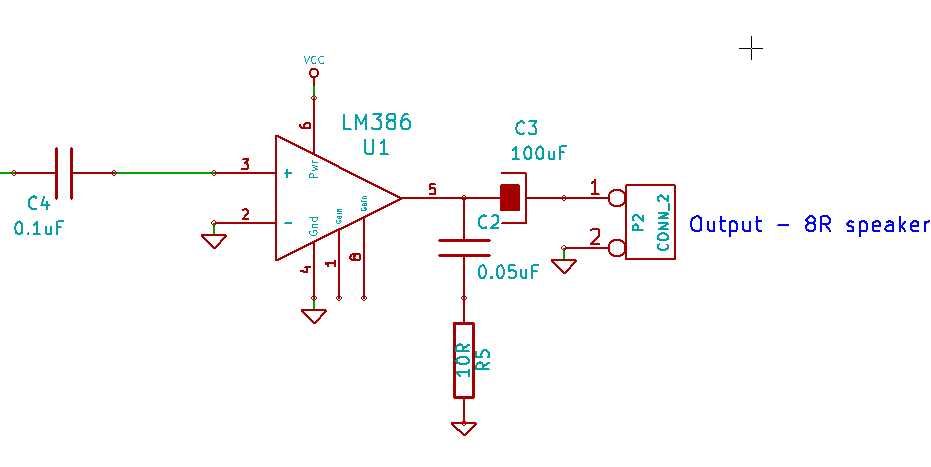

Amplify the signal with an LM386 audio op-amp. Connect the output from the multiplexer to pin 3 (non-inverting input) via a 10 kΩ resistor. Set gain by placing a 10 µF capacitor between pins 1 and 8. Ground pin 4 and power pin 6 with a 9V battery. For cleaner sound, add a 0.05 µF capacitor in series with the output before the speaker.

Test each stage individually before assembly. Measure the oscillator’s frequency with an oscilloscope–expected range is 50 Hz to 5 kHz. Check the touchpad with a multimeter for continuity across intersections. Verify the amplifier’s output volume and adjust the 10 µF capacitor if distortion occurs at high gain. Finalize soldering on perfboard, keeping traces short to minimize noise.

Understanding the Circuit Layout for Pocket Synthesizers

Begin by sourcing a 9V battery connector and a 1N4148 diode to protect the circuit from reverse polarity. Place the diode immediately after the battery input, ensuring the cathode (marked stripe) faces the positive terminal. This prevents damage if the battery is inserted incorrectly, a common cause of failure in compact audio devices. Skip capacitors rated below 10μF–they won’t stabilize voltage swings during note transitions.

Use a 555 timer IC in astable mode for the oscillator core, pairing it with a 10kΩ resistor and a 10nF capacitor for consistent pitch range. Adjust the resistor value between 1kΩ and 100kΩ to fine-tune frequency; values outside this range produce inaudible or erratic tones. Connect the 555’s output (pin 3) to a 1μF coupling capacitor to block DC offset before feeding the signal to the amplifier stage. Omit this step, and the circuit may distort or clip at low volumes.

Amplification and User Interface

For amplification, a BC547 transistor in common-emitter configuration delivers 10dB gain with minimal parts. Bias the base with a 47kΩ resistor to ground and couple the collector to an 8Ω speaker via a 220μF electrolytic capacitor–polarity matters; reverse it to risk shorting the circuit. Add a 10kΩ potentiometer between the 555’s output and the transistor base to control volume without loading the oscillator. Avoid cheaper carbon-film pots; they introduce noise when moved abruptly.

The touch-sensitive interface requires a grid of 16 conductive pads, each wired to a 1MΩ resistor ladder. Space the resistors logarithmically (e.g., 1MΩ, 470kΩ, 220kΩ, 100kΩ) to ensure even pitch steps across the pad surface. Bridge each resistor’s junction to the 555’s control voltage pin (pin 5) with a 10nF capacitor–this smoothens glitches from finger contact. For durability, use copper tape on a phenol-laminate board; printed circuit traces wear out after ~500 touches.

Key Components of a Pocket Synthesizer Circuit Board

Begin by locating the CMOS inverter array–typically a CD4069UB or similar IC–responsible for waveform shaping. This chip transforms the coarse input signal from the stylus into a clean square wave, critical for maintaining tonal consistency. Ensure the power pins (V_DD and V_SS) are decoupled with a 0.1µF ceramic capacitor to suppress high-frequency noise that distorts pitch stability.

The tone generator stage demands precise resistor networks. Use 1% tolerance resistors (e.g., 10kΩ, 22kΩ, 47kΩ) to define the resistances in the voltage divider matrix. Each resistor corresponds to a note on the keyboard; mismatched values will introduce tuning errors. For finer calibration, parallel a trimmer potentiometer (50kΩ) with the highest-value resistor to adjust the reference voltage.

• Oscillator core: A single 40106 Schmitt trigger inverter forms the primary oscillator. Its hysteresis characteristics prevent erratic behavior when sweeping the stylus across the resistive pad. Configure the feedback network with a 1MΩ resistor and a 470pF capacitor for a stable ~1kHz base frequency, then modify with additional RC pairs to expand the pitch range.
• Volume control: Implement a logarithmic potentiometer (10kΩ) wired as a variable resistor in series with the audio output. Avoid linear pots, as they create uneven loudness perception. Add a 1µF electrolytic capacitor to block DC offset, preventing Popping artifacts during note transitions.

For power management, use a 9V battery with a low-dropout regulator (e.g., LM78L05) to maintain 5V. Bypass the regulator’s input and output with 10µF tantalum capacitors to handle transient current draws when the stylus contacts multiple resistors simultaneously. Include a reverse-polarity protection diode (1N4007) to safeguard the circuit during incorrect battery insertion.

Signal Path Optimization

Route the audio signal through a three-stage amplifier chain:

1. Pre-amplifier: A single BC547 transistor in common-emitter configuration, biased with a 220kΩ resistor to Vcc and a 4.7kΩ emitter resistor. This stage boosts the oscillator’s output to line level while filtering subsonic noise with a 100nF coupling capacitor.
2. Buffer: An op-amp (e.g., TL072) in non-inverting setup with a gain of ~2x. Use a 10kΩ input resistor and a 10kΩ feedback resistor, decoupled with a 22pF capacitor to roll off ultrasonic artifacts.
3. Output stage: A 100Ω resistor in series with the final output protects the circuit from short circuits, while a 47µF electrolytic capacitor ensures AC coupling to external devices like amplifiers or recorders.

Shield all high-impedance traces–especially those leading to the resistive pad–to prevent hum pickup from 50/60Hz mains interference. Use a grounded copper pour on the PCB underside beneath the stylus path and keep trace lengths under 2cm. For critical paths (e.g., oscillator output), route as differential pairs with a dedicated ground return to minimize crosstalk.

Practical Calibration Steps

Verify component placement with these checks:

• Sweep the stylus across the pad while monitoring the output frequency with an oscilloscope. Adjust the 1MΩ resistor in the oscillator’s RC network until the lowest note aligns with ~200Hz.
• Observe the waveform symmetry; asymmetry indicates a defective inverter or improper biasing. Replace the CMOS IC if clipping occurs at supply rails.
• Test the volume control by ear–logarithmic taper should yield a smooth volume increase over the rotation range. If sudden jumps occur, replace the potentiometer.

Reading and Interpreting Circuit Board Symbols for Stylus-Based Synthesizers

Begin by identifying power rails–typically marked with V+ and GND or negative symbols. In most layouts, V+ connects to the battery’s positive terminal, while ground acts as the reference point for all other voltages. Trace these lines first: they often run along the edges of the board, supplying power to active components like op-amps, transistors, and potentiometers. If the circuit includes a voltage regulator (common in analog designs), check for an IC with three legs–input, output, and ground–usually labeled with part numbers like 78L05 or LM317.

Locate passive elements next. Resistors appear as zigzag lines or boxes with resistance values (e.g., 10k, 470R). Capacitors are drawn as two parallel lines (||) for non-polarized types or a curved line paired with a straight line (|)) for electrolytic ones, accompanied by values in microfarads (uF) or picofarads (pF). Inductors, rare in these circuits, look like coiled loops or rectangles with a L label. Memorize these symbols–they dictate timing (RC pairs) and filtering behavior critical to tone shaping.

Decoding Active Components

• Transistors: Find NPN or PNP symbols (arrow direction indicates type). The legs (emitter, base, collector) are crucial–mix-ups here lead to silent circuits or excessive current draw.
• ICs: Operational amplifiers (TL072, LM358) dominate these designs. Pinouts show inverting (-) and non-inverting (+) inputs, output, and power pins. Verify pin numbers against the datasheet–many diagrams omit them, relying on standard configurations.
• Diodes: Look for arrow-shaped symbols with a line (cathode). Signal diodes (1N4148) block reverse voltage, while LEDs (often with an A annotation) indicate power status–check polarity carefully.

Map control elements to their schematic counterparts. Potentiometers (100k log or 50k lin) adjust resistance via wiper movement, modifying pitch or volume. Switches–momentary (push) or latching (toggle)–appear as break points in lines with labels like SW1. The stylus itself connects via a flexible conductive pad, represented as a circle with a dashed line or TP (test point) annotation. This pad acts as a variable resistor when touched, closing the circuit and triggering sound generation.

Test intermediate nodes with a multimeter. Probe resistor-divider outputs (often mid-rail voltages, e.g., V+/2) to confirm expected values. For troubleshooting, note that oscillators rely on timing capacitors–if frequencies drift, check these first. Ground loops (undesired hum) stem from overlapping ground paths; reroute traces or add decoupling capacitors (0.1uF) near IC power pins. Annotate the physical layout with highlighter or separate notes–correlating symbols to real components prevents errors during repairs or modifications.
