Complete Switch to Outlet Wiring Guide with Diagrams for Electrical Installation
Begin by identifying the circuit’s live conductor at the control point–typically a red or black wire–and confirm it connects to the brass terminal. The neutral (white) must link directly to the silver screw, while the ground (bare or green) fastens to the green terminal. Use a multimeter to verify no voltage remains if modifying an active installation.
For a two-way transition (controlling a single outlet from two locations), employ a three-wire cable between switches. The second conductor acts as a traveler, bridging the two control points. Ensure both travelers connect to the same-colored terminals on each switch–confusion here risks short circuits or dead circuits.
Outlets with USB ports or smart features demand thicker gauge wires (12 AWG minimum) to handle additional load. Avoid daisy-chaining more than four outlets on a 15-amp circuit; instead, split into parallel runs to prevent voltage drop. Label all wires before disconnecting–photograph existing setups if unsure.
Tamper-resistant outlets require firm insertion to engage the internal shutters–test with a probe to confirm proper contact. For split circuits (half-hot outlets), break the metal tab on the brass side only; the tab on the neutral side must remain intact.
NEMA 14-50 outlets (common for appliances) need a dedicated 50-amp breaker and 6 AWG copper wire. Verify torque specifications on terminal screws–loose connections cause overheating. Always cap unused wires with insulated wire nuts–exposed copper invites shorts.
How to Convert a Control Device into an Outlet Connection
Start by identifying the power source feeding the toggle mechanism–verify its voltage with a multimeter to confirm it’s within the 110–125VAC range for standard residential setups. If the line carries higher voltage or lacks a neutral, abort the procedure to avoid violating electrical codes or creating hazardous conditions.
Disconnect the circuit at the breaker panel and test for residual current using a non-contact voltage detector. Confirm the absence of power before handling any conductors, even briefly–accidental contact with live wires can cause severe injury or equipment damage. Label each wire with masking tape to document their original positions for future reference.
Use a four-slot terminal block for the new outlet if the existing box lacks sufficient space–opt for a shallow gang box if the wall depth is limited. Insert the hot wire (typically black or red) into the brass screw, the neutral (white) into the silver terminal, and the ground (bare or green) into the green screw. Secure all connections with a torque screwdriver to prevent loosening: 12 in-lbs for 15A circuits, 18 in-lbs for 20A.
For circuits sharing a toggle and outlet, split the hot wire at the control device’s terminal: one branch to the mechanism, the other to the outlet’s brass screw. Use pigtail splices with wire nuts rated for the gauge (e.g., #12 AWG for 20A circuits) and wrap them clockwise with electrical tape to prevent slippage. Never daisy-chain wires directly to terminals–this violates NEC 110.14 and risks overheating.
Install a self-grounding outlet if the box is metal, ensuring the yoke makes solid contact for proper bonding. For plastic enclosures, connect the ground wire directly to the outlet’s green screw. Test continuity with a multimeter set to ohms–readings should be near 0 ohms; any resistance indicates a faulty connection. Recheck all terminals before restoring power.
Troubleshooting Faulty Installations
If the outlet fails to energize, first check the breaker–some models have a tripped neutral that resets only when toggled fully off. Verify the hot wire polarity with a receptacle tester: two yellow lights confirm correct polarity, an amber light indicates a reversed neutral, and no lights signal an open ground. For intermittent power, inspect wire nuts for loose strands–strip an extra 1/4″ of insulation and re-splice if strands are visible.

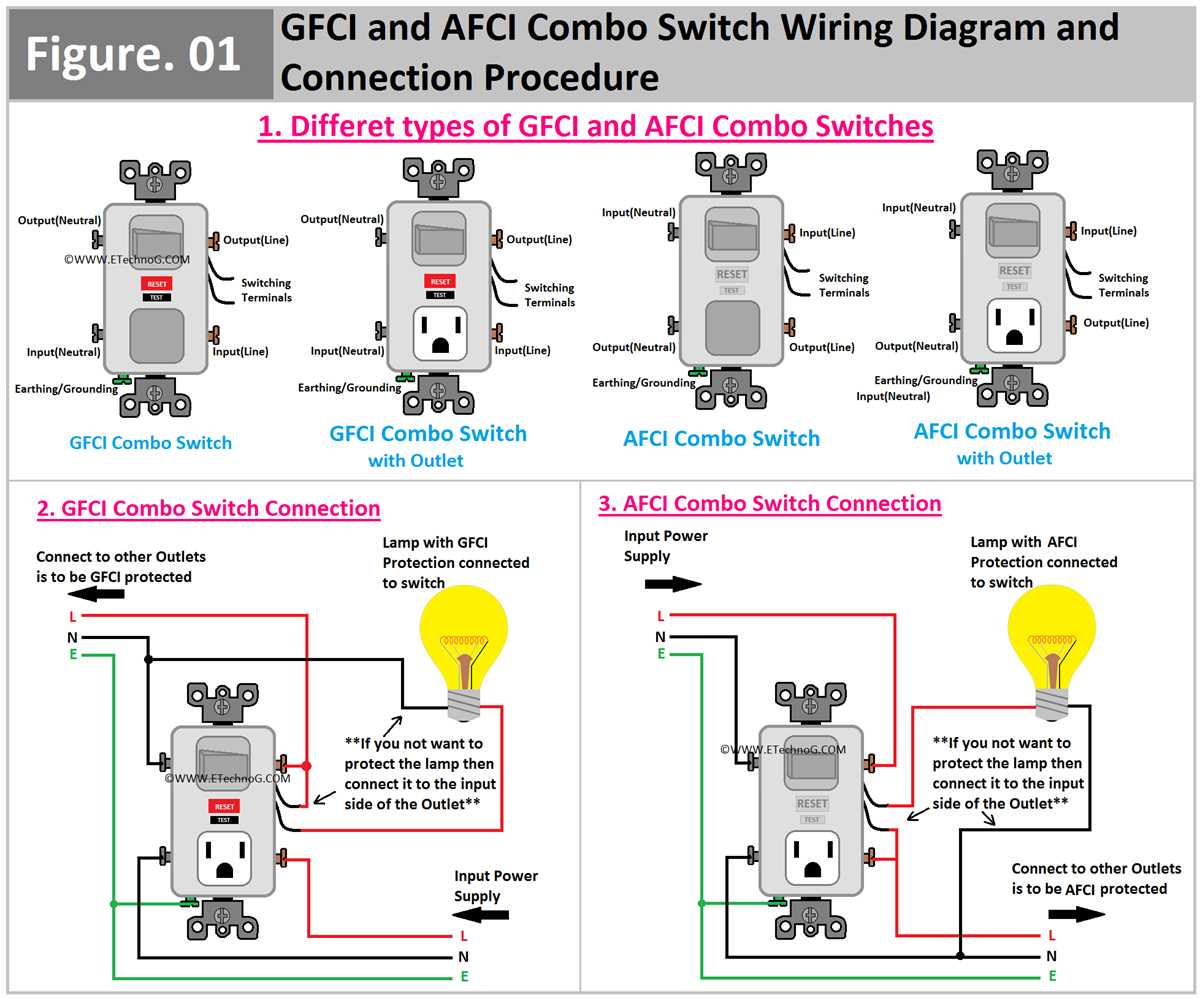

For GFCI-protected circuits, press the “Test” button to simulate a fault, then “Reset” to confirm proper operation–failure to reset means the unit is defective or wired incorrectly (load vs. line terminals). Replace the outlet if it trips repeatedly under normal load conditions, as internal damage is likely. Always match the amperage rating: a 20A outlet requires #12 AWG wire and a 20A breaker, while 15A outlets tolerate #14 AWG but no higher loads.
Essential Gear for Converting a Toggle Control to an Outlet
Begin by securing a voltage tester with dual-range detection–opt for models with 120V–240V AC and a non-contact sensor for hidden lines. A reputable brand like Klein or Fluke ensures accuracy; avoid budget pen-style testers lacking adjustable sensitivity.
Lineman’s pliers must feature hardened cutting edges (minimum Rockwell C60) to snip 12-gauge copper without crushing insulation. Look for anti-slip grips rated for 600V to prevent accidental slippage when stripping NM-B cable sheathing.
Use fish tape made of tempered steel, 1/8-inch diameter, for pulling 14-3 Romex through 1/2-inch EMT conduits. A coiled hook tip prevents snags; lubricant like Yellow 77 reduces friction by 40% during longer pulls.
A hydraulic knockout punch set (1/2-inch to 1-inch) saves time over hole saws when enlarging junction boxes. Die-cast aluminum punches resist galling–verify the maximum PSI rating matches your drill’s torque output.
Choose terminal screwdrivers with insulated shafts conforming to IEC 60900 standards; a 10-inch shaft reaches deep gang boxes while a magnetized tip holds 8-32 screws. Verify the handle’s dielectric strength exceeds 1,000V for live adjustments.
Specialized Consumables
UL-listed pigtail connectors (red for 12 AWG, blue for 14 AWG) ensure vibration-proof splices. Avoid twist-on types without internal spring tension–these fail at 85°C ambient temps.
Stock copper grounding clips (tinned, 0.04-inch thickness) for attaching bare wires to metal boxes; stainless variants corrode in coastal climates within 18 months.
Use non-metallic cable clamps (Thomas & Betts 4641) for NM-B entry points–ensure the clamping force exceeds 25 lbs to prevent cable slippage under load.
Step-by-Step Guide to Disconnecting the Existing Control Safely
Ensure the circuit breaker for the target fixture is turned off at the main panel. Verify absence of power by testing the terminals with a non-contact voltage detector–hold the probe near screws and wires; no audible alert confirms safety.
Remove the faceplate screw with a flathead screwdriver and set it aside. Gently pry the cover away from the wall, exposing the internal connections. If the cover resists, check for hidden clips or additional screws near the edges.
| Tool | Purpose | Alternative |
|---|---|---|
| Flathead screwdriver | Loosening terminal screws | Precision driver |
| Needle-nose pliers | Handling small wires | Wire strippers |
| Non-contact voltage tester | Confirming power isolation | Multimeter (AC voltage mode) |
Loosen the terminal screws securing the live wires. Rotate each screw counterclockwise until the wire can be easily pulled free–avoid twisting the wire itself. For push-in connections, press the release slot with a small screwdriver while gently tugging the wire.
Label each disconnected wire with masking tape or color-coded markers. Note the original terminal position (e.g., “top brass screw,” “bottom silver screw”) to simplify reinstallation. For multi-gang setups, track which wire corresponds to which fixture control.
Inspect the back of the fixture box for residual wires or forgotten connections. Tug lightly on any loose conductors to ensure they’re fully disengaged–hidden terminals beneath mounting straps can retain voltage even after primary wires are removed.
Critical Safety Checks Before Proceeding
Re-test all exposed conductors with the voltage detector after disconnection. Touch the probe to every screw, wire end, and metal component inside the box. If the detector emits a signal, stop work and recheck the circuit breaker–avoid assuming neutral wires are inactive.
Final Preparation for Replacement
Secure loose wires by gently tucking them into the fixture box. If insulation is damaged, wrap exposed copper with electrical tape or use wire nuts to cap the ends. Ensure no bare metal touches the box or other wires to prevent short circuits during testing.
How to Identify and Connect Hot, Neutral, and Ground Cables Safely
Use a multimeter set to AC voltage (200V+ range) to test conductors. Probe the suspected live line against the neutral: 120V (±10V) confirms it. Test neutral against the earth terminal–zero volts indicates proper isolation. If readings deviate, inspect for crossed connections or degraded insulation. For U.S. circuits, the live wire is typically black or red, neutral white, and ground bare copper or green. In 240V setups, both live lines (red/black) carry current; neutral may be absent.
Connecting Conductors Without Errors
Secure the live wire to the brass terminal, neutral to silver, and ground to the green screw (or box if metal). Strip 5/8″ of insulation–over-stripping risks shorts; under-stripping weakens grip. Tighten terminals to 12–15 in-lbs torque; loose connections arc and overheat. For back-wired outlets, fold the conductor clockwise around the screw–counterclockwise loosens under load. Verify polarity with the multimeter after installation: live-to-ground should show full voltage, neutral-to-ground near zero. Label all cables before disconnecting old devices to prevent mix-ups.
