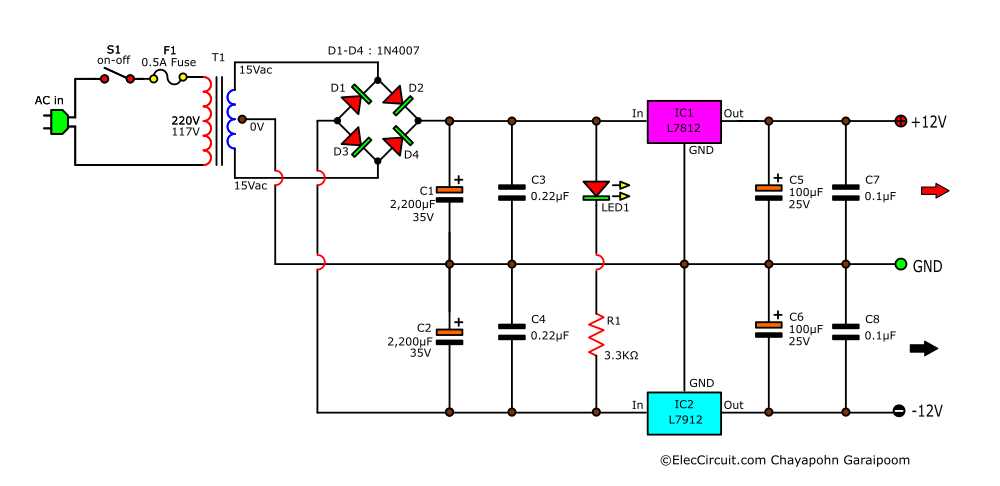

Complete Guide to Designing a Switching Power Supply Schematic

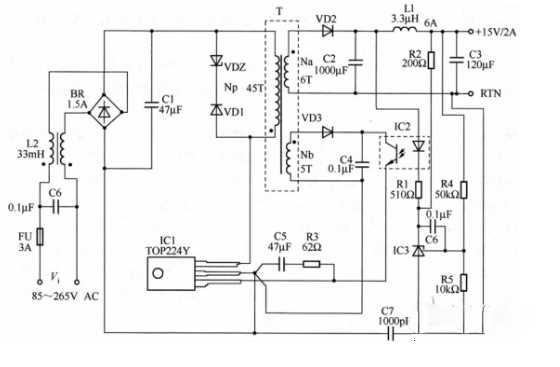

Begin with a flyback topology if isolation is critical–transformer core selection dictates efficiency. Ferrite materials like N87 or PC40 minimize losses at frequencies above 100 kHz, while powdered iron suits lower ranges. Keep primary inductance between 30–200 µH; deviation risks saturation or excessive ripple. For 24V outputs, clamp the MOSFET drain with a 1.5kV TVS diode (e.g., P6KE300A) to suppress spikes exceeding 1.5× the input voltage.

Dead-time control in half-bridge configurations prevents shoot-through: set 20–50 ns delay via gate drivers (e.g., UCC27517). Snubber networks must target critical damping–use RCD combinations with 1–10 Ω resistors and 1–10 nF capacitors to curb parasitic oscillations. Buck converters demand a catch diode with <50 ns reverse recovery (e.g., STTH2R06); Schottky alternatives reduce losses but limit reverse voltage to 40–100V.

Feedback loops require Type III compensation for stability–place a 10–100 pF capacitor across the error amplifier’s compensation resistor. Current-mode control (e.g., UC3843) simplifies slope compensation; set the ramp amplitude to 0.5–1.0× the inductor current’s peak. EMI filtering starts with a two-stage LC network: first stage (input) uses 10–100 µH common-mode chokes, second stage (output) pairs 1–10 µF X-capacitors with 1–10 nF Y-capacitors for high-frequency attenuation.

Ground planes must separate noisy (switch node) and quiet (feedback/sense) zones–route traces <0.1 mm apart to minimize inductance. Synchronous rectification cuts losses in low-voltage designs: match MOSFET Qg (e.g., IRFB3077) to the driver’s current capability (1–2 A peak). Thermal design prioritizes spreading resistance: allocate 10–15 cm² of copper (2 oz.) per watt for TO-220 packages, using >2 mm thick traces for heatsinking.

Key Components of a High-Frequency Voltage Converter Layout

Begin by selecting a MOSFET with a low R_DS(on) (e.g., Infineon IPA60R160P7) for minimal conduction losses. Pair it with a Schottky diode like the STMicroelectronics STTH8S06DI, ensuring reverse recovery time under 20 ns to reduce switching spikes. Place the inductance coil (e.g., TDK VLS6045EX) as close as possible to the transistor to minimize parasitic capacitance–keep trace lengths under 5 mm between these components.

Use a flyback topology for outputs above 12V to isolate secondary windings. For lower voltages, opt for a synchronous rectifier (e.g., TI’s LMG1210) to replace diodes, cutting losses by up to 40% in continuous-mode designs. Calculate the core material based on frequency: ferrite (Mn-Zn) for 100–500 kHz, iron powder for sub-100 kHz. Coilcraft’s SER2918H series offers ready-made coils with saturation currents matching common 3A–10A applications.

Snubber Networks and Noise Suppression

Add an RC snubber (e.g., 10Ω + 1nF) across the MOSFET drain-source to dampen ringing. For EMI reduction, insert a common-mode choke (Murata DLW31SN series) on the input line, followed by a π-filter (2x 10µF X7R capacitors + 1µH inductor). Keep the feedback loop trace away from switching nodes–route it on the inner PCB layers if possible, using a ground plane as a shield.

Implement current-mode control (e.g., TI UCC28C43) for tighter regulation. Set the compensation network (R-C, typically 10kΩ + 1nF) based on the crossover frequency, which should be 1/10 of the switching rate. For dual-output designs, use coupled inductors (Coilcraft MSD1260) to synchronize ripple currents between channels, reducing output capacitor size by 30%.

Thermal management dictates lifespan: assign at least 25 mm² of copper per watt for heat dissipation on a 1 oz PCB. For TO-220 packages, add vias under the tab (0.3 mm diameter, 1.2 mm pitch) to connect to an internal ground plane. Test load transient response with a 1A/µs slew rate–overshoot should not exceed 5% of nominal output.

For off-line adapters, include a Y-capacitor (560 pF, 250V AC) between primary and secondary grounds to meet EN55032 Class B EMI limits. Use a PFC stage (e.g., onsemi NCP1615) if input power exceeds 75W to comply with IEC 61000-3-2. Keep the auxiliary winding’s output below 15V to avoid exceeding the controller’s UVLO threshold.

Validate stability with a network analyzer: inject a 50 mV sine wave at the feedback pin over a 10 Hz–1 MHz range. The phase margin should remain above 45°, and gain margin above 6 dB. For PCB layout, prioritize star grounding–connect all grounds at a single point near the output capacitor to prevent ground loops. Use 2 oz copper for high-current paths (e.g., input/output traces) to handle 10A+ without voltage drops exceeding 50 mV.

Core Elements of a High-Frequency Voltage Converter Blueprint

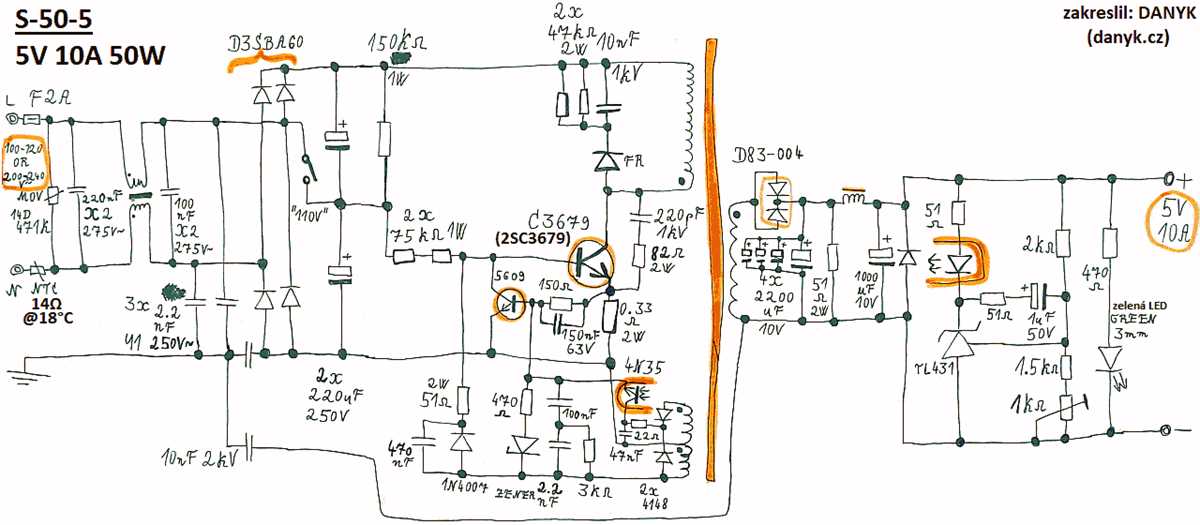

Prioritize a robust semiconductor switch–typically a MOSFET or IGBT–as the heart of the design. Select components rated for at least 1.5 times the expected peak voltage and current to prevent thermal runaway. For example, a 48V input system should use a switch rated for 100V or higher, paired with a gate driver capable of 10–15V output to ensure rapid, clean transitions. Avoid paralleling switches unless current-sharing is actively managed via Kelvin connections or dedicated ICs like the LM5106.

Critical Passive Components

Inductors must balance size and saturation limits. For a 100W converter operating at 200kHz, a 10–22µH inductor with a saturation current exceeding 1.2× the nominal load current is optimal. Core material matters: powdered iron tolerates higher ripple but loses efficiency above 50kHz, while ferrite (e.g., 3F3) minimizes losses but requires precise gap tuning. Capacitors demand attention–input/output caps should handle at least 2× the expected ripple current, with X7R dielectric for stability across temperature. Aluminum polymer caps offer longevity, but ceramic types (1206 or larger) are preferred for high-frequency noise suppression.

Maintain a minimal resistance in all conductive paths. Traces carrying >5A should be ≥2mm wide per ampere, with vias thermally tied to ground planes for heat dissipation. Gate resistors (4.7–10Ω) dampen overshoot but slow switching; use ferrite beads or RC snubbers if ringing exceeds 10% of the rail voltage. Opto-isolators (e.g., HCPL-3120) or digital isolators (ADuM3190) must isolate feedback paths without introducing phase lag, which destabilizes regulation loops.

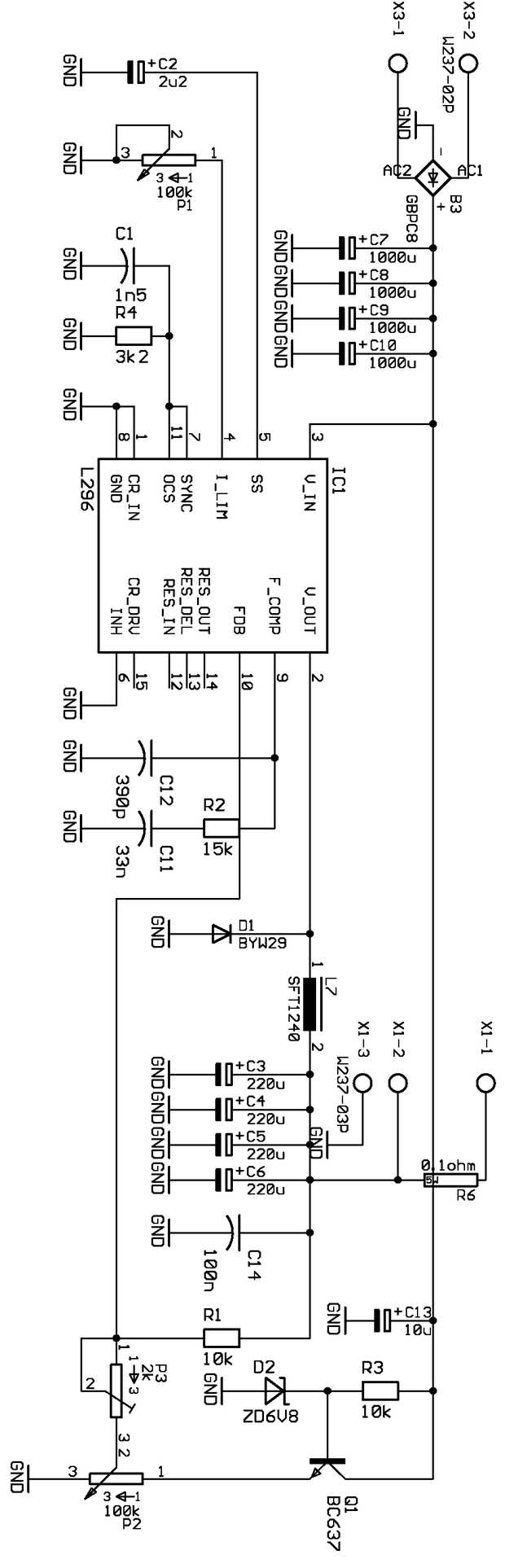

Feedback networks require precision. A resistor divider (e.g., 10kΩ + 1kΩ) paired with a 2.5V reference (like TL431) sets output voltage but needs temperature-compensated resistors to hold ±0.5% accuracy. Compensation via type-III networks (two poles, one zero) dominates for wide-bandwidth designs, but type-II suffices for simpler buck topologies. Place the feedback loop components as close to the controller IC as possible, using surface-mount 0402 or 0603 packages to reduce parasitic inductance.

Protection is non-negotiable. Implement cycle-by-cycle overcurrent detection using a low-value shunt (1–5mΩ) or hall-effect sensor (e.g., ACS712), feeding into the controller’s enable pin. Undervoltage lockout (UVLO) should trigger at 80% of the nominal input, while overvoltage clamps (e.g., 15V TVS diodes) safeguard against load dumps. Soft-start capacitors (1µF–10µF) prevent inrush current, but avoid electrolytics unless necessary–their ESR adds losses.

Efficiency-Boosting Details

Synchronous rectification outperforms diodes, slashing losses by 3–8%. Use dedicated drivers (e.g., DRV8320) or integrated controllers (LM2675) to switch FETs at zero-crossing points. Dead-time between high/low-side switches must be 20–50ns; exceeding 100ns causes shoot-through, while under 10ns risks body-diode conduction. For off-line applications, a flyback topology demands a snubber across the primary winding to clamp leakage inductance spikes–RCD snubbers (e.g., 1kΩ + 1nF + 1N4007) are simpler than active clamp circuits but less efficient.

Step-by-Step PCB Layout for High-Efficiency Converter Designs

Start by placing the main regulator IC and input/output capacitors within 5 mm of their pins. Use a star-ground configuration for the return paths, connecting all grounds at a single vias cluster beneath the IC to minimize loop inductance. For 100 kHz–1 MHz designs, keep high-current traces under 20 mm in length; above 1 MHz, limit to 10 mm. Route switched nodes away from sensitive analog lines, maintaining at least 3 mm clearance.

Locate the bootstrap diode and capacitor adjacent to the driver pin, ideally on the top layer. For MOSFETs exceeding 5 A, use parallel vias (minimum 0.3 mm diameter) for each drain/source pad to reduce resistance. Copper pour thickness should be 2 oz for currents above 3 A; below 1 A, 1 oz is sufficient. Avoid right angles in traces–use 45° miters or curves to reduce EMI radiation.

Critical Loop Optimization

Identify the three primary loops: input, output, and gate drive. The input loop (input cap → MOSFET → inductor) must be the smallest. For a 20 W design, target a loop area under 15 mm². Place input capacitors (ceramic X7R, 25 V) directly across the MOSFET’s drain-source pads. For gate loops, route driver traces as short, wide strips (minimum 0.5 mm width for 500 mA drivers).

Use ground planes on both layers for designs above 500 kHz, stitching them with vias spaced no farther than 10 mm apart. For single-layer boards, employ a grid layout with horizontal traces on top and vertical on bottom, reserving 70% of the area for the return path. Keep switching nodes compact; a circular or teardrop shape reduces ringing better than rectangular extensions. For TO-220 packages, thermal vias (0.5 mm) spaced 2 mm apart improve heat dissipation, dropping junction temperature by up to 15%.

Sensitive feedback traces (like the voltage divider) should run between ground planes or away from high-dV/dt nodes. For noise immunity, add 1 nF ceramic capacitors from feedback nodes to ground, placed within 2 mm of the sensing point. Avoid routing feedback traces parallel to switched traces; cross at 90° if unavoidable. For designs over 10 A, use Kelvin connections for current sensing–two separate traces from the shunt resistor to the IC.

For EMI reduction, add a small ferrite bead (e.g., Murata BLM18PG121SN1) in series with the input line, rated for the full load current. Place snubber networks (R-C series, typically 10 Ω + 1 nF) across MOSFET drain-source for designs above 500 kHz. Test prototype layouts with a near-field probe; traces with dV/dt > 5 V/ns should be shielded or shortened. For multi-layer boards, dedicate the second layer to a solid ground plane, with no breaks except under switched nodes.

Finalize the layout by placing test points for critical measurements: input voltage, switched node, and output voltage. Use 0.8 mm holes for test points, connected via 0.2 mm traces to avoid affecting circuit performance. For prototype validation, replace one input capacitor with a socket to test different capacitor types (e.g., electrolytic vs. ceramic). Document trace widths, copper weights, and via counts in the gerber files for consistent manufacturing. For designs above 30 W, simulate thermal performance using finite element analysis tools before ordering boards.
