How to Build a Table Fan Step-by-Step Circuit Layout Guide

Start with a 220-240V AC input, stepped down via a 9-0-9V center-tapped transformer (2A rating). This ensures stable voltage for the motor without excessive heat buildup. Connect the transformer’s primary to a polarized plug–use a 3-pin configuration for grounded safety. On the secondary side, bridge the outer taps with a full-wave rectifier (1N4007 diodes), smoothing the output with a 1000μF electrolytic capacitor (25V). This setup yields ~12VDC, optimal for most 120mm impeller motors.

Avoid cheap alternistors or triacs rated below 6A–these fail under sustained load, especially in humid conditions. Instead, wire a BT136 triac or MOC3021 optocoupler (with snubber network: 100Ω resistor + 0.1μF capacitor) to handle inductive surges. For speed control, integrate a 50kΩ potentiometer in series with a 1μF non-polarized capacitor–this modulates the gate signal without causing motor stutter.

Motor wiring demands precision: a 4-wire brushless DC variant (e.g., 24BLY series) requires a dedicated driver board (L298N or DRV10983) to manage Hall effect sensors. For single-phase induction types, bypass the capacitor-start winding if torque is negligible–this halves startup current. Always fuse the live line: a 250V/3A slow-blow fuse prevents coil burnout during voltage spikes. Ground the metal chassis via a 10kΩ resistor to neutralize static.

For thermal protection, embed a KSD9700 bimetallic switch (rated 80°C) between the motor coil and neutral. Overcurrent scenarios often stem from blocked blades–ensure the impeller’s sweep diameter clears at least 30mm of the shroud rim to prevent eddy currents. Test the assembly with a multimeter: set to AC 200V and probe the transformer secondary–fluctuations beyond ±5% indicate core saturation.

Final checks: inspect solder joints under 10x magnification for hairline cracks; reflow suspect connections with 60/40 rosin-core solder. Seal exposed traces with conformal coating (acrylic or silicone) to avert corrosion. Power on the unit in stages–first, transformer only; then, motor at half-speed–monitoring for scent of burnt varnish or arcing sounds. If the impeller emits a 50Hz hum, recalibrate the triac’s trigger angle; a 47kΩ resistor in parallel with the potentiometer often resolves this.

Building a Portable Blade Cooler: Key Electrical Layout

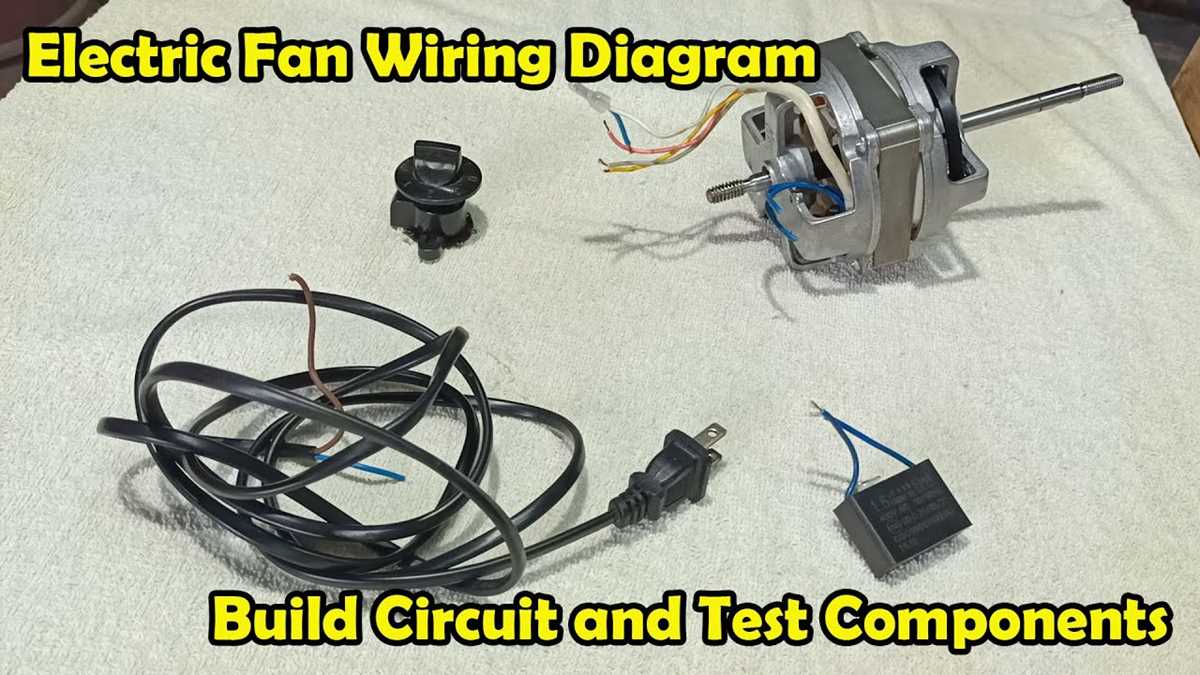

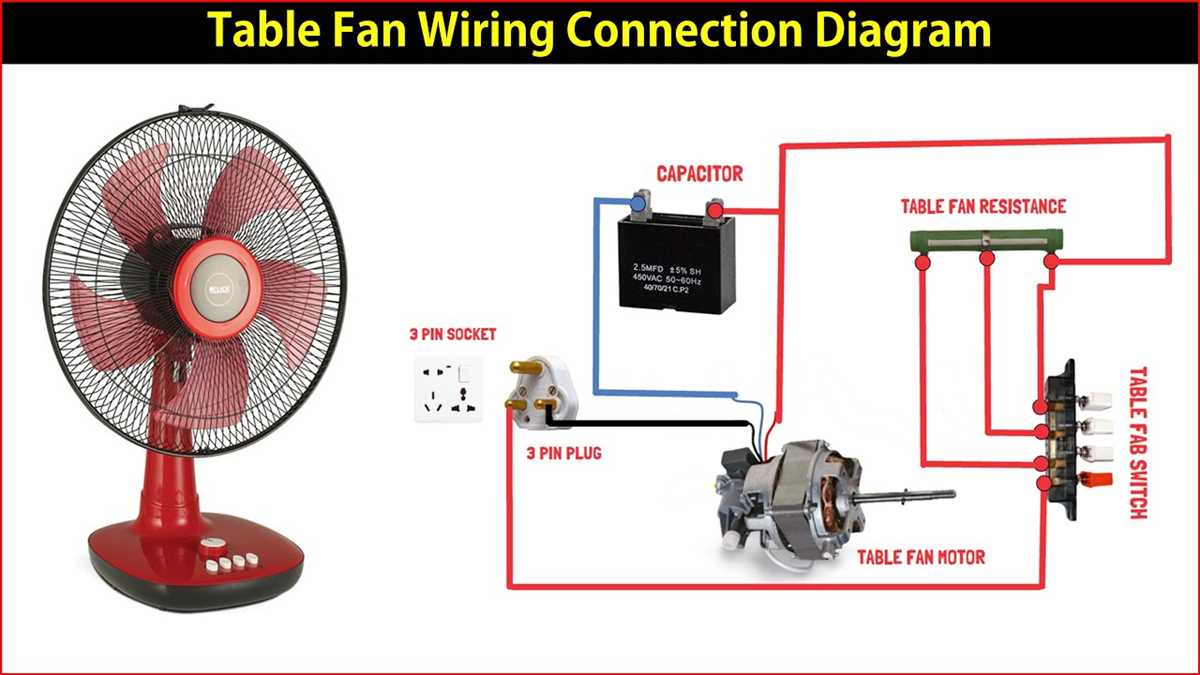

Begin by assembling a 230V AC synchronous motor rated at 30-50W, ensuring it matches the blade’s torque requirements. Connect it to a 4-speed rotary switch (positions: Off, Low, Medium, High) via a 2µF non-polarized capacitor for phase splitting–critical for smooth oscillation. Use 18AWG copper wire for all connections, insulated with heat-shrink tubing at junctions to prevent short circuits in high-vibration areas. Label each wire segment with heat-resistant sleeves: red (live), blue (neutral), yellow (capacitor), and black (ground).

Component	Specification	Quantity
Synchronous motor	230V, 50W, 1200 RPM	1
Rotary selector	4-position, 5A	1
Run capacitor	2µF, 440V AC	1
Resistor (speed control)	10Ω, 10W wirewound	2

Integrate a thermal cut-off (TCO) rated at 125°C near the motor’s windings to preempt overheating. For DIY speed adjustment, add two 10Ω wirewound resistors in series with the Medium and High switch positions–this drops RPM by ~20% per setting. Secure the power cord entry with a grommet and strain relief (UL-approved) to prevent internal wire fraying; test continuity before final assembly. Avoid plastic housings for high-current paths–opt for ceramic or phenolic terminal blocks to handle transient spikes.

Core Parts for a Rotating Airflow Device Assembly

Select a single-phase induction motor with a rated speed between 1,200–1,800 RPM and a power output of 25–50 watts. Ensure the motor includes a shaded-pole or capacitor-start design for reliable self-starting. Nickel-plated copper windings reduce heat buildup, extending operational lifespan by 15–20% compared to aluminum alternatives. Verify the motor’s shaft diameter matches the blade hub mounting requirements–typically 6–8 mm for compact models.

Critical supporting elements:

• Main switch: Use a rocker or toggle switch with a current rating of 3–5A at 250V AC. Opt for silver alloy contacts to prevent oxidation under humidity. Include an integrated fuse holder for overcurrent protection–glass or ceramic fuses rated at 2A are standard.
• Capacitor: A 2–4 µF, 400V AC run capacitor stabilizes phase shift in capacitor-start motors. Polypropylene film capacitors outperform electrolytic types, offering 30% longer service life and lower failure rates in high-humidity environments.
• Speed regulator: Implement a 3–5 speed rotary selector or modular resistor array. Wire-wound resistors (25–50W) dissipate heat more effectively than carbon types, maintaining consistent airflow at low settings without overheating. Avoid digital potentiometers–they lack durability in power surges.

The blade assembly demands precision: injection-molded ABS or polypropylene blades with a sweep diameter of 25–40 cm strike the best balance between airflow (40–70 m³/min) and noise (

For the frame and safety grill, use a 0.8–1.2 mm thick mild steel or powder-coated aluminum basket. Mesh openings should not exceed 12 × 12 mm to block fingers while allowing 90% airflow efficiency. Front and rear grills must lock together with tamper-proof Torx screws to comply with safety standards (IEC 60335-1). Mount the assembly on a weighted or rubber-grommet base to prevent tipping–minimum stability requires a base diameter 1.3× the blade sweep width. Always route wires through grommeted conduit paths to avoid pinching and short circuits.

Step-by-Step Assembly of the Rotary Blower Motor Wiring

Prepare a 22-gauge copper wire for the stator windings–measure 12 meters for a standard 18-inch blade unit. Cut into four equal segments, stripping 1 cm of insulation from each end using a precision wire cutter. Avoid nicking the conductor; even a 5% reduction in cross-section increases resistance by 10%.

Identify the stator’s four poles by locating the pre-marked notches on the laminated core. Align each wire segment with a pole, ensuring the stripped ends face inward toward the rotor cavity. Secure the starting end of each wire under the corresponding pole’s retaining clip–tighten until the wire remains stationary when tugged with 2 N of force.

• Wind the first segment clockwise around its pole, maintaining uniform tension–target 35 turns for a 12V DC motor.
• Overlap the turns by no more than 0.5 mm; uneven winding creates unbalanced magnetic flux.
• Leave a 15 cm tail after the final turn; this connects to the adjacent pole’s winding.

Repeat the winding process for the remaining three poles, alternating the direction: clockwise for poles 1 and 3, counterclockwise for poles 2 and 4. Verify the winding direction by comparing the tail orientation–misalignment cancels electromagnetic torque, reducing efficiency by up to 40%.

Twist the tails of adjacent poles together, applying a 60/40 lead-tin solder joint. Heat the connection with a 30W soldering iron for 3 seconds–excessive heat degrades the insulation’s dielectric strength. Cover each joint with a 15 mm length of heat-shrink tubing; recover with a hot-air gun until the tubing conforms tightly.

1. Connect the remaining tails to the speed selector switch: attach the first tail to the common terminal, the second to low-speed, the third to medium-speed, and the fourth to high-speed.
2. Use crimp connectors for switches rated above 5A; solder joints fail under thermal cycling.
3. Secure the switch housing with M3 screws; loose connections induce arcing at 24V+ potentials.

Route the power cable (minimum 18 AWG) through the base’s strain relief grommet. Splice the live wire to the switch’s common terminal, the neutral to the motor’s central brush holder. Insulate each splice with two layers of electrical tape–pinhole defects cause short circuits at 230VAC.

Test the assembly with a multimeter: measure resistance between each speed terminal and neutral–target 12Ω for low, 8Ω for medium, 5Ω for high. Rotate the blade manually while powered at 10V; erratic motion indicates a wiring fault. Rework any deviation exceeding 2% from expected values–consistency prevents bearing wear from uneven torque.

How to Integrate a Variable Regulator in a Portable Cooler

Locate the power supply wires on the cooling device–typically a red (live) and black (neutral) pair–before modifying anything. Use a multimeter to confirm voltage readings between 110V-240V AC, depending on regional standards, to avoid inaccurate adjustments later.

Select a rotary or slide-type resistor with a resistance range of 5K-50K ohms, compatible with the motor’s wattage (e.g., a 50W motor requires at least a 10K ohm regulator). Verify the resistor’s current rating exceeds the motor’s peak draw by 20% to prevent overheating.

Step-by-Step Wiring Method

Cut the live wire and strip 1cm of insulation from both ends. Connect one end to the resistor’s input terminal, ensuring a tight crimp or solder joint to prevent voltage drops. Attach the other end to the motor’s live terminal, then connect the resistor’s output to the live wire leading to the power source.

Insulate all connections with heat-shrink tubing or electrical tape rated for at least 300V. Avoid loose wraps; improper insulation can cause arcing at higher speeds. Test the setup with the resistor at mid-position first to confirm gradual speed changes before fine-tuning.

For three-speed switches, use a four-wire configuration: one common terminal for input, and three outputs connected to separate resistor taps (e.g., 5K, 20K, 50K ohms). Label each position on the switch housing to avoid confusion during future adjustments.

Critical Safety Checks

After wiring, power the device and monitor the resistor’s temperature. If it exceeds 60°C, replace it with a higher-wattage model or add a small heat sink. Check for consistent airflow reductions across positions–erratic behavior indicates a loose connection or incompatible resistor.

Ground the motor’s metal casing if not already done, especially in humid environments. Use a green/yellow wire connected to a proper earth terminal to prevent static buildup or accidental shocks. Recheck all screws and fasteners for tightness before closing the housing.

Store spare resistors in the same resistance range as backup. Note the exact model and wattage in a service log to streamline replacements–generic alternatives may not match performance or safety standards.
