Yamaha Outboard Motor Wiring Diagrams Complete Guide for Repairs
Begin by locating the engine’s control module–typically found beneath the cover near the powerhead. Trace the main harness from the battery to this unit, ensuring all connections match the manufacturer’s color-coding. On models produced after 2015, the ignition system uses a six-pin connector: verify each pin’s function in the service manual before testing continuity. Older units frequently rely on a simpler three-wire setup (positive, negative, ignition trigger), but corrosion at the terminals often disguises issues. Use a multimeter set to 200 ohms to check resistance across suspected faulty wires.
Disconnect the battery before inspecting the starter solenoid–its thick red cable should have zero resistance; any deviation indicates internal failure or poor grounding. Examine the trim/tilt circuit next: power flows through a relay to the hydraulic pump, and voltage drops above 0.5V at any connection point signal corrosion or loose crimps. For models with digital gauges, focus on the data bus–the twisted pair carrying speed and temperature signals must be shielded to prevent interference. Splicing into this line without proper insulation invites sporadic malfunctions.
Fuel management requires precise voltage at the injectors–measure 12-14V at the ECM when cranking, adjusting for battery charge levels. Check the kill switch circuit: the emergency stop wire (usually black with yellow stripe) must open fully when activated; intermittent breaks here cause erratic shutdowns. Grounding errors manifest as slow cranking or dim instrument lights–bolts securing the engine block to the transom should be tightened to 30 Nm to ensure conductivity. Always replace heat-shrunk connectors on exposed wiring, especially in saltwater environments.

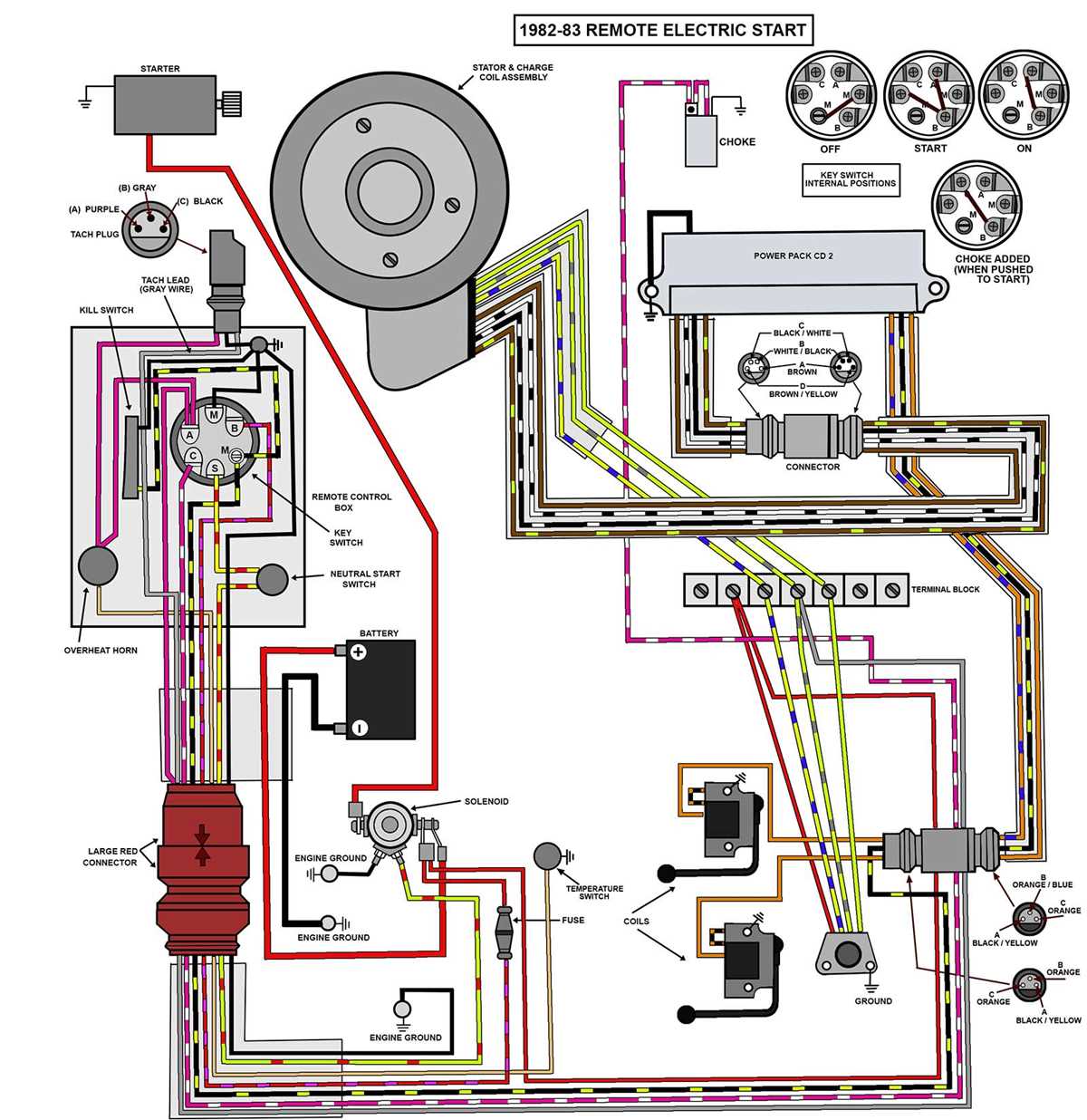

Electrical Schematics for Marine Engine Systems

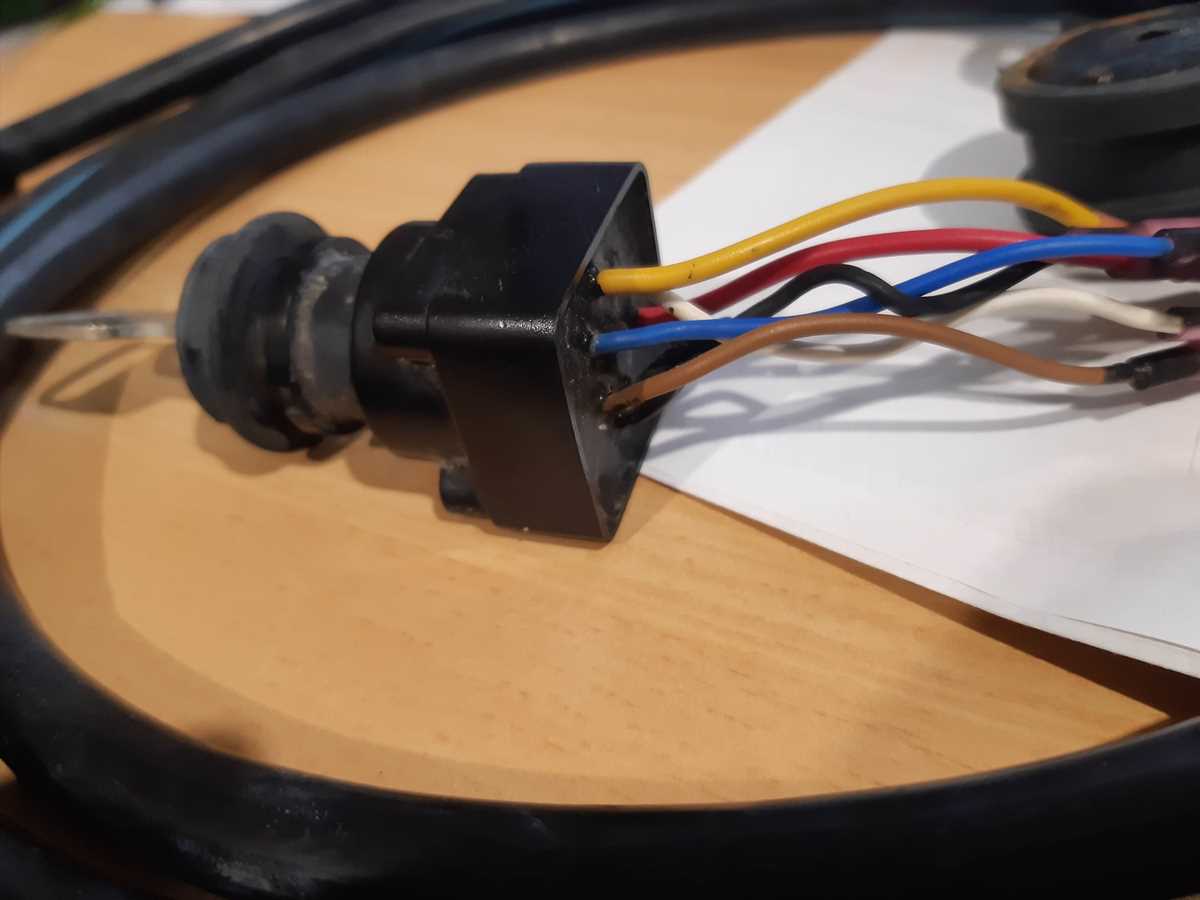

Always verify the ignition switch harness connections against the service manual before disassembly. Models produced between 2005 and 2018 feature a four-pin connector with color-coded terminals: black/white (ground), red (battery positive), yellow (accessory), and brown (tachometer signal). Any deviation from this sequence can trigger error codes P0562 or P2100. Use a multimeter set to 20VDC to test continuity–acceptable resistance should not exceed 0.3 ohms between the engine block and ground terminal.
Fuel injection timing relies on precise sensor alignment. The crankshaft position sensor (CPS) on V6 models mounts directly above the flywheel housing, secured by a single Torx T30 bolt. Misalignment by even 0.5mm will cause hard starting or intermittent stalling. To calibrate, ensure the sensor gap measures 0.8–1.2mm using a feeler gauge. For verification, backprobe the sensor’s white/green wire via the ECU harness while cranking–voltage should spike to 4.8V ±0.2V at 200 RPM.
Common failure points in tilt/trim circuits include the 30-amp fuse and the limit switch assembly. The fuse, located in the battery junction box, must be rated for marine-grade applications (e.g., Littelfuse MEGA 30A). The limit switch, typically a microswitch with a 2mm actuator rod, requires lubrication with dielectric grease every 50 hours of operation. Neglect leads to corrosion on the brass contacts, resulting in erratic trim behavior. Test the switch by manually depressing the actuator–audible clicks should correspond to resistance changes from 0Ω (closed) to OL (open).
Troubleshooting charging system irregularities begins with the stator. On four-stroke models post-2012, the stator output can be measured at the rectifier’s yellow wires–AC voltage must range from 20V (idle) to 60V (3000 RPM). If readings fall below specifications, inspect the stator winding for discoloration or melted insulation, indicative of thermal damage. The rectifier, a six-diode assembly, can be tested with a diode checker: forward bias should show 0.5–0.7V; reverse bias must display OL. Replace the rectifier if any diode fails this check.
Harness Modification and Repair Protocol
- Strip wire ends using a heat gun at 200°C to prevent insulation shrinkage–alternative methods risk conductor damage.
- Splice connections must use marine-grade adhesive-lined heat shrink (3M MDT-4), crimped with a ratcheting tool (e.g., Molex 63811-1000) and soldered post-crimp.
- Avoid twist-and-tape splices; even temporary repairs risk saltwater intrusion, leading to galvanic corrosion within 48 hours.
- Label all harness branches with polyester ID tags (Tesa 6973) to prevent misrouting during reassembly.
For models equipped with digital gauge clusters, the CAN bus wiring follows a proprietary protocol. The backbone consists of two twisted-pair cables: orange/white (CAN-H) and orange/green (CAN-L), terminating at the ECU and instrument panel. Signal integrity requires a 120Ω termination resistor at each end; omission causes gauge lag or dropouts. Use an oscilloscope to verify CAN signals–acceptable waveforms show 2.5V differential with

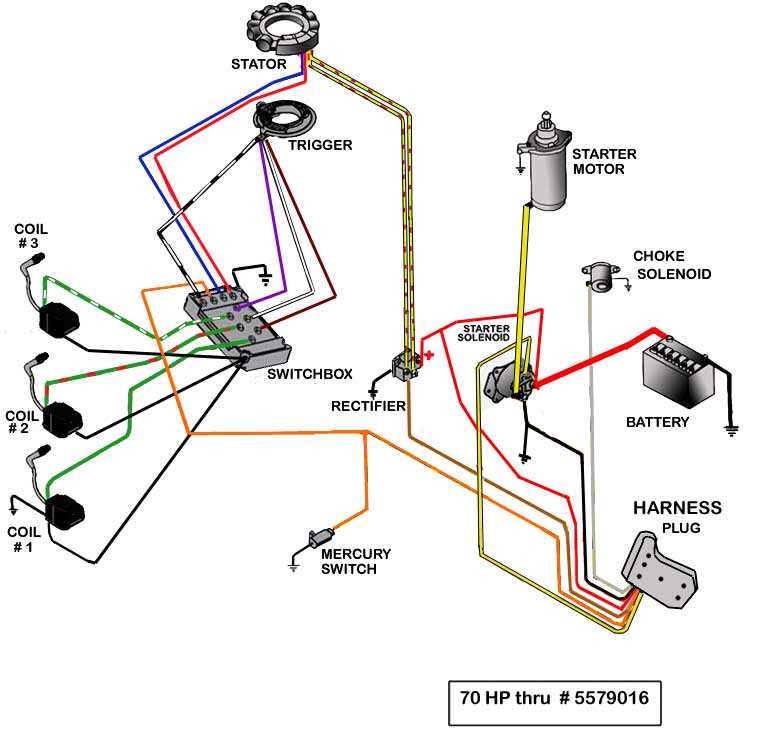

Interpreting Marine Engine Schematic Maps Across Various Series
Locate the legend first–each color code corresponds to a functional circuit, with red typically representing power feeds, black as ground, and yellow or blue for ignition or sensor lines. Models like the 2.5HP portable units simplify this further by using three primary pathways: battery input, kill-switch loop, and stator output. Compare these against mid-range series (25–40HP), where dual-circuit alternators introduce separate charging paths for battery and accessory loads. Larger V6 configurations add complexity with dedicated harnesses for trim, fuel pumps, and ECU modules.
Trace the ignition system early–on 4-stroke models, look for a solid-state rectifier near the flywheel housing, identifiable by finned heat sinks and paired three-wire connectors (AC input, DC output, ground). Older 2-stroke carbureted engines merge ignition and charging into a single coil, while fuel-injected variants split these functions between CDI and ECM-controlled relays. Verify fuse ratings before testing continuity; most 150HP+ models integrate thermal breakers rated at 10A for primary circuits and 5A for sensor loops.
Isolate the control box connections next–portable models use a single multi-pin plug (often labeled P1), while high-horsepower variants separate into multiple harness sections (engine-side, helm-side, gauge cluster). Pay attention to relay assignments: newer digitally governed engines replace mechanical solenoids with solid-state driver modules, distinguishable by compact plastic enclosures and labeled pinouts (IN, OUT, GND). Cross-reference voltage drop specifications; manuals list acceptable ranges between 0.2V (idle) and 0.5V (high RPM) across key test points like the main harness connector.
Check the alarm circuit last–audible warnings are triggered by discrete sensors (oil pressure, temperature, charging) that close to ground, activating a dashboard buzzer. On models equipped with CAN bus communication (common in 2015+ releases), these signals are transmitted digitally, requiring a specialized scan tool for diagnostics. Note the distinction between “horn” (continuous tone) and “alarm” (intermittent pulse) outputs, as the latter often indicates a non-critical but abnormal condition requiring attention within 30 engine hours.
How to Identify and Map Marine Engine Harness Pathways
Locate the main power distribution block beneath the cowling–typically mounted near the upper crankcase. Disconnect the battery terminals first to prevent short circuits while handling connectors. Use a multimeter set to continuity mode to probe pins on the control module; cross-reference findings with the manufacturer’s schematics for pin assignments. Mark each verified connection with colored tie-wraps or labeled tape to avoid retracing.
Inspect harness branches for corrosion or brittle insulation–common failure points in saltwater environments. A small wire brush and contact cleaner restore conductivity where terminals appear oxidized. Route replacement segments along original pathways, securing them with marine-grade loom tubing to prevent chafing. Avoid sharp bends near the tilt/trim pump; repeated cycling can wear through protective sleeves.
Isolate ignition-related circuits by following the thickest gauge wires from the key switch. Test for voltage drop across each relay and solenoid; readings below 11.8V indicate resistance in splices or corroded terminals. Label each circuit segment (e.g., “Starter Relay Output”) directly on the harness sleeve with a solvent-resistant marker. For twin-engine setups, differentiate port/starboard connections at every junction.
Trace sensor leads–CPS, temperature, and oil pressure–using a tone generator if visual identification is unclear. Verify signal continuity by simulating operating conditions (e.g., grounding the oil pressure sender to confirm gauge response). Reassemble protective covers only after confirming all connections meet torque specifications; loose fasteners lead to vibration-induced cable fatigue.
For balky CDI units, probe the black/yellow trigger wire while cranking–the absence of a pulsed signal confirms a faulty stator or rectifier. Replace damaged connectors with exact-match waterproof terminals; generic substitutes compromise sealing integrity. Document every modification with notes on wire gauge, connector type, and date–critical for troubleshooting later.
Troubleshooting Marine Propulsion Electrical Faults: Schematics-Guided Fixes
Corroded battery terminals rank as the most frequent failure point. Inspect connections every 50 operating hours; clean with 220-grit sandpaper and apply dielectric grease rated for marine environments. Replace terminal clamps showing more than 15% surface pitting. Verify crimp integrity on 6 AWG cables–pull test each joint with 20 lb force before sealing splices with heat-shrink tubing containing adhesive lining.
Erratic ignition triggering often stems from oxidized switch contacts in the key-operated start circuit. Measure voltage drop across each contact point; readings exceeding 0.2V indicate carbon buildup requiring contact cleaner spray followed by contact enhancer application. For models equipped with push-button start, replace the micro-switch if activation requires more than 3 lbs of force–symptoms include intermittent click sounds without cranking.
| Circuit Segment | Fault Symptoms | Multi-meter Verification | Remedy |
|---|---|---|---|
| Charging circuit (stator to rectifier) | Flickering panel lights, battery not charging | AC voltage between stator leads: <12V at 2000 RPM | Replace stator, resistance should read 0.2–0.5Ω between leads |
| Trim sender | Gauge stuck or erratic trim readings | Resistance across sender terminals: >1kΩ at full trim | Calibrate sender with 10-turn potentiometer; replace if calibration fails |
| ECM power feed (main relay) | Engine cranks but no ignition spark | 12V absent at ECM pin #14 during cranking | Clean relay contacts with electronic contact polish; replace relay if voltage drop exceeds 0.1V |
Loose alternator belt tension causes undercharging; adjust deflection to 10mm with 10 lb-force applied mid-span. Replace belts exhibiting more than three visible cracks per inch of length. Verify alternator output at the B+ terminal–acceptable range is 13.8–14.5V at 1500 RPM; readings outside this range indicate faulty voltage regulator requiring replacement.
Fuel pump relay failures manifest as intermittent fuel starvation. Locate the relay beneath the cowling; swap with an identical relay from the horn or lights circuit to confirm failure. Replace with OEM relay rated for 30A inductive load–aftermarket units often lack proper flyback diode protection leading to ECM damage.
Ground Path Diagnostics
Deteriorated engine ground straps create phantom electrical gremlins. Remove each bolt securing the ground strap to the engine block; clean mating surfaces with stainless steel wire brush until bright metal is exposed. Apply anti-seize compound sparingly–excessive compound can migrate into bolt threads causing future corrosion. Tighten bolts to 12 ft-lbs torque; verify continuity with a milliohm meter–readings should not exceed 0.1Ω.
Water intrusion in electrical connectors remains a persistent failure mode, especially in models with exposed harness routing. Disconnect suspected connectors and inspect pins for white or green corrosion on contact surfaces–these indicate saltwater exposure requiring immediate connector replacement. Seal new connectors with waterproof heat-shrink tubing containing dual-wall adhesive; avoid silicone sealants which can creep into contact points causing future conductivity loss.
Voltage sensing wire faults on tachometer circuits induce false RPM readings. Trace the tach signal wire from the engine block to the instrument cluster; locate any chafed sections where insulation is compromised. Repair chafed sections using the solder-splice method–avoid crimp connectors which introduce resistance. After repair, verify signal integrity by comparing tachometer reading with strobe light–readings should align within ±100 RPM at idle and wide-open throttle.
