Complete Guide to Three Phase Alternator Wiring and Circuit Schematics

Begin by isolating the stator windings in your design. Arrange the coils at 120-degree intervals around the rotor circumference–any deviation above ±5 degrees disrupts voltage symmetry, leading to unbalanced line currents. Each winding must contain identical turn counts (±1%) to prevent circulating harmonics. Use laminated silicon steel cores with a maximum flux density of 1.8T to minimize hysteresis losses; exceeding this threshold introduces 5th and 7th order harmonics, degrading waveform purity.

Route excitation current through slip rings with silver-plated copper contacts. Apply a contact pressure of 3–4 N/mm² to prevent arcing; even minor oxidation increases resistance by 200–300%, causing voltage drop under load. For brushless designs, embed a rotating rectifier with ultrafast recovery diodes (trr ≤ 50ns) to clamp transient spikes during sudden load changes. Failure to suppress these spikes risks insulation breakdown in the rotor winding, typically rated for 600V peak transients.

Terminate neutral connections with care. A floating neutral elevates zero-sequence components, inducing shaft currents that pit bearings–in critical applications, ground the neutral through a 50–100Ω resistor to limit fault currents to 3–5A. For delta configurations, verify all joints with a megohmmeter; a resistance below 100MΩ between phases indicates contaminant bridging, reducing efficiency by 1–2%.

Include surge protection at the output terminals. Install metal-oxide varistors (MOVs) with a clamping voltage 20% above peak line voltage (e.g., 440V MOVs for a 380V system) to absorb switching surges from load disconnects. Parallel MOVs with snubber circuits (0.1μF capacitor + 10Ω resistor) to suppress high-frequency ringing, which accelerates insulation aging. Omit this step, and expect 30–40% shorter lifespan for switching components.

Simulate fault conditions before physical testing. Use transient analysis software to verify that short-circuit currents do not exceed 10× rated current for more than 0.5 seconds–longer durations warp rotor shafts due to thermal stresses. Model asymmetric loads (e.g., single-phase motors) to confirm phase displacement remains below 5%; exceeding this threshold overheats bearings and generates audible noise at 120Hz.

Constructing a Tri-Star Electrical Generator Wiring Plan

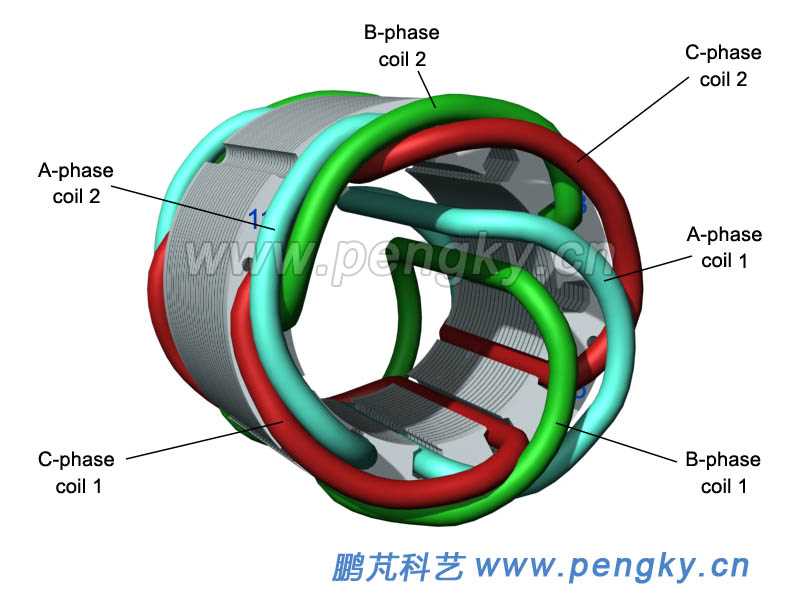

Begin by sketching the stator windings in a 120-degree offset configuration. Use three identical coils labeled U, V, W–each spaced precisely to ensure balanced output voltages. Connect one end of each coil to a common neutral point (star configuration) unless a delta arrangement is required for higher current applications. Verify coil resistance with a multimeter; mismatched values will distort waveform symmetry.

Critical components to include:

• Rotating field magnet: Typically a permanent magnet or electromagnet (excited via slip rings). For self-excited designs, integrate a rectifier bridge to convert AC from auxiliary windings into DC for the rotor.
• Voltage regulator: Solid-state or mechanical units to stabilize output; position it between the exciter and rotor terminals. Failure here causes overvoltage damage to connected loads.
• Bearing assembly: Shielded ball bearings spaced at rotor ends to minimize friction losses. Lubricate with synthetic grease rated for 200°C+ operating temperatures.
• Slip rings (if applicable): Copper or silver-plated rings with carbon brushes. Ensure brush pressure is 15-25 kPa to prevent arcing without excessive wear.

Label the terminal box outputs as L1, L2, L3 and neutral (N). For safety, ground the neutral through a current-limiting resistor (typically 1-5Ω) to dissipate fault currents. Avoid connecting neutral directly to earth in floating systems–this creates stray ground loops in sensitive equipment.

Wire gauge selection depends on line current and duty cycle:

1. 0.5 kW (230V): 2.5 mm² copper conductor
2. 5 kW (400V): 6 mm²
3. 20 kW+ (690V): 16 mm² or larger

Use heat-resistant insulation (e.g., XLPE) for conductors exceeding 10A continuous load. Secure connections with crimp terminals and torque to manufacturer specs (e.g., M6 bolts at 10-12 Nm).

For frequency control, couple the generator to a prime mover (diesel engine, turbine) via a flexible coupling to dampen torsional vibrations. Install a tachometer generator or encoder on the rotor shaft to monitor RPM–target 3000 RPM for 50Hz or 3600 RPM for 60Hz output. Deviations beyond ±1% introduce harmonic distortion.

Include surge protection with:

• Varistors (MOVs): Between each line and ground, clamping voltage to 1.5× rated line voltage.
• RC snubber networks: Across stator coils to suppress transient spikes from load switching.
• Isolation transformer: For noise-sensitive loads, with galvanic separation rated for full generator kVA.

Test the assembly with an oscilloscope–verify sine wave purity, phase angle consistency, and absence of DC offset before connecting any load. Record measurements at no-load, half-load, and full-load for compliance with IEC 60034 standards.

Critical Elements in a Polycyclic Generator Circuit

Start with the stator windings–arrange them in a 120-degree offset to ensure balanced electromotive force output. Use copper wire with a cross-sectional area of 2.5 mm² minimum for industrial applications to prevent overheating under sustained loads exceeding 50 kW. Verify winding insulation resistance with a 500V megohmmeter; values below 1 MΩ indicate compromised dielectric strength requiring immediate reconditioning or replacement.

Rotor field coils demand DC excitation between 10–20V, adjusted via an AVR (automatic voltage regulator) to maintain 0.8 lagging power factor under variable load conditions. For brushless designs, integrate a rotating rectifier with silicon diodes rated at 50A/200V to convert induced AC in the exciter to stable DC; failure risks catastrophic demagnetization if forward voltage drops exceed 1.1V per diode. Prioritize ball bearings with C3 clearance for high-speed shafts (3600 RPM) to mitigate vibration-induced harmonics.

Step-by-Step Electrical Linkups in a Multi-Line Generator Setup

Begin by grounding the frame of the power source directly to a dedicated earth rod using a 10 AWG copper conductor. Ensure the connection point is free of corrosion–sand the surface if necessary–and secure it with a stainless-steel bolt rated for outdoor use. This prevents stray currents from damaging equipment or posing safety risks.

Connect the excitation circuit by routing the field winding wires from the rotor to the voltage regulator. Use 12 AWG stranded copper wire, twisting pairs tightly to reduce electromagnetic interference. Terminate at the regulator using ring terminals crimped with a hydraulic tool, not pliers, to ensure consistent pressure. Verify resistance across the field windings with a multimeter; values should match the manufacturer’s specification (±5%).

Attach the stator output leads to the terminal block in a star or delta configuration, depending on the required voltage. For 400V line-to-line outputs, star connection reduces neutral current; delta maximizes power in balanced loads. Label each conductor (L1, L2, L3) with heat-shrink tubing to prevent miswiring. Torque terminal screws to 12 Nm–over-tightening risks thread stripping, while loose connections cause arcing.

Load Balancing and Overcurrent Protection

Install a molded-case circuit breaker rated for 125% of the generator’s continuous current output. For a 10 kVA unit, this translates to 15.6A per line; select a 20A breaker. Mount it within 1 meter of the terminal block to minimize voltage drop. Route wires through the breaker in sequence (L1 to top terminal, load to bottom) to maintain consistency.

Add a neutral link only if using a star configuration. Bolt it to the neutral busbar with a 6 AWG wire, ensuring the bar is isolated from the chassis. In delta setups, omit the neutral entirely–floating ground designs avoid circulating currents but require insulation monitoring for safety. Test phase-to-phase voltages with a scope; waveforms should peak at 565V (±2%) for 400V systems.

Attach surge suppressors to each line before connecting loads. Select metal-oxide varistors (MOVs) with a clamping voltage of 600V and a discharge rating of 10kA. Place them in parallel with the breaker to divert transient spikes away from sensitive electronics. Check suppression effectiveness by injecting a 6kV impulse; residual voltage should not exceed 700V.

Finalize wiring by bundling loose conductors with nylon ties spaced every 15 cm. Avoid zip ties near heat sources–they degrade at 85°C. Cover exposed terminals with insulating boots rated for 1000V, and apply dielectric grease to connectors in humid environments. Energize the system incrementally: first excitation, then stator output, monitoring for unusual vibrations or harmonics (THD should remain below 5%).

Voltage Regulation Methods in Synchronous Generator Circuits

Apply an automatic voltage regulator (AVR) with a thyristor-controlled bridge for precise output stability. Configure the AVR to monitor terminal voltage and adjust excitation current in real-time, maintaining ±0.5% deviation under load fluctuations from 0% to 100%. For brushless designs, embed a rotating rectifier assembly with silicon diodes rated at 1.5x the maximum excitation current to prevent thermal breakdown. Use a transient response time of <50ms for grid-connected units to meet IEEE Std 421.5 specifications. Adjustable resistor banks in the AVR circuit allow fine-tuning of droop characteristics for parallel operation; set droop to 3-5% for proportional load sharing.

Method	Load Range (%)	Voltage Deviation (%)	Response Time (ms)	Hardware Requirements
Thyristor-controlled AVR	0-120	±0.3	20-40	Silicon-controlled rectifier, current transformers
Brushless excitation with rotating rectifier	10-110	±1.0	80-120	Permanent magnet pilot generator, diode bridge
Compound excitation (current+voltage)	20-90	±2.5	150-200	Series/shunt transformers, saturable reactors
Droop control (resistive)	30-100	±4.0	50-80	Adjustable resistors, potential transformers
