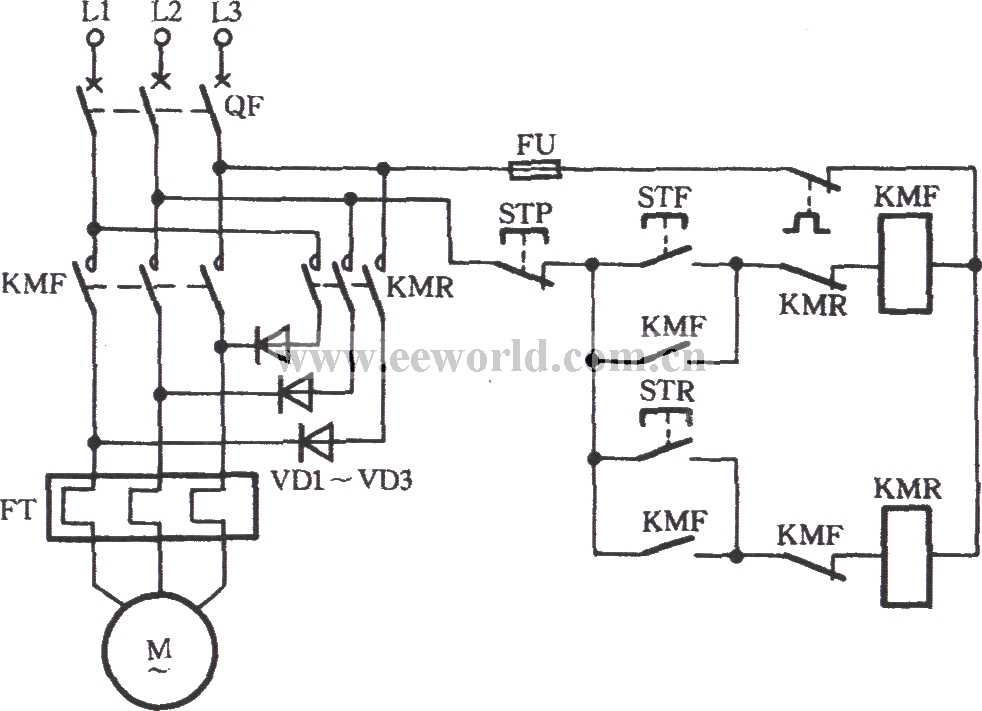

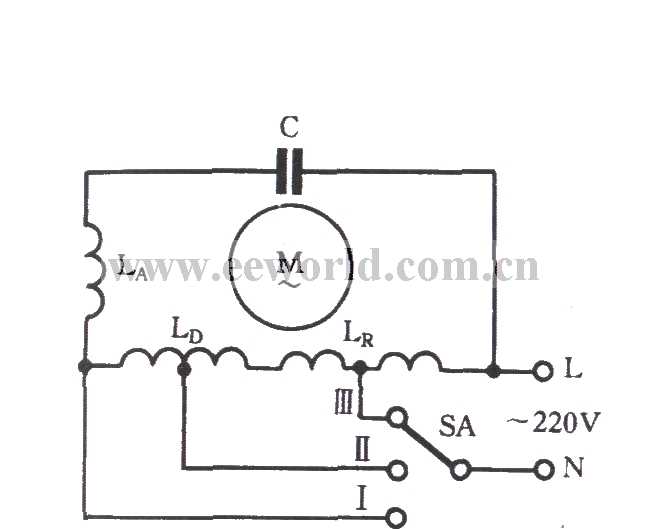

3 Phase Induction Motor Speed Controller Circuit Schematic and Wiring Guide

For precise velocity modulation in industrial tri-supply rotary machines, begin with a variable frequency drive (VFD) utilizing a six-pulse rectifier paired with an insulated-gate bipolar transistor (IGBT) inverter stage. This configuration ensures harmonic distortion below 5% while maintaining efficiency above 95% at full load. Prioritize drives with sensorless vector regulation–this eliminates encoder feedback dependency and reduces failure points in high-inertia applications like conveyor belts or pump systems.

Select DC bus capacitors rated for at least 1.5 times the nominal line voltage to handle regenerative braking transients. For overload protection, integrate a thermal relay calibrated to 115% of motor nameplate current alongside a solid-state circuit breaker with sub-10ms trip response. Avoid legacy contactor-based solutions–they introduce arcing risks and degrade under frequent start-stop cycles.

In high-power setups (50kW+), deploy a twelve-pulse rectifier with phase-shifting transformers to reduce line harmonics to . For single-board implementations under 10kW, a three-leg IGBT bridge suffices–use SiC MOSFETs for switching frequencies above 20kHz to minimize losses in PWM modulation. Ensure gate drivers have galvanic isolation (3kV RMS minimum) to prevent noise coupling into low-voltage control circuits.

Ground all shielding and chassis connections to a dedicated earth bus with resistance . Route control signals in twisted pairs separated from power cables by at least 100mm to avoid EMI-induced erratic speed fluctuations. For dynamic response tuning, adjust PI controller gains iteratively: start with Kp=0.15, Ki=0.002 (for 50Hz base), then refine based on step-load oscillations (target ).

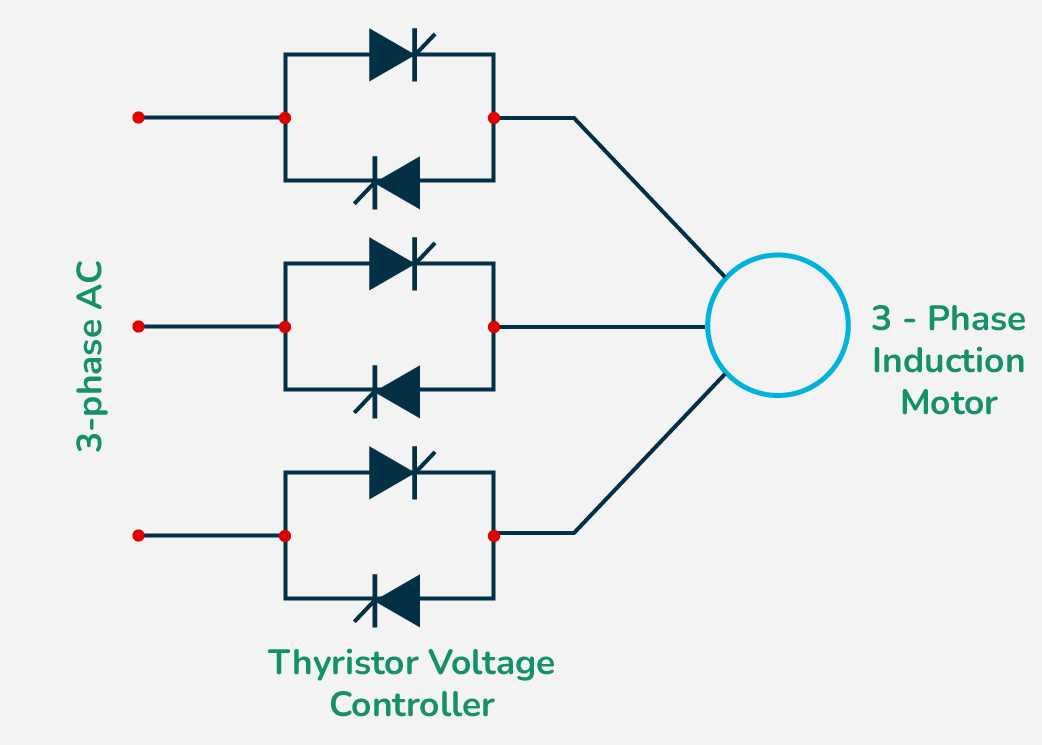

Adjusting AC Induction Machine Rotation via Variable Frequency Drive Layouts

Begin by selecting a pulse-width modulation (PWM) inverter rated at least 120% of the load’s full-load current to handle transient spikes without tripping. For 400V systems, ensure the DC bus voltage exceeds 565V to maintain stable output during voltage dips. Use a braking chopper if deceleration torque exceeds 150% of nominal, sized according to the formula: P_brake = J × ω² × (n1 – n2) ÷ (2 × t), where J is the inertia, ω the angular velocity, and t the deceleration time.

Wire the rectifier module with ultra-fast diodes (trr

IGBT Module	Max Junction Temp (°C)	Switching Frequency (kHz)	Current Derating (%)
Infineon FF600R12ME4	150	20	12 (per °C above 50°C)
Mitsubishi CM1200DC-34N	175	15	10
Toshiba MG600J2YS50	125	8	15

Implement a dead-time compensation algorithm in the microcontroller firmware to correct output waveform distortion. For 6-step commutation, set dead-time between 2-3μs; shorter intervals risk shoot-through, longer ones cause harmonic distortion above 19%. Use a 12-bit ADC sampling at 100kSPS to monitor phase currents, triggering overcurrent protection at 130% of nominal RMS for no more than 10ms before shutdown.

Mount a PTC thermistor (R25 = 10kΩ, β = 3950) on each IGBT’s baseplate to log thermal stress. Configure the driver IC (e.g., Infineon 1ED020I12-F2) to latch fault output if temperature reaches 90°C, preventing junction degradation. Keep gate resistor values between 10-22Ω for turn-on and 5-10Ω for turn-off to balance switching speed and EMI; larger resistors reduce dv/dt but increase losses proportional to frequency.

Shield signal cables with braided copper mesh (90% coverage) and route them at least 100mm from power lines to avoid induced noise corrupting encoder feedback. For closed-loop systems, use a resolver or EnDat 2.2 encoder with a differential driver (AM26LS31) to tolerate ±30V common-mode noise. Power the control circuit via a medical-grade SMPS (24V/2A) to isolate it from DC bus fluctuations.

Test the assembly with a dynamic load simulating 120% inertia using a hysteresis brake. Monitor voltage drop across the DC link during regeneration; if it exceeds 700V for 400V-rated drives, add a dynamic braking resistor sized for 0.5kW per kW of drive rating. Log torque ripple at 5%, 50%, and 100% load; deviations above 2% indicate misaligned encoder or dead-time miscalibration.

Critical Hardware for Adjustable Tri-Star Drive Regulation

Begin with a solid-state relay (SSR) or IGBT module rated for 1.5× the expected load current. Opt for units with galvanic isolation (minimum 2,500 Vrms) to prevent noise coupling into logic lines. For 400V systems, choose 1,200V IGBTs–never compromise on voltage headroom; 600V components will fail under inductive kickback. Include a snubber network (0.1µF polypropylene + 47Ω resistor) across each switching element to suppress transients exceeding dv/dt limits.

• Gate driver IC: Isolated variants such as Infineon 1ED020I12-F2 or Analog Devices ADuM3223. Ensure propagation delay below 100 ns to maintain PWM accuracy at 20 kHz.
• Current sensor: Closed-loop Hall effect transducers (LEM DHAB series) for real-time feedback–aim for ±0.5% accuracy over 0–120°C. Avoid shunt-based solutions; they introduce ground loops.
• Microcontroller: ARM Cortex-M4 (STM32F334) with floating-point unit for PI loop calculations. Dedicate three 12-bit ADCs (sampling at 10 kSPS) for phase current, voltage, and temperature monitoring.

Install DC-link capacitors (film, not electrolytic) sized to handle 20% ripple current at full load. For a 10 kW design, specify 3× 4µF/800VDC polypropylene capacitors in parallel, each with >5,000-hour life at 100°C. Add a bleeder resistor (10 kΩ, 25W) to discharge stored energy within 60 seconds of power-off.

Thermal management dictates reliability: use a 30°C/W heatsink for 150W dissipation at 50°C ambient. Apply 0.1 mm thermal pads (Shin-Etsu X-23-7783D) between semiconductors and heatsink–never grease alone. Include a cooling fan (40×40 mm, 24VDC) with PWM control, triggered at 60°C via a thermistor mounted on the heatsink base.

Step-by-Step Wiring of a VFD-Based Drive Regulation Setup

Begin by securing a disconnect switch between the power source and the variable frequency drive (VFD). This ensures safety during maintenance or emergencies. Use a 400V, 3-pole circuit breaker rated for 125% of the drive’s maximum current to handle surges. Wire the input terminals (R, S, T) directly to the breaker, maintaining tight connections with crimp terminals to prevent overheating.

Connect the VFD’s DC bus terminals (if applicable) to an external braking resistor for dynamic stopping. Select a resistor matching the drive’s regenerative power specs; typical values range from 50 to 100 ohms for 7.5 kW drives. Secure the resistor’s leads with heat-shrink tubing to avoid short circuits, and mount it away from flammable materials.

Attach the output terminals (U, V, W) to the machine’s stator windings using 6 AWG or thicker copper cables, sized per the drive’s manual. Twist the cables lightly to reduce electromagnetic interference, and route them away from signal wires. Verify phase rotation with a meter before finalizing connections–reverse any two leads if the direction is incorrect.

Link the VFD’s control terminals to the operator interface. Use 24V DC for digital inputs (e.g., start/stop) and shielded twisted pair for analog signals (e.g., 0–10V speed reference). Ground the shield at one end only to prevent ground loops. For multi-wire control, label each wire with its function (e.g., “FWD,” “REV”) to simplify troubleshooting.

Install input line reactors between the power source and VFD if the supply has harmonics or voltage spikes. Choose reactors with 50m), add output reactors to limit dv/dt and protect winding insulation. Avoid cheap ferrite cores–they saturate under load and provide minimal filtering.

Configure the drive’s parameters before energizing. Set the base frequency (e.g., 50/60Hz) to match the machine’s nameplate data. Adjust acceleration/deceleration ramps to prevent overcurrent faults; typical values are 5–15 seconds for standard industrial loads. Enable “auto-tuning” if the drive supports it–this optimizes voltage and current limits for the connected load.

Add auxiliary components for remote monitoring. Wire a relay output (e.g., fault indication) to an external alarm or PLC. Use a 24V DC relay rated for 5A minimum to ensure reliable switching. For analog feedback (e.g., tachometer), calibrate the drive’s scaling (e.g., 0–10V = 0–3000 RPM) and test with a multimeter before full operation.

Perform a dry run without loading the machine. Power up the VFD, check for error codes, and operate the start/stop functions. Gradually increase speed while monitoring current draw–spikes above nameplate ratings indicate misconfiguration or mechanical binding. Document all settings, including motor thermal protection limits, for future reference.

Configuring PWM Signals for Precise Drive Regulation

Adjust the carrier frequency between 2 kHz and 16 kHz for optimal performance in typical industrial setups. Lower frequencies (below 5 kHz) reduce switching losses but introduce audible noise, while higher values (above 12 kHz) minimize acoustic disruption but increase thermal stress on semiconductors. Select a frequency based on load inertia and thermal dissipation capabilities of the power stage.

Use a dead-time setting of 1–3 microseconds to prevent shoot-through in half-bridge configurations. Shorter dead times risk cross-conduction, while longer values reduce available duty cycle and introduce distortion. Measure temperature rise at the semiconductor junction during full-load operation; if exceeding 80°C, increase dead time by 0.5 μs increments until stability is achieved.

Implement a current sensing method with a shunt resistor (0.01–0.05 Ω) or Hall-effect sensor. Shunt-based measurements require differential amplifiers with ≥50 dB CMRR to reject common-mode noise. For Hall sensors, ensure bandwidth exceeds 20 times the carrier frequency to capture transient load changes without aliasing. Calibrate sensors by comparing acquired values with a secondary reference under no-load and full-load conditions.

• Gate driver supply voltage: 12–18 VDC for MOSFETs, 15–20 VDC for IGBTs.
• Gate resistor: 10–50 Ω, inversely proportional to MOSFET/IGBT current rating.
• Bootstrapping capacitors: 0.1–1 μF, ceramic, X7R dielectric.
• Snubber capacitors: 0.01–0.1 μF across each switch to suppress voltage spikes.

Apply a slew-rate limiter to the reference signal to prevent abrupt transitions that induce overshoot. A first-order low-pass filter with a cutoff frequency at 1/10th the carrier frequency smooths torque fluctuations. In dynamic applications (e.g., servo loops), disable the filter below 20% duty cycle to preserve responsiveness during rapid decelerations.

Validate the modulation scheme by capturing gate signals with an oscilloscope. Use a differential probe to monitor phase voltage and a current probe (10 mV/A) for load current. Key waveforms to verify:

1. Linear ramp of the triangular carrier versus reference voltage.
2. No discontinuities in the PWM output at the crossover points.
3. Dead-time intervals consistently applied in complementary pairs.

Log the duty cycle, input voltage, and load current over a 10-minute run at 80% command. If ripple current exceeds 15% of the nominal value, reduce the switching frequency or add an output choke (100–500 μH). For closed-loop applications, set the proportional gain to 0.1–0.5 times the maximum current limit and the integral time constant to 5–20 times the sampling interval.
