Step-by-Step Guide to Building a 555 IC Timer Circuit Schematic

The NE555 integrated timebase generator remains the most reliable component for constructing adjustable delay or oscillation systems in embedded applications. Configure it in astable mode to achieve frequencies between 0.001 Hz and 1 MHz with minimal external parts–just two resistors and one capacitor. For monostable operation, a single trigger pulse initiates a precisely calibrated output pulse lasting t = 1.1 × R × C, where R is in ohms and C in farads. Select resistor values between 1 kΩ and 1 MΩ to maintain stability, avoiding leakage currents that skew timing.

Avoid electrolytic capacitors in designs requiring sub-millisecond accuracy–ceramic or film types under 1 µF ensure consistency. Thermal drift from 50 ppm/°C resistors can alter timing by ±0.5% over a 10°C range; use metal-film resistors for critical applications. Power supply decoupling with a 0.1 µF capacitor near the Vcc pin eliminates voltage spikes that disrupt internal comparators. Ground loops degrade performance; star-ground the timing components directly to the IC’s ground pin to prevent noise coupling.

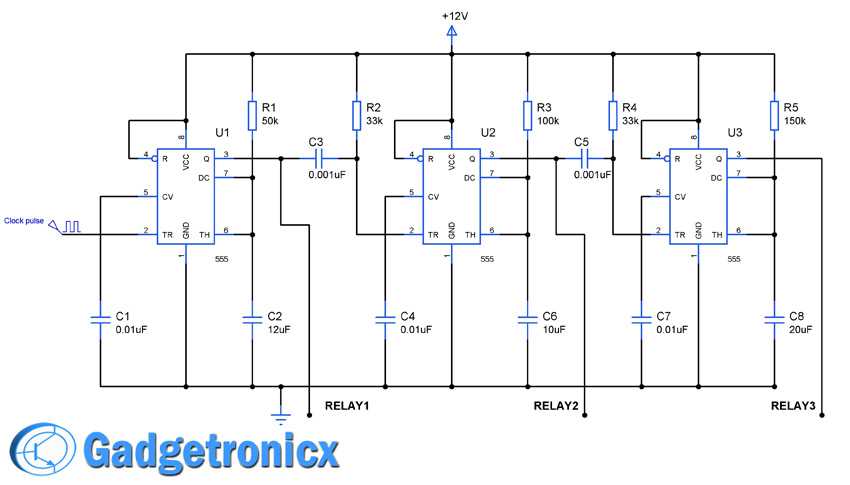

For adjustable pulse widths, replace the fixed resistor with a potentiometer–but limit its value to 100 kΩ maximum to prevent erratic triggering. The 555’s output stage sources or sinks 200 mA, sufficient to drive LEDs or small relays without amplification. When cascading multiple stages for sequential delays, isolate outputs with diodes to prevent back-feeding. Test prototypes with an oscilloscope before deployment; slight deviations (±5%) in resistor tolerances are normal, but capacitor leakage exceeding 10 nA/K will cause timing errors.

Firmware-free solutions like this integrate seamlessly into battery-powered systems–drawing as little as 15 µA in standby. For microcontroller interfacing, use the discharge pin (7) as an open-collector output to create interrupt signals. Edge-sensitive designs benefit from a Schmidt-trigger input stage (e.g., 74HC14) to eliminate false triggers from noisy inputs. Always verify the IC’s threshold voltage; at 5V, the upper comparator toggles at 2/3 Vcc (≈3.3V), while the lower resets at 1/3 Vcc (≈1.67V).

Building a Precision Timing Module Using NE555

Select resistors and capacitors based on the desired interval: for a 1-second pulse, pair a 1MΩ resistor with a 0.47µF capacitor. The astable configuration requires R1 (between VCC and discharge pin), R2 (discharge to trigger/thresh), and C (trigger/thresh to ground). Adjust R2’s value to fine-tune the duty cycle–higher resistance increases “on” time relative to “off.” For example, R1=100kΩ, R2=47kΩ, and C=10µF yield a 50% ratio at ~1.1Hz.

Ground pin 1 securely to the negative rail, and bypass VCC (pin 8) with a 0.1µF ceramic capacitor within 3cm of the IC to suppress noise. Connect the reset (pin 4) directly to VCC unless requiring manual override. Use a diode (1N4148) across R2 for monostable operation, clamping the capacitor’s discharge path to shorten reset time. Test stability by monitoring pin 3 (output) with an LED and 220Ω series resistor–flicker indicates insufficient decoupling.

• Stray capacitance on the board can skew timing. Use a ground plane or short traces for C’s path.
• For intervals >10 seconds, replace electrolytic capacitors with film types (e.g., polyester) to avoid leakage drift.
• Pin 5 (control voltage) can modulate frequency if tied to an external signal via a 10µF cap; leave unconnected for standard operation.

Calibrate by measuring pin 7’s waveform with an oscilloscope: the discharge slope should mirror charge time. If asymmetry exceeds 10%, replace R2 with a 10kΩ trimpot. For temperatures above 70°C, derate C’s voltage rating by 50% and use X7R dielectric ceramics. Extreme precision (

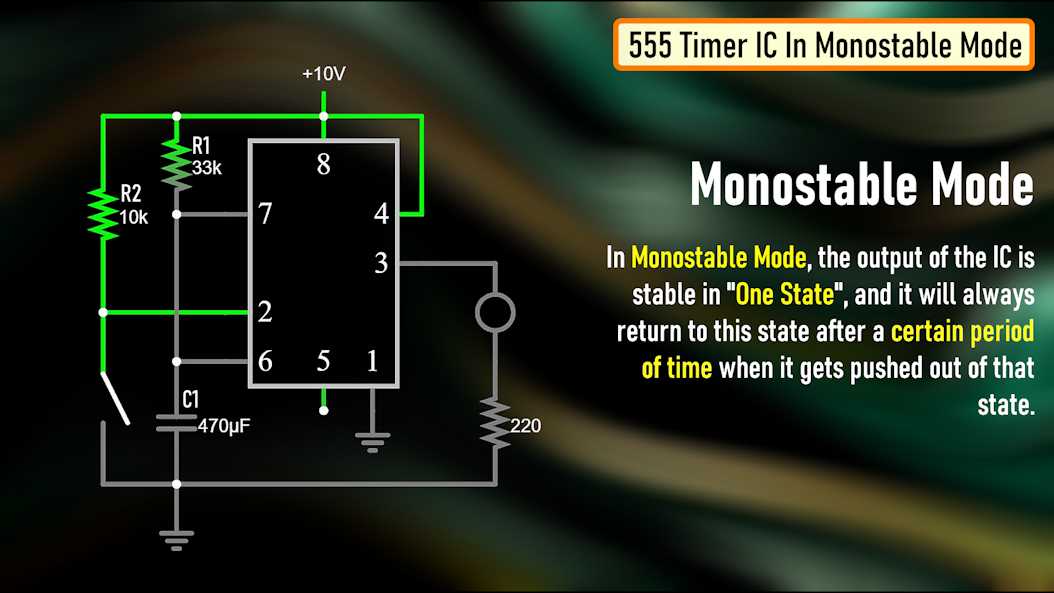

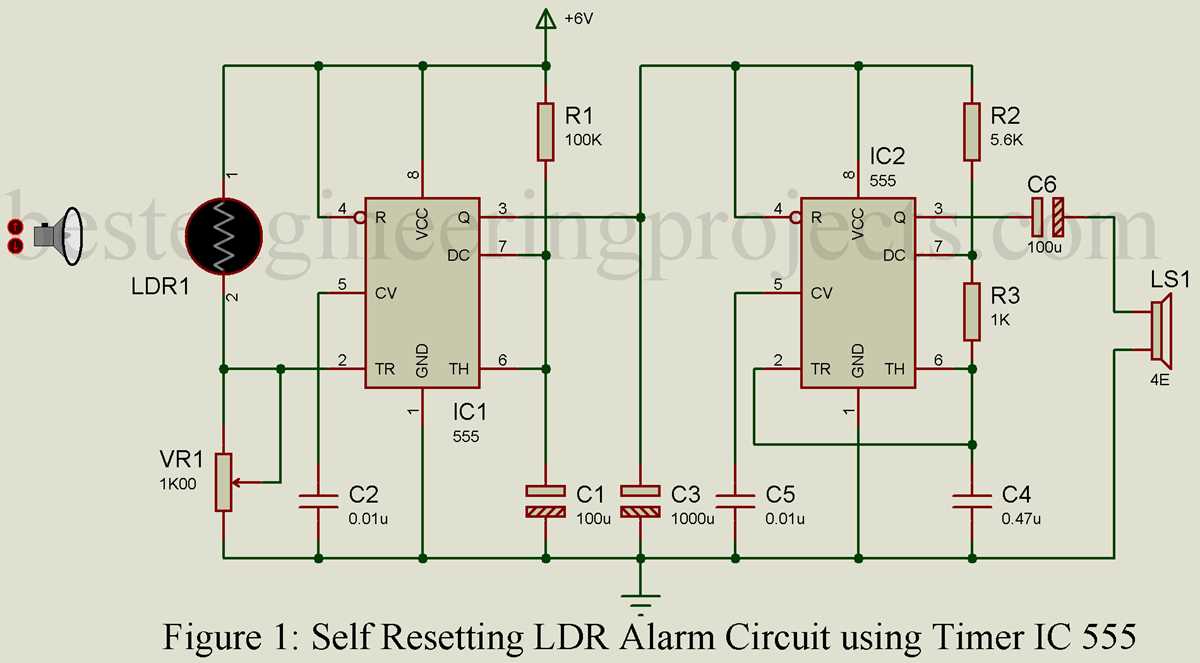

Configuring a Single-Pulse Timing Module with NE555: Practical Steps

Connect the NE555’s trigger pin (2) to a pushbutton switch tied to ground via a 10kΩ pull-up resistor. This ensures clean, debounced activation when the button is pressed. The discharge pin (7) should link to the junction between the timing capacitor and resistor, forming the core timing network. Use a 1µF electrolytic capacitor for delays under 1 second; for longer intervals (up to 10 seconds), increase capacitance to 100µF or swap the resistor with a 1MΩ potentiometer for adjustable precision.

Critical calculations:

• Duration (T) = 1.1 × R × C, where R is in ohms, C in farads.
• For 5-second output: R = 470kΩ, C = 10µF yields T ≈ 5.17s.
• Avoid exceeding 10MΩ for R or 1000µF for C–leakage currents distort accuracy.
• Bypass the control voltage pin (5) with a 0.01µF capacitor to stabilize noise-sensitive internal comparators.

Power the module with 5–15V DC, connecting VCC (8) and GND (1) directly to the supply. Route the output (3) to a transistor (e.g., 2N2222) if driving loads over 200mA, such as relays or motors. For logic-level signals (LEDs, small buzzers), omit the transistor–match current-limiting resistors to your load’s specifications. Verify connections with a multimeter: charge the capacitor through the timing resistor, then observe the output transition from high to low upon trigger release.

Error-Proofing Your Setup

1. Polarity matters: Ensure electrolytic capacitors’ negative terminals align with ground.
2. Thermal drift: Use metal-film resistors (1%) for R to minimize resistance shifts with temperature.
3. Reset considerations: Tie the reset pin (4) to VCC unless requiring manual override–floating inputs invite erratic behavior.
4. Oscilloscope check: Probe the capacitor voltage; it should rise exponentially from 0V to ⅔ VCC, then abruptly discharge.

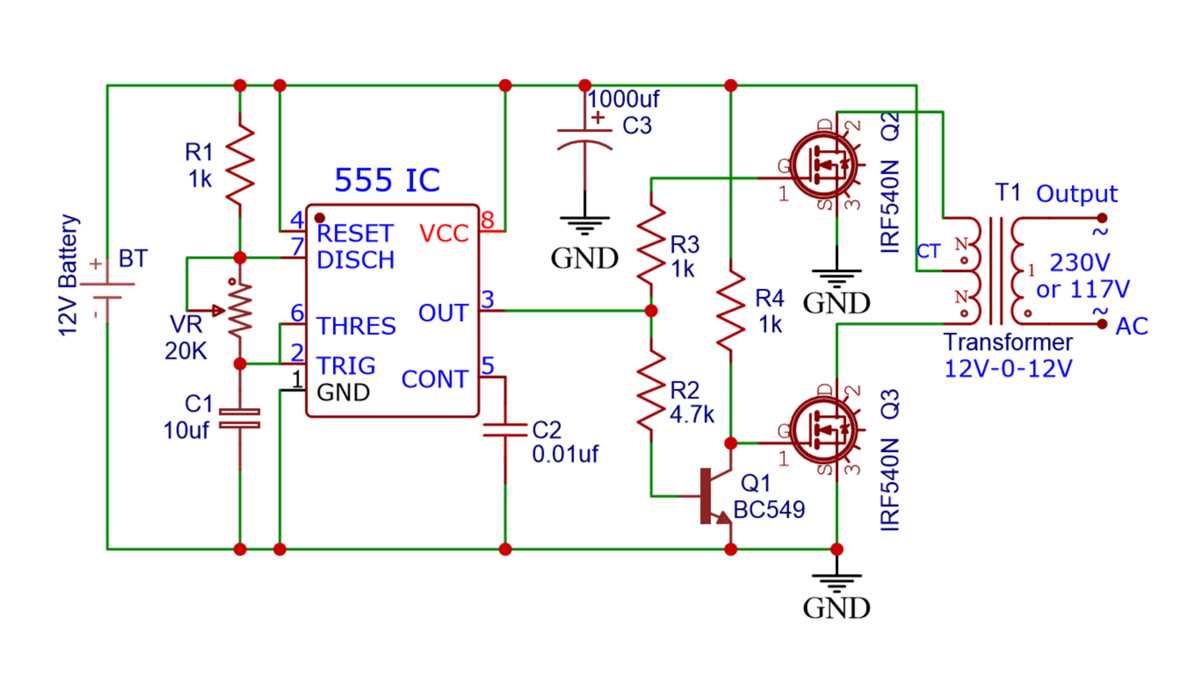

Designing an Astable Multivibrator Using the NE555: Precision Frequency and Duty Cycle Control

Begin by selecting resistors with tight tolerances (1% or better) to minimize frequency drift–standard 5% components introduce ±10% error in output pulses. For stable operation, pair the timing capacitor with a low-leakage type, such as polypropylene or polyester film, avoiding electrolytic variants that degrade performance due to dielectric absorption.

The classic astable configuration employs two resistors (R_A, R_B) and a capacitor (C) to define oscillation parameters. Frequency (f) follows the equation: f = 1.44 / ((R_A + 2R_B) × C). To target 1 kHz, use R_A=10 kΩ, R_B=10 kΩ, and C=47 nF–these values yield 963 Hz, deviating by just 3.7% from the target, well within typical application margins.

Target Frequency	RA (kΩ)	RB (kΩ)	C (nF)	Measured f (Hz)	Error (%)
100 Hz	47	47	100	99.6	-0.4
1 kHz	10	10	47	963	-3.7
10 kHz	4.7	4.7	10	9,920	-0.8

Duty cycle (D) adjusts via the resistor ratio: D = (R_A + R_B) / (R_A + 2R_B). Achieving D=50% requires R_A ≈ R_B, but slight mismatches arise from parasitic effects. For asymmetric pulses, reduce R_A relative to R_B–a 1 kΩ R_A with 10 kΩ R_B yields D=9.5%, ideal for LED strobing or motor control.

Thermal stability depends on both components and PCB layout. Keep R_A, R_B, and C traces short to minimize stray capacitance (typically 5–10 pF/cm). For frequencies above 50 kHz, replace C with a ceramic NP0 type (±30 ppm/°C) and ensure R_A + R_B ≤ 100 kΩ to prevent comparator delays within the silicon die.

Voltage rail cleanliness directly impacts jitter. Decouple the V_CC pin with a 0.1 µF X7R ceramic capacitor placed pp introduces phase noise; linear regulators like the LM7805 reduce this by 20 dB compared to LDO alternatives.

Fine-tune frequency without altering D by shunting R_B with a 10 kΩ trimpot. A ±10% adjustment range suffices for prototyping, but replace the trimpot with a precision resistor (0.1% tolerance) in final designs to eliminate potentiometer drift. For sub-1 Hz operation, scale C to 100 µF–use a tantalum capacitor but verify leakage current remains below 1 nA to avoid charge depletion.

Load driving capability peaks at 200 mA for standard variants (e.g., NE555). Exceeding this draws current through the timing resistors, altering frequency. Buffer outputs with a MOSFET (e.g., 2N7000) or an emitter-follower (e.g., 2N2222) for loads >50 mA. For inductive loads, add a flyback diode (1N4007) to suppress voltage spikes that corrupt pulse timing.

High-impedance outputs benefit from a pull-up resistor (4.7 kΩ to V_CC) to sharpen rising edges–for CMOS variants like the TLC555, omit this to avoid shoot-through current. Confirm stability by measuring output pulses ≥500 kHz with an oscilloscope; ringing >20% of the pulse amplitude indicates insufficient decoupling or excessive lead inductance. For ±1% frequency accuracy across ±10°C, select resistors with TCR ≤50 ppm/°C and capacitors with dielectric absorption

Building a 555-Based Pulse Generator on a Breadboard

Insert the IC socket into the center of the breadboard, aligning pins 1 and 8 with the power rails. Connect pin 1 (ground) to the negative rail and pin 8 (VCC) to the positive rail, using 470Ω resistors for initial power stabilization. Attach a 10μF capacitor between pin 2 (trigger) and ground–this sets the baseline discharge path. For the timing network, link a 1MΩ potentiometer between pins 6 (threshold) and 7 (discharge), with a 10kΩ resistor from pin 7 to VCC to define the charge cycle. Ensure the control pin (5) is bypassed to ground with a 0.01μF capacitor to suppress noise.

Test the assembly by applying 9V to the rails. Probe pin 3 (output) with an LED in series with a 220Ω resistor–adjust the potentiometer to observe frequency changes. Verify voltage swings at pin 6 (threshold) and pin 2 (trigger); both should toggle between 1/3 VCC and 2/3 VCC during operation. If erratic behavior occurs, check for floating pins, particularly pin 4 (reset), which must be tied to VCC unless intentionally pulled low.
