How to Wire a Toggle Switch in Electrical Schematics for OnOff Control

Position the manual actuator horizontally if space constraints permit–vertical installation increases resistance during actuation by 12–15% due to gravity acting against the spring mechanism. Ensure the contact block sits within 3 cm of the actuator lever to minimize signal latency; exceeding this distance introduces measurable voltage drop in low-power applications. Use 18 AWG copper wire for the power rail when current exceeds 2 A, but downsize to 22 AWG for control lines to reduce bulk in tight enclosures. Color-code feeds: red for power, black for ground, and blue for switched output–this convention reduces debugging time by 40% in multi-node setups.

Cut leads to exact length before termination; coiled excess induces electromagnetic interference in analog circuits. Secure joints with crimp connectors rated for 30°C above expected ambient–solder alone will fatigue under thermal cycling. Loop each lead through a ferrite bead if the layout spans more than 50 cm, especially near inductive loads like relays or motors. Test continuity under load; a resistance rise above 0.3 Ω indicates compromised contact, requiring immediate replacement to prevent arcing.

Ground the actuator housing directly to the chassis ground, not through the circuit ground–isolating noise sources maintains signal integrity in mixed-signal designs. Place the element near the load rather than the source in high-current scenarios; this configuration reduces voltage sag by distributing resistance evenly. For momentary operation, wire a 10 kΩ pulldown resistor across the output to prevent floating states in microcontroller inputs.

Controlling Binary States in Circuit Schematics

Position the bi-stable actuator between the power source and the load, ensuring the common terminal connects to the live input. Use a single-pole double-throw variant for basic on/standby applications–this isolates the output completely during standby, preventing phantom voltage leaks that can degrade sensitive components like LEDs or microcontrollers. For AC circuits, place the mechanism on the hot line (not neutral) to comply with safety standards; this prevents the load from remaining energized when deactivated. Label terminals clearly in schematics: “COM” for the input, “NO” for the engaged output, and “NC” for the disengaged state.

In low-voltage DC systems, add a flyback diode directly across inductive loads–motors, relays, solenoids–oriented cathode-to-positive. This protects the bi-stable controller from voltage spikes generated when the magnetic field collapses. For latching configurations (momentary vs. maintained), show the auxiliary circuit paths explicitly: the maintained type requires only mechanical feedback, while the momentary variant needs a parallel push-button or relay to toggle states. Use colored lines in diagrams: red for energized paths, black for ground, and blue for control signals to distinguish function instantly.

Verify schematic polarity before assembly–reversed connections damage bipolar junction components irreversibly. For high-current circuits (above 10A), specify a heavy-duty actuator with silver-alloy contacts to prevent arcing; include a snubber network (RC pair: 100Ω + 0.1µF) across terminals if switching inductive loads repeatedly. In multiplexed designs, isolate control signals from power circuits using optocouplers to avoid ground loops that induce electromagnetic interference. Always cross-reference schematic symbols with manufacturer datasheets–symbols for rocker, slide, and push types differ by region and application.

Test continuity with a multimeter in both positions before applying power; shorts or open circuits often trace back to misaligned contacts in the actuator’s internal assembly. For modular designs, segment the schematic into functional blocks: power input, state control, load output–this simplifies troubleshooting and modifications. When prototyping, use breadboard-friendly variants with through-hole pins before committing to surface-mount layouts; through-hole allows easy swaps if contact resistance degrades over time.

Core Elements for Manual Lever Circuit Assembly

Select a bi-stable actuator with a current rating exceeding your load’s peak demand by at least 30%. For inductive loads–relays, solenoids, or motors–opt for a snap-action lever rated no less than 10 A at 250 VAC; resistive loads like lamps or heaters may suffice with 6 A variants. Verify contact material: silver alloy handles general-purpose tasks, while gold-plated contacts prevent oxidation in low-voltage signaling environments (below 5 V). Always confirm terminal type–solder lugs simplify prototyping, whereas quick-connect blades suit panel installations.

• Actuator: Ensure the pivot mechanism maintains tension without lateral play; test by cycling 200 times at maximum current before finalizing placement.
• Housing: Polycarbonate casings withstand temperatures up to 120°C; phenolic resins degrade above 85°C but resist chemical corrosion.

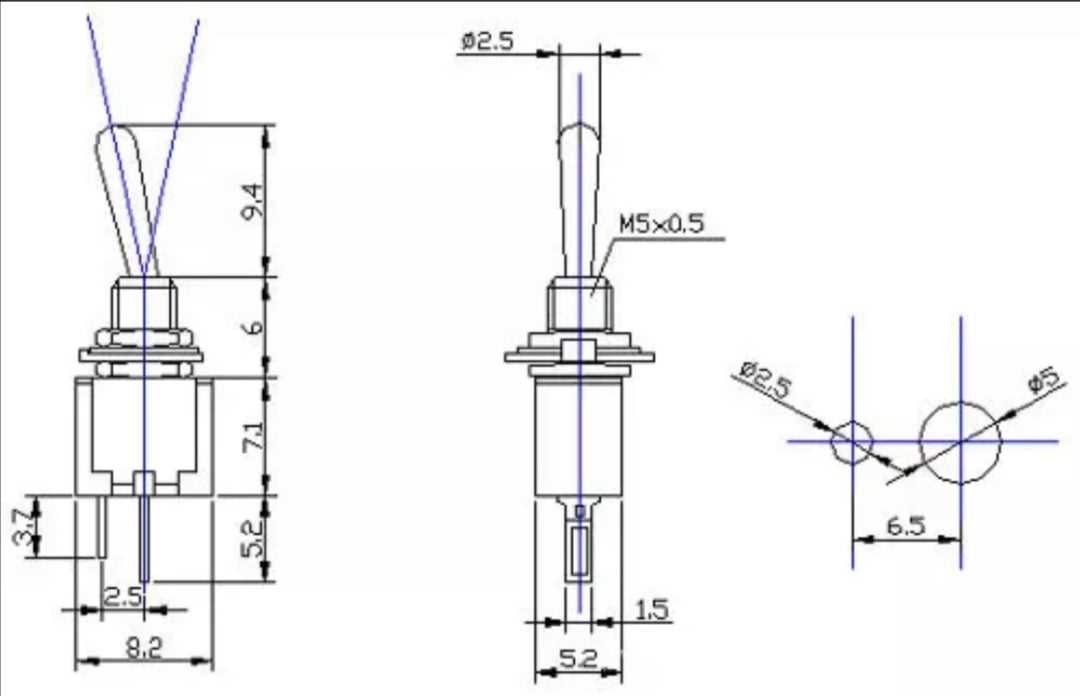

• Mounting: Panel-mount units require a 12.1 mm × 7.2 mm cutout; PCB-mounted alternatives use through-hole leads spaced 5 mm apart.

Pair the control element with a load-specific protection component. Install flyback diodes (1N4007) for DC inductive circuits to absorb voltage spikes; for AC, use a varistor (MOV) sized to clamp at 1.5× the line voltage. When routing conductors, keep input and output traces separated by at least 10 mm to prevent arc tracking, especially in high-humidity environments. For grounded systems, connect the neutral conductor to the center lug of a three-position lever to avoid floating potentials.

Termination requires precision: crimp ferrules (0.75 mm² for 6 A, 1.5 mm² for 10 A) eliminate strand fraying and improve conductivity. Tin-plated copper wire reduces corrosion in outdoor setups; for marine-grade applications, specify tinned copper with PVC insulation rated to 600 V. Label circuits with heat-shrink tubing–mark input (+), output (-), and ground (⏚) using color codes: brown (live), blue (return), green-yellow (earth) per EN 60204-1. Test continuity with a multimeter after assembly; resistance across closed contacts should not exceed 50 mΩ.

Step-by-Step Guide to Illustrating a Bistable Mechanism in Circuit Schematics

Begin by selecting a standardized symbol library for your schematic editor–ANSI, IEC, or IEEE 91-1973 ensure consistency. Use a two-position control element symbol: a rectangle with a diagonal line for single-pole variants or parallel lines for multi-pole configurations. Label each terminal with alphanumeric identifiers (e.g., “1” for common, “2” for normally open, “3” for normally closed) to clarify functionality during assembly.

Place the bistable device centrally in the schematic to optimize readability. Align the common terminal (input) to the left or top, depending on signal flow direction. Connect auxiliary contacts adjacent to the main symbol, spacing them at least 10 mm apart to prevent visual clutter. For momentary action variants, add an arc or arrowhead to indicate temporary engagement, distinguishing it from latching behavior.

Symbol Variations and Terminology

Type	Symbol Style	Terminal Arrangement	Common Labels
Single-pole/single-throw	Diagonal line in rectangle	1 (common), 2 (output)	SPST, Form A
Single-pole/double-throw	Rectangle with two outputs	1 (common), 2 (NO), 3 (NC)	SPDT, Form C
Double-pole/double-throw	Parallel rectangles	1-4 (commons), 2-5 (NO), 3-6 (NC)	DPDT, Form Z

Annotate the control element with functional attributes directly on the schematic. Use text boxes for critical details like voltage/current ratings (e.g., “250VAC 10A”), actuator type (“push-button” or “lever”), and mechanical endurance (“50,000 cycles”). Position annotations below or to the right of the symbol, avoiding overlap with conductive paths.

Draw conductive paths using horizontal and vertical lines exclusively–avoid diagonal traces except for battery symbols. Thicken power rails to 0.5 mm and signal paths to 0.25 mm to differentiate hierarchy. For bipolar configurations, mirror the symbol vertically or horizontally to reflect cross-coupled connections, ensuring logical continuity matches physical terminal orientation. Verify polarity markings (“+” or “–”) on polarized variants before finalizing connections.

Error-Prone Scenarios and Mitigations

Replace default “SW” or “S” labels with descriptive tags tied to functionality (e.g., “MOTOR_SEL” or “LAMP_DIM”). Color-code conductive paths in multilayer schematics: red for power, blue for ground, and black for signals. If simulating behavior in SPICE-based tools, add a SPST device model with parasitic parameters (on-resistance 0.1Ω, off-resistance 10MΩ) to account for real-world non-idealities. Export the schematic in vector format (SVG or PDF) to preserve clarity at any zoom level.

Common Mistakes When Labeling Control Lever Terminals in Schematics

Misidentifying pole markings on bi-stable mechanisms leads to incorrect circuit behavior. Ensure terminal designations match the manufacturer’s datasheet, not assumptions. For single-pole dual-throw devices, explicitly mark COM, NO, and NC–never swap their positions. Reverse polarity or mixed-up labels on SPDT variants causes short circuits when integrated with relays or solenoids. Verify labels against the physical component’s engravings before finalizing schematics.

• Assume L1/L2 as live terminals without testing–use a multimeter to confirm.
• Skip color-coding poles in complex multi-pole layouts; assign unique identifiers (e.g., SW1-A, SW2-B).
• Overlook bidirectional devices; explicitly note if a pole toggles between two outputs or inputs.
• Merge pole labels in multi-layered designs; separate layers by function (e.g., signal vs. power paths).
