Complete First Co Air Handler Wiring Schematic for HVAC Technicians
For precise troubleshooting, identify the low-voltage control board (typically a small, rectangular unit with labeled screws or quick-connect terminals). Locate the R (24V power), G (fan), Y (cooling), and W (heating) terminals–these are standard across most residential systems. Verify voltage between R and C (common) with a multimeter; readings should stabilize at 24–28V AC. Deviations signal transformer issues or loose wiring.
Check the sequencer or relay if the blower fails to engage. Most units use a time-delay relay (3–5 seconds) to prevent motor damage. Measure resistance across the relay coil–expected values range from 500Ω to 1.5kΩ. If outside this range, replace the relay. For dual-speed motors, confirm the high-speed wire (usually black) connects to the HEAT terminal, while low-speed (red or blue) links to COOL.
Inspect the safety controls next–pressure switches, limit switches, and flame sensors must close properly. A faulty limit switch (often a disc-shaped or rod sensor) can cut power entirely. Bypass it temporarily for testing: disconnect the limit switch wires and jumper them. If the system starts, replace the faulty switch. For gas/electric hybrids, note the ignition module wiring: HOT SURFACE IGNITER (gray wire) and FLAME SENSOR (white or yellow) should show 0–120μA in presence of flame.
Label capacitor wires before disconnecting. Dual-run capacitors typically have three terminals: HERM (compressor), FAN (blower), and COM (common). A failing capacitor drops below 6% of rated μF (e.g., 5 μF on a 55 μF unit). Use an analog multimeter to test: a healthy capacitor will deflect the needle to near zero before slowly rising. If no movement occurs, replace it.
Trace the condensate overflow switch wiring separately. Most systems route this through a normally open microswitch. Test continuity with a multimeter–open circuits indicate clogs or switch failure. Ensure the float switch (if present) is mechanically free; corrosion here is a frequent failure point. For variable-speed ECM motors, locate the module wiring harness: +24V (red), GND (black), and TACH/SIGNAL (blue or purple) must register 5–7V DC at startup.
Understanding Your Climate Control Unit Electrical Layout
Locate the technical schematic affixed inside the equipment’s service panel–typically printed on a durable label or embossed metal plate. This document details critical connections: power feed (L1/L2), transformer primary (24V), control relay coils (R, Y, G, W), and blower motor taps (if multi-speed). Verify the HVAC sequencer model matches the schematic; deviations in load sequencing can cause bypass relay failures or short cycling.
- Color codes vary by manufacturer but standard conventions apply:
- Red (R) – 24VAC Hot
- Yellow (Y) – Cooling Call
- Green (G) – Fan Call
- White (W) – Heating Call
- Blue (C) – Common (24V Return)
- Low-voltage wiring runs (
- Label every conductor with sleeve markers at both ends before disconnecting–errant reconnection of a single wire can trip GFI breakers or damage control boards.
For units equipped with ECM motors, reference the separate drive module schematic. These systems integrate digital communication lines (Modbus/PWM) between the motor and onboard microprocessor; interference from adjacent power lines necessitates shielding with braided copper mesh, grounded at a single point to avoid ground loops. Test motor windings with a megohmmeter before re-energizing–resistance imbalance (>5%) indicates potential bearing drag or insulation breakdown, requiring full stator replacement rather than field repair.
Key Elements in HVAC Blower Unit Electrical Schematics
Trace the power feed from the disconnect switch to the unit’s control board–label each wire with its voltage rating (typically 24V, 120V, or 240V) before disconnecting. Verify color codes against the manufacturer’s legend: red for 24V hot, yellow for compressor call, white for common, and green or bare for ground. Misidentification risks blowing fuses or damaging relays.
Locate the transformer primary and secondary coils inside the control compartment. Primary coils usually accept 120V or 240V input; secondary coils output 24V to energize thermostat circuits. Use a multimeter to confirm secondary voltage reads between 23V-28V AC under load. Deviations indicate transformer failure or shorted downstream components.
The sequencer controls the blower and auxiliary heat stages in timed intervals. Check resistance across sequencer terminals–typically 1-3 ohms for closed contacts, infinite ohms for open. Replace if contacts fail to close within 30 seconds of thermostat demand. Common sequencer part numbers: White-Rodgers 50A55-843, Honeywell RA89A.
| Component | Voltage Test Points | Expected Reading |
|---|---|---|
| Transformer Primary | L1 to L2 (across primary) | 120V or 240V AC ±10% |
| Transformer Secondary | Common to R (across secondary) | 24V AC ±5% |
| Blower Capacitor | Motor run to common | Microfarad rating ±6% |
Inspect the run capacitor mounted near the motor housing–rated capacity ranges from 5–50 µF. Discharge using a 20kΩ resistor, then measure capacitance; values below 90% of rating warrant replacement. Single-phase motors often use dual capacitors; label wires before removal to avoid reversing start and run windings.
Thermal limit switches and flame rollout sensors trip at 175°F–220°F. Test continuity with a multimeter; open circuits signal faulty devices requiring reset or replacement. Common reset points: manual button on unit housing or through the control board interface.
Blower motor connections vary by model–PSC motors use three speed taps (high, medium, low), ECM motors integrate modbus protocols requiring OEM-specific software for configuration. Speed taps connect to control board output terminals labeled “Cool,” “Heat,” or “Fan.” Verify correct tap selection by checking voltage drop across motor windings–incorrect sequencing causes overheating or erratic operation.
Step-by-Step Guide to Interpreting the Electrical Blueprint
Locate the legend or key at the bottom or corner of the schematic–this decodes symbols like lines, circles, and letters representing components. Cross-reference each symbol with its label to identify relays, capacitors, transformers, and thermostats. Trace power lines in red or thicker strokes starting from the circuit breaker, noting where they branch to secondary paths.
Identify low-voltage controls (typically 24V) by thinner blue or green lines, which connect to safety switches, control boards, and sensors. Follow these paths to see how they interact with high-voltage sections, paying attention to switches that interrupt or divert current. Mark any fuses or breakers along these routes–they’re critical failure points if tripped.
Label each terminal block with its assigned letter/number combination from the schematic. Verify that wires match the printed labels on the equipment, as mismatches indicate incorrect installation or damage. Use a multimeter set to continuity mode to confirm closed circuits across relays and contactors–open circuits here signal faulty connections or blown components.
Isolate the indoor fan motor section by finding its run capacitor and start capacitor–usually oval symbols near the motor icon. Check that the motor’s winding paths align with the schematic, ensuring no wires cross unintended traces. Test motor winding resistance: readings outside 10-100 ohms suggest shorted or open windings requiring replacement.
Trace safety circuits such as pressure switches, flame sensors, or sail switches–these often use normally open or closed contacts. Confirm that these devices break the control circuit under fault conditions. Simulate faults by manually triggering switches to observe if the system shuts down as designed, verifying proper safety interlocking.
Document deviations like splices, wire nuts, or aftermarket modifications not reflected in the original print. Update the schematic with red pen or digital overlay to maintain accuracy for future troubleshooting. Store the annotated version alongside the unit for reference during routine maintenance or emergency repairs.
Key Electrical Linkages in HVAC Interior Units and Their Roles

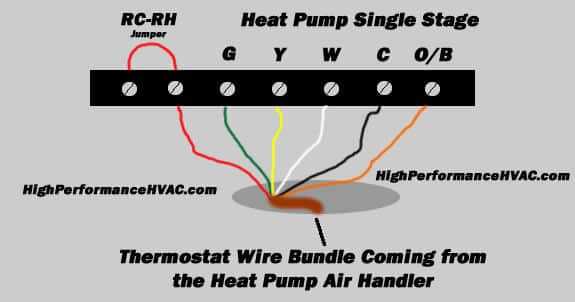

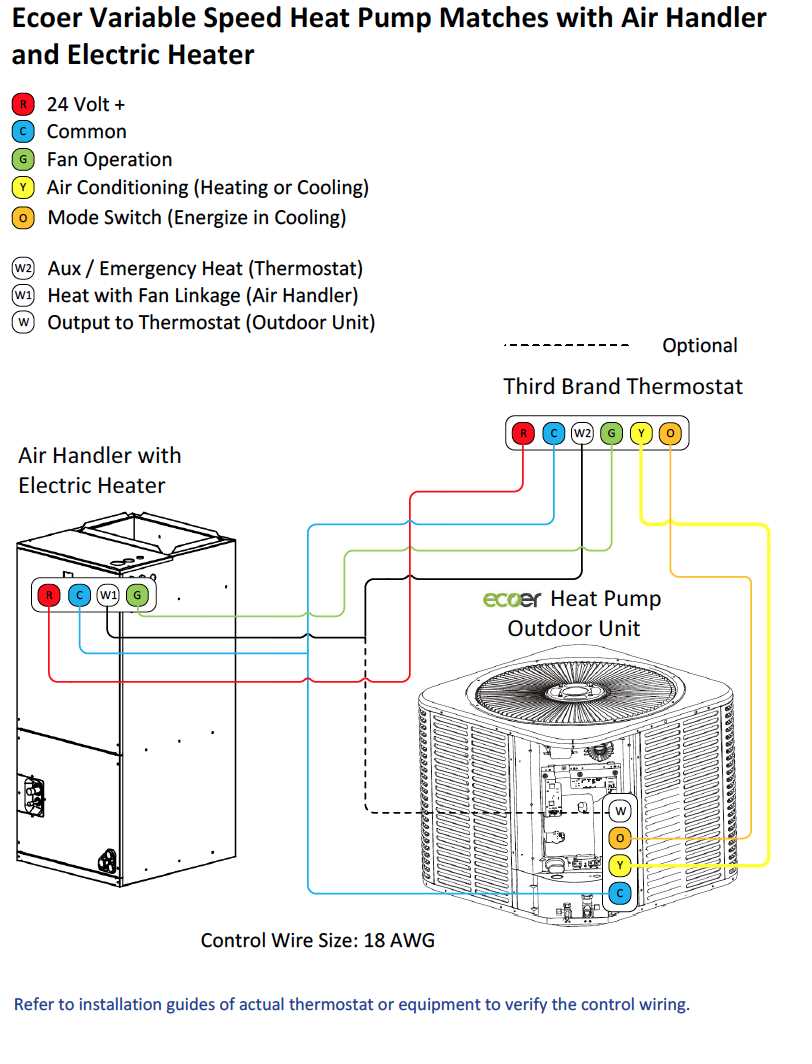

Begin by identifying the low-voltage terminal block, typically labeled “R,” “C,” “Y,” “G,” and “W” on the control board. Connect the “R” terminal to the 24V transformer hot lead–this serves as the power supply for thermostat commands. The “C” terminal acts as the neutral return path, completing the circuit when paired with “R.” Ensure this connection is tight; a loose link here causes intermittent failures or system shutdowns.
Route the “Y” lead to the outdoor compressor contactor coil. This signal triggers condensing unit activation when cooling demand arises. Confirm the outdoor disconnect switch is closed before testing–an open disconnect mimics compressor failure. For heat pump systems, the same “Y” terminal may control auxiliary heat strips during defrost cycles, so verify sequence logic via the manufacturer’s technical manual.
The “G” terminal energizes the blower fan relay, forcing constant airflow in “fan-on” mode or during call-for-cooling/heating. Wire this directly to the ECM motor’s dedicated “G” input if present, bypassing intermediate relays. For multi-speed motors, splice into the low-speed winding tap unless explicitly instructed otherwise; incorrect tap selection leads to overheating or insufficient airflow.
Auxiliary Circuit Considerations
Jump the “W” (or “W1”) terminal to the primary heating relay for gas furnaces or electric heat strips. For two-stage heating, “W2” activates secondary elements at lower ambient temperatures. Use 18-gauge thermostat wire for these runs, but upgrade to 16-gauge if the run exceeds 50 feet to prevent voltage drop. Label both ends of every wire with its terminal designation to avoid misconnection during future servicing.
Integrate a floating humidistat by tapping into the “R” and “C” terminals, then routing its output to the humidifier solenoid valve. Set the humidistat to bypass mode if the system lacks dedicated “HUM” terminals. For dehumidification, connect the dehumidifier’s control input to the “Y” and “G” terminals simultaneously–this ensures blower operation during active dehumidification to prevent compressor short-cycling.
Check polarity on all connections using a multimeter set to 24V AC. Reversed “R” and “C” terminals will prevent thermostat operation entirely. For variable-speed indoor blowers, locate the “BRN” (brown) and “ORG” (orange) wires on the motor’s plug–these control high and medium speeds, respectively, and must match the control board’s designated outputs. Miswiring here risks motor burnout or erratic speed switching.
