Complete Guide to Wiring Tail Lights on Your Trailer Step by Step
Start with a 4-way flat connector if your hauling setup uses basic safety markers–two running indicators, a brake activation line, and a ground. Identify the vehicle’s harness socket: typically located near the rear bumper or hitch receiver. Match each terminal to the diagram included with the connector kit–white for negative return, brown for side and rear glow, yellow for left brake pulse, and green for right. Secure each wire with crimp connectors; solder if vibration is frequent.

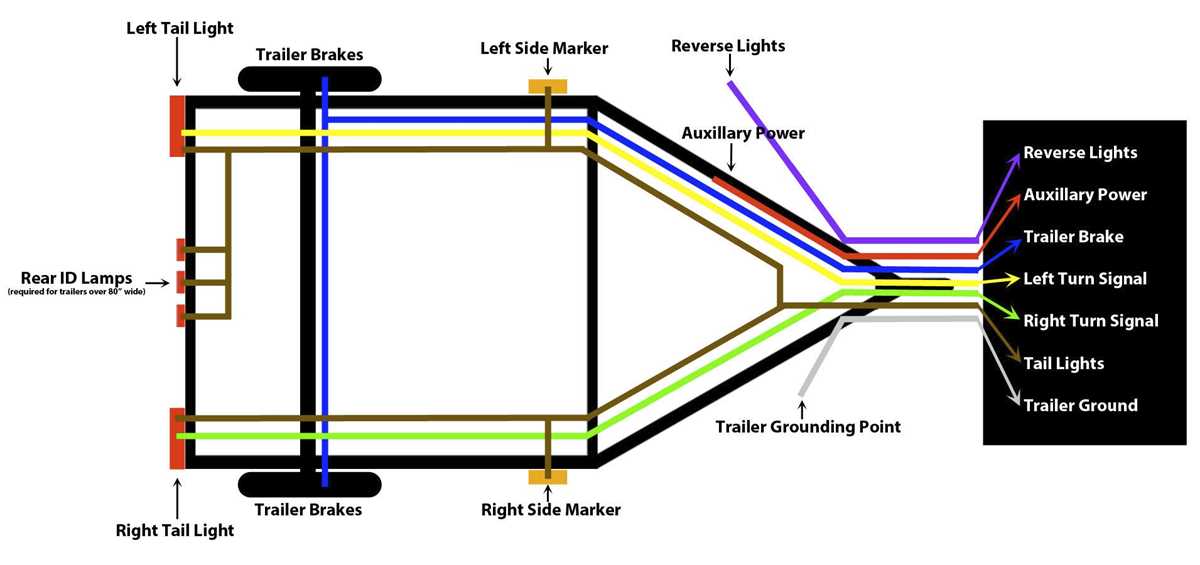

For heavier rigs requiring additional circuits–reverse lamps, electric brakes, or auxiliary power–upgrade to a 5-way, 6-way, or 7-way round plug. Mark each wire before stripping insulation: black (extra power), blue (brake control), purple (reverse glow). Use a circuit tester to verify polarity before attaching; incorrect wiring risks fuse burnout or module damage. Install a junction box if splice points exceed three; corrosion-resistant dielectric grease prevents oxidation.
Check voltage at the towing connector with engine running–minimum 12.4V ensures reliable signal transmission. Route cables through a flexible conduit if dragging on rough terrain; zip ties every 12 inches prevent abrasion. Ground the negative return directly to the vehicle frame, not the hitch ball–stainless steel fasteners reduce resistance. Test all indicators with a helper before finalizing; flash rate should mirror the tow vehicle exactly.
Custom configurations may require relays for high-draw lamps–LED assemblies often pull 0.1A versus 2A for incandescent. Calculate total load; exceeding 15A demands a dedicated relay triggered by the brake light circuit. Keep wiring lengths under 15 feet to avoid voltage drop; heavier gauge (14AWG for signals, 12AWG for power) mitigates heat buildup. Label every wire with heat-shrink tubing and UV-resistant ink for future troubleshooting.
Connecting Rear Signal Systems for Towable Units
Begin by verifying the voltage requirements of your towable unit’s rear signal assemblies. Most modern setups operate on a 12-volt DC system, but some older models or auxiliary modules may require 6-volt. Check the manufacturer’s specifications or use a multimeter to confirm the voltage at the connector before proceeding. Mismatched power levels can lead to dim operation or premature failure of bulbs and circuits.
Identify the color-coding scheme for the vehicle’s harness. Standard conventions include:
| Wire Color | Function | Typical Pin (US/EU) |
|---|---|---|
| White | Ground | 1/31 |
| Brown | Running clearance | 58/58L |
| Yellow | Left turn/stop | 54/54G |
| Green | Right turn/stop | 56/54R |
| Red | Brake/auxiliary | 55/54 |
Non-standard harnesses–common in European or aftermarket kits–may reverse green and yellow functions. Always cross-reference with a wiring schematic specific to the vehicle’s make and year. For instance, Ford F-150 (2015–2020) uses a 4-flat connector where the brake signal is split between yellow and green wires, while older Toyota Hilux models combine stop and turn signals on a single wire.
Use heat-shrink butt connectors for splices instead of electrical tape. Crimp connectors with adhesive lining provide waterproof seals, reducing corrosion risk. For temporary connections (e.g., testing), lever-nut splices offer tool-free assembly but should not be used for permanent installations. Avoid solder-only joints in high-vibration areas; they can fatigue and break under load.
Install a modular LED load resistor (6-ohm, 50W) if the towable unit’s rear signals use LED bulbs. Standard automotive flasher relays rely on current draw to function; LEDs draw minimal power, causing rapid flashing or hyperflash. Resistors mimic incandescent load and must be wired in parallel (not series) to the bulb circuit. Mount resistors on a metal surface for heat dissipation–direct sunlight or enclosed spaces can reduce their lifespan.
Test functions in the following sequence:
1. Activate running clearance (steady on).
2. Engage left turn signal (flashing), then right.
3. Apply brakes–verify all clearance signals switch to full brightness.
4. Activate hazard signals (simultaneous flashing).
5. Check reverse indicators if present (white signals, separate wire).
Use a test probe or 12V bulb to validate output at the connector before attaching the towable unit’s plug. Voltage drop exceeding 0.5V between the vehicle and towable unit indicates corroded terminals or undersized wiring.

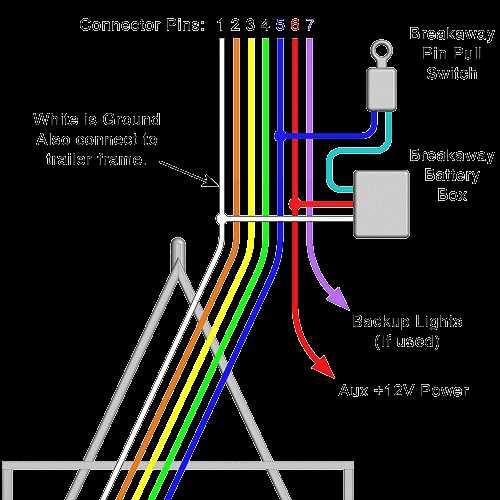

For multi-axle configurations or units with auxiliary lighting (e.g., side markers, internal illumination), use a 7-way round connector (SAE J560). Pin assignments deviate from 4-flat setups–pin 7 carries reverse signals, pin 6 supplies battery power (+12V), and pin 5 controls electric brakes. Verify ground continuity at all connected pins; poor grounding is the leading cause of intermittent signal failures. For off-road or marine applications, seal connectors with dielectric grease and cover exposed wires with split loom tubing to prevent abrasion.
Determining the Right Electrical Code for Your Towing Vehicle

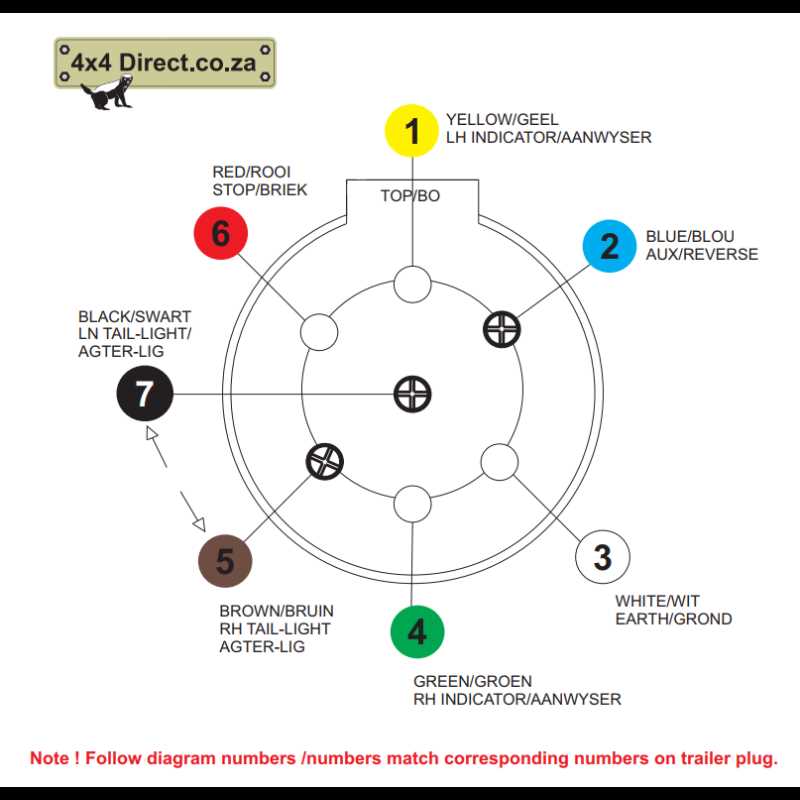

Begin by checking the rear connector of your vehicle–most domestic models in North America follow the SAE J560 standard, identifiable by a round 7-pin plug with a distinct off-center keyway. European and Asian vehicles frequently use ISO 1185 (13-pin) or ISO 3732 (7-pin) configurations, which arrange contacts in a circular or semicircular pattern. Document the pin count and shape before proceeding; mismatched systems risk short circuits or failed signaling.
Compare observed connectors against regional regulations:
- North America: SAE J560 (7-way, flat or round) handles running, brake, reverse, and turn signals, plus auxiliary 12V and ground pins.
- EU/Asia: ISO 1185 (7-pin) splits left/right indicators into separate circuits, while ISO 11446 (13-pin) adds fog and reverse circuits for caravans.
- Australia: ADR 13/00 replicates a 7-pin flat design but assigns pins differently–pin 2 often carries the indicator instead of auxiliary power.
Verify against your towed unit’s manual; factory-installed harnesses rarely deviate from these codes, but aftermarket adapters may introduce variations.
Testing Pin Assignments Without Schematics
Use a multimeter in continuity mode to probe each contact while a helper activates corresponding vehicle functions (e.g., brakes, hazards). Record voltage readings at 12V typical for signal circuits and 0V for ground. Common discrepancies:
- Pin labeled for brakes shows no voltage–check fuses or relays.
- Auxiliary circuit outputs higher amperage–ensure compatibility with towed unit’s coupler.
- Intermittent readings suggest corroded contacts; clean with electrical cleaner or replace connectors if pitting exceeds 30% of the surface.
Cross-reference findings with online OEM databases for your vehicle’s make/model/year–most manufacturers publish pinout tables in owner portals.
Select an adapter based on identified discrepancies. Generic 7-to-13 pin converters often omit critical circuits (e.g., reverse lights on European models); opt for brand-specific modules like Curt’s 59100 for Ford F-150 or Bosal’s 13-754 for Volkswagen. Hardwire permanent solutions if temporary adapters introduce voltage drops exceeding 0.5V under load.
Re-test all functions after installation, including lesser-used circuits like electric brakes or battery charging on 13-pin systems. Note that 2024+ vehicles with advanced driver-assistance systems may require CAN bus-compatible harnesses to prevent error codes–consult dealerships for OEM-grade parts if aftermarket solutions trigger warning lights.
How to Properly Link a 4-Pin Vehicle Connector: A Detailed Walkthrough
Begin by identifying the four wires on the tow vehicle’s socket: green (right turn/brake), yellow (left turn/brake), brown (running markers), and white (ground). Use a multimeter set to 12V DC to confirm each wire’s function before making connections–this prevents miswiring that could damage the electrical system.
Strip ½ inch of insulation from each wire on the plug, then twist the exposed copper strands tightly to prevent fraying. Apply dielectric grease to the stripped ends to inhibit corrosion, especially if the connection will be exposed to moisture or road debris.
Match the colors precisely: green to green, yellow to yellow, brown to brown, and white to white. For splices, use crimp connectors rated for automotive use, not household electrical tape–heat shrink tubing or solder provides a more reliable, long-term seal.
Secure the ground wire (white) to a clean, bare metal surface on the frame. Avoid painted or coated areas; sand down to raw metal first. A loose or corroded ground will cause intermittent failures that are difficult to diagnose later.
Test each circuit after joining but before finalizing. Activate the right turn signal–only the green wire should illuminate. Repeat for left signal (yellow), brakes (both green and yellow), and running markers (brown). If flickering occurs, recheck grounds or inspect for loose terminals.
Use a circuit tester or partner’s help to verify brake lights engage simultaneously with the vehicle’s stop lamps. Crossed wires (e.g., green connecting to yellow) will trigger both signals at once, signaling a need to re-examine connections.
Thread wires through a protective conduit if routing along the undercarriage. Split loom tubing or plastic flex conduit shields against abrasion from rocks, snow chains, or sharp edges. Secure with zip ties every 12 inches to prevent sagging or chafing.
Seal all connections with heat shrink tubing, applying heat evenly until the adhesive melts. For extra protection, wrap electrical tape over the shrink tubing, overlapping by half to create a watertight barrier. Store spare fuses (10A-20A) in the glove box–blown fuses are the most common culprit for dead circuits.
