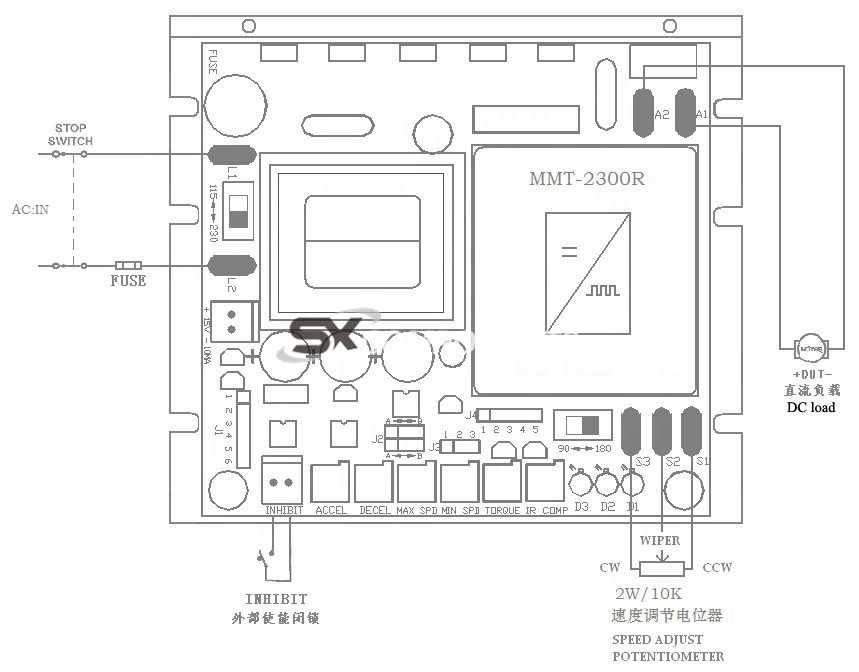

DIY 180V DC Motor Speed Control Circuit for Treadmill Repair Guide

For precision control of a 160–200VDC brushed commutator drive, implement a half-bridge IGBT or MOSFET topology with isolated gate drivers. Use a LM3524 or UC3842 PWM chip as the core oscillator, configured for 20–50 kHz switching frequency to minimize torque ripple and audible noise. Ensure the feedback loop incorporates a Hall-effect current sensor (ACS712, 5A variant) for real-time overload protection–position it directly on the high-side busbar to capture transient spikes without delay.

Opt for a DC-link capacitor of at least 470 µF, 250V, with low ESR to absorb regenerative energy. Install a varistor (MOV) rated at 220VAC across the input terminals to clamp inductive kickback. Place a flyback diode (UF4007) anti-parallel to each switching device, ensuring a recovery time under 50 ns to prevent shoot-through. Keep gate resistor values between 10–47Ω to balance switching speed and ringing suppression.

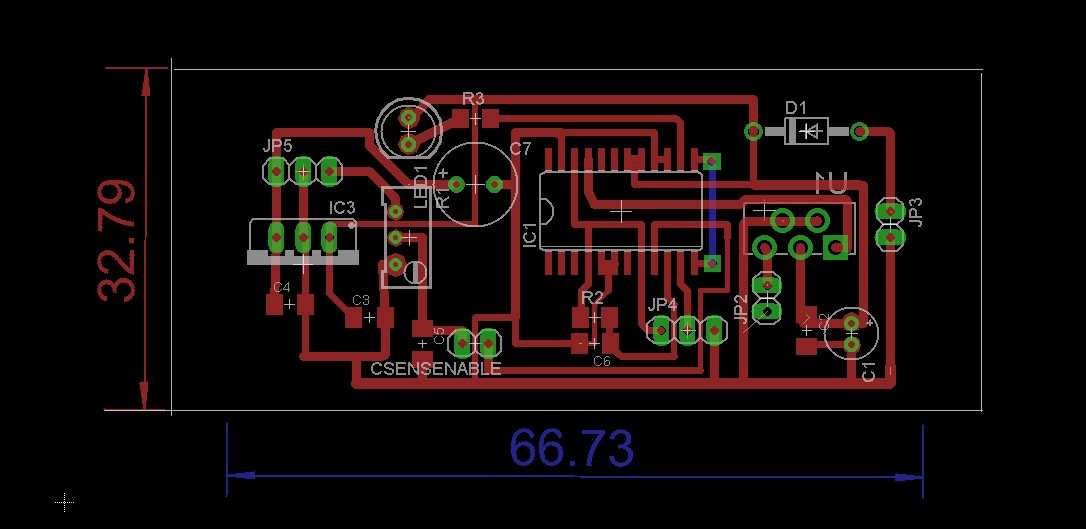

Layout the PCB with a ground plane beneath the PWM generator and driver ICs to minimize EMI. Route high-current traces (minimum 2 oz copper) for the armature and field windings, spacing them 10 mm from logic-level signals. Test the assembly with a load bank (resistive, 50 Ω, 300W) before connecting to moving parts–monitor terminal voltage ripple with an oscilloscope (200 MHz bandwidth) to verify compliance under 2% THD.

For calibration, set the maximum duty cycle at 90% to preserve margin for dynamic braking. Use a potentiometer (10 kΩ, multi-turn) for manual adjustment, wired in parallel with a digital potentiometer (MCP4131) for remote tuning via SPI. Store firmware in an EEPROM (24LC16B) to retain speed profiles across power cycles, ensuring hysteresis below 0.5% to prevent hunting at low loads.

Building a High-Voltage Direct Drive Regulator for Fitness Equipment

Select a pulse-width modulation (PWM) driver rated for 200VDC input to ensure stable operation. A IRFP460 MOSFET paired with a TL494 or SG3525 PWM generator forms the core. Verify the MOSFET’s V_DS exceeds 250V to prevent breakdown under transient spikes.

Integrate a flyback diode (e.g., 1N4007) across the load terminals to suppress inductive kickback. Omit this component, and transient voltages will degrade the semiconductor switch within minutes. Position the diode cathode at the positive terminal; reverse polarity risks permanent failure.

Use a 470Ω gate resistor to limit inrush current and prevent parasitic oscillations. Pair it with a 10kΩ pull-down resistor to ensure the FET stays off during power-up. A 100nF decoupling capacitor across the PWM chip’s V_CC and ground stabilizes the control logic against voltage dips.

Calibrate the potentiometer to span 5–95% duty cycle. A 10kΩ linear taper model yields smoother adjustment compared to logarithmic variants. Wire the wiper to the PWM’s feedback pin; misrouting here introduces erratic acceleration or sudden shutdowns.

Incorporate a thermistor (e.g., NTC 10kΩ) near the heatsink to monitor thermal drift. Route its output to a LM358 op-amp configured as a comparator. Trigger a shutdown threshold at 85°C; exceeding 90°C risks demagnetizing the armature.

Add a 680μF electrolytic capacitor across the DC bus to filter ripple. Undersized capacitors cause audible whine and uneven torque delivery. Ensure the ripple current rating exceeds 3A to handle load transients without swelling or venting.

Secure all high-voltage traces with 2mm creepage distance to chassis ground. Use 3M 2220 epoxy to insulate exposed pads; standard conformal coatings insufficiently block condensation-induced shorts. Terminate the brake resistor at a separate heatsink–never share thermal paths with active components.

Key Components for a High-Voltage DC Drive Regulator

Select a PWM-based modulation unit rated for 200V continuous operation with a current capacity exceeding the drive’s peak demand by 30%. Models like the KB Electronics KBWM-240D or KBIC-240 integrate overload protection and adjustable switching frequency–critical for minimizing electromagnetic interference in variable-load applications. Avoid generic components lacking thermal shutdown; failure risks permanent damage under sustained high torque.

• Power MOSFET or IGBT module: Choose a device with a breakdown voltage of at least 400V (e.g., IXYS IXFN360N100 or Infineon IKW40N120T2). Verify the safe operating area (SOA) curve to prevent avalanche breakdown during transient load spikes. Copper-based heat sinks with forced-air cooling are non-negotiable for units handling >5A.
• Isolated gate driver: Opt for a driver with built-in galvanic isolation (≥2.5kV) like the Silicon Labs Si827x or Infineon 1EDN750x. Ensure propagation delays under 200ns to maintain precise PWM timing–delays beyond 500ns risk shoot-through failures.
• Current sensing resistor: Use a shunt resistor with a low temperature coefficient (≤50 ppm/°C) and wattage rating double the expected power dissipation. For accuracy, place it on the high-side to avoid ground-loop noise; Vishay LVK series or Isabellenhütte PBV offer tight tolerances (±0.1%).

Critical Ancillary Components

Incorporate a flyback diode with reverse recovery time STTH30L06TV1 or ON Semi MUR3060PT) to suppress voltage spikes when the drive decelerates. Parallel a snubber circuit (series RC: 10Ω + 0.1µF) across the semiconductors to clamp transient voltages under 220V–omitting this risks exceeding the MOSFET’s V_DS limit. For voltage regulation, a buck converter (e.g., LM2596) feeding a 12V rail ensures stable gate driver operation; linear regulators introduce inefficiency at high input voltages.

Implement a dual-layer PCB with 2oz copper for traces carrying >10A, using thermal vias under the MOSFET/IGBT pads to distribute heat. For EMI suppression, fit a common-mode choke (e.g., Würth 744830512) on the input and output lines, paired with X2-class capacitors (0.1µF–1µF) to filter high-frequency noise. Firmware should include soft-start (ramp-up over 2–5s) to prevent inrush current from tripping overcurrent protection. Test with an oscilloscope; ringing on PWM edges >3Vpp indicates inadequate layout or component selection.

Step-by-Step Wiring Guide for a PWM Drive Regulation Assembly

Begin by verifying the input voltage matches the adjustable drive’s specifications. For a 120W rotary actuator, ensure the power supply delivers 150VDC at minimum; deviations above 200VDC risk component overload. Use a multimeter in DC voltage mode to confirm the supply reads within ±5% of the rated value before proceeding.

Secure the primary conductors to the control board’s input terminals. The positive lead attaches to the anode-marked pad, while the negative solder joint connects to the cathode side. Twist each wire pair (18AWG minimum) to reduce electromagnetic interference–unsheathed lengths should not exceed 12 inches. Apply heat-shrink tubing over exposed junctions to prevent short circuits.

Locate the pulse-width modulation generator output on the PCB. Identify the gate driver pin (typically labeled “G” or “OUT”) and route its signal wire to the switching element’s control terminal. Avoid routing this trace near high-current paths; maintain a minimum 0.5-inch clearance. Solder resist should cover all traces except designated solder pads to prevent arcing.

• Attach a flyback diode (1N4007 or equivalent) across the rotary device’s terminals, anode to the negative lead and cathode to the positive side. This suppresses voltage spikes during commutation.
• Install a snubber network (0.1µF capacitor in series with a 10Ω resistor) parallel to the diode to dampen transient oscillations.
• For setups exceeding 3000 RPM, add a ceramic capacitor (0.01µF) between the power rails adjacent to the switching transistor to stabilize high-frequency noise.

Connect the tachometer output wires to the feedback input on the control assembly. Most encoders generate a 5V square wave; ensure the signal amplitude matches the board’s logic level (TTL/CMOS). If the waveform appears distorted, insert a Schmitt trigger (74HC14) to condition the pulse edges. Calibrate the feedback loop by adjusting the onboard trimpot until the measured frequency aligns with the target RPM ±2%.

Test the assembly under partial load before full activation. Apply 30% of the nominal voltage and monitor the switching element’s temperature with an infrared thermometer. Surface readings above 75°C indicate insufficient heat sinking–attach an aluminum finned heatsink (minimum 20°C/W rating) using thermal adhesive. Recheck after 10 minutes of operation; temperatures should stabilize below 60°C.

Validate the regulation range by adjusting the reference potentiometer from minimum to maximum. Record the RPM at 25%, 50%, 75%, and 100% settings using a non-contact tachometer. Deviations greater than ±3% require recalibration of the feedback gain. If instability occurs at low duty cycles, increase the capacitor value in the RC filter stage (typically from 22µF to 47µF) to smooth the control signal.

How to Calculate Resistor and Capacitor Values for Stable Operation

Begin by determining the drive unit’s switching frequency (f_sw) and the maximum ripple current (I_ripple) it can tolerate. Use the formula C = I_ripple / (8 × f_sw × ΔV_ripple), where ΔV_ripple is the permissible voltage fluctuation–typically 5% of the bus voltage for 200V-class systems. For a 20 kHz switching frequency and 0.5A ripple, a 1.25 µF capacitor suffices if ΔV_ripple is 2V. Multiply the result by 1.5 for safety margin, rounding to the nearest standard value (e.g., 2.2 µF for film capacitors).

Resistor Selection for Gate Drive and Snubbing

For gate resistors, calculate using R_g = t_rise / (2.2 × C_iss), where t_rise is the target rise time (100–200 ns for most IGBTs/MOSFETs) and C_iss is the input capacitance from the datasheet. A 10 nF C_iss with 150 ns rise time requires a 6.8 Ω resistor. Snubber resistors follow R_snub = √(L / C_snub), where L is stray inductance (typically 10–50 nH). Pair with a 1 nF snubber capacitor for 50 nH inductance, yielding a 220 Ω resistor. Verify with an oscilloscope; overshoot should not exceed 20% of the bus voltage.

Component	Formula	Example (200V bus, 20 kHz)	Notes
Filter Capacitor	C = Iripple / (8 × fsw × ΔVripple)	1.25 µF → 2.2 µF	Film capacitor preferred; X7R ceramic if voltage derating >50%
Gate Resistor	Rg = trise / (2.2 × Ciss)	6.8 Ω	Carbon film types for pulse stability
Snubber Resistor	Rsnub = √(L / Csnub)	220 Ω	Must handle peak current; wire-wound for >2A

For bulk capacitance, add C_bulk = 100 × C_filter to suppress low-frequency transients. A 200V system with 2.2 µF filtering needs a 220 µF bulk capacitor, selected with ESR < (ΔV_ripple / I_load). For a 5A load and 2V ripple, ESR must stay below 400 mΩ. Use low-ESR electrolytics or parallel polymer types for reliability; derate voltage by 30% to extend lifespan under 80°C ambient conditions.
