TTL to RS485 Converter Schematic and Wiring Guide for Microcontrollers
Start with a MAX485 or SN75176 transceiver IC–these handle bidirectional signaling without extra logic. Connect the RO (receiver output) pin directly to your microcontroller’s UART RX, and wire the DI (driver input) pin to its TX. For half-duplex operation, link DE (driver enable) and RE (receiver enable) together and toggle them via a GPIO pin. Failure to synchronize these controls will cause bus contention.
Use 120-ohm termination resistors at both ends of the line to match impedance–omitting them introduces reflections, degrading signal integrity at lengths over 10 meters. For longer runs (up to 1,200 meters), reduce the resistor value to 100 ohms and add a 10 nF decoupling capacitor near the IC’s power pins to suppress noise. Excessive capacitance (>20 nF) will distort edges, though.
Ground the A and B differential pair only at one end–floating the other prevents ground loops. For robust communication, add TVS diodes (e.g., P6KE6.8CA) across the lines to clamp transient voltages above ±7V. Without protection, inductive loads or near-field interference can permanently damage the transceiver.
Test signal quality with an oscilloscope–ideal differential voltage swings between +1.5V and -1.5V (RS-422/485 standard). If levels drop below ±200 mV, check wiring for shorts or excessive capacitance. Adjust pull-up/down resistors on the control lines if the bus sticks in an undesired state. Use twisted-pair cable with at least 24 AWG wire for distances beyond 50 meters to minimize crosstalk.
Building a Serial Communication Bridge: Expert Implementation Steps

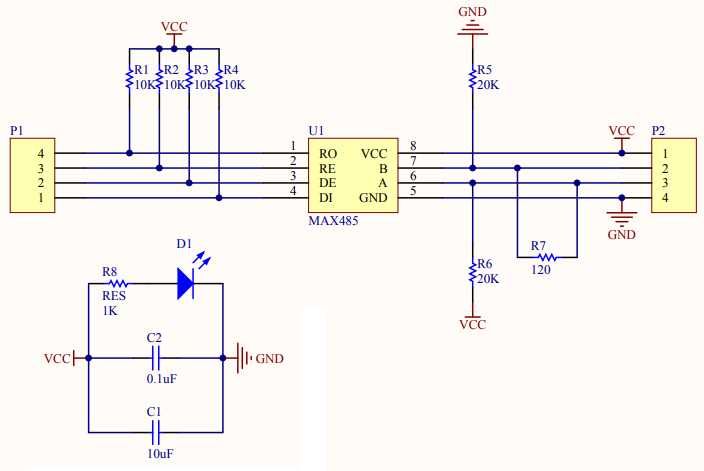

Start with a MAX485 or SN75176 chip–both handle bidirectional signaling at 5V logic levels and industrial differential voltages reliably. These transceiver ICs require only four external components: a 10kΩ pull-up resistor on the receiver enable pin (RE), a 10kΩ pull-down on the driver enable (DE), a 120Ω termination resistor across the differential pair lines (A and B) at each end of the bus, and a 0.1µF decoupling capacitor near the power supply pin. Omitting the termination resistor causes signal reflections, increasing error rates at baud rates above 9600.
Connect the logic-level input directly to the RO pin (receiver output) and the DI pin (driver input) of the IC. Use twisted-pair wiring–CAT5 works–for the A/B lines; shielded cable further reduces noise in environments with high electromechanical interference. Keep cable runs under 1200 meters for baud rates of 115200; exceeding this distance requires reclocking or lower speeds (e.g., 9600 baud permits runs up to 4000 meters).
Enable driver output (DE pin) and disable receiver input (RE pin) simultaneously during transmission to prevent echo interference. Microcontroller logic often lacks the drive strength for DE/RE toggling; add an NPN transistor (2N3904) or a logic-level MOSFET (IRLML6401) as a buffer if using 3.3V MCUs. DE and RE must switch within 1 microsecond of each other to avoid bus contention.
Avoid common ground loops by connecting the transceiver ground to the MCU ground at a single point. For multi-node networks, isolate grounds using optocouplers (e.g., 6N137) or DC-DC converters (RECOM RS-3.305). Without isolation, surge voltages from industrial machinery can corrupt data or damage ICs. Test for ground potential differences with a multimeter before powering the bus.
Power the transceiver from a regulated 5V supply–linear regulators (7805) add noise; use a switching module (LM2596) instead. Input voltage spikes above 7V or below -7V on the A/B lines exceed the IC’s ESD protection; add transient voltage suppressors (P6KE6.8CA) at each node’s differential inputs. These diodes clamp spikes to ±10V, guarding against inductive load switching.
Verify signal integrity with an oscilloscope: measure differential voltage swing (should be +2V to +5V when driving, -2V to -5V when idle). Single-ended probing of A or B alone yields misleading results–always use differential probes. For debugging, log parity errors or framing errors; these suggest wiring faults, poor grounding, or excessive cable length.
Flash firmware with precise timing: enable DE 1-2µs before sending data, disable it 1-2µs after transmission completes. UART modules (e.g., AVR USART, STM32 LPUART) handle baud rate clocks consistently; deviations beyond ±2% cause communication failure. Use hardware flow control if available–software buffers overflow at high speeds without it.
Monitor bus activity with a hardware analyzer (Saleae Logic) or a Linux host running minicom with RTS/CTS emulation. Packet collisions occur if multiple nodes transmit simultaneously; implement token-passing or master-slave polling to prevent data corruption. For distributed control, assign unique 8-bit addresses to each node and enforce message framing (start byte, address byte, payload, CRC byte, stop byte).
Selecting an Optimal Signal Converter IC for Serial Interface Adaption
For reliable half-duplex communication in industrial or automotive environments, prioritize the MAX13487E from Analog Devices. This component excels with its 15 kV ESD protection on data lines, ensuring resilience against transient surges common in noisy electrical setups. It operates within a 3 V to 5.5 V supply range, aligning with common logic levels used in embedded systems. The built-in fail-safe mechanism eliminates the need for external bias resistors, simplifying board layout while preventing signal ambiguity during bus idle states.
Consider these key parameters when evaluating alternatives:
- Data rate: The SN65HVD72 (Texas Instruments) supports speeds up to 20 Mbps, ideal for high-throughput sensors. Slower applications (≤115.2 kbps) benefit from the ISL3179E (Renesas), which consumes just 600 µA in standby mode.
- Power consumption: The LTC2862 (Analog Devices) draws 2.1 mA during active communication, reducing thermal dissipation in space-constrained designs.
- Topology support: Full-duplex applications should use the ADM3078E, featuring separate transmit/receive channels to avoid collisions. Half-duplex setups can rely on the SP3485 (Sipex), which integrates a direction control pin for UART-driven mode switching.
- Temperature range: For extreme conditions (-40°C to 125°C), the THVD1400 (Texas Instruments) is AEC-Q100 qualified, making it suitable for vehicle powertrain modules. Industrial-grade variants like the MAX3471 cover -40°C to 85°C with ±15 kV ESD protection.
- Package types: The DS3695 (Maxim Integrated) offers a 8-pin SOIC for compact PCB layouts, while the ISL32600E (Renesas) provides a 16-pin QFN for enhanced thermal performance in high-current applications.
Step-by-Step Wiring of Serial Logic to Differential Transceiver

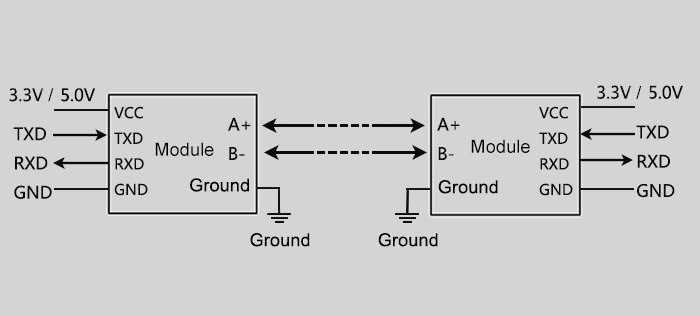

Begin by identifying the signal source pins on your microcontroller: +5V (VCC), ground (GND), transmit (TX), and receive (RX). These correspond to the transceiver’s VCC, GND, data input (DI), and data output (RO) terminals. Verify the logic voltage levels–most modern boards operate at 3.3V or 5V–mismatches here will cause communication failure. If the source outputs 3.3V and the module expects 5V, use a bidirectional logic converter between TX/RO and RX/DI lines.
Connect the signal wires in this exact order: controller TX → transceiver DI, controller RX ← transceiver RO. Omit any pull-up or pull-down resistors unless testing reveals instability; modern transceivers include internal biasing. For bus termination, solder a 120Ω resistor across the transceiver’s A and B terminals if the cable exceeds 1 meter–shorter runs under 50 cm typically work without it. Mistakes here introduce reflections, corrupting data even at low baud rates.
Power sequencing matters: always energize the transceiver after the microcontroller boots. Back-feed from the bus can latch the controller in an indeterminate state. Use a dedicated 3A LDO if the board lacks sufficient headroom–some modules draw 50 mA quiescent current, spiking to 200 mA during transmission bursts. Below is the pin mapping for common 8-pin transceivers derived from datasheets:
| Module Pin | Controller Signal | Direction | Voltage (typical) |
|---|---|---|---|
| VCC | +5V | Input | 4.75–5.25V |
| GND | Ground | Common | 0V |
| DI | TX | Input | 3.3V–5V CMOS |
| RO | RX | Output | CMOS (VCC-0.7V) |
| DE | GPIO (high) | Control | VCC level |
| RE | GPIO (low) | Control | GND level |
Enable the transceiver in software by toggling the direction pin (DE) high and receive enable (RE) low during transmission, then reverse for reception. Use hardware flow control if available–software delays introduce jitter. For example, in C:digitalWrite(DE_PIN, HIGH); digitalWrite(RE_PIN, LOW); Serial1.write(data);. Forgetting this step leaves the bus floating, inviting noise pickup.
Test with a loopback plug–A to B shorted–running a terminal echo sketch. Transmit at 9600 baud first, gradually increasing to 115200; higher speeds demand stable cables (AWG 24–22, twisted pair). Monitor waveform edges on an oscilloscope: rise times under 2 µs indicate proper termination. If errors persist, swap TX and RX wires–polarity reversal appears as inverted, shrunk pulses.
Biasing and Termination Resistor Setup for Noise Reduction
Fit 120Ω resistors at both ends of the bus to match the characteristic impedance of twisted pair wiring. This eliminates signal reflections and prevents standing waves, which introduce jitter at data rates above 100 kbps. Ensure the resistors are non-inductive carbon film types; metal film variants can act as inductors at high frequencies and degrade performance.
- Place the termination resistor at the physical extremity of the cable run–never mid-span.
- Avoid daisy-chaining resistors; reflections multiply when multiple resistors are present.
- For stubs longer than 30 cm, move to a star topology and terminate each branch with its own 120Ω resistor.
Apply a 5 kΩ pull-up resistor to the non-inverting line and a 5 kΩ pull-down resistor to the inverting line at one node–preferably the master–when the bus is idle. This guarantees a defined recessive state of approximately +200 mV between the differential lines, preventing false bit transitions when no driver is active. Keep the bias resistors at least 10× the value of the termination resistor to avoid degrading the differential impedance.
Adjustments for Extended Runs
For cable lengths beyond 400 meters, increase the termination resistance to 220Ω to reduce power consumption while still maintaining acceptable signal integrity up to 500 kbps. Monitor the differential voltage at the far end with a scope; it should settle between 1.5 V and 5 V peak-to-peak without overshoot exceeding 10 %. If overshoot persists, add a 10 nF ceramic capacitor in parallel with each termination resistor to shunt transient noise.
