How to Wire a Two Way Light Switch Practical Guide with Diagram

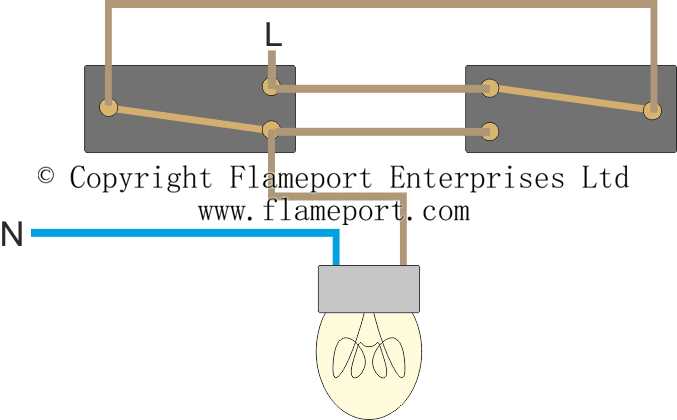

Install a three-wire cable between the two control points to enable independent operation from either location. Connect the common terminal of the first switch to the live supply and the corresponding terminal on the second switch to the fixture’s hot wire. The remaining travelers link directly–traveler 1 to traveler 1, traveler 2 to traveler 2–to form the crossover path.

Use 14-AWG solid copper for 15-amp circuits or 12-AWG for 20-amp circuits to meet code requirements. Secure all connections with UL-listed lever nuts and wrap each joint with electrical tape as an added safety barrier. Mark the common screw on each switch with colored tape–black for live in, red for load out–to prevent miswiring during installation.

Test polarity with a non-contact voltage tester before energizing the line. Verify both switches toggle the device on/off correctly; if they operate inversely, swap the traveler wires on one control unit. Ground all metallic components–boxes, switches, fixtures–by bonding them to the circuit’s bare grounding conductor or the service panel’s ground bus bar.

For installations above 6 feet, support cables at 4.5-foot intervals using approved staples or conduit straps. Avoid sharp bends–maintain a minimum 5x cable diameter radius at each turn. Label wires at both junction boxes with permanent marker or adhesive sleeves to simplify future repairs.

Dual-Switch Installation Guide for Illumination Control

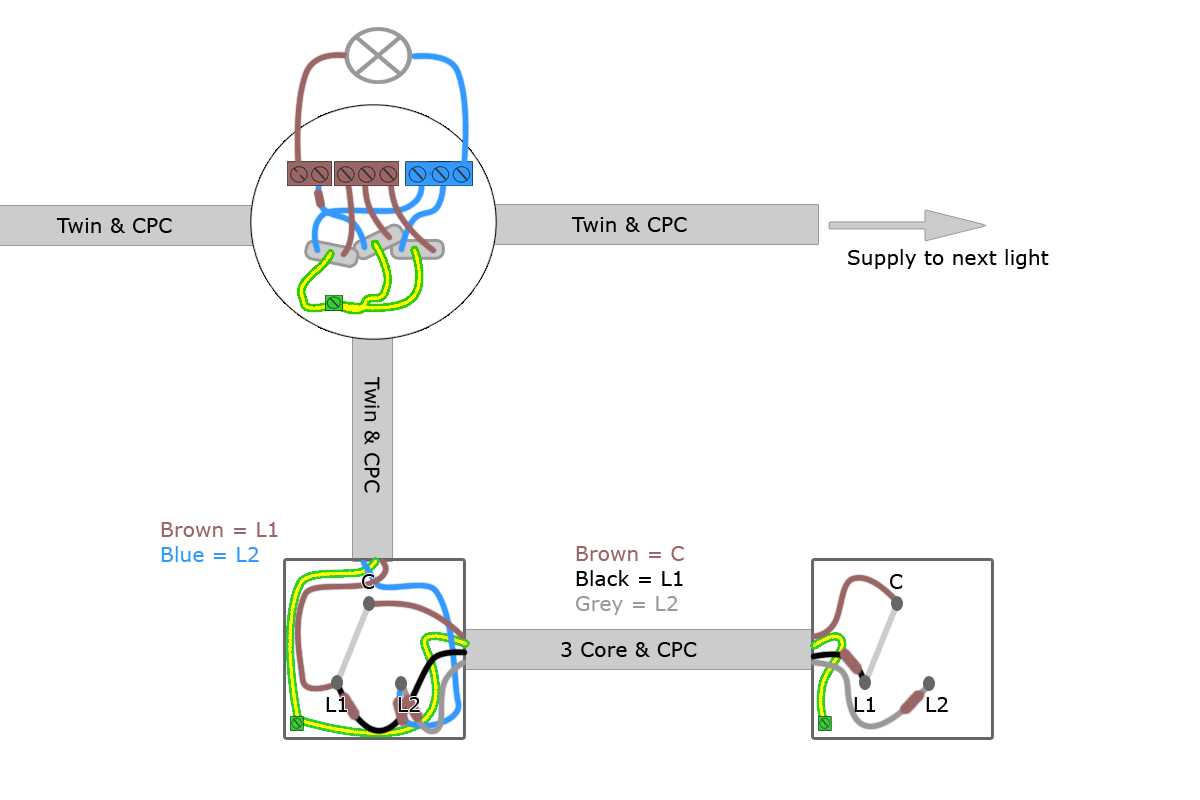

Begin by connecting a live conductor to the common terminal of the first switch (marked L1 or COM). Run a 3-core cable (brown, black, grey, plus earth) between both switch locations–brown to the remaining L1 terminals, black to L2, and grey to L3. At the second switch, link its common terminal to the light fixture’s live input. Ensure all earth conductors terminate at a grounding terminal strip and sleeving is applied to switched-live cores where required. This configuration allows independent control from either position using intermediate or SPDT switches.

• Verify circuit isolation with a voltage tester before handling conductors.
• Label all cores at both ends for troubleshooting: brown = constant live, black/grey = switched outputs.
• Use 1mm² cores for lighting loads ≤10A; upsize to 1.5mm² for runs >50m to minimize voltage drop.
• Mount switches at 1.2m AFFL with faceplates aligned within ±3mm for compliance.
• Avoid looping live conductors through ceiling roses–use junction boxes for splices.

Key Elements of a Dual-Control Switch Arrangement

Install SPDT (single pole, double throw) switches for reliable toggling–these allow current flow through either path when flipped, unlike simpler on-off mechanisms. Each switch must have a common terminal (often marked darker or labeled “COM”) and two traveler terminals, which alternate connectivity based on position. Misidentifying these leads to non-functional loops or short circuits.

Use 14- or 12-gauge copper wire, depending on load and local codes–thinner wire risks overheating in long runs. Neutral conductors should bypass switches entirely, connecting directly to the luminaire. Traveler wires link the two switches; color-coding them identically (e.g., both red) prevents confusion during installation or future troubleshooting.

Critical Connections and Safety Measures

Secure the power source’s hot wire to the first switch’s common terminal, then route the return hot from the second switch’s common to the light fixture. Ground all switch boxes and fixtures to a dedicated conductor–bonding metallic components prevents shock hazards or stray current when insulation fails. Use wire nuts rated for the gauge and splice connections tightly to avoid loosening over time.

Avoid mixing traveler and neutral wires in the same junction box–this violates standard practices and creates unseen parallel paths that can bypass intended switching. Test continuity at each switch position before finalizing connections; a multimeter should show open/closed paths matching the toggled state. If resistance reads unevenly, recheck traveler pairing or terminal tightness.

Label all conductors at both switch locations, especially in retrofit projects–untagged wires cause delays during repairs or expansions. For ceiling-mounted fixtures, use a deep junction box with built-in cable clamps to manage pull forces without straining connections. If running wire through conduit, ensure bends comply with minimum radius requirements to prevent sheath damage.

Troubleshooting and Optimization

If the fixture flickers or fails to respond, start by verifying the switches’ physical positioning–both must align properly to complete the circuit. Next, inspect the traveler wires for continuity; a broken link here disables the entire arrangement. Corrosion on terminals or loose screws are frequent culprits–clean contacts with emery cloth and retighten torque to manufacturer specs.

For dimmable setups, replace standard switches with compatible models–mismatched components cause humming, overheating, or permanent damage to LEDs. Keep traveler wires at least 6 inches away from other conductors inside boxes to minimize interference. In multi-gang installations, stagger switch heights to ease labeling and reduce wiring congestion.

Document the layout with a schematic showing wire colors, switch terminals, and fixture connections. This reference speeds future modifications and aids electricians unfamiliar with the system. For outdoor or damp locations, use sealed switches and waterproof wire nuts to prevent moisture ingress, which degrades performance over time.

Step-by-Step Guide to Installing Dual-Control Switch Connections

Begin by shutting off the power at the main breaker panel to eliminate any risk of electric shock. Identify the three core cables in the junction box–common (black or red), traveler 1 (usually red), and traveler 2 (typically black)–along with the neutral (white) and ground (green or bare copper) wires. Strip 12mm of insulation from each wire end using wire strippers, ensuring no stray strands remain. Connect the common wire from the first switch to the live feed (line wire) from the mains using a twist-on wire connector, then secure it with electrical tape for added stability. Attach the corresponding traveler wires from both switches to each other, matching colors to avoid miswiring–traveler 1 to traveler 1, traveler 2 to traveler 2. For safety, use a voltage tester to confirm all connections are dead before proceeding.

Finalizing and Testing the Setup

Ground both switches by connecting their ground wires to the bare copper or green wire in the box, then pigtail the neutral wires together if the fixture requires it. Mount the switches into their respective boxes, ensuring no wires are pinched or exposed, and secure the faceplates. Restore power at the breaker and test the installation by toggling either switch–the fixture should turn on or off regardless of which switch is operated. If the system fails, recheck all connections for loose wires or incorrect color matching, then retest. For complex setups, label wires before disconnecting to streamline troubleshooting.

Critical Errors in Dual-Switch Electrical Configurations and Prevention Techniques

Cross-connecting live and neutral conductors between switches guarantees immediate short circuits. Always terminate phase wires to the common terminal marked L1 or COM, reserving the L2/LOOP terminals for travellers. Label each conductor at both junction points before stripping insulation to eliminate misidentification under test conditions. Use a multimeter set to continuity mode to verify directionality: probes on traveller terminals should yield no beep, while COM-to-traveller readings must show zero resistance.

Omitting proper earth bonding invites safety hazards. Verify earth continuity through all metallic enclosures, switch plates, and luminaire housings using a dedicated earth loop impedance tester. Target impedance values under 0.35Ω for 6A circuits; anything higher necessitates 4 mm² protective conductors. Enclosures must incorporate earth clamps with serrated washers to prevent vibration-induced loosening. For concealed metal conduit systems, earth tails require crimped spade connectors with shear-off bolts rated for 25 Nm torque.

Fault Type	Detection Method	Correction Measure
Traveller miswire	Voltage test between L1 & L2 (230V expected)	Swap conductors, retest
Phase reversal	Non-contact probe at switch plate (pulled live)	Reverse input at distribution board
Open earth	Loop impedance >1Ω	Trace route, crimp new 4 mm² conductor

Twisting conductors before insertion into terminal blocks introduces stray capacitance. Strip exactly 10 mm of insulation, straighten strands with needle-nose pliers, and insert vertically without pre-twisting. Apply 0.5 Nm of torque to terminal screws using a calibrated screwdriver; overtightening cold-flows copper, creating high-resistance faults. For push-in terminals, confirm insertion depth with a depth gauge–minimum 8 mm engagement–butt connectors demand heat-shrink sleeves with dual-wall inner adhesive to prevent moisture ingress.

Neglecting junction box volume calculations violates code. Each 1.5 mm² conductor occupies 32 mm³; multiply by total conductors plus 30% derating. Use 100×100×50 mm deep boxes for 4-way configurations. Secure cables at 300 mm intervals with saddle clamps rated for 450 V insulation; unsecured loops induce chafing against sharp edges. Mark all junction lids with indelible ink showing date, inspector initials, and circuit identifier–permanent records reduce diagnostic time during future modifications.
