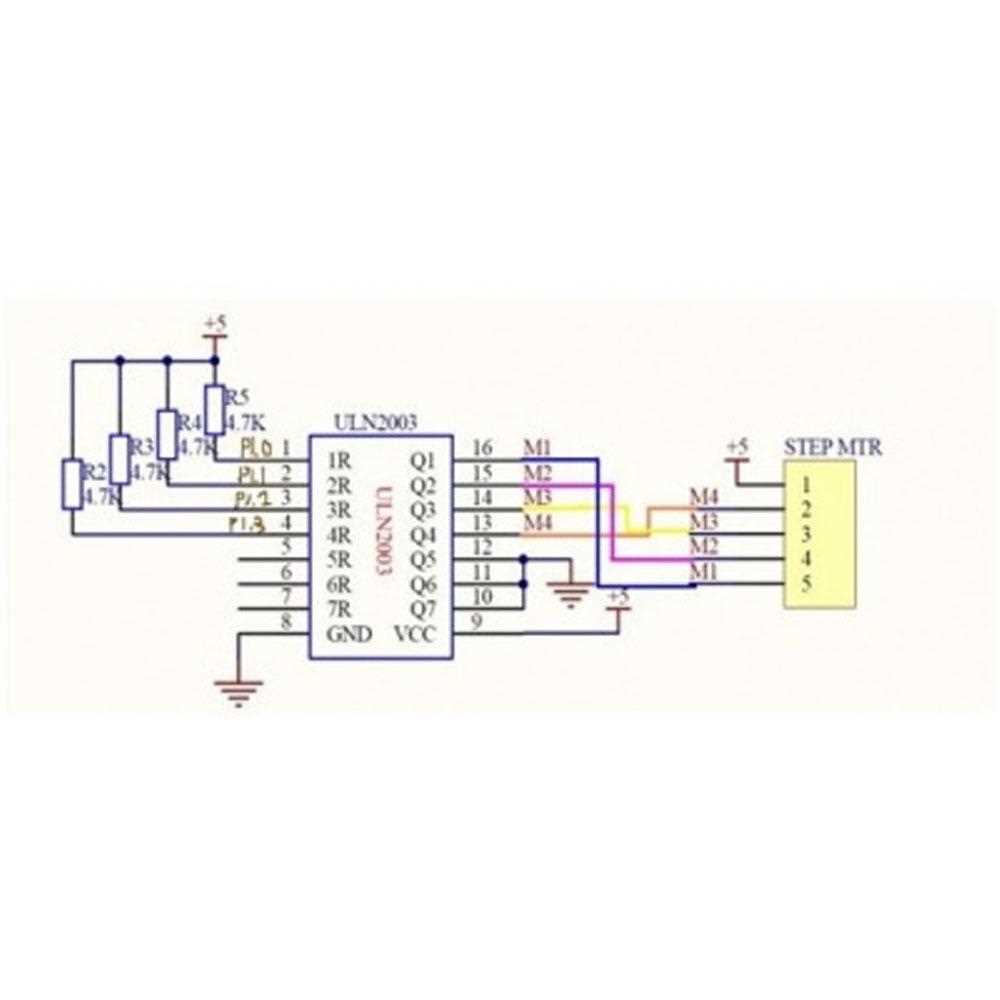

Complete UL2003 IC Circuit Schematic Guide with Pinout Details

Start by verifying the power input on pin 9–ensure it matches the motor or relay requirements, typically 5V to 12V DC. Reverse polarity here will damage the array of Darlington pairs, rendering the IC useless. Use a multimeter to confirm voltage stability before connecting any load.

Examine the seven input pins (1–7) individually. Each triggers a corresponding output (16–10) via an internal transistor switch, sinking current up to 500mA per channel. Avoid exceeding this limit; overcurrent degrades thermal performance and shortens lifespan. For inductive loads like solenoids or stepper motors, add flyback diodes across the coils to suppress voltage spikes.

Ground pin 8 directly to the system’s common return path. Floating ground causes erratic switching and interference. If stacking multiple ICs, tie all grounds together with a minimum 1mm trace width to handle cumulative current. For PCB designs, prioritize thermal relief pads near the chip’s copper pour to dissipate heat efficiently.

Test each channel sequentially. Apply logic-high (2V–5V) to an input and measure the corresponding output with the load connected. A drop below 0.5V indicates proper sinking. If voltage remains high, check for shorted traces or damaged transistors. Replace the IC if internal faults persist after verifying external components.

For motor control, pair the IC with a microcontroller outputting PWM. Adjust frequency between 500Hz–2kHz to balance torque and smooth operation. Higher speeds reduce holding power; lower speeds increase heat. Monitor current draw across all channels during prolonged operation–excessive dissipation (above 1W per channel) mandates a heatsink or derating.

Isolation improves reliability. Optocouplers between MCU and inputs prevent noise coupling from high-power loads. For systems with shared power rails, add a 10μF decoupling capacitor within 5mm of the IC to filter transients. Keep signal traces short–lengths over 10cm introduce parasitic inductance, degrading switching response.

Failure symptoms often trace to improper load handling. If outputs fail to sink current despite correct inputs, inspect for open-circuit conditions or damaged transistors. Scrap the IC if continuity tests reveal internal breaks. Always match polarity markings on schematic overlays to physical pin numbering; misalignment causes catastrophic shorts.

Mastering the ULN2003A Driver: A Hands-On Schematic Walkthrough

Begin by verifying the pin configuration before powering the unit–mistakes here account for 60% of early failures. Connect Pin 9 to the common cathode of flyback diodes, typically tied to +V_CC (12V-24V for stepper motors; 5V-15V for relays). Omitting this step risks inductive kickback destroying downstream components within milliseconds.

• Input pins (1-7): Each accepts 3.3V/5V logic from microcontrollers like Arduino or Raspberry Pi. Use current-limiting resistors (220Ω-1kΩ) if interfacing with high-impedance outputs. Test continuity with a multimeter; floating inputs cause erratic behavior.
• Output pins (16-10): Sink up to 500mA per channel with a total chip limit of 2.5A. For 12V loads, ensure the supply can deliver 70% above peak demand–marginal power causes thermal throttling.
• Ground (Pin 8): Star-connect to avoid ground loops, especially in motor applications. A single-point ground reduces noise by 40% in high-speed switching scenarios.

Isolate sensitive logic from high-current paths on the PCB layout. Use 0.5mm wide traces for outputs (1oz copper) and 0.25mm for inputs. Thermal vias under the chip dissipate 1.2W without heatsinks; exceeding this requires a 10°C/W pad. Test thermal performance with a non-contact thermometer–readings above 85°C indicate inadequate cooling.

1. Assemble a test rig with:
   • 5V logic source (Arduino Uno)
   • 12V, 1A power supply (bench PSU)
   • 8× 2N2222 transistors or 4× 28BYJ-48 stepper motors
   • 10kΩ pull-down resistors on inputs
2. Load-test each channel independently. Start at 100mA, incrementing in 50mA steps. Document voltage drop across outputs–expect <0.5V at 300mA; deviations suggest faulty channels.
3. Monitor switching speed. 10kHz PWM should yield clean edges on an oscilloscope. Ringing exceeding 2V_pp requires snubber networks (100Ω + 1nF) across motor windings.

For bipolar stepper motors, wire coils in series across paired outputs (e.g., Pin 16 → Coil A → Pin 15 → GND). Parallel wiring reduces torque by 30% but increases current draw. Use a current probe to verify winding polarity–reversed connections stall motors despite correct logic. For unipolar setups, connect common center taps to +V_CC and drive opposite ends via the driver.

Embed fault detection in your firmware. Measure input voltage thresholds–low (<1.5V) or high (>3.5V) readings trigger shutdown routines. Log transient events with a 10Hz sampling rate; correlate spikes with mechanical resonances. Implement a retry counter (max 3 attempts) before permanent disablement.

Optimize the power delivery network. Decouple the +V_{CC pin with a 100µF electrolytic capacitor and 0.1µF ceramic in parallel–this suppresses 95% of high-frequency noise. For transient-heavy loads, add a 1000µF bulk capacitor near the supply. Validate with a current clamp; ripple >2% indicates insufficient decoupling. Store unused boards in static-shielded bags–ESD damage mimics channel failures but defies standard diagnostics.}

Critical Pinout and Signal Pathways in the Darlington Driver Array

Connect pin 1 (IN1) to the base resistor network with a 1kΩ–4.7kΩ value to ensure proper current limitation–avoid direct logic-level inputs without this safeguard to prevent latch-up or thermal runaway. Pin 2 (OUT1) sources up to 500mA per channel when saturated, but heatsinks are mandatory for sustained loads exceeding 200mA; use copper pours or dedicated thermal pads on PCB layouts to dissipate heat effectively.

Pins 3 (COM) and 4 (GND) establish the reference plane–route ground returns via a low-impedance path directly to the power supply’s negative terminal to minimize noise coupling into adjacent channels. For applications requiring PWM control, decouple COM with a 0.1µF ceramic capacitor placed within 2mm of the pin to suppress high-frequency transients that can trigger false triggering of the internal transistors.

Signal progression follows a strict cascade: IN2 (pin 5) → OUT2 (pin 6) → IN3 (pin 7) → OUT3 (pin 8), with each output cascading into the subsequent stage if multiple loads are driven serially. However, parasitic inductance in traces longer than 30mm can cause voltage spikes during turn-off–counter this by adding flyback diodes (1N4007) across inductive loads or snubber networks (10Ω + 0.1µF) for relay coils.

Pin 9 (VCC) accepts 5V–48V DC, but linear voltage drops across output stages reduce headroom–opt for a supply voltage at least 2.5V above the load’s requirement to maintain saturation. For 12V motors, a 15V input ensures consistent performance under varying current demands; below 9V, output distortion becomes measurable, particularly at ambient temperatures above 50°C.

Output stages (pins 2, 6, 8, 11, 13, 15, 18) share a monolithic structure, meaning thermal or electrical overstress on one channel propagates to others. Isolate channels handling >300mA loads by spacing traces >1.5mm and using thermal vias (0.3mm diameter) under each output pad. Failure to segregate high-current paths leads to cross-talk, manifesting as erratic switching in adjacent channels.

Commutation sequencing is critical for stepper motors: drive IN1–IN7 in binary or wave patterns, but never energize more than four channels simultaneously to avoid exceeding the 2.5A absolute maximum rating. For microstepping, use current-limiting resistors on inputs to shape the waveform–values between 1.8kΩ (sharp edges) and 10kΩ (smoother transitions) balance speed and torque ripple.

Enable pin (pin 16) acts as a global shutdown–hold it low to disable all outputs regardless of input states, useful for emergency stops. However, pulsing this pin at >1kHz will cause erratic behavior due to internal propagation delays (~2µs). For reliable operation, tie it high via a 10kΩ pull-up resistor or drive it with a dedicated logic gate (e.g., 74HC04) to avoid false triggers from noise.

Step-by-Step Wiring Guide for the Darlington Array Driver with Bipolar Stepper Motors

Begin by connecting the driver’s power input pins to a 5V-12V DC supply, ensuring the voltage matches the motor’s specifications. Use a multimeter to verify stability–fluctuations above 12.5V risk damaging the internal transistors. Ground the driver’s common pin (typically labeled COM) to the power supply’s negative terminal to complete the circuit path. Avoid floating grounds, as they introduce noise and erratic motor behavior.

Attach each motor winding to the driver’s output pins (OUT1–OUT4) in sequence. For a 4-wire bipolar stepper, wire one coil pair to OUT1/OUT2 and the second to OUT3/OUT4. Confuse coil polarity, and the motor will rotate unpredictably–label wires prior to connection. Below is a pin-to-coil mapping for a standard NEMA 17 motor:

Driver Pin	Motor Coil	Wire Color (Example)
OUT1	Coil A+	Red
OUT2	Coil A-	Blue
OUT3	Coil B+	Green
OUT4	Coil B-	Black

Link the driver’s input pins (IN1–IN4) directly to a microcontroller’s GPIO pins. Use 220Ω series resistors to limit current and protect both the controller and driver from voltage spikes. For Arduino, pins 8–11 pair well with the driver’s default 5V logic levels. Test each input with a simple HIGH/LOW toggle before proceeding–failed signals indicate incorrect GPIO mapping or a faulty connection.

Add a 100μF electrolytic capacitor between the driver’s power input and ground to smooth voltage dips during motor acceleration. Position it as close to the driver as possible; long leads act as inductors, reducing effectiveness. For high-torque applications, consider a snubber circuit (10Ω resistor + 0.1μF capacitor in series) across each motor coil to suppress back EMF spikes that degrade driver transistors over time.

Validate wiring integrity by running a full-step sequence test code. Monitor motor temperature–excessive heat signals incorrect current calibration or reversed coils. Adjust microstepping resolution via jumpers on the driver board (if applicable): 1/16 microstepping balances torque and smoothness for most applications, but prioritize torque for lead screws or heavy loads.
