Uniden 520xl Circuit Diagram Complete Wiring Guide for Repairs

Begin troubleshooting by locating the power regulator section–typically identifiable by a TO-220 transistor and electrolytic capacitors rated between 100µF and 470µF. Test these components first; failed regulators often cause intermittent transmission or complete power loss. Probe the transistor’s base, emitter, and collector with a multimeter set to diode mode–forward voltage drops should fall between 0.5V and 0.7V. Capacitors showing ESR values above 10Ω likely need replacement.

Trace the audio path next. The preamplifier stage usually contains a dual-op-amp IC (commonly NJM4558 or equivalent) paired with small-signal transistors like 2SC9018. Signal strength should measure approximately 120mV RMS at the microphone input connector. Clipping or distortion often stems from dry solder joints on the IC’s input pins or leaked capacitors on the adjacent filter network (look for 0.1µF ceramics).

Examine the PLL circuit last. The reference oscillator relies on a ceramic resonator or crystal, typically marked 10.240MHz, paired with a tuning diode (varactor) such as BB204. Frequency drift or inability to lock signals suggest a failed resonator, while erratic tuning usually indicates a degraded varactor–test reverse bias leakage with a curve tracer or substitute it directly. Keep a scope probe grounded near the VCO coil to avoid detuning.

Handle the RF output stage with caution. Final amplifiers (often 2SC2078 or MRF477) run hot and fail frequently–check the emitter resistor (usually 1Ω) for opens. Output power should peak at 4W ERP; lower readings often point to a defective driver transistor (check for shorts between collector and emitter). Replace all thermal compound on heatsinks after servicing.

Always discharge large capacitors before probing and use isolation transformers when working on live circuits–these units share ground paths with chassis-mounted antennas, increasing shock risk. Keep a spare set of IF and RF bandpass filters on hand, as degraded filters cause adjacent-channel interference even if the rest of the circuit tests within spec.

Full Circuit Layout Reference for BEARCAT Receiver

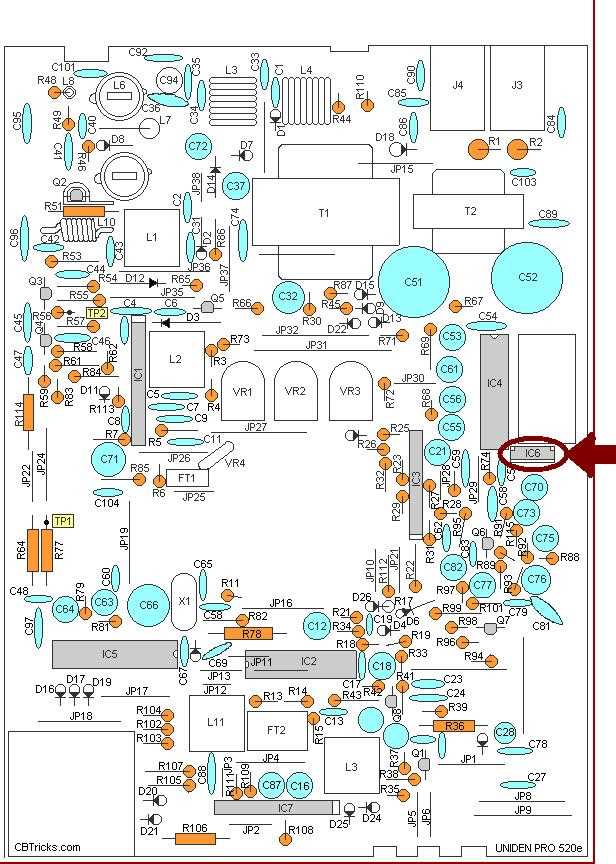

Locate the power supply section first, marked near the lower-left corner of the board. Use a multimeter set to DC voltage to verify the input at C1 (470μF electrolytic capacitor) reads 13.8V ±0.2V. Any deviation indicates a faulty rectifier bridge or cracked solder joint on D1-D4.

Trace the RF input path starting at the BNC connector. Signal flows through L1 (5.5 turns, 22 AWG enameled wire), then couples via C3 (10pF ceramic) to the first mixer stage. Replace Q1 (2SC2408) if collector-emitter voltage exceeds 0.3V under 12.5MHz test tone; leakage current above 0.1μA suggests contamination.

Examine the PLL block centered around IC2 (TC9122BP). Probe pins 5 and 6 with a frequency counter during VFO calibration. Expected output at pin 6 should align within 10Hz of 10.245MHz. If offset persists, recalibrate VR1 (20kΩ trimmer) clockwise until lock is achieved.

Inspect the IF strip consisting of IC3 (MC3359P) and associated filters. At pin 9, the 455kHz signal should measure -45dBm with a clean sine wave on an oscilloscope. Distortion indicates deteriorated FL1 (LTM455C ceramic filter), requiring replacement with an identical Murata unit.

Decode the microprocessor area (IC4, HD44780 variant). Check data bus lines D0-D7 with a logic analyzer while scrolling channel display. Stuck bits signal corrupted firmware; reprogram IC4 using a W27C512 EPROM burner with original firmware dump.

Service the audio amplifier section (IC5, LM386) by injecting a 1kHz sine wave at C27 (10μF electrolytic). Output at SPK terminals should reach 1.2W into 8Ω load without clipping. Excessive hum requires grounding shield wires from the volume pot to chassis earth.

Verify transmitter sub-circuit by monitoring PA transistor Q4 (2SC2078). Under 25W PEP, emitter voltage at R23 (0.22Ω resistor) should not exceed 0.6V RMS. Higher readings demand replacement of Q4 and thermal compound renewal on the heatsink.

Complete final alignment by setting squelch threshold. Adjust VR2 (10kΩ pot) to open at -120dBm input, confirmed with an RF signal generator. Misalignment causes false triggering or muted reception; clean carbon track if oxidation is visible.

Locating the Authentic Circuit Blueprint for Your Marine Radio Model

The primary source for the original technical documentation is the manufacturer’s official website. Navigate to the support or downloads section, filter by model number, and locate the PDF labeled “service manual” or “internal wiring guide.” These files often include detailed board layouts, component mappings, and troubleshooting steps verified by the brand’s engineers.

Check authorized dealer portals if direct downloads are unavailable. Retailers specializing in marine electronics, such as West Marine or Defender Industries, occasionally host product-specific resources for registered users. Ensure the site’s SSL certificate is valid before entering login credentials.

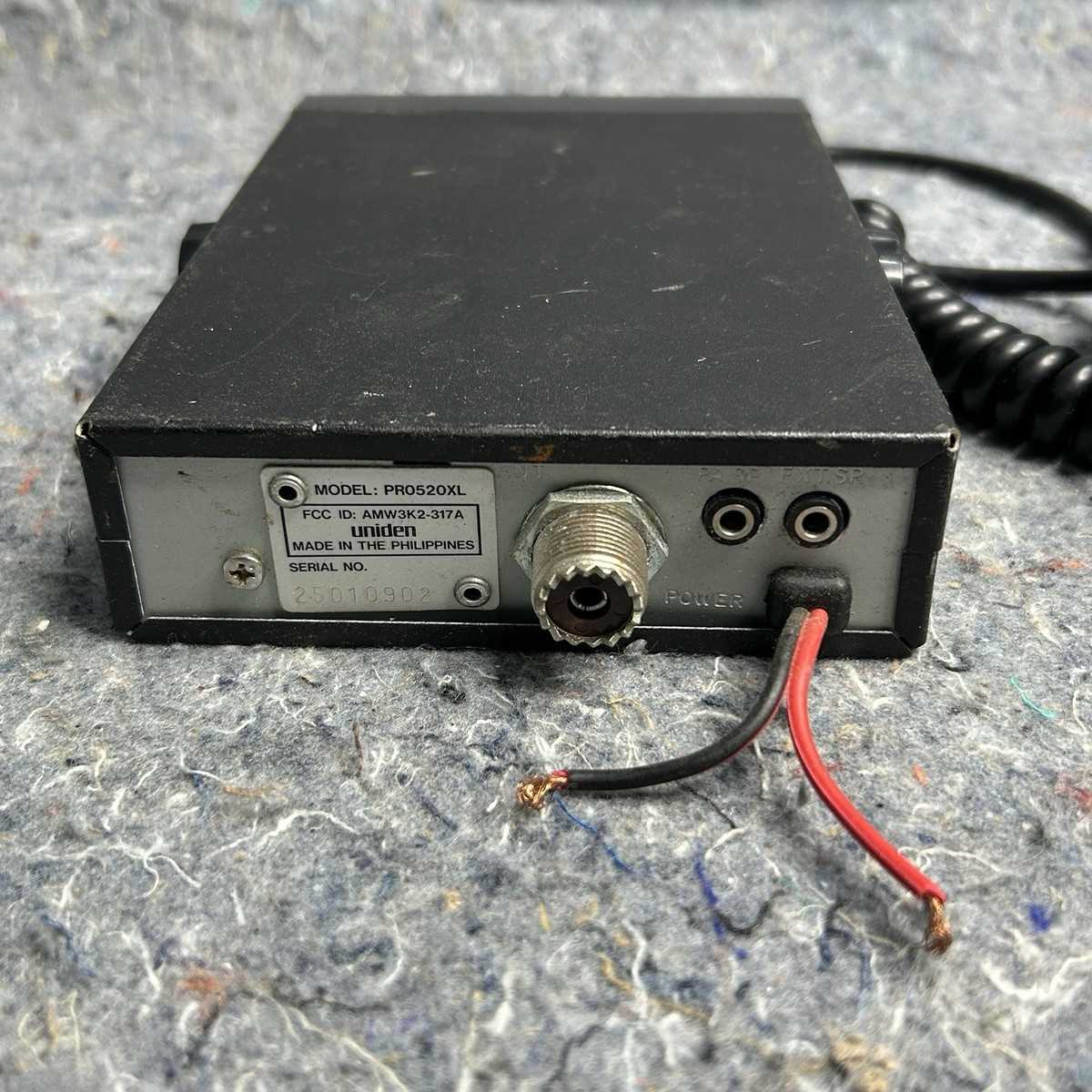

• HAM radio forums: Communities like QRZ.com or eHam.net archive user-uploaded repair guides. Search threads tagged with the model’s FCC ID (commonly printed on the device’s rear panel) to find scanned copies of the original blueprint.
• Electronics repair hubs: Sites such as Electronic Repair Guide or BadCaps.net catalog circuit layouts for vintage equipment. Use the model’s full designation in their search bars for precise results.
• Parts distributors: Platforms like Digi-Key or Mouser sometimes embed schematic excerpts in their component datasheets. Cross-reference the board’s labeled ICs or transistors with the manufacturer’s part numbers.

For offline access, contact regional service centers listed on the brand’s contact page. Request a physical or emailed copy of the “factory service bulletin”–some centers charge a nominal fee for duplication but provide watermark-free files. Specify whether you need the RF section, power supply, or full system integration diagram.

Google Patents (patents.google.com) indexes original design filings. Search using the model’s FCC ID or internal project codename (e.g., “UB-52”), often revealed in firmware update notes. Patent documents may omit proprietary details but include critical signal pathways and safety interlocks.

1. Open the device’s enclosure using a T8 torx screwdriver–ground yourself first.
2. Photograph both sides of the PCB at 300 DPI, focusing on silkscreen labels and trace routes.
3. Upload images to KiCad or EasyEDA to auto-generate a draft schematic.
4. Validate unclear sections by probing test points with a multimeter set to continuity mode.

If all sources fail, consult third-party reverse-engineering guides from YouTube channels like Electronics Repair School. Creators often overlay annotations directly onto PCB photos, highlighting voltage regulators, oscillators, and audio amplifiers. Verify their annotations against a known-working unit before relying on adjustments.

Key Components Identified in the Device’s Circuit Blueprints

Begin by isolating the power input section, typically marked near the DC jack or battery terminals. Verify the presence of a fuse–usually a 2A or 3A fast-acting type–directly in series with the positive line. Bypass capacitors (100nF ceramic) should be mounted close to the input to suppress transient spikes. If noise persists, inspect the solder joints for micro-fractures or cold solder, especially under thermal stress.

The main processor, an 80-pin QFP package, dominates the central board area. Surrounding it, trace the clock circuit: a 16MHz crystal oscillator paired with two 22pF load capacitors. Confirm the oscillator’s output waveform with a 10x probe–expect a clean sine wave between 0V and 3.3V. Deviations suggest a failing crystal or corrupted firmware. Decoupling capacitors (0.1µF) must be placed within 5mm of the processor’s power pins to prevent ground bounce.

Critical Signal Pathways and Regulation

Linear voltage regulators (e.g., 7805 or LD1117 variants) supply stable 5V and 3.3V rails. Check for excessive heat on the heatsink; if temperatures exceed 60°C, replace the regulator or improve thermal paste conductivity. The output capacitors (typically 10µF tantalum or 100µF electrolytic) must maintain low ESR–failed capacitors often bulge or leak. Measure ripple on the regulated lines with an oscilloscope; anything above 50mV peak-to-peak warrants capacitor replacement.

RF amplification stages rely on discrete transistors (e.g., 2SC1970 or MRF581) and surface-mount inductors. Identify the matching network–typically a PI-network with two variable capacitors (10–100pF) and a fixed inductor (0.1–0.5µH). Adjust the capacitors while monitoring SWR; optimal tuning occurs at ≤1.5:1. Poor performance here often stems from corroded coil windings or misaligned tuning slugs.

Component	Typical Value	Failure Symptoms	Test Method
Input Fuse	2A–3A	No power, intermittent operation	Continuity test (remove from circuit)
Crystal Oscillator	16MHz ±30ppm	Processor hangs, erratic behavior	Oscilloscope probe on output pin
Voltage Regulator	5V or 3.3V output	Overheating, ripple on rail	Thermal probe, scope AC coupling
RF Transistor (e.g., 2SC1970)	VCEO ≥ 12V, Pout ≥ 1W	Low output, distorted signal	Signal generator + spectrum analyzer

Troubleshooting Common Faults

Audio distortion often originates from the differential amplifier stage (LM386 or discrete op-amp). Measure the DC offset at the speaker terminals–acceptable values are ≤50mV. If offset drifts, replace the coupling capacitors (47µF electrolytic) or check for leaked electrolyte on nearby resistors. For weak transmit signals, inspect the microphone preamp: a single-stage common-emitter transistor (e.g., 2N3904) with a 1kΩ bias resistor. Gain should be ≥20dB; lower values suggest a shorted bypass capacitor (10µF) or open collector resistor.

Evaluate the PLL (phase-locked loop) circuitry last–refer to the block diagram for the dedicated IC (e.g., LC7218 or equivalent). The loop filter consists of a 10kΩ resistor and 1µF capacitor; failure here manifests as frequency drift or inability to lock. Replace the capacitor if ESR exceeds 5Ω. For intermittent reception, probe the antenna relay (often a DPDT type) with a multimeter–coil resistance should read 100–200Ω, contacts ≤0.5Ω. Oxide buildup on contacts necessitates cleaning or replacement.

Ground loops introduce hum–verify star grounding by tracing all ground returns to a single chassis point. High-impedance traces (e.g., keypad matrix lines) require shielding; if present, ensure the shield braid connects to ground only at one end. For persistent digital glitches, reprogram the EEPROM using a known-good binary file, as corrupted data can cause erratic behavior without visible damage.
