Schematic Guide to Variable Speed Drive Circuit Design and Components

An inverter circuit blueprint must prioritize clarity in component placement. Position the rectifier stage adjacent to the input terminals, ensuring minimal trace length to reduce electromagnetic interference. Use thick copper traces (minimum 2 oz/ft²) for the DC bus to handle peak currents without overheating. The switching elements–typically IGBTs or MOSFETs–should be grouped near the heatsink, with thermal vias connecting to a dedicated ground plane for heat dissipation.

Gate drivers require precise isolation. Opt for optocouplers with 5 kV isolation or isolated gate driver ICs like the IXYS IXDN609SI. Place decoupling capacitors (0.1 µF ceramic) within 5 mm of each switching device’s power pins to suppress voltage spikes. For the control logic, separate analog and digital grounds at the microcontroller or FPGA, then tie them together at a single point near the power supply to avoid ground loops.

Sensing elements–current shunts or Hall-effect sensors–must be placed upstream of the switching stage to avoid phase delays. For PWM signals, use twisted-pair wiring or differential pairs with matched impedance (100 Ω) to maintain signal integrity over distances exceeding 10 cm. Add a snubber circuit (RC network: 10 Ω, 1 nF) across each switching device to clamp voltage transients during turn-off.

For motor protection, integrate a hardware overcurrent latch (e.g., using a comparator with hysteresis) that triggers within 1–2 µs of detecting currents > 150% of rated load. The brake chopper circuit–if included–should use a high-power resistor (rated for 10 W dissipation per ampere) positioned away from heat-sensitive components. Test the layout with a 4-layer PCB (signal, power, ground, signal) to minimize EMI and improve thermal performance.

Frequency Converter Wiring Layout: Key Components and Best Practices

Begin with a three-phase input isolator rated for at least 125% of the motor’s full-load current. Install line reactors upstream–use 3% impedance for drives under 100 HP and 5% for larger units–to mitigate harmonics and protect against voltage spikes. Directly connect the DC bus capacitor bank only after verifying insulation resistance (>1 MΩ per μF) to prevent inrush faults.

Critical Circuit Sections

Section	Components	Wire Gauge (AWG)	Temperature Rating (°C)
Power Input	Fuses (Class J), Reactors, Contactor	6–2 (dependent on HP)	90
DC Link	Capacitors (Snap-in), Bleeder Resistor (10 kΩ/5 W)	8	105
Inverter Stage	IGBTs (1200 V), Snubber Circuits (0.1 μF/250 V)	10	125

Avoid running control cables parallel to power lines–separate by at least 300 mm or use shielded twisted pairs (22 AWG) with 85% coverage foil. Terminate shields at one end only, preferably at the drive chassis, to prevent ground loops. For encoder feedback, employ differential signaling (RS-485) and verify cable impedance (120 Ω ±10%) before power-up.

Integrate a dynamic braking circuit for motors exceeding 15 HP: pair a chopper transistor (e.g., SKM 50GB123D) with a braking resistor sized at 70% of the motor’s power rating (e.g., 1.5 kW resistor for a 2.2 kW motor). Calculate resistor value using R = (V_bus² / P_motor) × 0.8, ensuring it dissipates heat via forced airflow if mounted in enclosed panels.

Grounding demands a star configuration–bond the drive’s PE terminal to the motor frame and external earth electrode via a 16 mm² copper conductor. Use a dedicated ground busbar for auxiliary sensors; daisy-chaining risks transient-induced malfunctions. Test ground resistance after installation–target

For ambient temperatures above 40°C, reduce the drive’s output current by 1% per °C. In high-altitude applications (>1000 m), derate by 3% per 300 m due to reduced cooling efficiency. Always align motor and converter voltage ratings–NEMA-rated 460 VAC motors require 600 VDC bus converters, while IEC 400 VAC motors need 540 VDC. Avoid mismatches; undersized bus capacitors cause premature transistor failure.

Key Hardware Elements in Adjustable Frequency Controller Blueprints

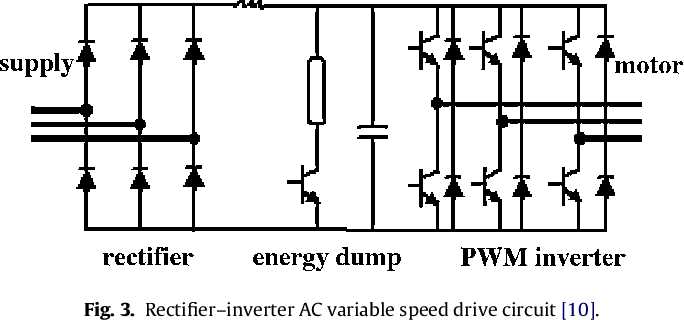

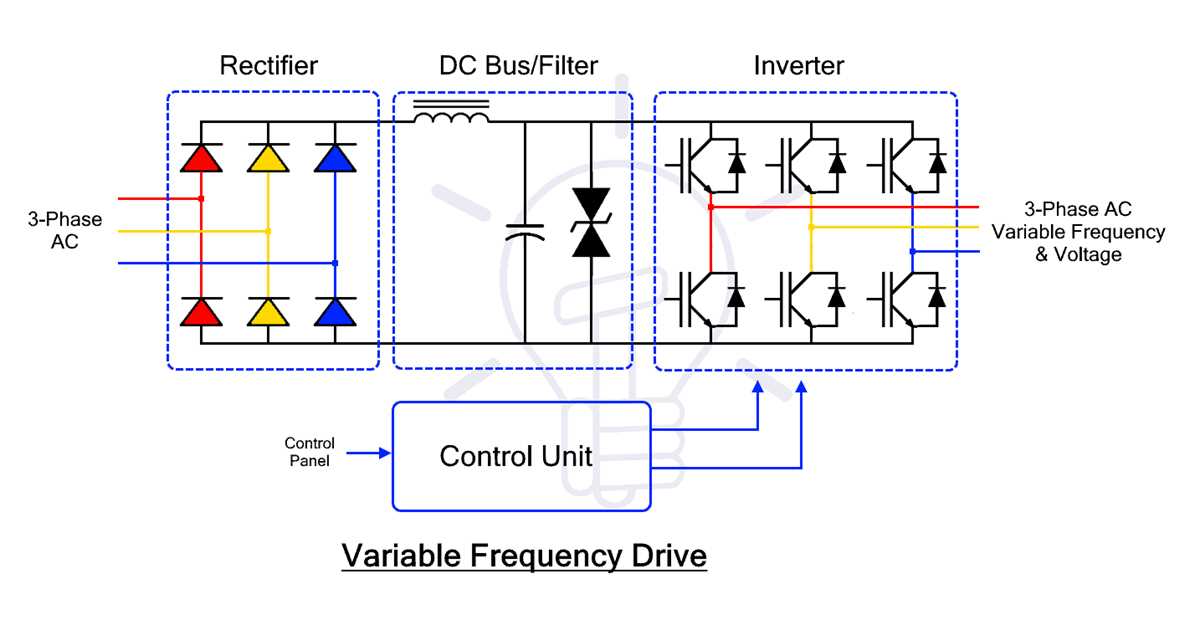

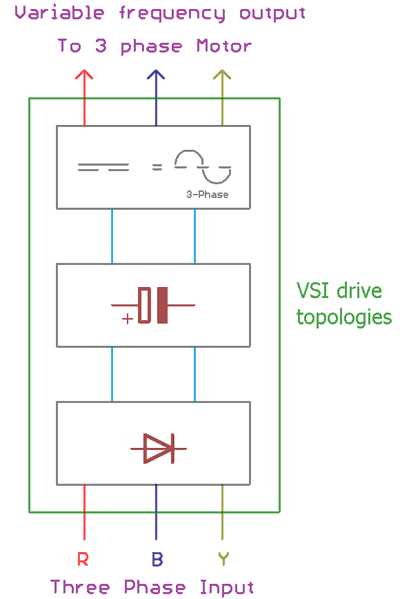

Start with a rectifier bridge–typically a three-phase full-wave design using diodes or SCRs–to convert incoming AC to unregulated DC. For 400V nominal input, ensure diodes handle at least 800V reverse voltage and 1.2× the peak line current to prevent avalanche breakdown during transient surges. Place a snubber circuit (10Ω resistor + 0.1µF capacitor) across each diode to suppress voltage spikes exceeding 1.2kV/µs.

DC Bus and Switching Stage

Filter the rectified output with a DC-link capacitor bank–calculate capacitance as 100µF per kW of rated load, dividing into multiple polypropylene units to limit ripple below 5%. Follow with an insulated-gate bipolar transistor (IGBT) inverter stage–opt for modules with ≥1200V blocking voltage and ≥150% continuous current margin; space gate drivers ≥5mm from heatsink edges to avoid parasitic turn-on. Implement dead-time circuitry (1–3µs) between complementary switches to prevent shoot-through, and route high-current traces with 2oz copper to keep ΔT

Step-by-Step Wiring Connections in an Adjustable Frequency Controller Power Circuit

Begin by disconnecting all power sources to prevent accidental energization during installation. Verify voltage absence using a multimeter across input terminals L1, L2, and L3. Failure to confirm zero voltage risks severe injury or equipment damage.

Identify the incoming power lines and connect them to the controller’s main breaker or fuse block. Use copper cables rated for 125% of the motor’s full-load current. For a 10 HP motor at 480V, this equates to 16 AWG (13.1A) or thicker, depending on ambient temperature and conduit fill.

Wire the output terminals U, V, and W to the motor in strict sequence. Misalignment between phases causes rotor lockup or reverse rotation, potentially damaging mechanical loads. Label each conductor at both ends to simplify troubleshooting.

Ground the motor frame and controller enclosure to the same earthing point. Use a dedicated conductor sized per NEC Table 250.122, typically 10 AWG for circuits up to 60A. Avoid shared neutrals or ground loops, which introduce noise and trip protection relays.

Protection and Control Circuit Wiring

Install thermal overload relays between the controller and motor. Calibrate them to 115% of the motor’s nameplate current. For example, a 5 HP motor drawing 7.5A requires relays set to 8.6A. Bypass these relays only during initial startup to test motor rotation.

Connect the DC bus capacitors, if present, observing polarity. Reverse polarity destroys capacitors within seconds. Pre-charge resistors limit inrush current to safe levels; omit them only in controllers with built-in soft-start circuits.

Route control wires (start/stop, speed reference) separately from power conductors. Use shielded twisted pair for analog signals to prevent interference from PWM switching. Terminate shields at one end only, typically at the controller’s signal ground terminal.

Before energizing, verify all connections with a continuity tester. Measure insulation resistance between phases and ground using a 500V megohmmeter. Values below 1MΩ indicate moisture ingress or damaged insulation, requiring replacement of affected components.

How to Read PWM Signals in a Power Conversion Unit Control Block

Start by connecting an oscilloscope probe to the PWM output terminal of the inverter module. Set the trigger level to 2.5V for standard 5V logic signals, adjusting to 1.8V or 3.3V if the controller uses low-voltage CMOS. Use a 10x probe setting to reduce capacitive loading–failure to do so can distort pulse edges, leading to incorrect duty cycle measurements.

Measure the switching frequency first. Typical ranges span 1kHz to 20kHz for industrial applications, while high-performance systems may reach 100kHz. Verify this against the datasheet; discrepancies indicate faulty gate drivers or incorrect clock configuration. Use the oscilloscope’s frequency counter for precise readings–manual calculations from screen captures introduce errors.

Capture the duty cycle by enabling the oscilloscope’s duty cycle measurement function. A 40% reading means the signal remains high for 400µs of a 1ms period. Cross-reference this with the control board’s microcontroller code or analog comparator settings. If the duty cycle doesn’t match the expected reference voltage (e.g., 0–10V or 4–20mA), check for op-amp saturation, voltage dividers, or ADC miscalibration.

• Probe placement: Attach ground clips directly to the inverter’s DC bus ground, not chassis ground–common-mode noise will corrupt readings.
• Bandwidth: Ensure the oscilloscope’s bandwidth exceeds 5x the PWM frequency. A 10MHz scope is inadequate for 100kHz signals.
• Isolation: Use differential probes for high-voltage IGBT modules. Single-ended probes risk ground loops, damaging the equipment.

Analyze pulse shapes for anomalies: rounded edges suggest insufficient gate driver current, while ringing indicates poor PCB trace layout or missing snubber circuits. Slow rise/fall times can overheat switches–replace gate resistors if rise time exceeds 1µs. For isolated PWM signals (e.g., from optocouplers), confirm that the output waveform matches the input; delays exceeding 500ns suggest degraded coupling capacitance.

Debugging steps for inconsistent PWM readings:

1. Confirm the control signal source: analog (potentiometer), digital (microcontroller), or encoder feedback. Swap test points to rule out faulty inputs.
2. Inspect power supply stability: PWM generation circuits often rely on 12V or 15V rails. Ripple >100mV can cause erratic behavior.
3. Check dead-time settings: Too short a dead time causes shoot-through, destroying power switches.
4. Review synchronization: Multi-phase systems require phase-locked PWM signals. Desynchronization leads to current imbalance.

For closed-loop systems, compare PWM signals with feedback sensors. A motor encoder’s pulse train should align with the inverter’s PWM output. Phase shifts >10µs suggest incorrect PI controller tuning or faulty position sensors. Use a logic analyzer to decode PWM registers in microcontroller-based designs; discrepancies between register values and actual pulses point to software bugs or faulty hardware latches.
