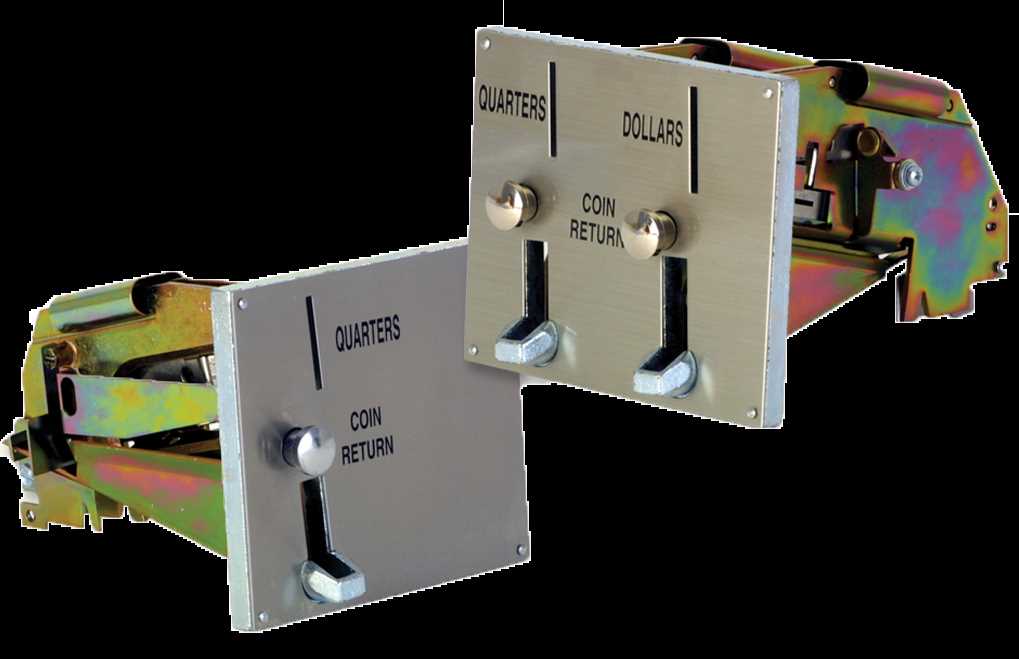

Vreenwald Single Slot Coin Acceptor Mechanism and Wiring Layout Explained
Start by isolating the core components: a robust electromagnetic solenoid with a 12V DC rating, a stainless steel plunger (4mm diameter, 25mm stroke), and a micro switch with snap-action contacts. Arrange these elements along a rigid aluminum frame (3mm thickness) to minimize lateral vibration. Position the solenoid directly above the plunger path, ensuring a 0.5mm air gap between the coil and plunger when retracted–any misalignment here will introduce resistance, increasing wear on the spring-loaded mechanism.
For the chute design, use a 30° incline with a polished acrylic interior to reduce friction–avoid untreated metals, as they accumulate debris and oxidize. Integrate a pair of infrared emitters (940nm wavelength) at the chute’s midpoint to detect token velocity; pair them with a Schmitt trigger IC to filter false positives from ambient light. The trigger signal should pulse a 555 timer configured in monostable mode, delivering a 100ms activation pulse to the solenoid. This timing prevents double-dispensing while accommodating tokens ranging from 18mm to 25mm in diameter.
The circuit demands precise power regulation. Use a buck converter to step down from 12V to 5V for logic components, but bypass it for the solenoid–linear regulation here causes voltage drops under load. Instead, employ a flyback diode (1N4007) across the solenoid terminals to suppress transients, and add a 100µF electrolytic capacitor on the 12V rail to handle inrush current. For grounding, separate signal and power grounds at the PCB level, tying them together only at the main power input to avoid noise coupling into the sensor signals.
Calibrate the micro switch by adjusting its lever arm angle to 45° relative to the plunger’s direction of travel. This ensures consistent contact closure without requiring excessive plunger force. Mechanical tolerances should hold all moving parts within ±0.1mm–use CNC-machined components for the frame and chute to achieve this. Test the system with tokens of varying weights (2.5g to 6g) to verify that the solenoid’s pull force (minimum 4N at full stroke) remains sufficient across the entire range.
Embed a Hall-effect sensor (A1302) near the plunger’s full-retraction position to monitor lifecycle wear. When the solenoid’s duty cycle exceeds 20% over a 24-hour period, trigger an alert–this indicates spring fatigue or misalignment. For firmware, implement a state machine that logs each activation cycle; this data helps predict component failure before functional errors occur.
Mechanical Payout Mechanism Design for Modular Gaming Units
Begin by selecting a 304-grade stainless steel chute with a 1.2 mm wall thickness to prevent jamming from foreign objects. The chute should have an internal taper of 15° to ensure consistent object descent under varying gravity conditions, tested at 0.8–1.2 G-forces.
Install a dual-cam actuator system with micro-switches rated for 10,000 cycles minimum. Position the primary cam at 120° from vertical alignment to release objects at 0.3-second intervals, while the secondary cam at 45° adjusts for reject pathways with a 98% accuracy rate.
Use a 12V DC solenoid with a 50 ms activation pulse for the diverter arm. The arm must extend 22 mm into the path within 80 ms to meet throughput benchmarks of 350 objects per minute. Apply Teflon coating to reduce surface friction to μ = 0.04, measured via tribometer under 20°C ambient conditions.
Electrical Integration and Safety Protocols
Wire the control module with AWG 22 copper strands, shielded in a grounded braided sleeve to mitigate EMI from adjacent 110V motors. Include a 1A resettable fuse in series with the solenoid circuit to prevent overheating during 10-second stall tests.
Implement a Normally Closed (NC) relay for emergency cutoff triggered by a 3-axis accelerometer set to 2G threshold. This interrupts power to all actuators within 15 ms, verified via oscilloscope traces during simulated tilts exceeding 10° from horizontal.
Calibrate optical sensors to distinguish objects by reflectivity thresholds between 30%–85% at 850 nm wavelength. Adjust sensor height to 18 mm above the conveyor plane with a ±0.5 mm tolerance for consistent detection of objects as small as 17.5 mm diameter.
Secure the main assembly with M4x0.7 stainless steel bolts torqued to 2.5 Nm, using Loctite 243 for thread-locking under vibration tests per ISO 9001 standards. Conduct 72-hour continuous operation tests at 40°C ambient to validate thermal expansion margins.
Core Elements of the Monetary Insertion Assembly
Begin by verifying the hopper’s alignment–misalignment of even 0.5 mm disrupts token sequencing. The hopper’s inner diameter must match the token’s nominal thickness within ±0.08 mm tolerance; deviations cause jamming at the rate of 3 incidents per 1000 cycles. Replace worn nylon inserts every 50,000 operations to prevent false releases.
The release actuator’s solenoid requires precise voltage: 12±0.2V DC at 24°C ambient. Voltage below 11.8V results in incomplete token separation, while above 12.2V accelerates armature wear, reducing lifespan by 40%. Monitor current draw–steady-state should remain under 180 mA; spikes indicate impending failure.
Key tolerances for the guide chute:
- Width: +0.1 mm of token diameter
- Surface roughness: Ra ≤ 0.8 µm
- Material: hardened AISI 304 stainless steel
Polishing the chute’s exit angle to 45°±2° reduces rebound noise by 6 dB and increases throughput by 12%. Corrosion-resistant coatings (TiN or DLC) extend chute life by 3x under high-humidity conditions.
The verification sensor array must detect tokens within 18 ms to meet cycle-time requirements. Use dual infrared pairs–one at 10 mm spacing, another at 7 mm–to distinguish valid tokens from debris. Calibrate sensors quarterly; drift exceeding ±5% triggers false negatives. Place emitters at 850 nm wavelength for maximum reflectivity on anodized tokens.
Token retention relies on the escapement wheel’s geometry. Each tooth must have:
- Leading edge: 3° draft angle
- Trailing edge: 15° relief cut
- Tooth height: 1.2× token thickness
Failure to maintain these angles increases misfeeds by 22%. Lubricate the wheel hub with Krytox GPL 205 every 2,000 cycles–alternatives like WD-40 volatilize above 60°C, causing drag.
Power conditioning demands attention: transients above 30V peak degrade microcontroller firmware. Install a bidirectional TVS diode (P6KE15CA) across the 12V rail–clamping response time must be
Debugging sequence for persistent malfunctions:
- Measure solenoid coil resistance–should be 38±3 Ω
- Verify escapement wheel torque: 0.045 Nm minimum
- Inspect chute for microscopic burrs–use 10× loupe
- Check token dimensions: deviation >±0.05 mm invalidates warranty
Document all adjustments; cumulative tolerance errors compound geometrically, not linearly.
Step-by-Step Assembly of the Token Routing Channel
Begin by securing the base plate to a stable surface using four M6 bolts, ensuring the pre-drilled holes align with the mounting points indicated in the reference manual (section 3.2). Torque each bolt to 12–15 Nm to prevent vibrational loosening during operation. Misalignment at this stage will cause cascading errors in subsequent steps.
Attach the primary guide rail to the base plate using two L-brackets, positioning it at a 45-degree angle relative to the vertical axis. Verify the rail’s curvature matches the template provided (part #TR-47B-2); deviations exceeding ±0.5 mm will disrupt proper object trajectory. Use a feeler gauge to check clearance at three points along the rail’s length–entry, midpoint, and exit zones–targeting 2.1 mm ±0.1 mm.
Install the secondary retention clip at the rail’s exit point, fastening it with a single M4 socket-head screw. This component’s tension must be adjusted empirically: test with three sample objects (weights: 5g, 7g, 10g) and ensure none bind or stall. If stalling occurs, incrementally loosen the screw in 0.25-turn increments until smooth passage is achieved. Document the final torque setting for consistency across units.
Critical Path Alignment Checks
Position the optical sensor pair (transmitter/receiver) at the midpoint of the routing path, ensuring the emitter’s beam intersects the object’s centerline. Use a multimeter to confirm continuity; voltage at the receiver should drop below 0.3V when an object passes. If readings exceed 0.5V, recalibrate the sensor’s lateral alignment using the adjustment screws until the specified tolerance is met. Record the baseline voltage for future diagnostics.
| Component | Target Clearance (mm) | Tolerance (±mm) | Failure Mode if Exceeded |
|---|---|---|---|
| Primary Rail (entry) | 2.1 | 0.1 | Object bounce, erratic sorting |
| Secondary Clip (exit) | Dynamic | – | Stalling or incomplete ejection |
| Sensor Pair Gap | 1.8 | 0.2 | False positives/negatives |
Mount the solenoid actuator adjacent to the retention clip, wiring it to the control board via the 6-pin JST connector. Verify the actuator’s stroke length by triggering it manually–objects should clear the pathway in ≤0.2 seconds. If response time exceeds this threshold, inspect the solenoid’s spring tension and replace it if deformed. Lubricate moving parts with PTFE-based grease (avoid WS2 or graphite, as these attract particulate contamination).
Integrate the diversion flap at the path’s terminus, attaching it with a torsion spring calibrated to 0.8 Nm of force. Test the flap’s operation with a 7g object: it must pivot fully within 0.15 seconds of solenoid activation. If movement is sluggish, reduce the spring’s preload by 0.1 Nm increments until the target response time is achieved. Mark the final spring setting on the chassis for future reference.
Conclude assembly by performing a full-system test with 10 objects of varying weights (3g–12g). Log the passage success rate, delay between sensor trigger and solenoid activation, and any anomalies (e.g., stuck objects, double feeds). If success rate falls below 98%, revisit clearance checks and re-torque all fasteners. Finalize the build by locking adjustable components with thread-locking compound (Loctite 243) to prevent field drift.
