Step-by-Step Guide to Connecting a Washing Machine Motor

Before attempting repairs, locate the technical plate on the rear panel of the appliance. This label lists the voltage range (typically 220–240V for single-phase models) and current draw (8–12A for standard agitators, 15–18A for high-speed spin units). Cross-reference these values with the color-coding of the lead wires: red and black denote live terminals, blue is neutral, and yellow-green serves as ground. Any deviation from this scheme indicates a non-standard harness requiring manual trace verification with a multimeter.

Detach the rear access panel–usually secured with Torx T15 screws–and inspect the capacitor attached to the stator assembly. For dual-speed setups (agitate/spin), this component ranges between 8–16 µF; single-speed variants use 4–10 µF. Confirm capacitance with a meter before proceeding, as a failed capacitor (below 70% of rated value) will prevent startup. Label each wire connection with masking tape to avoid misplacement during reassembly.

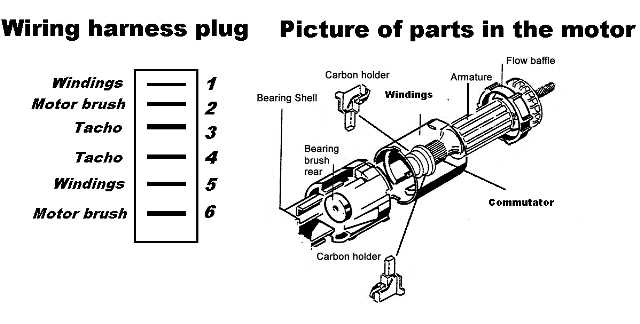

Modern inverter-driven rotors use a six-pin connector; older universal series types rely on a four-brush commutator system. For inverter units, trace the thick red and black cables directly to the control board’s power module–these carry 300VDC after rectification. Induction-based drums connect to a centrifugal switch that toggles between windings at 3400 RPM threshold. Bypass testing requires jumpering the main and auxiliary windings (0.5–2 Ω impedance) while monitoring torque output via a clamp meter.

Secure all fasteners to a minimum of 6 Nm torque–loose stator bolts induce harmonic vibration, degrading bearing life. For water-damaged circuits, apply conformal coating SP1320 to exposed tracks; oxidation on copper reduces current capacity by up to 40%. Refit the outer casing only after verifying no conductive debris remains between the rotor and stator–air gaps must stay within 0.3–0.5 mm to ensure consistent magnetic flux.

How to Connect an Appliance Drive System

Locate the main terminals on the drive assembly: two brush contacts (usually marked “A” and “B”) and one grounding point. For universal series designs, solder or crimp 14-gauge copper wire to each brush terminal, ensuring insulation does not melt during soldering. Ground the assembly by attaching a 12-gauge green or bare wire to the metal housing with a star washer and hex bolt tightened to 12 N·m.

Use this reference for standard dual-speed configurations:

• High-speed operation: Connect one brush terminal to the live input via a 10A fuse and the other to the neutral line.
• Low-speed operation: Introduce a 30Ω resistor between the live input and one brush terminal while maintaining the existing neutral connection.
• Bidirectional rotation: Reverse the brush-terminal connections (live and neutral swap).

Verify the circuit before powering the system:

1. Set a multimeter to continuity mode; check for shorts between terminals.
2. Measure resistance across brush contacts–expect 5-20Ω depending on the model.
3. Test insulation resistance between each terminal and the housing–minimum 2MΩ required.

Install a thermal cutoff switch (type KSD301, 95°C) adjacent to the stator winding. Mount the switch with a silicone thermal pad, securing it with a spring clamp to maintain direct contact. Route wires away from moving parts, using spiral wrap (inner diameter 6mm) for runs exceeding 20cm.

Identifying Appliance Drive Terminals and Their Roles

Start by locating the terminal block on the rear of the unit. Most household spin devices use a six-pin or eight-pin arrangement, though compact models may have four. Pins are typically labeled with letters or numbers–check for embossed markings or color-coded wires. Red, blue, and black leads usually indicate main coils, while white or yellow often connect to auxiliary windings or capacitor circuits.

Primary Coil Connections

Terminals marked U-V or T1-T2 handle the core rotational force. These points receive direct power during standard operation and can be verified with a multimeter set to resistance mode. A reading between 5 and 20 ohms suggests functional coils; zero resistance signals a short, while infinite reading indicates an open circuit. Avoid touching these contacts when energized–voltages exceed 200V in many designs.

For capacitor-run units, two additional terminals (often C-Z or M-S) link to the start winding. These should show higher resistance–typically 15 to 50 ohms–compared to main leads. If resistance mirrors the primary circuit, the winding has failed. Capacitors attach to these points; confirm their state with an analog meter (needle deflection confirms charge/discharge).

Ground connections–usually a green or bare wire–tie to the frame. Verify continuity between this terminal and any metal housing. Lack of continuity indicates corrosion or improper installation. In three-phase variants, three equally spaced terminals (R-S-T) replace single-phase labels, each showing identical resistance readings (under 1Ω difference).

Troubleshooting Terminal Identification

If markings are absent, trace wires back to their origin. Thicker gauge wires (18-16 AWG) supply main coils, while thinner (20-22 AWG) feed auxiliaries. Capacitors connect via intermediate terminals, often with two leads clustered together. Document each finding before disassembly–photograph or sketch connections to avoid reconnection errors.

Step-by-Step Guide to Connecting Appliance Drive Coils Safely

Disconnect the power source entirely before touching any internal components. Verify the absence of current using a multimeter set to AC voltage–probe the terminals where the supply cables connect. Readings above 10V indicate residual power; wait until the device fully discharges.

Identify the main coil and auxiliary coil leads by referencing the appliance’s technical documentation. The primary winding typically has thicker wires (14-16 AWG) and lower resistance (8-15 Ω), while the secondary uses thinner wires (18-20 AWG) with higher resistance (20-40 Ω). Color-coding varies: red/black for main, blue/brown for start, but confirm with an ohmmeter.

Attach the line voltage cables to the main coil terminals first. Secure them with crimp connectors or solder for durability–loose connections generate heat and risk arcing. For single-phase setups, connect the capacitor between the auxiliary coil and the main winding’s live terminal, ensuring the microfarad rating matches the original specification (±5%).

Route all cables away from moving parts, sharp edges, or heat sources. Use zip ties to bundle wires every 10 cm, maintaining a 5 mm clearance from metal frames. Avoid PVC insulation near motors generating over 60°C; opt for silicone-coated wires in such cases.

Test rotation direction before final assembly. Temporarily power the system and observe: if reversal is needed, swap either the auxiliary coil leads or one main lead (never both). Reverse polarity at this stage avoids disassembling the appliance later.

Insulate all exposed terminals with heat-shrink tubing or electrical tape rated for 600V. For added protection, apply dielectric grease to connections in humid environments. Double-check insulation resistance with a megohmmeter (>1 MΩ between windings and frame).

Reassemble the housing only after confirming no loose strands, frayed wires, or improperly secured terminals exist. Power the unit briefly without load to ensure smooth operation–listen for unusual noises or vibrations, which indicate misalignment or incorrect coil pairing.

Preserve installation notes: record coil resistances, capacitor values, and connection diagrams. Label wires if the appliance requires future servicing. Store these details with the manual for reference.

Common Drive Assembly Connection Schemes for Single and Polyphase Power Units

For split-phase setups, always verify the capacitor’s voltage rating exceeds the supply by at least 20%. A typical 230V household circuit requires a 250V or higher capacitor–failure to comply risks premature dielectric breakdown. Terminal markings on the housing usually follow a standard: L (line), N (neutral), and U/V/W for the auxiliary winding taps. If labels are absent, use a multimeter in continuity mode to trace the main winding (thicker wire gauge) and auxiliary (thinner gauge, often paired with the capacitor). Reverse the auxiliary tap polarity during testing to confirm correct rotation direction before finalizing connections.

Dual-voltage (120/240V) single-phase units demand precise jumper placement. The schematic inside the terminal box dictates whether to bridge the windings in parallel (for 120V) or series (for 240V). Bridging incorrectly–e.g., linking terminals 1–4 instead of 1–3 and 2–4–draws double the current, tripping breakers or overheating windings within minutes. When rewiring, measure winding resistance first: a 1–3 Ω disparity between main and auxiliary suggests internal shorting or an open circuit, necessitating replacement before power-up.

Polyphase Power Unit Configurations

Configuration	Phase-to-Phase Voltage	Line Current (A)	Starting Torque	Typical Applications
Delta (Δ)	230V/400V	Rated × 1.73	150–200% nominal	High-torque pumps, compressors
Wye (Y)	120V/208V	Rated × 1	80–120% nominal	HVAC blowers, conveyors
Dahlander	230V/400V (dual-speed)	Varies by speed	Adjustable via reconnection	Machine tools, centrifuge drives

Delta-wired units in 400V grids require phase rotation verification using a line tester. Swap any two supply leads to correct clockwise/counterclockwise motion–reversing after energizing destroys the centrifugal switch or relay. For Dahlander (dual-speed) variants, the low-speed winding connects in delta, while high-speed switches to double-wye. The terminal block typically labels these as U1/U2 (delta), V1/V2 (wye), and W (common). Misconnecting the common lead to the wrong winding tap reduces output power by 60–70% and generates excess heat.

Star-delta starters mitigate inrush current by first energizing the windings in star (Y), then switching to delta (Δ) after 70–80% of nominal RPM is reached. The timing relay’s delay must match the unit’s inertia; a 2–3 second delay suits most 1.1–3kW assemblies, while larger 11kW+ drives may require 5–7 seconds. Over-tightening terminal screws compresses conductor strands, increasing resistance and localized heating–torque them to 5–7 Nm for 6mm² cables, 7–9 Nm for 10–16mm². Always strip conductors to the exact length of the terminal saddle; excess copper protrudes and risks shorting against adjacent phases.
