DIY Water Level Monitoring Sensor Circuit Design Explained

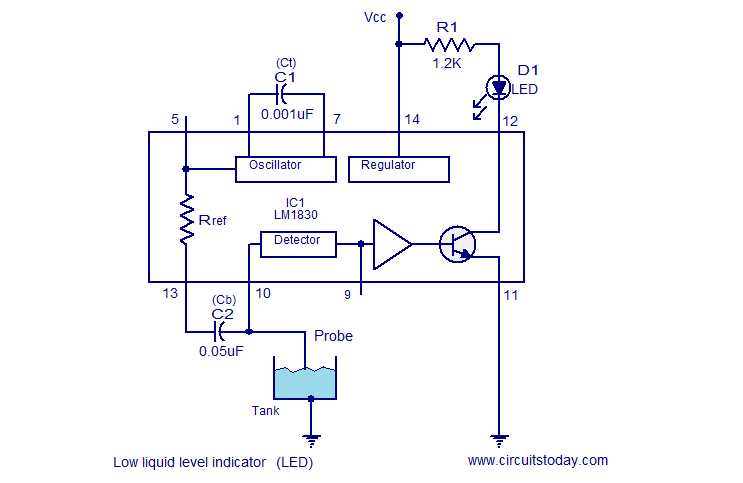

Begin with a resistive divider approach for low-cost depth detection in non-critical setups. Use two conductive probes spaced at the desired thresholds–ensure they’re stainless steel or carbon-coated to resist corrosion. Connect the lower probe to ground and the upper probe to a voltage source via a 10kΩ resistor. When liquid bridges the gap, the microcontroller pin reads a logical high. For accuracy, add a 0.1µF capacitor between the pin and ground to filter noise.

For dynamic range applications, integrate an ultrasonic transducer. Mount an HC-SR04 module vertically above the tank, facing downward. Calibrate the sensor by measuring the time-of-flight echoes and applying the formula: distance = (sound speed × round-trip time) / 2. Adjust for temperature variations using a thermistor. Ensure the module’s 5V power supply is isolated from motor circuits to prevent interference.

In environments with conductive liquids, opt for a capacitive interface. Use a 555 timer IC configured in astable mode, with the probe acting as one capacitor plate. Changes in liquid height alter the oscillation frequency. Connect the output to a frequency counter or an Arduino’s pulseIn() function. Shield the circuit with grounded foil to minimize stray capacitance.

For high-conductivity fluids, a float switch paired with a magnetic reed relay offers reliability. Suspend the float using a tensioned wire, ensuring minimal lateral movement. Position the reed switch adjacent to the magnetic float’s path. When the float rises, the switch closes, triggering a relay. Verify the relay’s coil voltage matches your system’s power supply–typically 5V, 12V, or 24V.

Always isolate signal wires from power lines using twisted pairs or shielded cables. In noisy industrial settings, add optocouplers (e.g., PC817) between the detection circuit and load control. For microcontroller-based designs, implement debounce logic in code or use a 1µF capacitor across switch contacts to prevent false triggers.

Fluid Height Detector Circuit Design

Opt for a resistive-based approach when targeting cost-effective solutions in non-corrosive environments. Use a conductive probe array paired with a voltage divider configuration: connect a 10kΩ resistor in series with the probes, then measure the potential difference across the resistor via an ADC input on a microcontroller. For distilled fluids, increase the resistor value to 47kΩ to improve sensitivity. Ensure probe spacing exceeds 5mm to prevent capillary action interference, and coat leads with PTFE for longevity in aqueous applications.

Component Selection for Reliable Readings

Select probes from 316 stainless steel for most industrial fluids or titanium for high-purity settings. Avoid copper–it oxidizes rapidly. For high-viscosity liquids, widen probe diameter to 3mm minimum to prevent false low readings. Incorporate a Schmitt trigger circuit (e.g., 74HC14) at the ADC input to eliminate signal bounce when the probe breaches the surface. Use a 100nF decoupling capacitor across the power rails near the comparator to suppress noise; position it within 10mm of the IC pins.

Calibrate the circuit by filling the container to known heights: record ADC values at 20%, 50%, and 80% capacity, then implement linear interpolation in firmware. For tanks deeper than 2m, add a secondary reference probe at the midpoint to segment the voltage range and reduce error accumulation. Test response time with rapid fill cycles–target settling within 50ms for flow rates under 5 L/min.

Core Elements for a Fundamental Fluid Height Detection Setup

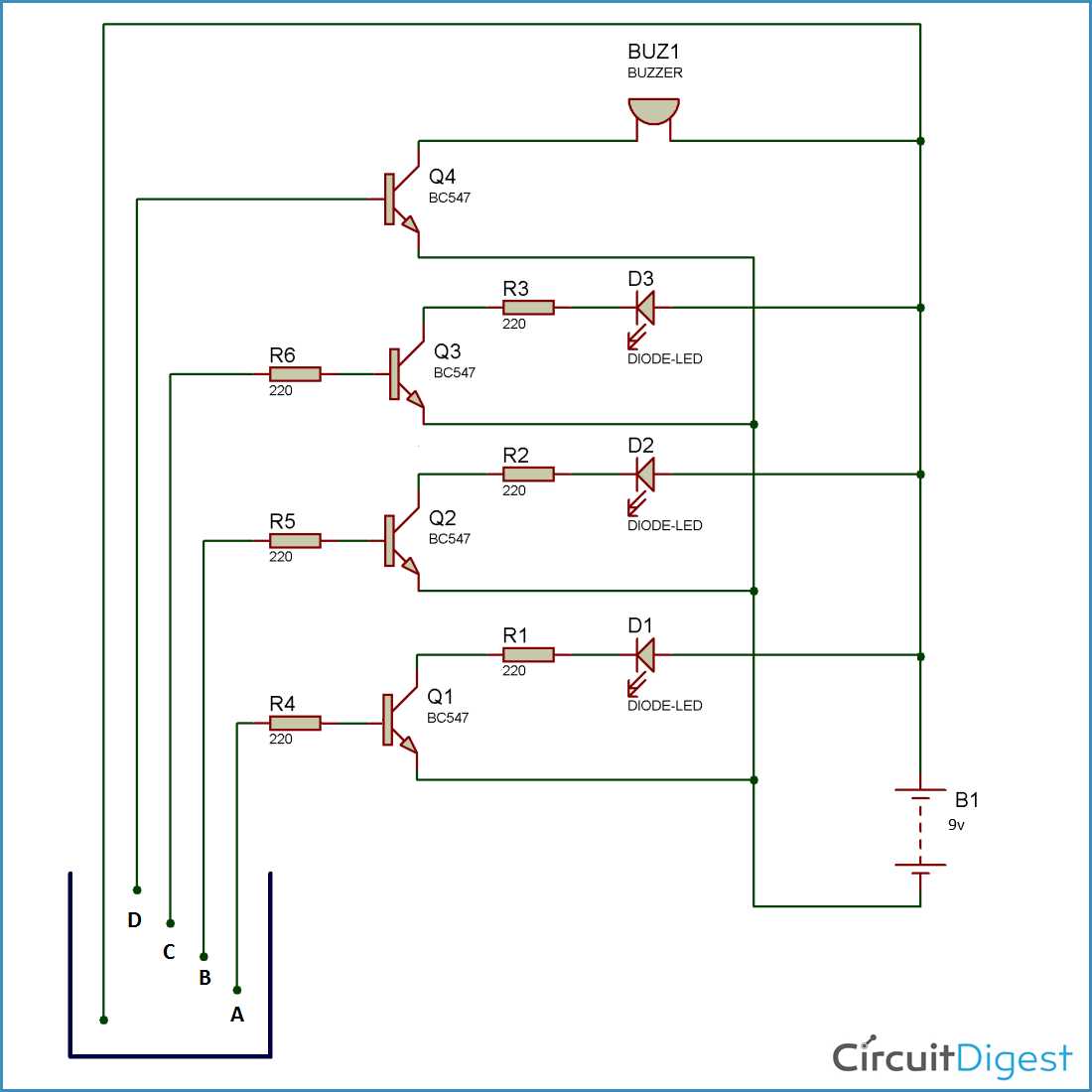

Begin with a conductive probe assembly–stainless steel rods or plated copper wires spaced 5–10 mm apart–immersed in the container. Position the rods so their tips align with critical fill thresholds, ensuring precise triggering without false signals. A minimum of three probes (low, mid, high) guarantees granular control, while two suffice for basic on/off applications.

Integrate a comparator IC such as LM393 or TLC3702 as the decision-making core. Configure the inverting input to a fixed reference voltage (e.g., 1.25V via a TL431 shunt regulator) and route the non-inverting input through a voltage divider formed by the probes and a 10 kΩ pull-down resistor. Hysteresis prevents chatter: add a 1 MΩ feedback resistor from output to non-inverting input.

Power the circuit with a stabilized 5V–12V DC supply; ripple exceeding 100 mV generates erratic readings. Use a 220 µF electrolytic capacitor across the rails near the comparator to filter transients. For battery operation, a 3.7V lithium cell requires a low-dropout regulator (e.g., MCP1700T) to maintain accuracy until the battery drains below 3.2V.

Signal conditioning demands a series resistor (470 Ω) and an optocoupler (PC817) to isolate the detection logic from inductive loads. Connect the optocoupler’s phototransistor to a microcontroller GPIO or relay coil, ensuring the drive current stays below 10 mA to avoid damage. Skip the optocoupler only if interfacing directly with CMOS logic operating at the same voltage.

Calibration mandates bench testing with measured fluid volumes. Adjust probe spacing if the detection point drifts more than ±3 mm from target; oxidation coatings increase resistance unpredictably. For conductive fluids, reduce the pull-down resistor to 4.7 kΩ or add a guard ring around each probe to mitigate stray capacitance.

Enclose the circuitry in a moisture-resistant housing (IP65 minimum) with gland-sealed cable entries. Use silicone-sealed connectors for probe wires; PVC insulation degrades within 18 months in submerged service. Ground the container with a 6 AWG copper braid if electrostatic interference corrupts readings.

Step-by-Step Wiring Guide for Analog Depth Measurement

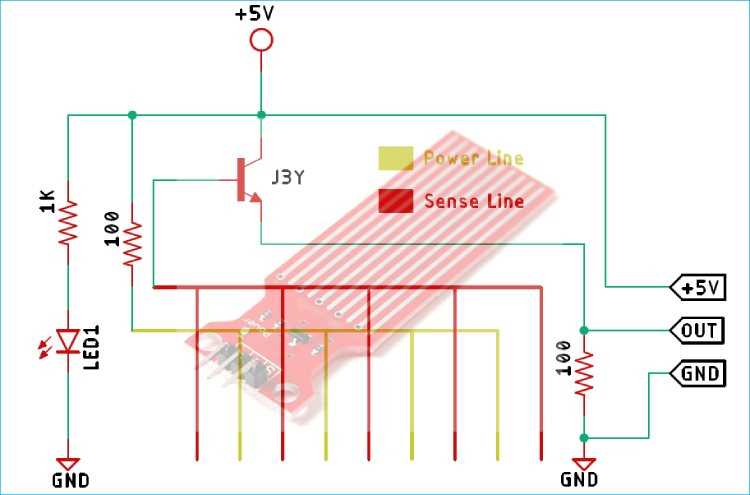

Connect the detection probe’s output pin to an analog input on your microcontroller–Arduino’s A0-A5, ESP32’s GPIO 32-39, or STM32’s PA0-PA7. Use a 10 kΩ pull-down resistor between the probe’s output and ground to prevent signal drift from environmental interference. Ensure the resistor’s value matches the probe’s impedance rating (commonly 5-20 kΩ) to avoid voltage division errors.

Power the probe’s VCC pin with a regulated 5V source–USB, a buck converter, or a dedicated LDO. For battery-driven setups, add a 100 μF decoupling capacitor across VCC and GND to filter noise from switching components. Avoid exceeding 5.5V; most resistive probes degrade at higher voltages, skewing readings.

Ground the probe’s GND pin to the microcontroller’s ground plane. Use a star-point grounding configuration if multiple probes or high-current peripherals share the circuit–this isolates return paths and minimizes analog signal corruption. Twist detection probe wires with their ground counterparts to reduce electromagnetic pickup from nearby motors or relays.

Test the setup with a depth gauge simulating expected conditions. Verify the analog pin reads 0V at minimum depth and ~4.8V at maximum–adjust the pull-down resistor if the range shifts. Calibrate the microcontroller’s ADC readings by mapping the raw values (0-1023 for 10-bit ADCs) to actual depth in millimeters using linear interpolation.

For long-term stability, seal probe connections with heat-shrink tubing and apply dielectric grease to prevent corrosion from moisture. Use stranded 22-26 AWG wire for flexibility; solid core risks fatiguing solder joints under vibration. If readings flicker, add a 0.1 μF ceramic capacitor between the probe’s output and ground to dampen transient spikes.

Common Power Supply Options and Voltage Requirements

For most resistive and capacitive measurement devices, a regulated 5V DC supply ensures stable operation without signal distortion. Linear regulators (e.g., LM7805) are preferred for low-noise applications, while switching regulators (e.g., MP2307) offer higher efficiency in battery-powered setups. Avoid unregulated supplies–voltage fluctuations above ±5% can compromise accuracy, particularly in analog front ends with high impedance inputs.

For industrial or high-precision instruments, 12V or 24V DC supplies are standard, especially when sensors are deployed in remote locations or connected via long cables. A 24V supply reduces voltage drop over extended wiring (e.g., 100m of 0.5mm² copper wire introduces ~3.2V drop at 200mA). Use isolated DC-DC converters (e.g., Traco TMA series) to prevent ground loops in noisy environments. Always verify the device’s absolute maximum rating–exceeding it by even 1V can trigger permanent failure in IC-based solutions.

Battery-Powered Alternatives

Battery Type	Nominal Voltage	Capacity Range (mAh)	Typical Use Case	Lifespan Constraints
Alkaline (AA)	1.5V	1500–3000	Portable, low-drift designs	Voltage drops ~10% at 50% discharge
Lithium Thionyl (ER)	3.6V	2000–19000	Long-term deployments (e.g., IoT nodes)	Self-discharge ~1%/year; avoid recharging
LiPo (single-cell)	3.7V	100–10000	High-current pulsed loads	Swell risk if charged >4.2V; requires protection circuit

For microcontroller-based gauges, 3.3V is the dominant requirement. Low-dropout regulators (e.g., AMS1117) suffice for currents under 500mA, but ensure the dropout margin exceeds 200mV–typical tolerances for LDOs hover around ±2%. If interfacing with 5V logic, use level shifters (e.g., TXB0104) or opt for microcontrollers with 5V-tolerant pins (e.g., STM32F0 series).

AC-Powered Configurations

When mains power (110V/230V AC) is available, use a step-down transformer followed by a full-wave bridge rectifier and smoothing capacitor (C = I_load / (2·f·ΔV), where ΔV ≤ 1V). For example, a 500mA load at 100Hz requires ~2500μF to limit ripple to 0.5V. Add a fuse rated at 125% of the maximum current draw; slow-blow types (e.g., 0.5A) prevent nuisance tripping during inrush. Avoid cheap “wall-wart” adapters–many lack proper filtering, introducing 50/60Hz noise that couples into high-gain amplifiers.
