Complete Western Unimount Plow Wiring Diagram Guide for Installation

Connect the solenoid control wire (typically red or orange) directly to the 12V ignition-switched circuit using a ANL fuse rated for 20 amps–this prevents voltage drops during heavy loads. Use 10-gauge marine-grade wire for all primary power feeds; anything thinner risks overheating under prolonged use. The harnesses on most commercial blade systems include a relay-triggered headlight circuit–verify compatibility with your vehicle’s existing lighting arrangement before splicing.

Locate the ground lug at the base of the mounting frame–attach it to a clean, bare metal surface on the vehicle’s chassis using a #10 stainless steel bolt. Corrosion here causes intermittent failures; apply dielectric grease to the connection point. The actuator motor requires a dedicated momentary rocker switch wired through a 40-amp circuit breaker to handle surge currents up to 30 amps. Route the actuator wires through a flexible conduit where they pass near rotating parts to prevent chafing.

Avoid tapping into the cigarette lighter circuit for auxiliary functions–these circuits are typically fused at 10-15 amps and will blow under load. Instead, run a separate 12-gauge fused lead from the battery terminal to power the pump motor and controller. The pressure switch (usually wired in series with the pump) must be rated for 5,000 PSI minimum–check the manufacturer’s specs if replacing. For vehicles with can-bus systems, install a load-resistor module to prevent false error codes from triggered headlights.

Label every wire termination with heat-shrink tubing identifiers–red for power, black for ground, yellow for signal. Disconnect the negative battery terminal before starting work to eliminate short-circuit risks. Use a multimeter set to continuity mode to verify each connection before applying power. Store spare fuses and connectors in a waterproof case mounted inside the truck cab for quick access during winter operations.

Snow Removal Equipment Electrical Schematic Guide

Disconnect the vehicle battery before handling any electrical connections to prevent accidental shorts or system damage. Verify the fuse ratings on the control module–typically 25-30 amps for primary circuits–match the manufacturer’s specifications in the technical manual. Replace blown fuses immediately; bypassing them risks overheating the harness.

Trace the main power cable from the solenoid to the mounting assembly, ensuring it’s secured away from moving parts. Corrosion on terminal blocks appears as white or green deposits; clean with a wire brush and apply dielectric grease to prevent future oxidation. Check the voltage drop across connections with a multimeter–readings below 11.8V indicate resistance requiring retermination.

Common Failure Points and Solutions

Inspect the relay housing for moisture intrusion, a frequent issue in subzero conditions. Replace relays if clicking sounds occur without activation, as this signals internal contact failure. The motor brushes in the linear actuator wear over time; if the piston moves sluggishly, measure brush length against the service limit (usually 1.5mm minimum).

Label all connectors before disassembly to avoid mismatching during reassembly. The 7-pin harness often frays near the pivot point–reinforce it with heat-shrink tubing or replace the segment entirely. Zener diodes in the control box regulate voltage spikes; if the system intermittently shuts off, test diodes with a multimeter in diode mode (forward bias ~0.7V).

Troubleshooting the Control Interface

Test the joystick resistance values if the actuator responds erratically–calibration requires precise readings (e.g., 0-5kΩ range). Replace the entire hand controller if readings fluctuate unpredictably, as internal potentiometers degrade with use. For wireless models, ensure the receiver antenna isn’t obstructed by metal components; relocate it if interference causes signal drops.

Ground wires must attach directly to bare chassis metal–paint or undercoating creates resistance. Use a self-tapping screw for a secure connection, not sheet metal screws sharing load-bearing stress. If lights flicker during operation, check the alternator output; voltages above 14.5V suggest a failing regulator, which can damage the electrical system.

Store the schematic specific to your model year, as connector pinouts vary between revisions. Third-party repair manuals often omit critical details like torque specs for terminal screws (typically 3-5Nm) or the exact wire gauge for replacement conductors. When splicing wires, use solder and adhesive-lined shrink tube–twist-and-tape methods fail under vibration.

Finding the Right Electrical Schematic for Your Snow Removal Attachment

Start by identifying the exact model number of your vehicle-mounted blade system. Most manufacturers etch this information on a metal plate attached to the lift frame or near the hydraulic pump. If the stamped digits are faded, check the original purchase documents or search online using the serial number found on the unit’s motor housing. Without this key detail, locating accurate diagrams becomes nearly impossible.

Visit the official support portal for your equipment brand. Use the search function with the full model number–partial matches often return irrelevant results. Look for a dedicated section labeled “Technical Resources” or “Documentation.” If schematics aren’t listed, navigate to the “Parts Manual” instead; these often include simplified electrical layouts for major components.

• Check the date of manufacture–older models may have been updated, requiring revision letters (e.g., “Rev B”) to match your unit.
• Download PDFs directly, as browser-based viewers sometimes omit critical details or render incorrect zoom levels.

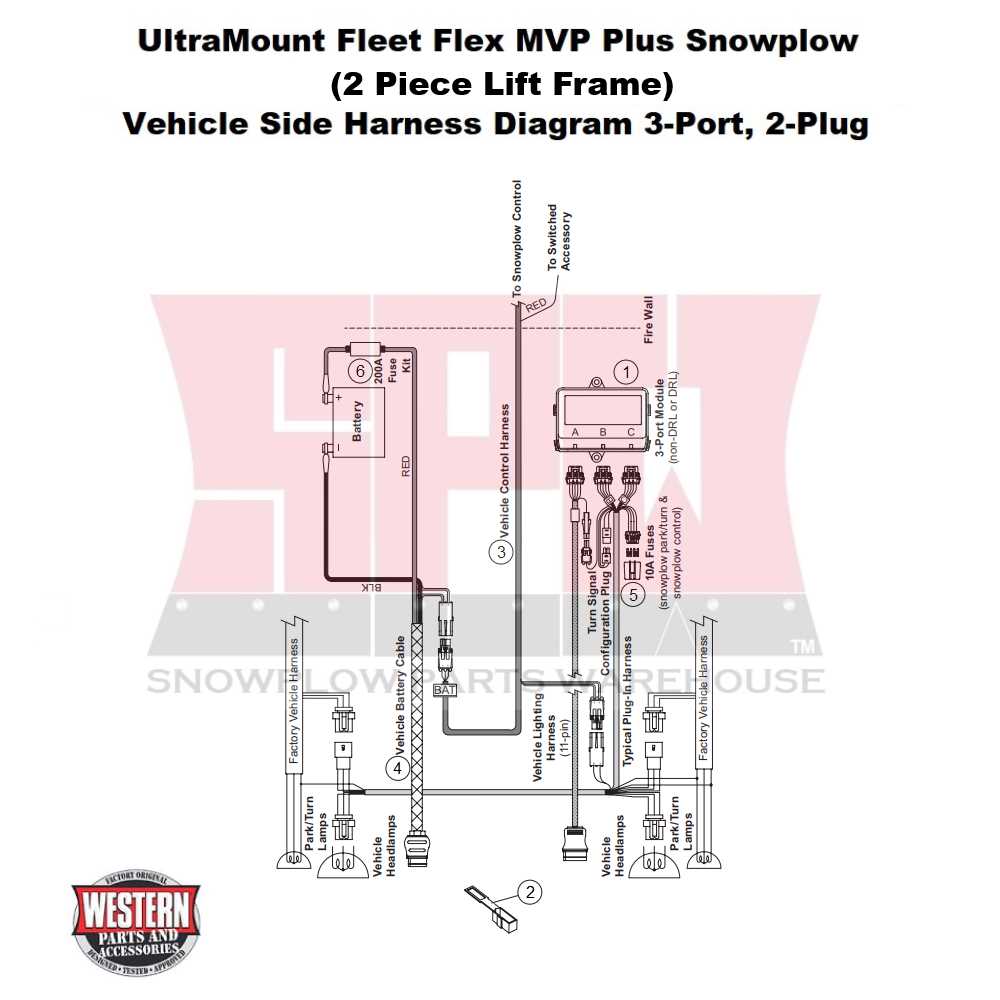

• If no results appear, expand the search to include “Fleet Flex” or “UltraMount” variants–some systems share wiring configurations.

Third-party forums and equipment-specific communities often host user-uploaded schematics when official sources fail. Narrow searches to threads from verified owners or moderators, as amateur sketches frequently contain errors. Cross-reference any downloaded files against at least two other sources before trusting pin assignments or color codes. Pay attention to notes mentioning fuse ratings or relay types, as incorrect values can damage onboard electronics.

If digital sources yield no results, inspect the physical control box. Open the main panel using a Torx or hex driver–common fasteners for heavy-duty casings–and photograph the internal wiring layout before disconnecting anything. Label each harness connector with masking tape and a pen. Use a multimeter set to continuity mode to trace circuits back to their origins in the vehicle’s electrical system, noting color-coded wires and corresponding pin numbers on a hand-drawn sketch. Verify power sources (typically 12V or 24V) and ground connections before reassembly.

Step-by-Step Guide to Connecting Attachment Lights and Power Unit Wires

Locate the harness connector on the vehicle’s front grille–this is typically a 12-pin plug with weatherproof terminals. Identify the three larger gauge wires (usually colored red, black, and green) designated for the actuator motor, and separate them from the smaller wiring bundle intended for lighting. Strip ¼ inch of insulation from each motor wire, then crimp ring terminals sized for 10-12 AWG to ensure solid grounding and power delivery.

Attach the red motor wire to the vehicle’s positive battery terminal using an inline fuse holder rated at 30 amps–position it within 7 inches of the battery to meet safety standards. Secure the black wire to a clean, bare metal surface on the chassis rail, avoiding painted or treated areas to prevent corrosion-induced resistance. Verify ground continuity with a multimeter; readings should not exceed 0.2 ohms.

Route the green motor wire to the control module’s “lift” terminal, typically marked in manufacturer documentation–confirm polarity before connecting. Use dielectric grease on all terminal connections to repel moisture, then secure with heat-shrink tubing after soldering for permanent integrity. Avoid twisting wires; instead, use zip ties spaced every 6 inches to prevent chafing against frame components.

For the lighting circuit, match the auxiliary lamp wires (headlight, turn signals, and marker lights) to the corresponding pins in the vehicle’s harness. Use a test light to confirm voltage at each pin–headlight circuits should show 12-14 volts, while turn signals will pulse intermittently. If voltage is absent, inspect the fuse block (usually 10-15 amp fuses) and relays before proceeding.

Insert the smaller gauge wires into the appropriate slots on the harness plug, ensuring proper alignment–crossed connections can damage light filaments or trigger false error codes in modern vehicles. For halogen bulbs, confirm wire gauge is no less than 16 AWG; LED-equipped units may use thinner wires (18-22 AWG) but require strict adherence to polarity. Double-check all connections against the equipment’s schematic before sealing the harness plug with silicone tape.

Activate the vehicle’s parking lights and hazard signals to verify functionality–observe brightness consistency and blink rate. If LED markers flicker, add a load resistor (typically 6 ohms, 50 watts) in parallel to mimic incandescent load. Complete the installation by securing the control box in a vibration-dampened location, such as under the dashboard, and tighten mounting screws to prevent intermittent disconnects.
