Understanding Schematic Diagrams Key Components and Practical Uses

Grasp the core purpose of electrical layouts immediately: they strip away unnecessary visual noise, focusing solely on how components connect rather than their physical form. By using standardized symbols, these visual maps let engineers, technicians, and designers trace signal paths or power flows in minutes–tasks that would require hours of reverse-engineering from a photo or physical board. A resistor, capacitor, or transistor is represented by a universal glyph, eliminating ambiguity across languages and industries. This abstraction also speeds up troubleshooting: a missing link in a current path stands out instantly when the diagram adheres to clear line conventions.

Prioritize hierarchical structure in your blueprints. Break systems into functional blocks–a power supply cluster, data processing core, or sensor input section–each labeled with concise identifiers. This practice prevents clutter when documenting multilayer setups, ensuring every sub-circuit can be tested or modified independently. Use dotted lines or color-coding to distinguish high-voltage zones from low-power logic, reducing risks of crossed traces during prototyping. Annotations on voltage specs or pin assignments next to symbols further cut debugging time, as critical data stays aligned with the relevant elements without crowding legends.

Adopt net naming for signals spanning multiple pages or sections. Instead of tracking a wire across ten consecutive drawings, assign it a descriptive tag (e.g., VCC3V3_MAIN or DATA_CLK_SYNC) that appears consistently wherever the net connects. Tools like KiCad or Altium enforce this via automated netlist exports, flagging orphaned connections the moment you reroute a component. For reliability, verify that ground symbols (⏚) branch to a single star point in power-sensitive designs, avoiding ground loops that distort measurements or induce noise. If designing embedded systems, separate analog and digital grounds right at the schematic stage–don’t rely on PCB layout software to make the right calls later.

Validate before fabrication: simulate critical paths using built-in simulation profiles in tools like LTspice. Plot voltage dividers under load, check oscillator startup, or model transient responses to confirm your blueprint meets design margins. Export netlists to SPICE decks for temperature sweeps or Monte Carlo analysis, identifying weak components that might fail at voltage extremes. For RF circuits, incorporate Smith charts as overlays to tune matching networks directly from the drawing–avoid guesswork when working with antennas or amplifiers. If the design involves safety-critical elements (medical devices, automotive), add compliance notes beside relevant nodes, such as “Maximum 35V @ 10ms surge” or “Isolation >1000V RMS per IEC 60664.”

Archive native files, not just PDFs. Export to both human-readable formats (.pdf, .svg) and tool-readable formats (.sch, .kicad_sch, .asc) to preserve editability for future revisions. Include a bill of materials layer in the schematic, tagging each symbol with a manufacturer part number and footprint reference. This integration eliminates errors during procurement and assembly, as the same data populates the pick-and-place machine’s feeders. For open-source projects, use consistent open-hardware licenses (CERN OHL) and version control (git) to track lineage–preventing compatibility gaps when collaborators fork the design.

Purpose and Practical Use of Circuit Blueprints

Begin by identifying the core function: a circuit blueprint visually maps component connections in electronic or electrical systems, replacing lengthy descriptions with clear symbols. Use standardized icons (e.g., resistors as zigzags, capacitors as parallel lines) to ensure immediate recognition across teams. Prioritize readability by grouping related elements–power rails, signal paths, ground symbols–into logical clusters, not scattering them randomly. For complex designs, split into sub-circuits on separate sheets, labeling each with cross-references (e.g., “U1 Pin 5 → Sheet 3, Net A”) to avoid tracing wires manually.

Key Rules for Accurate Interpretation

• Replace ambiguous hand-drawn notes with precise line weights: 0.3mm for signal traces, 0.6mm for power, dashed lines for optional pathways.
• Annotate every component with values (e.g., “R1 10kΩ”) and reference designators (e.g., “C3 22µF”) directly on the blueprint.
• Color-code nets if necessary: red for positive voltage, blue for ground, green for signals, but ensure the file remains legible in grayscale for printouts.
• Validate all connections against the bill of materials (BOM) before prototyping–mismatched pinouts cause 70% of early-stage failures.
• Include a revision history block with dates, author initials, and concise change descriptions (e.g., “v2: Moved Q2 to improve thermal dissipation”).

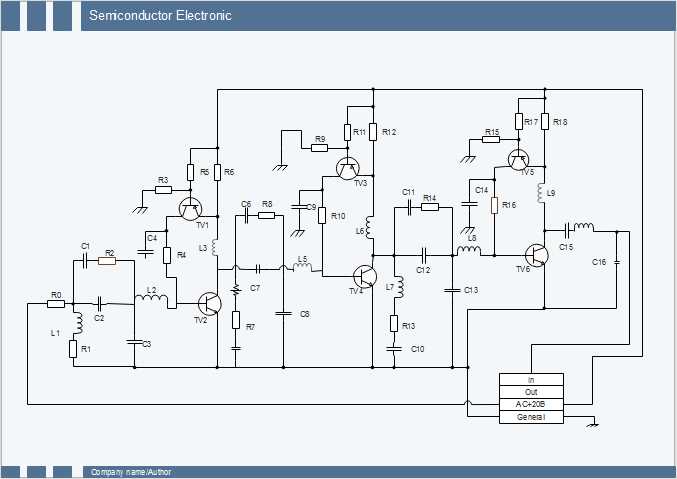

Core Components Represented in Electrical Blueprint Essentials

Begin by identifying power sources–batteries, AC/DC supplies, or generators–since they dictate circuit behavior. Label voltage and current ratings directly on symbols to avoid miscalculations during prototyping. Use standardized IEC or ANSI symbols for consistency; deviations risk misinterpretation.

Resistors, capacitors, and inductors form passive building blocks. Indicate resistance values in ohms, capacitance in farads, and inductance in henries. For precision, add tolerance percentages (±5%, 10%) to prevent thermal or frequency drift. Group decoupling capacitors near ICs to stabilize voltage rails.

Active Elements and Their Critical Annotations

Transistors (BJTs, FETs, MOSFETs) require gate/base resistor values, polarity markings, and heat dissipation specs. Diodes demand reverse breakdown voltages and forward current limits–omissions risk thermal runaway. Include LED forward voltages (e.g., 2V for red, 3.3V for white) to ensure proper current-limiting resistor selection.

Integrated circuits need pinouts aligned with datasheets. Number pins clockwise from the top-left notch or dot. Connect unused inputs to ground or VCC via pull-up/down resistors to prevent floating states. Ground symbols should branch radially, never daisy-chained, to avoid ground loops.

Switches and relays must show throw configurations (SPST, DPDT) and contact ratings. Specify mechanical vs. solid-state types for switching speed requirements. For relays, add coil voltage and contact current capacity to ensure compatibility with load demands.

Signal Paths and Interconnectivity Rules

Draw signal lines horizontally/vertically; diagonal lines invite misreading. Differentiate buses by thickness–thicker for power, thinner for control signals. Color-code if possible: red for power, blue for ground, green for data. Label net names consistently (e.g., “VCC_5V,” “GND_ANALOG”) to cross-reference with PCB layouts.

Connectors require pin numbering matching device footprints. Note gender (male/female) and mating cycles (e.g., 500 cycles for high-reliability designs). Include shielding symbols if EMI mitigation is needed, specifying material (e.g., copper braid).

Fuses and circuit breakers need current ratings (e.g., 500mA slow-blow) and interrupt capacity. Locate them immediately after power entry to protect downstream components. Add test points near critical nodes for debugging, labeling them (TP1, TP2) with expected voltage ranges.

Microcontrollers and processors benefit from power-up sequencing annotations. Indicate reset pin requirements (active-high/low) and decoupling capacitor placement. For clock signals, specify frequency and rise/fall times to ensure proper oscillator operation. Isolate analog and digital grounds at the source to minimize noise coupling.

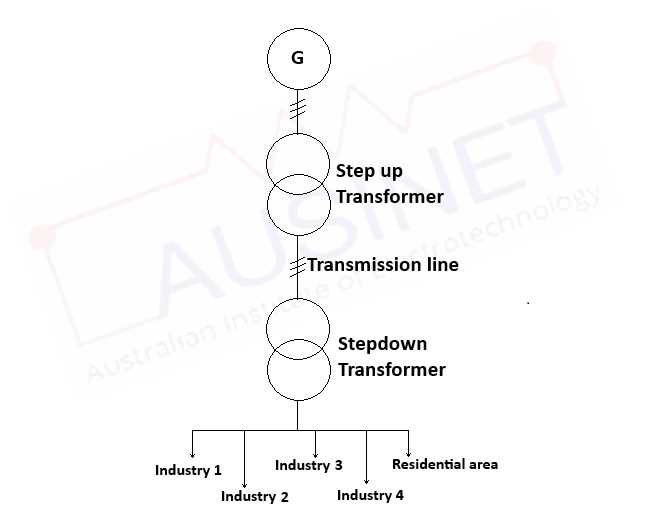

How to Tell Block Plans from Connection Layouts

Examine functional elements first–a block plan strips every component to its core logic, using symbols like rectangles for logic gates, circles for power nodes, or arrows for signal flow. Connection layouts, however, label every physical wire, terminal, or splice point with exact colors, gauge, and connector types, turning abstract functions into a literal roadmap of copper paths.

Trace the arrows: in logic representations, signals move along thin dashed lines indicating control flows or data buses, while harness blueprints show fat solid lines linking real-world switches, relays, or sensors directly. If you spot twisted-pair notation or shielded cables marked “S” or “T,” you’re holding a wiring layout–not a logic chart.

Check for node labels–engineering abstractions omit labels beyond “IC1” or “Q2,” whereas wiring schematics plaster every junction with exact terminal numbers: “J4-7 (BLU/YEL)” or “Fuse #12 (10A).”

Ask “does this include mounting screws, fuse ratings, or crimp specs?” If yes, it’s a harness diagram; no structural details equal a logic diagram.

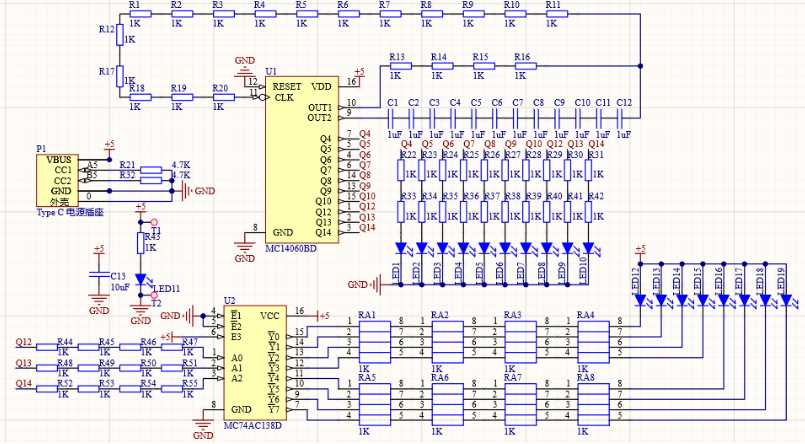

Step-by-Step Process for Interpreting Circuit Blueprints

Begin by identifying power sources–look for symbols representing batteries, voltage regulators, or AC inputs. Mark their polarity (positive/negative) and note labelled values (e.g., 5V, 12V). Trace connections from these sources to ground references, ensuring no floating components exist without a return path. Skip ambiguous annotations; prioritize clear voltage rails.

Locate active components (transistors, ICs, microcontrollers) and isolate their pin configurations. Cross-reference datasheets for pin functions:

• VCC/V_DD: Power input
• GND: Common ground
• I/O: Signal paths

Verify signal flow by following lines from inputs to outputs. Use net labels (e.g., “RX,” “SDA”) to track interconnected nodes across large prints.

Examine passive elements–resistors, capacitors, inductors–checking their roles in filtering, coupling, or biasing. Key details include:

1. Resistor values (ohms, tolerance)
2. Capacitor types (electrolytic, ceramic) and values (µF, pF)
3. Inductor cores (ferrite, air)

Spot series/parallel arrangements; calculate total impedance if critical to functionality. Ignore non-critical components during initial passes.

Validate connections by physically tracing paths with a multimeter in continuity mode. Note unexpected jumps (vias, jumpers) or implicit assumptions (e.g., shared ground planes). Document unknown symbols in a separate list for later research. Revisit ambiguous sections after grasping core functionality–complex layers often become clearer in context.
