Complete Guide to Drawing a Whole House Dehumidifier Circuit Layout

Install a dedicated 20-amp circuit with 12-gauge wiring for any central air quality unit exceeding 35 pints per day capacity. Factory pre-wired models require nothing more than connecting the power feed to the unit’s terminal block–typically labeled L (hot), N (neutral), and G (ground). Verify the incoming voltage matches the nameplate rating (±5%) before energizing to prevent compressor burnout.

For units lacking built-in controls, integrate a humidity sensor (HSM) between the return air plenum and the evaporator coil. Mount the sensor minimum 12 inches downstream from any duct elbows to avoid false readings from air turbulence. Wire the sensor’s NC (normally closed) relay in series with the unit’s compressor contactor coil–this ensures automatic shutdown when relative humidity drops below the setpoint (commonly 55–60% RH).

Use shielded 18-gauge twisted pair for all low-voltage signal wiring (sensor to control board) to minimize electromagnetic interference from blower motors. Ground the shield at one end only–never both–to prevent ground loops. Route power and signal cables in separate conduits, maintaining 6-inch separation where they must cross.

Size a start capacitor (if not included) at 180–220 µF per horsepower for single-phase compressor motors. Connect it across the run and start windings via a potential relay (PR) rated for the motor’s locked-rotor amperage. Test relay operation by simulating a startup surge–verify the PR drops out within 3–5 seconds to avoid winding overheating.

Install a drain pan overflow switch (normally open) on the secondary condensate pan. Wire it in series with the blower relay coil to cut fan power if drainage clogs–the switch should activate at 0.25 inches of water level. Route condensate lines with a 1/4-inch-per-foot slope to prevent standing water, and add a trap 4 inches deep to stop airlocks in negative-pressure systems.

Label every wire termination with heat-shrink tubing marking:

L1/L2 (line), C (common), S (sensor), PR (potential relay), O (overflow).

Secure all splices with crimp connectors (not wire nuts) and wrap with self-fusing silicone tape. Energize the system only after verifying zero continuity between all live conductors and ground with a multimeter.

Central Humidity Control Unit Wiring Guide

Install a dedicated 240V circuit with a minimum 20-amp breaker for residential central systems. Connect the compressor to L1 and L2 terminals, ensuring a direct line without intermediate switches. Use 10-gauge copper wiring for runs under 50 feet; upgrade to 8-gauge for longer distances to prevent voltage drop. The evaporator coil must tie into the existing ductwork downstream of the air handler, using a bypass damper controlled by a 24V humidistat set to 50-55% RH. Include a condensate pump with a ½-inch PVC discharge line sloped at ¼ inch per foot to prevent standing water.

Key Component Integration

Route low-voltage thermostat wires (18-gauge solid) from the control board to the humidistat, using separate R (power), G (fan), Y (compressor), and W (aux heat) terminals. Bond the unit’s chassis to the home grounding system with a 6-gauge bare copper wire connected to the nearest ground rod. For variable-speed models, wire the ECM motor to the control board’s designated PWM terminals, ensuring polarity matches the motor label. Install a surge protector with 30kA clamping voltage between the power source and the unit’s main relay to protect against transient spikes.

Critical Elements of a Residential Humidity Control System Blueprint

Install a dual-capacitor motor rated for continuous operation at 230V/15A with thermal overload protection. Ensure the compressor uses R-410A refrigerant, sized for 50-60 pints daily capacity in climates exceeding 60% relative humidity. Pair it with a low-pressure switch (cut-out at 50 PSI, cut-in at 100 PSI) to prevent coil freeze-up during prolonged cycles.

Integrate a 10-kΩ NTC thermistor at the evaporator coil to regulate fan speed via PWM signal from the control board–accuracy within ±0.5°C prevents short cycling. The drainage pump must handle 20 liters/hour with a 1.5-meter vertical lift, featuring automatic shut-off via float switch to avoid overflow. Include a 20x40mm MERV-11 filter upstream of the blower to trap 3.0-micron particles, reducing microbial growth on coils.

Use a solid-state relay with 40A rating for compressor control, driven by a microcontroller sampling humidity every 30 seconds via a Honeywell HIH-4000 sensor (±3% accuracy). The power supply should deliver 24VDC/3A to the board, fused at 5A, with EMI filtering to suppress transient spikes from capacitor start-up. Route condensate lines in 1/2″ PVC with 1% slope to prevent standing water, terminating in a P-trap 6″ above the discharge point.

Step-by-Step Wiring Connections for Climate Regulation Panel

Secure the main power feed to the control board’s L and N terminals using 12-gauge solid copper wire. Verify the circuit breaker rating matches the unit’s specifications–typically 15 or 20 amps for residential systems. Strip 10mm of insulation from each wire end, ensuring no strands protrude beyond the terminal clamp. Tighten screws to 2.5Nm torque to prevent loosening due to vibration.

• Connect the hot (L) wire to the marked terminal, usually indicated in red or black on the board.
• Attach the neutral (N) wire to the adjacent terminal, often labeled in white or blue.
• Ground the system by linking the bare or green wire to the dedicated grounding post–never skip this step.

Attach humidity sensor wires next. Most boards require a 3-wire connection: +5V, signal, and ground. Solder joints if the manufacturer provides bare leads; otherwise, use crimp connectors rated for 22-18 AWG. Keep sensor cables away from high-current lines to avoid signal interference. Test continuity with a multimeter before finalizing connections.

For fan control, locate the designated output terminals. Use a relay if the board lacks built-in switching–opt for a 10A SPDT model to handle inductive loads. Route the fan’s power wire through the relay coil, then connect the contact points to the board’s fan output. Confirm the relay’s coil voltage (5V, 12V, or 24V) matches the board’s output.

Humidity actuator wiring depends on the valve type. For a 24VAC solenoid, connect the board’s RH and W terminals to the valve’s input. If using a 120VAC actuator, wire it directly through a separate relay, triggered by the board’s low-voltage output. Always fuse actuator circuits–typically 1A for 24V and 3A for 120V.

1. Label all wires with heat-shrink tags before final assembly.
2. Bundle cables using nylon ties, spacing ties every 15cm for strain relief.
3. Protect exposed connections with waterproof conduit if the unit is installed in damp environments.

After completing wiring, perform a dry run using a plug-in variable transformer. Gradually increase voltage while monitoring current draw with a clamp meter. Listen for unusual noises–humming or buzzing may indicate loose connections or incorrect relay engagement. If the system fails to initialize, recheck sensor wiring and board firmware version compatibility.

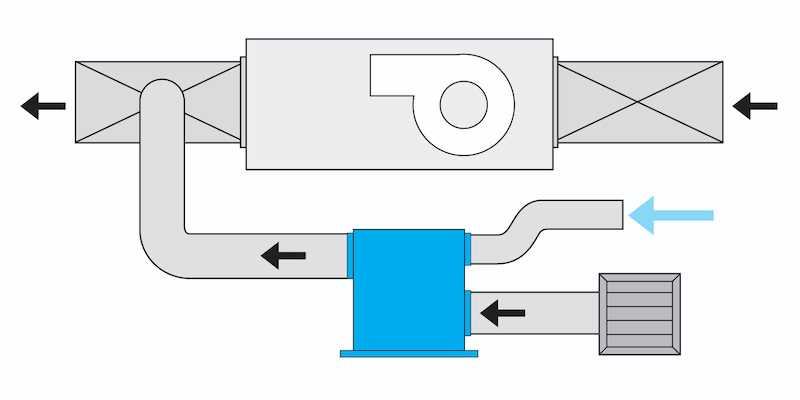

Integrating Humidity Control Units with Central Air Duct Systems

Install the moisture remover downstream of the cooling coil in your forced-air system to prevent reheating conditioned air. Position the intake port where return ducts converge, typically near the air handler, ensuring the unit samples blended airflow from all zones. Use a 10-inch diameter insulated flex duct with a minimum 90 CFM capacity for connections under 15 feet; increase to 12-inch diameter for runs exceeding 20 feet to maintain efficiency.

Wire the control unit directly to the HVAC blower circuit with a 24V isolation relay to synchronize operation. Configure the humidistat to trigger at 55% relative humidity, adjusting the differential to ±2% to avoid short cycling. For systems with zoning, install separate sensors in high-moisture areas like bathrooms and basements, linking them to a multi-stage controller to prioritize zones based on real-time readings.

Seal all duct connections with foil tape and mastic compound, focusing on joints where air leakage exceeds 5%. Route condensed water through a 3/4-inch PVC drain line sloped at 1/4 inch per foot, terminating in a floor drain or utility sink with an air gap. For units exceeding 90 pints per day capacity, integrate a secondary drain pan with a float switch wired to cut power if primary drainage fails.

Calibrate airflow after installation by verifying static pressure at the unit’s intake with a manometer; target 0.5 inches of water column for optimal performance. For gas furnaces, ensure combustion air remains uncontaminated by isolating the removal unit’s exhaust stream. Monitor dew point differentials between supply and return ducts–ideal separation is 10-15°F–to confirm proper latent heat extraction without over-drying conditioned spaces.

Power Requirements and Electrical Safety for Large-Capacity Units

Install a dedicated 20-amp circuit for high-capacity moisture control systems rated above 30 pints per day. Most residential units in this range draw 7.5–9 amps during startup and 5–7 amps during steady-state operation. Verify the nameplate amperage before connecting to avoid tripping breakers or overheating wiring. Use 12-gauge copper wire for circuits up to 20 feet; increase to 10-gauge for longer runs exceeding 50 feet to prevent voltage drop exceeding 3%.

Check the blower motor’s locked rotor amperage (LRA), typically 3–5 times the running amperage, when selecting breakers. A 40-pint unit with a 6-amp fan may spike to 24 amps during startup. A standard 20-amp breaker tolerates this brief surge but consistently tripping indicates undersized wiring or a faulty motor. Replace breakers with slow-blow thermal-magnetic types if nuisance tripping occurs–these withstand transient spikes while protecting against sustained overloads.

Unit Capacity (pints/day)	Running Amps (typical)	Start-Up Amps (LRA)	Minimum Wire Gauge (Cu)	Recommended Breaker (amp)
30–35	4.5–5.2	18–22	12	15
40–45	6.0–7.0	24–28	12	20
50–70	7.5–9.0	30–36	10	20–25

Ground all metal enclosures and exposed conductive parts to a dedicated grounding electrode per NEC 250.134. Use a green-insulated copper wire sized no smaller than the circuit conductors–12 AWG for 20-amp circuits, 10 AWG for 30-amp circuits. Avoid relying on conduit as the sole grounding path; corrosion or loose fittings create hazardous resistance. Test continuity with a multimeter–resistance between chassis and grounding rod should read

Equip units with arc-fault circuit interrupters (AFCI) if installed in living spaces where furnishings increase fire risk. GFCI protection is required for outlets near water sources, but avoid combining GFCI and AFCI on compressor circuits–nuisance tripping from motor inductive loads occurs in 15–20% of installations. For outdoor or basement placements, use weatherproof disconnects rated NEMA 3R, mounted within sight but outside the immediate drip zone. Seal all conduit entries with listed fittings to prevent moisture ingress.

Capacitors in compressor circuits can retain lethal charges even when power is off. Discharge capacitors before servicing–use a 20,000-ohm, 2-watt resistor across terminals for 5 seconds. Replace start/run capacitors if bulging, leaking, or testing
