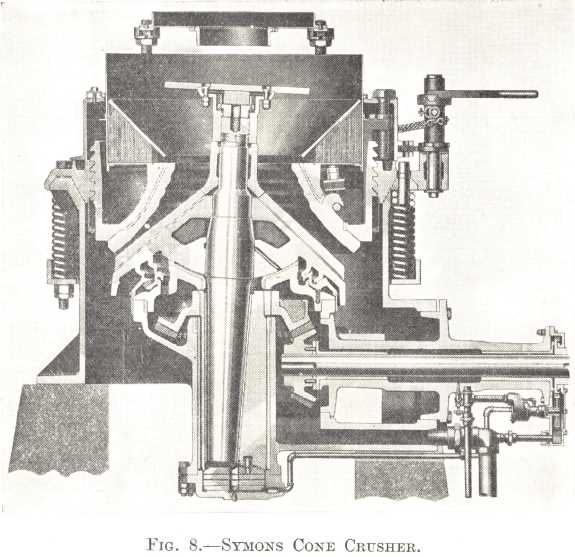

Understanding Cone Crusher Schematics Key Components and Workflow
Begin by isolating the core assembly zones when analyzing performance constraints in reduction machinery. The primary compressive stage–located between the concave mantle and eccentric shaft–dictates throughput efficiency. A misalignment of merely 2 millimeters in the drive ring assembly reduces output by 18%, while accelerated wear occurs at a rate of 0.3mm per 100 operating hours if lubricant viscosity deviates from ISO VG 460 specifications.
Track the hydraulic adjustment system first: the tramp release circuit must maintain a baseline pressure of 30–40 bar to prevent material jamming. Any pressure drop below this threshold triggers false reset cycles, extending downtime by 40%. Replace cartridge valves every 1,200 hours–sooner if contamination exceeds 24/24 ISO 4406 cleanliness–otherwise pump actuation lags, stalling feed regulation.
Examine the eccentric bushing clearance next. A tolerance range of 0.04–0.06mm ensures consistent gyration amplitude; deviations above 0.08mm induce chatter, fracturing processed aggregate prematurely. Use laser alignment tools for verification–manual measurements produce errors exceeding 12%. Shim adjustments should target even preload across the bowl support ring; uneven distribution creates hotspots, deforming critical wear surfaces within 2,000 cycles.
Monitor the feed distributor’s structural integrity. A cracked spider arm disrupts even material dispersion, causing skewed loading. Thermal imagery reveals stress concentrations as small as 1°C differentials–install fiber-optic sensors for real-time strain mapping. Replace the arm if flex exceeds 0.005 radians; partial fractures propagate at 0.2mm per 100 impact events, compromising payload uniformity.
Verify the torque limiter calibration. The shear pin must disconnect at 1,800 Nm ±5% to protect the countershaft–variations beyond this window risk spline stripping. Test under dynamic load; static bench measurements underestimate peak stress by 22%. Replace shear elements annually; fatigue sets in after 8,500 engagement cycles even if torque thresholds remain nominal.
Understanding the Technical Blueprint of Vertical Compression Machines
Begin by locating the power source connections on the right side of the illustration–these typically outline hydraulic or electric motor inputs with distinct color codes. Red lines indicate high-voltage circuits, while blue denotes control or low-voltage pathways. Verify these against the manufacturer’s specifications to avoid cross-wiring faults.
Examine the primary assembly’s layered structure:
- Upper mantle (adjustable closed-side gap via vertical actuator)
- Fixed concave liner (wear-resistant alloy, thickness varies by model)
- Eccentric drive shaft (rotates at 250–400 RPM, torque rated 500–1500 Nm)
- Spring or hydraulic overload system (calibrate to 80–90% of chamber pressure)
Each component should align within ±0.5 mm tolerance to prevent uneven wear.
Identify the lubrication circuit–typically a closed-loop system with dual pumps:
- Primary pump (30 L/min) feeds the eccentric bearing
- Secondary pump (10 L/min) lubricates gear interfaces
Filter micron ratings (25μm nominal) must match the oil viscosity (ISO 220–320 for ambient temps below 10°C). Replace filters every 200 operating hours or when differential pressure exceeds 1.5 bar.
Trace the material flow path:
For abrasive materials (Mohs >6), replace liners at 80% wear limit–use ultrasonic thickness gauges for non-destructive measurement.
Fault detection points in the drawing include:
- Vibration sensors (mounted on the upper frame, trigger at ≥12 mm/s RMS)
- Thermal probes (embedded in bearings, trip at 85°C)
- Pressure transducers (hydraulic circuit, alarm at
Install redundancy for sensors in high-dust environments (IP67 rating minimum).
Electrical safety features:
Isolate all high-voltage terminals with 2 mm clearance and reinforced insulation (test at 2.5 kV for 1 minute).
For retrofit applications:
Document modifications in the blueprint revision log–include date, technician ID, and pre/post-measurement values.

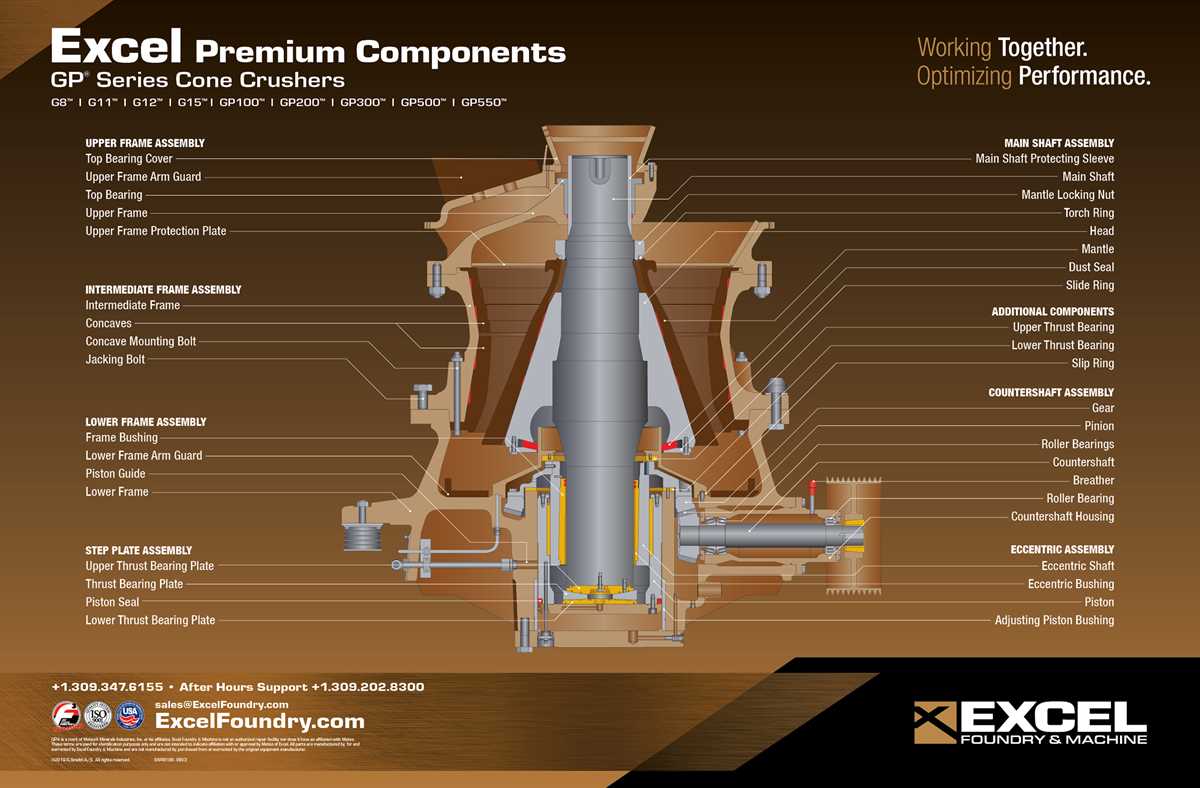

Key Elements Shown in a Compression Breaker Blueprint
Focus on the main shaft assembly first–its alignment dictates wear patterns and operational stability. A misaligned shaft accelerates liner erosion, reducing throughput by up to 30%. Verify the position of thrust bearings and check for proper lubrication intervals every 200 hours; neglect here leads to catastrophic failure. Replace worn liners when thickness drops below 20% of original dimensions to maintain consistent product gradation.
- Mantle: Inspect for cracks or uneven wear–replace if hollow sounds occur during tapping tests.
- Concave: Monitor gap between concave and mantle; adjust to manufacturer specs (±0.5 mm) for optimal particle size.
- Adjustment ring: Lock with specified torque (120-150 Nm) to prevent unwanted movement during operation.
- Eccentric assembly: Ensure balanced rotation–imbalance causes vibration, increasing bearing stress by 40%.
Prioritize the hydraulic system. Pressure settings directly impact product fineness–low pressure (below 30 bar) produces coarser output, while high pressure (above 50 bar) risks overloading the motor. Use ISO VG 460 oil for ambient temperatures above 30°C and replace filters every 500 hours. Track amperage draw during startup; spikes indicate misalignment or excessive feed size, requiring immediate feed rate adjustments.
Decoding Industrial Grinder Blueprints
Locate the central axis first–it’s the vertical line intersecting the pivot point, typically marked with precise measurements in millimeters. Cross-reference these values against the equipment’s technical manual to verify alignment tolerances, usually ±0.2mm for standard models. Note lateral components branching from this axis: feed inlet (upper left quadrant), product outlet (lower right), and moving mantle (elongated oval). The stationary bowl ring, often depicted as concentric circles, should show a clearance gap–record this dimension as it directly impacts particle size distribution.
Identifying Critical Subsystems
Trace hydraulic lines–solid red indicates pressure supply, dashed blue denotes return flow. Check valve symbols (spring-loaded rectangles) near the accumulator; count them to ensure redundancy matches safety protocols. Power transmission elements appear as gear trains: count teeth ratios stamped adjacent to spur symbols, divide driven gear teeth by driving gear teeth to determine speed reduction. Electrical wiring terminates at a star-delta switch; confirm voltage labels (400V/3ph) align with nameplate specifications. Lubrication ports resemble inverted triangles–verify quantity and position against maintenance schedules.
Step-by-Step Process for Evaluating an Ore Reduction Machine Wiring Configuration
Begin by physically tracing each power line from the main breaker panel to individual motor controllers. Label all junctions, terminals, and disconnects with alphanumeric codes matching the reference drawing. If labels are missing, apply heat-resistant tags and record their positions in a logbook before proceeding.
Verify voltage levels at critical points using a calibrated multimeter. Measure between phases at the starter terminals (L1-L2, L2-L3, L1-L3) and confirm values within ±5% of system specifications. For 480V three-phase systems, aim for 456–504V; deviations indicate potential cable resistance or overload conditions.
Control Circuit Validation
Isolate the control voltage by switching off the main breaker while keeping toggle switches in their operational state. Test each relay coil, limit switch, and solenoid with a 24V or 120V test probe–listen for audible clicks or check for continuity. Replace any relay showing resistance outside 50–200 ohms for 24VDC coils or 300–1000 ohms for 120VAC variants.
Inspect PLC interface wiring if present. Confirm analog signals (4–20mA sensors) using a loop calibrator–expected input should stabilize within 0.1mA of the sensor’s output. Cross-reference digital inputs with ladder logic diagrams to ensure proximity switches align with safeties like hopper gates or lid locks.
Examine ground bonding using a micro-ohmmeter. Measure resistance between motor frames and the main ground bus; values above 0.1 ohms require additional star washers or copper braid jumpers. Pay special attention to stainless steel components–anti-seize compound on bolts reduces galvanic corrosion, ensuring reliable grounding.
Thermal and Overload Protection Checks
Test bimetallic overload heaters by simulating trip conditions. Apply controlled current (typically 110–125% of FLA) using a loop simulator and monitor trip time–standards require activation within 30–180 seconds. For solid-state overloads, verify trip curves match manufacturer settings via onboard configuration menus.
Review thermal imaging records if available. Hotspots above 80°C at cable terminations or motor windings indicate loose connections–re-torque lugs to 15–20Nm for AWG 6-2 conductors. Document temperature gradients across contactors; asymmetrical heating signals phase imbalance or excessive load sharing.
Conclude by running a no-load test. Energize the system in manual mode and observe sequence timing–standard hydraulic pumps should reach 1500 RPM within 3–5 seconds, while material feed belts stabilize at ±2 RPM. Log all readings in a spreadsheet, flagging any parameter exceeding design tolerances for corrective action.
