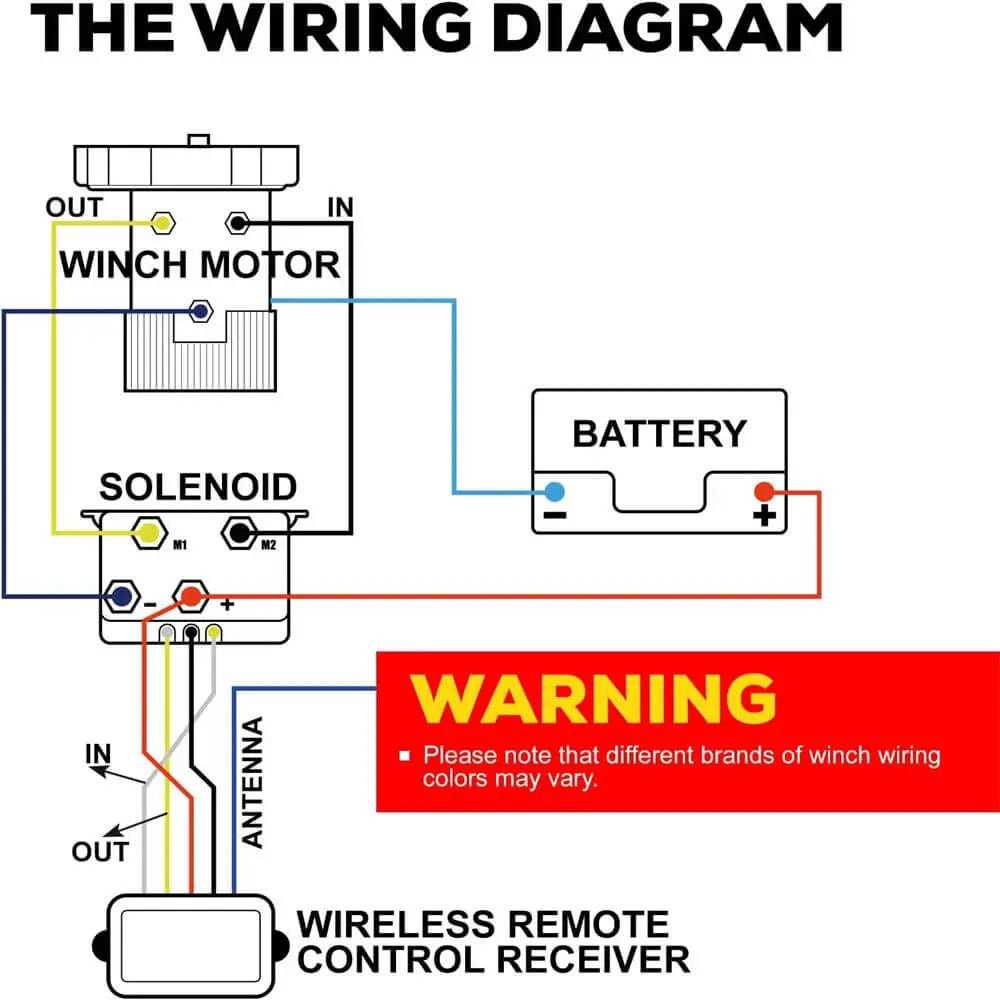

How to Wire a Winch Wireless Remote Control Full Diagram Guide
For a standard 12V setup, connect the receiver’s power lead directly to the vehicle’s battery positive terminal using 8-gauge wire–any thinner gauge risks voltage drop under load, especially during prolonged pulls. Ground the receiver to the chassis near the mounting location; avoid daisy-chaining grounds to prevent signal interference. If the control unit includes a fuse holder, use a 30-amp fuse within 7 inches of the battery to protect the circuit.
Signal wires from the receiver to the solenoid assembly must follow a twisted pair configuration–this minimizes RF noise that can cause erratic activation. Shielded cable isn’t necessary unless the system operates in high-electrical-noise environments (e.g., near ignition coils or alternators). For dual-solenoid setups, ensure polarity matches the relay terminals; reversing them can burn out the contacts within seconds.
If integrating with an existing vehicle harness, splice connections using solder-and-heat-shrink junctions rather than crimp connectors–vibration from off-road use will loosen crimps over time. When routing cables, keep them at least 6 inches from high-current lines (starter wires, headlight circuits) to avoid induced currents that can trigger false signals. Test continuity with a multimeter before securing cables; a single broken strand in a 4-gauge wire can cause intermittent failures.
For auxiliary functions like LED indicators, tap into the receiver’s status output pin–this avoids overloading the main control circuit. If the system supports multiple channels, verify each channel’s function with a load test (e.g., a 55W headlight bulb) before trusting it with heavy-duty operation. Never exceed the receiver’s rated current draw, typically 10–15 amps continuous; heavier loads require a relay.
Towing Control System Off-Grid Connection Guide
Start by identifying the receiver unit’s power input: most compact controllers for heavy-duty pulling equipment operate on 12VDC, requiring a direct link to the vehicle’s battery via an inline fuse rated at 10A minimum. Measure voltage drop across the positive and negative terminals before securing connections–fluctuations above 0.5V indicate corroded wiring or undersized conductors, which must be replaced with 16-gauge copper-stranded cable for distances under 5 meters, or 14-gauge for runs exceeding that length.
Install a dedicated relay module between the handheld transmitter and the motor assembly to prevent voltage sag during peak load. Use a four-pin SPDT relay with the following pin assignments: 85 to the control box’s signal output, 86 to the battery’s positive lead fused at 5A, 87 to the motor’s positive terminal, and 30 to the battery’s main power line. This isolates the low-current trigger from the high-amperage circuit, reducing electromagnetic interference that can disrupt signal transmission.
| Component | Wire Gauge (AWG) | Max Current (A) | Recommended Fuse (A) |
|---|---|---|---|
| Battery to relay | 6 | 60 | 50 |
| Relay to motor | 8 | 40 | 30 |
| Transmitter trigger | 18 | 5 | 5 |
Solder all connections using rosin flux to prevent oxidation; shrink tubing alone is insufficient for outdoor exposure–apply dielectric grease after soldering to block moisture ingress. Route cables away from rotating components and exhaust manifolds, securing them with nylon ties every 30 centimeters to prevent chafing. Test continuity with a multimeter set to ohms mode: resistance above 0.3Ω between any terminal pair suggests a faulty joint requiring resoldering.
For systems integrating a solenoid pack, wire the receiver’s auxiliary output to the solenoid’s coil input, matching polarity per the manufacturer’s pinout. Polarity reversal can fry the relay board–verify with a diode test before powering on. If the control interface features a digital display, ensure the ground plane is shared between the display and the radio module to prevent ground loop noise, which manifests as erratic button response or screen flicker.
Before finalizing the setup, program the transmitter’s frequency pairing mode: press and hold the “SET” button on the handheld unit while powering the receiver until the LED flashes twice, indicating successful sync. Check range in an open area; obstacles like metal body panels can reduce effective distance by up to 40%. If signal dropouts occur, relocate the receiver antenna at least 30 centimeters from any grounded surface and reorient it vertically for optimal reception.
Troubleshooting Signal Interference
If the handheld unit fails to activate the pulling mechanism, first inspect the battery’s state of charge–voltage below 11.8V under load necessitates recharging. Next, examine the relay contacts with a continuity tester: resistance exceeding 0.1Ω indicates pitted contacts requiring replacement. For intermittent control issues, swap the receiver’s antenna with a 2.4GHz dipole upgrade; stock antennas often suffer from signal attenuation in urban environments or dense foliage.

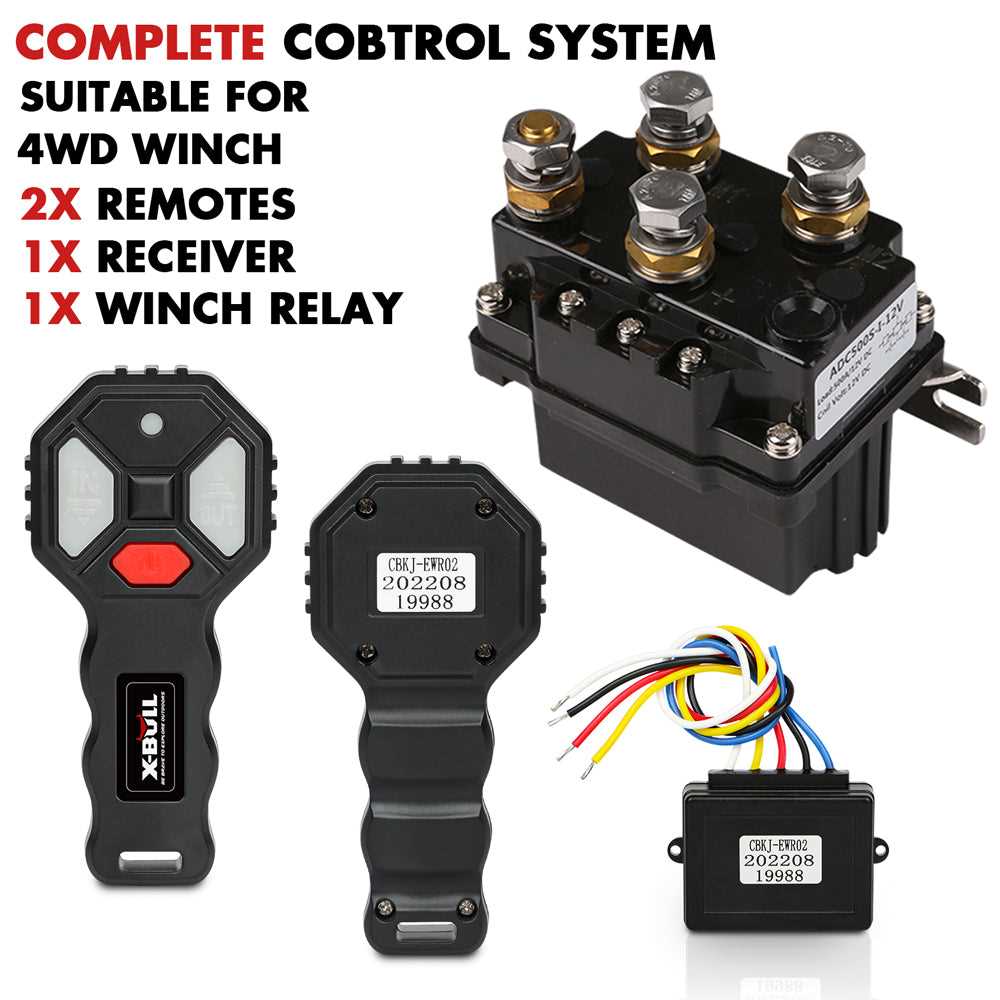

Key Parts Needed for Off-Grid Lever Controller Setup
Start with a receiver module rated for at least 15A continuous current to handle the load of a heavy-duty pulling device. Look for units with dual-channel outputs if you need separate control for forward and reverse operations. Models like the HF 27092 or Pro-Lift X99 include built-in relays, eliminating the need for external switches.
Choose a handheld transmitter with a minimum range of 50 feet for reliable field operation. Frequency compatibility is critical–match 315MHz or 433MHz models to your receiver. Avoid generic knockoffs; OEM or reputable aftermarket brands (e.g., Viper, Smittybilt) include error-checking protocols to prevent signal interference.
For power delivery, use 12-gauge stranded copper wire between the battery and controller–thinner wire risks voltage drop under load. Add a 30A inline fuse within 7 inches of the battery terminal to meet safety standards. If integrating into a vehicle’s electrical system, bypass the ignition switch to prevent unintended drain when the engine is off.
Mount the receiver in a waterproof enclosure if exposing it to moisture. Die-cast aluminum boxes with rubber gasket seals (e.g., Bud Industries AN-1301) work well. Secure all connections with solder and heat-shrink tubing to prevent corrosion–twist-and-tape methods fail over time.
Verify the actuator’s solenoid compatibility before finalizing the setup. Some high-amperage systems require a separate relay panel; others accept direct outputs from the receiver. Test resistance across trigger points–values below 0.5 ohms indicate a healthy circuit, while higher readings suggest poor connections or undersized wiring.
Label every wire with color-coded heat-shrink sleeves during installation. Document the setup with a quick-reference chart noting voltage readings at key points (e.g., before/after fuses, at the actuator). Store spare fuses, connectors, and a multimeter in the vehicle for troubleshooting–diagnosing issues in the field without these adds unnecessary downtime.
Guide to Establishing Control Link Between Pulling Device and Handheld Transmitter
Disconnect the vehicle’s power source before proceeding. Locate the solenoid box–typically a compact unit with four terminals labeled A, F, B, and M. Identify the two thicker cables (usually red) connected to A and B; these carry the primary current from the battery. Strip 10mm of insulation from the ends of two 6AWG cables and crimp ring terminals onto them. Secure these to the A and B posts, ensuring the connection is tight to prevent voltage drop under load.
Trace the outgoing leads from the solenoid to the control module–look for a pair of thinner wires (commonly 14-16AWG) exiting the unit. These correspond to the in/out commands. Cut the factory leads 15cm from the solenoid, leaving enough length for reconnection. Splice the corresponding wires from the handheld receiver’s output harness into these cuts. Use waterproof butt connectors and a crimping tool; solder the joints for corrosion resistance, then seal with adhesive-lined shrink tubing.
Mount the receiver within 30cm of the solenoid to minimize interference. Route the antenna cable away from metal surfaces–ideally along the vehicle’s frame rail–using zip ties to secure it every 15cm. Connect the receiver’s power input to an auxiliary 12V source (a fused ignition-switched circuit is optimal) via a 10A fuse. Verify the voltage at the receiver’s input terminals (should read 12.6-13.8V) before proceeding.
Test the system with the vehicle’s engine off. Activate the handheld controller; the solenoid should emit a distinct click within 1-2 seconds. If no response occurs, recheck all splices for continuity using a multimeter–common faults include reversed polarity on the control leads or a loose ground connection. Repeat the test under load by engaging the puller with a moderate weight (200-300kg) to confirm sustained operation without overheating.
After successful testing, re-secure all connections. Apply dielectric grease to terminal posts to prevent oxidation. Bundle loose cables using spiral wrap, avoiding sharp edges or moving components. Reconnect the vehicle’s power source, then perform a final operational check to ensure full functionality across all controls–directional commands, variable speed response, and emergency stop should execute without lag or false triggers.
Configuring Power Delivery for Handheld Transmitter Units
Select a 12V sealed lead-acid battery rated for deep-cycle operation if the control module operates continuously for intervals exceeding 30 minutes. Ensure the battery’s cold cranking amps (CCA) exceed 200% of the peak draw listed on the handheld’s datasheet; common 7Ah units often pair well with 30-50Ah batteries to eliminate voltage sag under load. Avoid automotive starter batteries–their thin plates degrade rapidly under repeated discharge cycles typical in auxiliary equipment.
Integrate a buck converter between the battery and receiver circuitry if the internal regulator tolerates input fluctuations above 15%. Set the converter’s output precisely to 5V ±5% using a multimeter; deviations risk thermal shutdowns in microcontrollers or erratic signal transmission. Capacitors rated for 105°C must flank the converter–100μF on input, 220μF on output–to suppress spikes during load transients when toggling solenoid valves or servos.
Fuse the power feed immediately adjacent to the battery terminals with a blade-type fuse sized at 125% of the receiver’s maximum continuous draw. Use heat-shrink tubing on all terminals to prevent moisture ingress that corrodes connections; corrosion increases resistance, which drops voltage under load and triggers brownouts in digital logic circuits, leading to unpredictable activation sequences.
Route dual 18AWG conductors from the battery to the transmitter housing–separate ground and positive leads to minimize voltage drop over cables longer than 2 meters. Twist conductors every 5 cm to reduce electromagnetic interference from adjacent motor drives or RF modules; interference superimposes noise on control signals, causing false triggers. Secure cables in conduit or split loom to prevent chafing against sharp metal edges.
Mount transient voltage suppression diodes across inductive loads like relay coils to clamp flyback voltages exceeding 50V. Test suppression by triggering the relay while monitoring the power rail with an oscilloscope–clamping should occur within 10μs to prevent latch-up in the receiver’s flip-flops. Omission risks permanent damage to FET gates within the transmitter circuitry.
Connect a precision shunt resistor (0.1Ω, 1%) in series with the power input to log current consumption during operation. Record baseline readings at ambient temperature–deviation above 15% indicates impending component failure, often caused by degraded electrolytic capacitors or compromised solder joints. Replace suspect components before field deployment to avoid intermittent faults that mimic software glitches.
Adopt a split-charge system if combining auxiliary loads–isolate the control circuit from high-current devices like lighting arrays or compressors using a dedicated 20A circuit breaker. Share the battery’s negative terminal but segregate positive rails to prevent ground loops; loops induce false signals when differing return paths create millivolt differentials that confuse analog comparators.
Verify power integrity after final assembly by cycling the transmitter through every command sequence while monitoring voltage stability at the receiver’s input pin. Introduce simulated load transients by toggling solenoid loads at 5Hz–ripple must remain below 50mV peak-to-peak to ensure error-free decode operations. Document measurements in a logbook for troubleshooting; baseline data accelerates diagnosis when symptoms indicate power delivery issues rather than signal or firmware faults.
