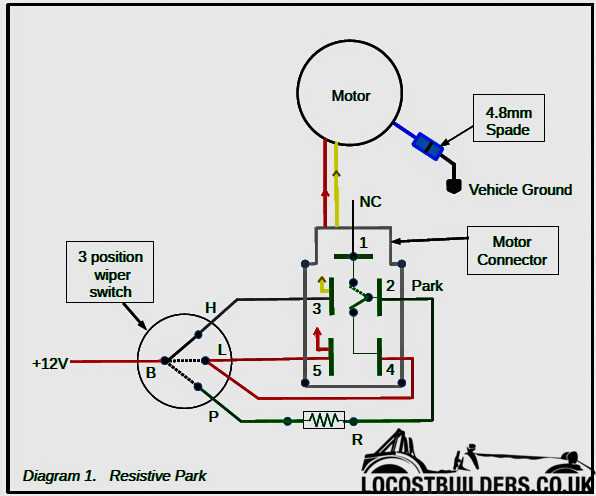

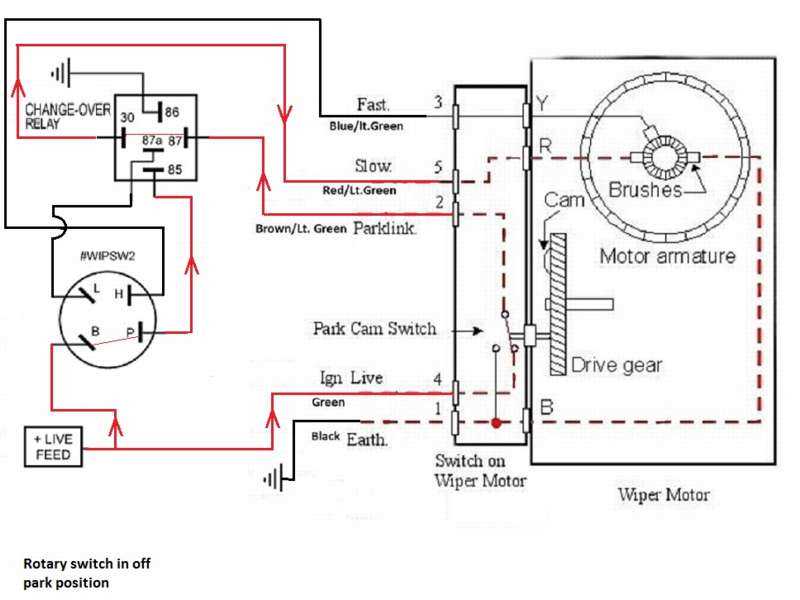

5 Wire Wiper Motor Wiring Schematic for Windshield Wiper Systems
Installation follows a strict pinout sequence: terminal 1 (ground), terminal 2 (low-speed park sense), terminal 3 (high-speed input), terminal 4 (main power feed), and terminal 5 (park switch return). Reverse polarity or swapping terminals 2 and 5 will prevent the actuator from parking properly.
Most modern 12V systems require a dedicated 18 AWG fused link for the high-speed circuit to handle transient spikes up to 30A. Bypass generic ground lugs on the firewall–use a M6 stainless bolt torqued to 8-10 Nm directly into chassis steel. Verify parking switch continuity with a 500Ω resistor load before final assembly; open circuits here force the actuator into constant low speed.
For intermittent operation, integrate a PWM controller rated ≥10Hz between the switch and terminal 2. Standard relays introduce lag exceeding 150ms at 13.5V–substitute with a solid-state MOSFET to eliminate audible clicking. Keep sensor leads at least 150mm from ignition wires to avoid EMI-induced stuttering.
Label each harness connector with heat-shrink tubing matching the pinout sequence above. Use crimp sleeves instead of solder for field repair resilience; solder joints under hood vibration fail within 12-18 months. Test park function after every 500 cycles–normal brush wear alters current draw from 4.2A at new to 5.8A at end-of-life.
Understanding a 5-Pin Automotive Glass Cleaner Electrical Layout
Start by identifying the power feed terminal–typically marked +12V–and connect it directly to the vehicle’s ignition-switched fuse box using 14-gauge cable to handle the current draw of 8-12 amps under full load. Ground the opposing terminal (usually labeled GND) to a bare metal surface near the cleaner’s mounting bracket, ensuring a corrosion-free connection with a star washer and dielectric grease to prevent oxidation.
Trace the remaining three pins: one for low-speed operation (LO), another for high-speed (HI), and the last serving as the park switch (PARK) signal. The low-speed circuit relies on a dedicated relay triggered by the stalk lever, while the high-speed function bypasses the relay’s coil, engaging the cleaner’s internal resistor for faster arm movement. The park mechanism uses a cam-driven microswitch to interrupt power once the blades reach the resting position.
Use a multimeter set to continuity mode to verify the park circuit’s functionality before attaching the control stalk. Probe the PARK pin while manually rotating the cleaner shaft–an audible click confirms the switch’s activation at the correct position. If absent, adjust the cam alignment or replace the microswitch to avoid blade overtravel, which can damage the gearbox.
For intermittent operation, integrate a 30-amp SPST relay between the LO pin and the stalk’s delay module, wiring the coil to the module’s output. Ensure the delay unit’s ground returns to the chassis separately from the cleaner’s main ground to prevent voltage fluctuations affecting other systems. Test delay intervals by measuring resistance across the module’s potentiometer; factory specs typically range from 500 ohms (short delay) to 2.2K ohms (long delay).
Insulate all connections with heat-shrink tubing rated for 125°C, avoiding electrical tape near moving parts where vibration may loosen it. Route cables away from exhaust manifolds and sharp edges, securing them every 6 inches with nylon clamps. Finalize by checking voltage drop across the LO and HI circuits under load–acceptable loss is under 0.3V to ensure consistent blade speed in all weather conditions.
Decoding the Five Connections in Your Cleansing Blade Actuator Cable Assembly
Start by locating the high-torque output terminal–typically marked with a “+” symbol or colored red. This lead delivers primary power from the vehicle’s main electrical supply to drive the mechanism during normal operation. Verify its voltage with a multimeter set to 12VDC; readings should match the battery’s charge level when the system is activated.
Next, identify the grounding contact, usually a black or brown conductor terminating in a ring connector fastened to the chassis. This link completes the circuit and must maintain solid metal-to-metal contact for reliable performance. Inspect for corrosion or paint interference–clean surfaces with a wire brush if necessary to ensure conductivity.
The intermittent-operation control input, often a blue or yellow cable, governs variable-speed functionality. This connection interfaces with the vehicle’s control module or stalk switch, pulsing current to dictate sweep frequency. Test by momentarily bridging it to the power source while monitoring actuator movement–expected behavior is a single cycle per brief touch.
- Pulse-width modulated input: smaller gauge, violet or gray, regulates park/return-to-home positioning
- Low-speed terminal: green or white, engages slower movement for light precipitation conditions
- High-speed terminal: purple or dark blue, triggers rapid blade traversal in heavy downpours
For park-circuit verification, probe the violet/gray conductor during system deactivation. A brief voltage spike (typically 2-5V) should coincide with blade settling into stowed position. Absence of this signal indicates either faulty relay operation or severed connection in the actuator’s internal cam switch.
Diagnosing Common Misconnections
If blades oscillate continuously without parking, swap positions of the high-speed and intermittent leads at the harness connector. Conversely, failure to activate at any speed suggests reversed polarity on power/ground contacts–a configuration requiring immediate correction to prevent overheating of the armature winding.
Modern systems integrate a rain sensor signal on one of the control inputs, usually sharing the intermittent terminal. Isolate this behavior by temporarily disconnecting the sensor module; persistent erratic operation confirms a sensor malfunction rather than cable assembly issues.
- Cross-reference terminal designation with OEM repair manuals–color codes vary by manufacturer
- Use heat-shrink tubing to re-insulate repaired joints, ensuring ¼” overlap beyond stripped sections
- Test continuity across all five paths with actuator disconnected to rule out internal faults
When reinstalling the assembly, torque mounting bolts to 8-10 ft-lbs to prevent stress fractures in housing material. Reattach linkages last, confirming full articulation range before final electrical mating–misalignment here causes premature gear wear or incomplete coverage.
Step-by-Step Electrical Hookup for a 5-Terminal Clearing Blade Actuator
Identify the two primary power leads–marked B+ (battery positive) and GND (ground)–on the actuator’s connector. Connect B+ directly to a 12V fused ignition-switched source (e.g., auxiliary circuit from the fuse box) using 18-gauge stranded copper cable; bypassing the ignition switch will drain the battery when the vehicle is off. Attach GND to a clean, unpainted chassis point within 12 inches of the actuator; use a star washer to ensure corrosion-resistant contact. Verify polarity with a multimeter before securing connections–reversed leads risk burning the internal motor coils.
Intermediate and Park Circuit Hookup
Locate the LO, HI, and PARK terminals: LO and HI drive low and high clearing speeds, while PARK returns the blades to their resting position. Route LO through a limiting resistor (typically 10Ω, 10W) to the B+ source to reduce torque at lower speeds; omit the resistor for HI to maintain full voltage. Connect PARK via a normally closed relay or a dedicated park switch that opens only when the blades need to stop mid-cycle–this prevents overheating the actuator during prolonged rest. Test each circuit sequentially with a 5A fuse inline to avoid damaging the coil windings.
Common Pitfalls in Connecting a 5-Terminal Auto Clearing System and Solutions
Reversing the polarity on the park circuit terminal and the main power input is a frequent error. This typically happens when the technician confuses the color-coding of the harness or misreads the manufacturer’s schematic. For instance, in a Bosch system, the terminal marked “53a” (park circuit) and “53” (primary power) must not be swapped–doing so disrupts the automatic return-to-rest function. Always cross-reference the wiring with the vehicle’s service manual and use a multimeter to verify voltage before making connections. A quick continuity test between terminals 53 and 31 (ground) while the blades are in motion confirms correct polarity.
Ignoring ground integrity leads to intermittent operation or complete failure. The system relies on a stable ground, often connected to the chassis via terminal “31.” Corrosion, loose bolts, or paint residue at the grounding point create resistance, causing erratic behavior. Before installation, remove paint from the mounting surface, apply dielectric grease to the bolt threads, and ensure the ground cable’s ring terminal has no fraying. For vehicles with multiple ground points (e.g., GM models), verify all related grounds–such as those for the washer pump–share a common path to the chassis without voltage drop.
Incorrectly routing the delay module’s input can render timed intervals useless. The module, which controls variable-speed clearing, requires precise voltage signals. Confusing the “53e” (delay input) terminal with “53b” (intermittent power) results in fixed-speed clearing at all settings. Refer to the delay module’s resistance values–typically between 10kΩ and 50kΩ–to match the switch’s output. Test the circuit with a potentiometer before finalizing connections. Below are resistance ranges for common delay modules:
| Module Type | Resistance Range (kΩ) | Blade Speed (Cycles/Min) |
|---|---|---|
| Bosch VRH 20/28 | 10–22 | 8–20 |
| Ford Generic | 15–30 | 6–18 |
| Toyota OEM | 20–50 | 4–15 |
Overloading the 40-amp fuse by omitting a relay is a critical safety oversight. The system’s high-current demands–especially during blade reversal–require a relay to prevent wire meltdown. Many DIY setups connect power directly through the switch, bypassing the relay. Always install a relay between the ignition-switched power source and terminal “53,” using 14-gauge wire for the control circuit and 10-gauge for the high-current path. Check the relay’s coil resistance (standard: 70–120Ω) with an ohmmeter before integration.
Skipping the park switch’s mechanical alignment check often causes blades to stop mid-cycle. The switch, located inside the unit, must make contact when the arms reach the resting position. Misalignment forces the circuit into an open state, leaving the blades suspended. Disassemble the gear housing and verify the switch’s actuator tab aligns with the cam lobe’s high point. Lubricate the gears with lithium grease during reassembly to prevent premature wear. For aftermarket units, ensure the park switch’s voltage drops to 0V at rest–if not, the blade positioning may require recalibration via the adjustment screw.
