Creating Accurate Wireless Circuit Diagrams Step-by-Step Guide

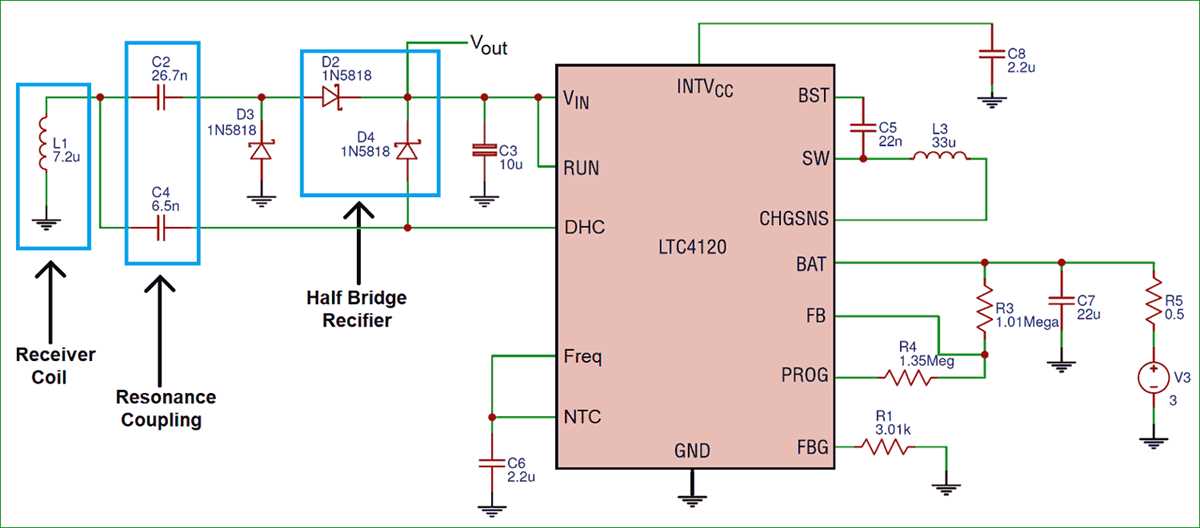

Start with a precise frequency allocation map before sketching any traces. Use 2.4 GHz ISM band for short-range modules–allocate 20 MHz per channel to avoid overlap with adjacent units. If integrating LoRa, reserve sub-1 GHz spectrum (e.g., 868 MHz in EU, 915 MHz in US) with duty-cycle restrictions: 1% for EU, 0.4s transmit time every 10s for US. Document these constraints in a legend alongside power budgets.
Ground planes must cover at least 70% of board area–split them only for analog sections to prevent noise coupling. Keep RF traces ≤λ/10 (31mm at 2.4 GHz) and route them as microstrip: substrate thickness 0.8–1.6mm, copper weight 1oz, impedance-matched to 50Ω using field solvers. For multi-layer stacks, bury unshielded traces between grounded layers to block crosstalk.
Isolate antennas with 2mm keep-out zones–no components or vias within this radius. For PCB-mounted antennas (e.g., inverted-F or chip antennas), orient the feedpoint away from noise sources like switching regulators. If using external antennas, specify connector types (U.FL, SMA, or MHF4) and cable loss budgets (≤0.5 dB/m for RG-178). Label every cable with insertion loss and impedance.
Mark power domains clearly: 3.3V, 1.8V, and VCC_RF. Use ferrite beads (e.g., Murata BLM18PG121SN1) between digital and RF rails to block high-frequency transients. Decoupling capacitors should sit within 2mm of each IC pin: 100nF X5R for bulk, 10pF NPO for RF. Stagger capacitor values to cover wideband noise (e.g., 100nF + 10nF + 1nF + 100pF).
Define link budgets in tables: transmit power (+10 dBm), receiver sensitivity (-90 dBm), path loss (Friis equation), and fade margin (>10 dB). For multi-node systems, include collision probabilities–CSMA/CA overhead (~30%) reduces raw throughput by a factor of 3 in dense networks. Annotate maximum range (e.g., 100m line-of-sight at 1 Mbps) and adjust antennas (gain +3 dBi dipole vs. +8 dBi Yagi).
Embed test points for every RF node: SMA pads for spectrum analyzers, bias tees for active probes, and via stitching for time-domain reflectometry. Note tolerance limits (±10% on capacitor values, ±5° on antenna phase). If EMI compliance is required (FCC Part 15, ETSI EN 300), pre-scan with a near-field probe before finalizing placements.
Designing High-Efficiency RF Board Layouts
Begin by separating analog and digital ground planes with a single, narrow connection at the power source to minimize noise coupling. Place decoupling capacitors (100nF X7R dielectric) within 2mm of every IC power pin, with a parallel 10µF tantalum for low-frequency stabilization. Route critical traces–clock lines, PLL feedback loops, and antenna feeds–on the top layer, avoiding vias that introduce impedance discontinuities. For 2.4GHz designs, maintain a 50Ω trace width of 0.2mm on 1oz copper FR-4 (εr=4.3) with 0.1mm spacing to adjacent traces; use a 3D electromagnetic simulator to verify impedance before fabrication.
Use the following checklist for antenna placement:
- Keep a minimum 10mm clearance from ground planes on all sides for monopole antennas.
- Avoid routing other signals within 2λ (25cm at 2.4GHz) of the antenna feed point.
- Place shielding cans (0.2mm thickness, nickel-silver alloy) over LNAs and mixers, connecting to ground with vias spaced ≤λ/20 (6.25mm at 2.4GHz).
- For PCB stack-ups, dedicate a full layer to ground beneath RF sections, with no breaks except for vias.
Component Selection for Robust RF Links
Select LDO regulators with PSRR ≥70dB at 1MHz (e.g., Analog Devices ADP7104) to suppress switching noise from DC-DC converters. For SAW filters, choose models with insertion loss 60% efficiency and 30dB and switching time

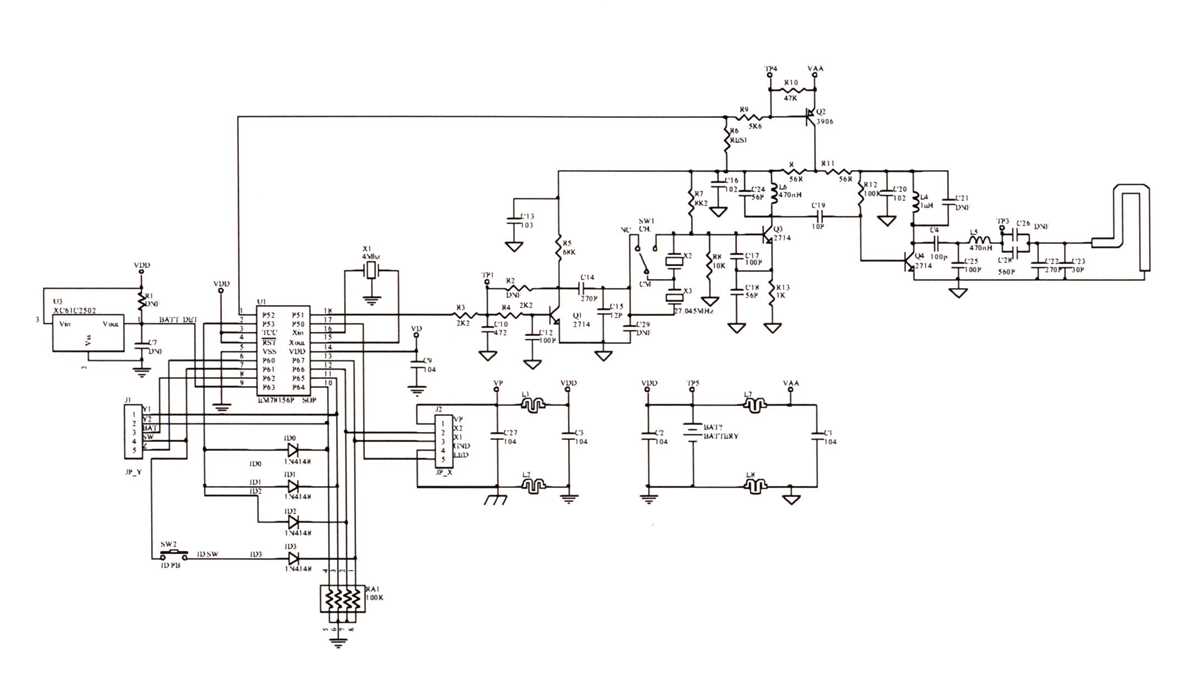

Key Components to Include in a Radio-Based Circuit Layout

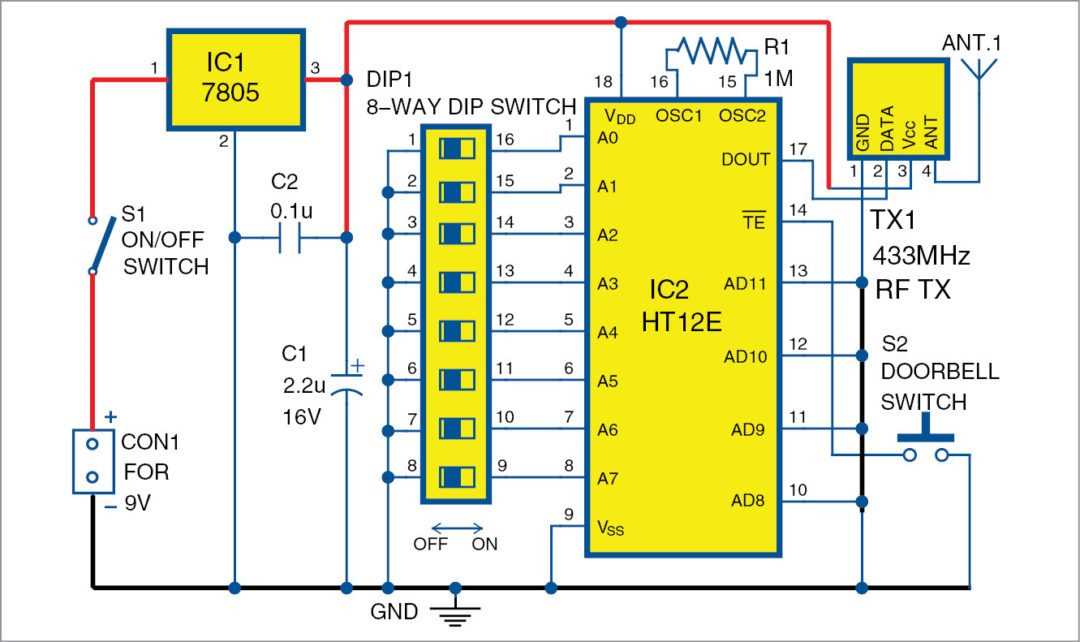

Start with an antenna tailored to your frequency range. For 2.4 GHz ISM band designs, a quarter-wave monopole (λ/4) offers a balance between size and efficiency, typically requiring a length of ~31 mm on standard FR4 substrate. Include impedance matching components–L-networks or π-sections–to minimize return loss; a target VSWR of 1.5:1 or better ensures optimal power transfer. Omnidirectional patterns suit mobile applications, while directional antennas (e.g., patch or Yagi) improve range in fixed deployments.
Transceiver Selection Criteria
Choose a transceiver IC with integrated RF front-end to reduce component count. Devices like the Texas Instruments CC2652R or Nordic nRF52840 support multiple protocols (Bluetooth, Zigbee, Thread) and include built-in power amplifiers (PAs) and low-noise amplifiers (LNAs). Key specs to evaluate:
| Parameter | Minimum Requirement | Example Value |
|---|---|---|
| Output Power (dBm) | >+10 for 50+ meter range | +20 (nRF52840) |
| Receiver Sensitivity (dBm) | -103 (CC2652R) | |
| Power Consumption (TX) | 9.3 mA (nRF52840) |
Avoid modules lacking external PA/LNA pins if extended range is required–add discrete components like the Skyworks SKY66112-11 when necessary.
Incorporate a band-pass filter between the antenna and transceiver to suppress harmonics and out-of-band interference. For 2.4 GHz systems, a SAW filter (e.g., Murata SF2125E) with a 3 dB bandwidth of ±50 MHz provides adequate selectivity while maintaining insertion loss below 2.5 dB. Use an SPDT RF switch (e.g., Skyworks SKY13384) to isolate the transmit and receive paths, minimizing desensitization during TX bursts.
Decouple power supplies with low-ESR capacitors (100 nF + 10 µF) placed within 2 mm of IC pins. For noise-sensitive nodes, add a ferrite bead (e.g., TDK MPZ2012S300A) in series with the VDD line. Clock sources must be stable–use a crystal oscillator with ±10 ppm accuracy for IEEE 802.15.4 compliance. Include test points for critical signals (RF in/out, SPI lines) to simplify debugging; pogo-pin pads reduce connectors’ footprint.
Ground Plane and Layout Rules
Divide the PCB into three zones: RF, digital, and power. Keep the RF ground plane continuous beneath the transceiver and antenna trace, with no splits–vias stitching to the main ground must be spaced
Step-by-Step Guide to Designing RF Circuit Blueprints in KiCad
Launch KiCad and select File > New Project. Name it descriptively (e.g., 2.4GHz_Transceiver) and create a dedicated subfolder for libraries. KiCad’s default component libraries lack specialized RF parts, so download the RF Tools KiCad Library from GitHub–a curated collection of antennas, filters, and impedance-matched connectors.
Press Ctrl+N to open the editor, then Place > Add Symbol. Filter components by typing L_ for inductors or C_ for capacitors, but avoid generic values. For a 50-ohm microstrip, place C_RF_0402_1pF shunt capacitors at 0.1λ intervals. Right-click each part to edit properties: set Reference Designator (e.g., C1) and Value (e.g., 1.0pF 5%).
Trace Routing for Impedance Control
Switch to the PCB Editor via Tools > Switch to PCB. Open Design Rules and add a new net class: set Trace Width to 0.2mm for 50Ω on FR4 (εr=4.5) using KiCad’s built-in calculator under Tools > Calculate Trace Width. Route critical paths on the top layer, avoiding 90° bends–use 45° miters or smooth arcs (Route > Interactive Router Settings).
Add ground vias beneath each component pad: hover over a pad, press v, and select Through-hole Via. For a 1.6mm board, use 0.3mm vias spaced ≤λ/10 apart. Enable DRC (Inspect > Design Rules Check) and resolve errors by adjusting via-to-trace clearances in File > Board Setup.
Annotating RF-Specific Details
Return to the editor and add text notes: select Place > Text, then type 50Ω controlled impedance next to microstrips. Insert measurement markers (Place > Dimension) to label trace lengths (e.g., λ/4 = 15.6mm @2.4GHz). Export the final layout as Gerber/Excellon (File > Plot) and verify with Gerber Viewer. Include a readme.txt detailing layer stackup (e.g., TOP: 1oz Cu | DIELECTRIC: FR4 0.1mm | BOTTOM: 1oz Cu).
For simulation-ready schematics, attach spice models to active components: right-click a transistor (e.g., Q_RF_SOT23), select Properties, then Spice Model. Browse to a vendor-provided .mod file (e.g., NE3512S02.mod for GaAs FETs). Run AC analysis (Tools > Simulator) to plot S-parameters before ordering prototypes.

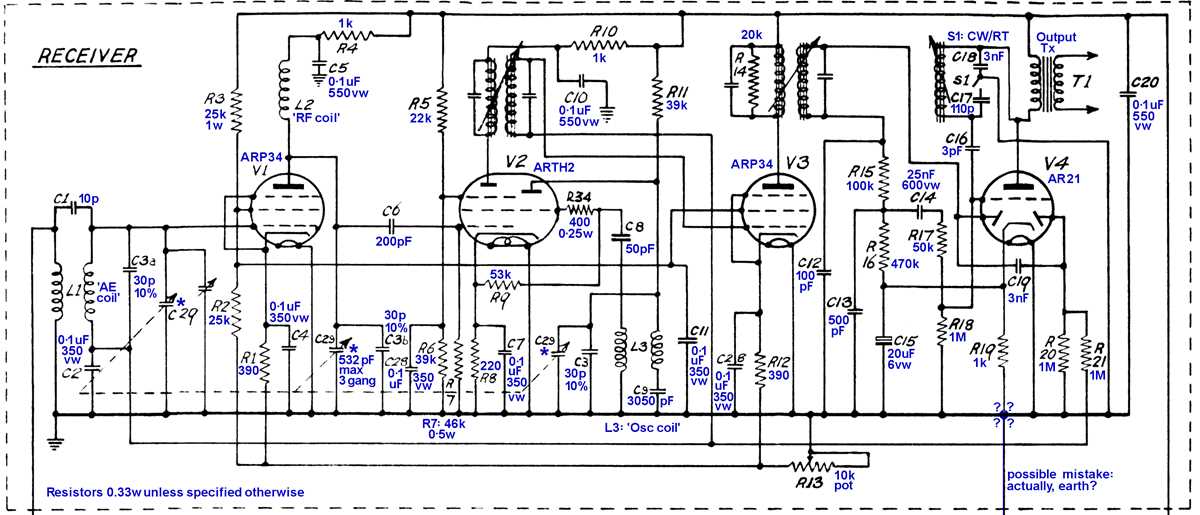

Frequent Errors in RF Circuit Blueprints
Avoid placing antennas too close to power lines or noisy components like switching regulators. A minimum separation of 15-20 mm reduces interference, especially in 2.4 GHz designs. Ground plane discontinuities beneath the antenna degrade performance–maintain a solid copper area at least 1λ×1λ of the operating frequency to ensure proper signal integrity. Overlooking this leads to unpredictable radiation patterns and reduced range.
Failing to account for component parasitics in high-frequency layouts causes unexpected behavior. Capacitors exhibit inductance at GHz frequencies; use low-ESR models and place them within 2 mm of the IC’s power pins. Inductors, even at 1 nH, can detune circuits–simulate or measure self-resonant frequency (SRF) values before finalizing placement. Tools like Keysight ADS or Ansys HFSS help verify these effects early.
Mislabeling net classes invites errors during board fabrication. Assign clear, distinct names: VCC_RF, GND_ANALOG, GND_DIGITAL. Avoid vague terms like “Net1” or “SignalA.” Use differential pair routing for high-speed traces (e.g., MIPI CSI-2) with controlled impedance–typically 90 Ω ±10%. Trace width and spacing must match the PCB stackup; deviations cause signal reflections.
Component Selection Pitfalls
- Using general-purpose capacitors (e.g., X7R) for RF decoupling instead of C0G/NP0 types increases phase noise and drift. C0G offers stable capacitance (±30 ppm/°C) across temperature variations.
- Ignoring trace width for current handling results in overheating. For 1 oz copper, 1 mm width supports ~1 A; multiply by 1.4 for 2 oz. Heavier loads require wider traces or copper pours.
- Choosing inductors with SRF below the operating frequency turns them into capacitors, disrupting matching networks. Verify SRF in datasheets–aim for SRF ≥ 3× the target frequency.
Neglecting PCB stackup symmetry causes warping and impedance mismatches. Pair signal layers with adjacent ground planes (e.g., 4-layer: Signal/GND/PWR/Signal). Uneven copper distribution–like large voids on one layer–leads to thermal stress during reflow. Use copper balance calculators to verify symmetry before fabrication.
Debugging Oversights
- No test points for critical nets (e.g., PLL loops, antenna feeds) complicates troubleshooting. Add 0.5 mm diameter pads at key nodes for probing with RF-capable oscilloscopes (≤6 GHz bandwidth).
- Missing EMI shielding vias around sensitive circuits (e.g., LNAs, VCOs) permits coupling. Space vias at ≤λ/20 (e.g., 6 mm for 2.4 GHz) to form a Faraday cage effect.
- Forgetting to document design constraints (e.g., “Keep C43 within 1 mm of U5 pin 8”) leads to manufacturing errors. Export netlist rules to Gerber or ODB++ files for assembly houses.
Assume signal paths must cross at 90° angles to minimize crosstalk–each additional degree increases coupling. Use keepout zones around antennas to prevent nearby traces from acting as parasitic radiators. For Bluetooth/Zigbee modules, reserve a 5 mm clearance zone to comply with FCC/CE radiation limits. Label polarity for diodes/LEDs; reversed orientation wastes debugging time during bring-up.
