Step-by-Step Guide for Installing a 240V Outlet Wiring Diagram

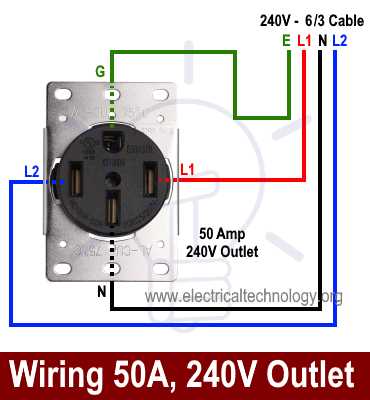

Begin by verifying the circuit breaker is switched off before handling any electrical components. Use a non-contact voltage tester to confirm the absence of current in the wires and terminals. For a 4-wire setup connecting a heavy-duty appliance, match the black and red wires to the brass screws, the white wire to the silver terminal, and the green or bare copper wire to the ground screw. Twist wire nuts securely over exposed ends before tucking them into the electrical box to prevent short circuits.

Ensure the outlet box is rated for a minimum of 30 amperes if serving a dryer or oven, or 50 amperes for larger appliances like electric ranges. Double-check torque specifications: brass and silver screws should be tightened to 14-18 inch-pounds, while ground screws require no less than 10 inch-pounds. Misaligned connections can lead to overheating and fire hazards. If the circuit lacks a dedicated neutral wire, consult local electrical codes–some jurisdictions permit bootleg grounds, but this is not universally acceptable.

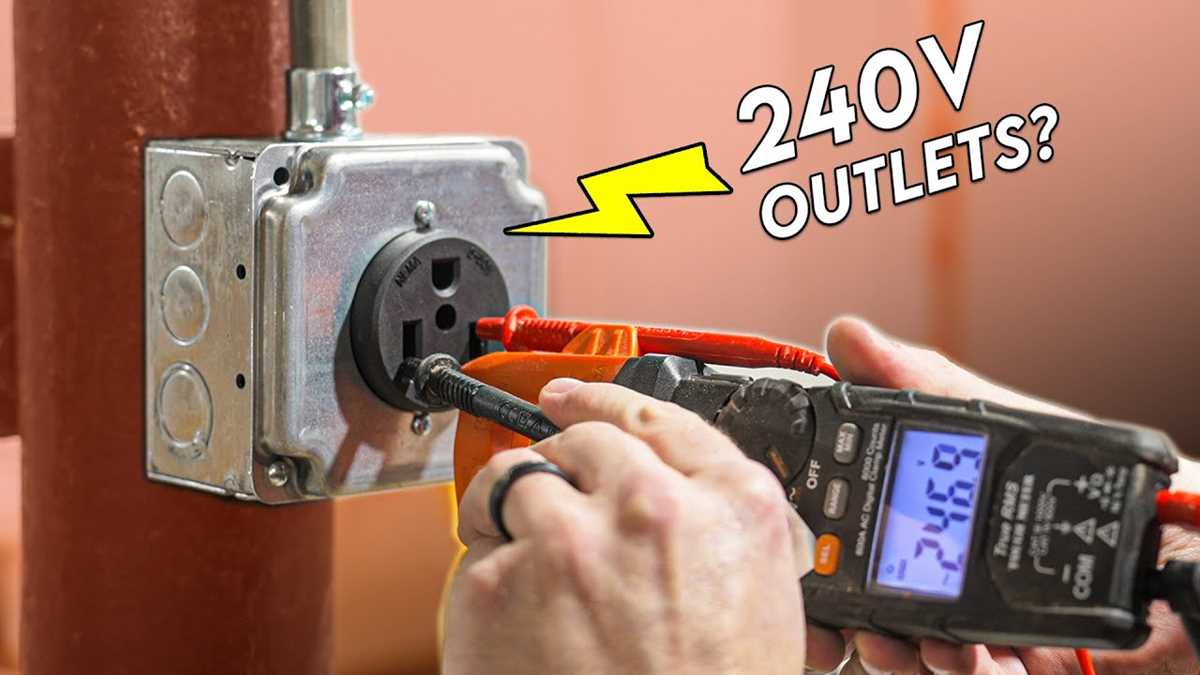

After securing all connections, turn the circuit breaker on and test the socket using a multimeter. Set it to AC voltage mode and measure between the brass terminals–expect a reading between 220 and 250 volts. Test between each brass terminal and the ground; readings should match. If voltage is absent or inconsistent, re-examine the breaker, wiring routes, and connections. Avoid overloading the circuit–appliances requiring 240 volts typically draw 30-50 amperes; exceeding this risks tripping breakers or damaging equipment.

For split-phase systems, label the panel with the correct breaker position to simplify future maintenance. If extending an existing circuit, use wire gauge no smaller than the original–10 AWG for 30-amp circuits, 8 AWG for 40-amp, and 6 AWG for 50-amp. Replace any corroded or frayed wires immediately; copper oxidizes over time, increasing resistance and heat buildup. Seal the electrical box with a weatherproof cover if installed outdoors.

How to Install a High-Voltage Socket Safely

Begin by confirming the circuit’s amperage rating matches the receptacle–20A, 30A, or 50A–using a multimeter to verify voltage between phases (typically 208–240V) and ground. For NEMA 14-30 or 14-50 configurations, ensure the red and black conductors carry opposite legs of the split-phase supply, while the white neutral and bare copper ground remain isolated. Label each wire with electrical tape to prevent misconnection before securing them under terminal screws with 1.25–1.5 Nm of torque.

Route cables through ¾-inch conduit if running underground or through walls, maintaining a 1¼-inch clearance from romex in wooden studs. For surface-mount installations, use 4½-inch deep junction boxes to accommodate bulky plug terminals. Pre-drilled knockout holes should align with cable clamps to prevent sheath damage; seal unused knockouts with plastic plugs to meet NEC 314.17 requirements. Avoid splicing inside the box unless unavoidable–use listed wire connectors rated for the application’s temperature (90°C for most residential setups).

Test continuity between all conductors and ground before energizing the panel. A correctly wired receptacle will show 120V between either hot leg and neutral, 240V across both hots, and zero volts between neutral and ground. If readings deviate, recheck terminal tightness and wire routing, focusing on areas where insulation may have been nicked during stripping. For double-pole breakers, verify they’re rated for the socket’s amperage and share a bus phase to prevent parallel current paths.

When securing the faceplate, ensure screws are flush but not overtightened, as this can warp plastic escutcheons. For heavy-duty appliances, use industrial-grade receptacles rated for 75°C and grease terminals with anti-seize compound to prevent oxidation. Document the circuit in the panel directory, noting the socket’s location, voltage, and breaker slot–this prevents future confusion during modifications or emergencies.

Essential Equipment and Supplies for High-Voltage Receptacle Installation

Begin with a dual-pole circuit breaker matching your panel’s brand and amperage–common values include 30, 40, or 50 amps–verifying compatibility with your main service panel’s busbar rating. Siemens, Square D QO, and Eaton CH series breakers cover most residential setups, but cross-reference the label inside your panel door for exact specifications.

Secure 6-4 AWG copper wire for 30-50 amp circuits or 8-6 AWG for lower loads, ensuring the gauge aligns with the breaker’s trip rating and local electrical codes. Romex NM-B cable works for concealed runs, while THHN/THWN strands in conduit suit exposed or buried paths. Verify insulation temperature ratings (90°C for wet locations) and color-coding–red and black for hot legs, white for neutral (if required), and green or bare for grounding.

Specialized Hand Tools for Precise Connections

Strip wires with a calibrated tool, such as Klein Katapult or Ideal T-Stripper, selecting jaws suited to your wire gauge to avoid nicking conductors. Terminate connections using a torque screwdriver (set to 12-20 lb-in per UL 486B) on receptacle screws and breaker lugs–loose joints create overheating hazards. A non-contact voltage detector (Fluke 1AC or Klein NCVT-3) confirms circuit de-energization before handling.

A fish tape kit (25-50 ft steel or nylon) maneuvers wire through walls or conduit, while a conduit bender (Greenlee 580 or equivalent) shapes EMT to 90° sweeps for rigid runs. Augment with a multimeter (set to ohms) to test continuity between grounding pins and boxes, ensuring metal components form a low-resistance path to the panel’s ground bar.

Safety and Structural Components

Install a heavy-duty steel or PVC electrical box (4″ square deep or 2-gang) rated for the amperage, typically NEMA 14-30 or 6-50 configurations for split-phase applications. Include blank cover plates if recessing the device, or weatherproof inlets (Hubbell HBL2330W) for outdoor setups. Bond metal boxes with grounding pigtails unless using self-grounding receptacles (Leviton 5842-I).

Equip yourself with arc-rated gloves (ANSI class 2, 10,000V test) and safety glasses when handling live conductors or panel covers. High-visibility tape or spray paint flags buried cable paths (minimum 18″ deep for direct burial) to prevent accidental damage during future excavation. Keep a fire-rated putty pad (3M CP25WB+) on hand for sealing wall penetrations in fire-rated assemblies.

For final verification, use a ground loop impedance tester (Megger 15530-8) to measure circuit resistance under load–values exceeding 0.1Ω indicate corroded connections or undersized conductors. Label the breaker and receptacle faceplate with the intended load (e.g., “EV Charger” or “Welder”) to streamline future troubleshooting.

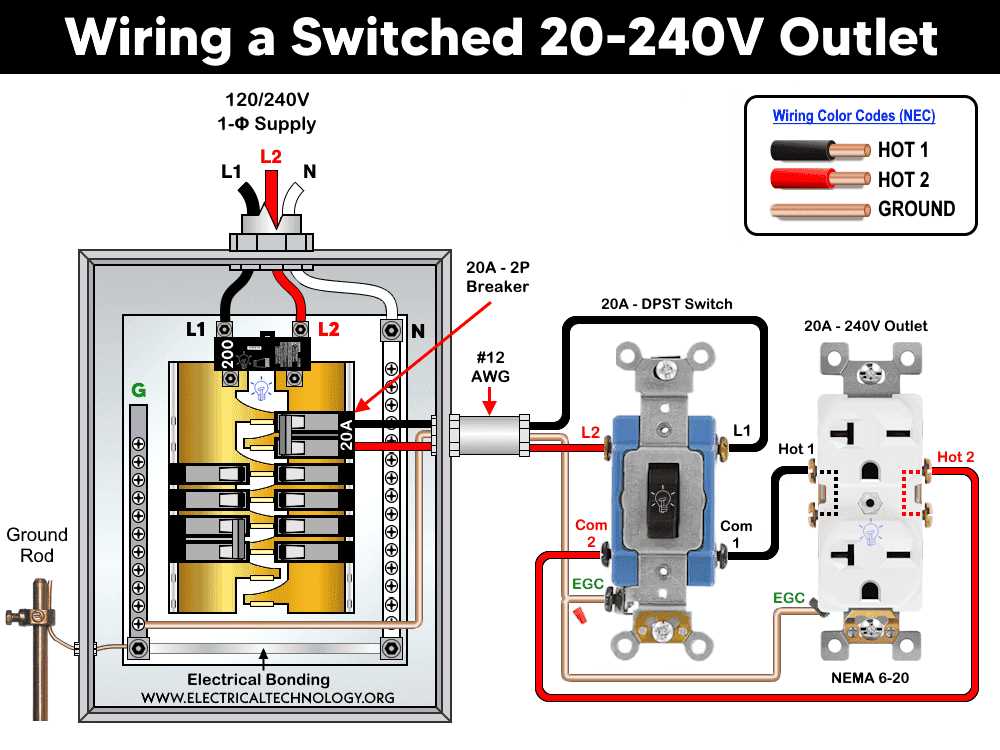

Installation Guide for NEMA 6-20 and NEMA 14-30 Receptacles

Begin by confirming your circuit’s amperage matches the plug configuration. NEMA 6-20 requires a 20-amp breaker, while NEMA 14-30 demands a 30-amp breaker–mismatches risk overheating or tripping.

Shut off power at the main panel using the breaker labeled for the target circuit. Verify absence of current with a non-contact voltage tester at the junction box before proceeding. Metal boxes often retain charge; double-check.

Strip ¾ inch of insulation from each conductor. For NEMA 6-20, attach the black and red wires to brass terminals (L1 and L2) and green or bare copper to the ground screw. Ensure no stray strands touch adjacent terminals.

NEMA 14-30 includes a neutral connection. Connect the white wire to the silver terminal, black and red to brass terminals, and ground to the designated screw. Tighten all connections to 12–15 inch-pounds; loose screws cause arcing.

Fold wires neatly into the box, aligning the plug’s mounting slots with the box’s screw holes. Secure the receptacle with the provided screws, ensuring it sits flush against the wall plate without gaps.

For NEMA 14-30, confirm the neutral wire is continuous back to the panel. If the circuit lacks a neutral (e.g., older dryer setups), replace the cable with 10/3 NM-B or 8/3 SE for 30-amp circuits–using undersized wire violates code.

Label the panel with the new circuit’s purpose, voltage (240v equivalent), and amperage. Use permanent markers or adhesive labels to prevent misidentification during future maintenance.

Restore power and test with a multimeter: NEMA 6-20 should read 240V across L1/L2 and 120V from each hot to ground. NEMA 14-30 must show 240V hot-to-hot, 120V hot-to-neutral, and 0V neutral-to-ground. Deviations indicate wiring errors.

Standard Color Codes and Conductor Sizing for High-Voltage Installations

Use red and black conductors for the two hot legs in North American split-phase 30 A circuits; reserve white for the neutral only if the circuit requires it (e.g., for shared 120 V loads). Ground must always be bare copper or green. For IEC-based systems–common in Europe and export equipment–brown and blue denote phase lines, striped yellow-green marks earth. Double-check local codes: some jurisdictions mandate unique colors for dedicated high-power appliances like stoves or EV chargers.

• 30 A circuit: 10 AWG copper conductors at 60 °C insulation rating; minimum 8 AWG for continuous loads.
• 40 A circuit: 8 AWG copper; upgrade to 6 AWG if ambient temperature exceeds 30 °C.
• 50 A circuit: 6 AWG copper, 75 °C insulation mandatory.
• 60 A+ circuits: move to 4 AWG or thicker, verify voltage drop calculations for runs over 100 ft.

Wire Gauge Quick Reference by Current Demand

1. 20 A – 12 AWG.
2. 30 A – 10 AWG.
3. 40 A – 8 AWG.
4. 50 A – 6 AWG.
5. 60 A – 4 AWG.
6. 70 A – 3 AWG.
7. 80 A – 2 AWG.
8. 90 A – 1 AWG.
9. 100 A – 1/0 AWG.

Never undersize conductors based solely on circuit breaker rating–calculate actual amperage draw of the appliance and apply the 80 % continuous-load derate. For aluminum conductors, upsize one gauge (e.g., 6 AWG copper → 4 AWG aluminum) and terminate with oxide inhibitor. Termination torque must match manufacturer specs: loose connections create hot spots that degrade insulation over time, risking arc faults.
