Step-by-Step Ceiling Fan Wiring Guide with Visual Diagram
Begin by disconnecting the electrical supply at the circuit breaker to prevent accidental shocks. Verify power is off using a non-contact voltage tester before handling any wires. For a standard setup, you’ll encounter three main conductors: live (black), neutral (white), and ground (green or bare copper). Some models include an additional blue wire for light kits, requiring a fourth connection.
Identify the mounting bracket’s compatibility with your junction box–retrofit kits often need a secure brace, especially for heavier units. If the box isn’t rated for dynamic loads, replace it with a pancake or fan-rated enclosure. Secure the downrod to the motor housing first, ensuring the suspension pin is properly engaged; misalignment can cause wobbling or noise.
Connect the conductors in this sequence: ground to ground, neutral to neutral, live to live. For dual controls (separate speed and light switches), split the incoming black wire into two using a wire nut, routing one to the speed switch and the other to the light switch. Cap any unused wires with twist-on connectors to prevent short circuits.
Tuck wires neatly into the canopy before securing it to the ceiling. Restore power and test all functions–rotation direction (adjust via the switch on the motor housing), speed settings, and lighting if applicable. If humming persists, check for loose blade attachments or improper blade alignment; tighten all fasteners to spec.
For sloped ceilings, use the included angled mounting kit. Adjust the downrod length to maintain at least 7 feet of clearance from the floor for safety. Avoid common mistakes: skipping the ground wire, ignoring wire gauge requirements, or forcing non-compatible hardware. Refer to the manufacturer’s torque specifications–over-tightening can strip threads.
Connecting a Rotary Air Circulator: Key Circuit Layouts
Before handling any electrical setup, verify the circuit breaker is off–use a non-contact voltage tester on all wires to confirm zero current. For a standard installation with light, identify three core conductors: supply hot (black or red), neutral (white), and ground (green or bare copper). Bundle the neutrals from the fixture, lighting kit, and wall switch together using a wire nut, ensuring no exposed strands exceed 1/8 inch. The hot wire from the wall switch should connect directly to the fixture’s input terminal–never splice it with the motor’s live lead, as this risks short circuits when operating independently.
Step-by-Step Terminal Connections

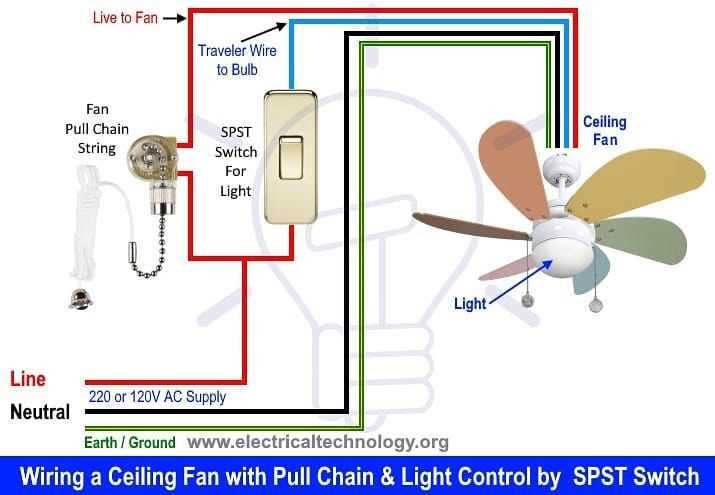

- Single-switch control: Link the incoming hot wire to the switch’s brass screw, then run a separate pigtail from the switch to the circulator’s black motor lead. Attach the white neutral from the power source to the fixture’s neutral bundle.
- Dual-switch setup (separate light/motor): Use a 3-wire cable (black, red, white) between the switches and unit. Connect the black wire to the motor switch, red to the light switch, and join all whites at the light kit’s neutral terminal. Ensure the red wire’s insulation matches the light’s hot input color (often blue) to avoid miswiring.

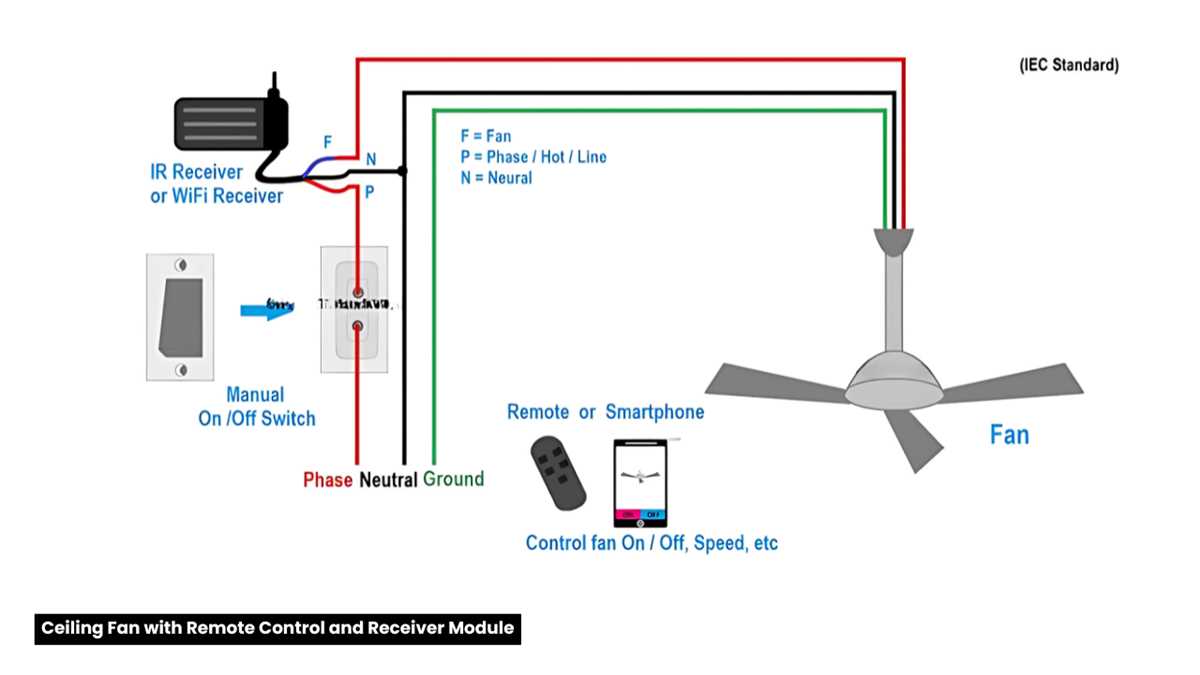

- Remote receiver inclusion: If integrating a receiver module, insert it between the power source and the fixture. Feed the black hot wire into the receiver’s L terminal, and output to both the motor (M) and light (L) terminals using jumper wires. Secure all connections with UL-rated wire nuts, twisting clockwise until snug–no tape required.

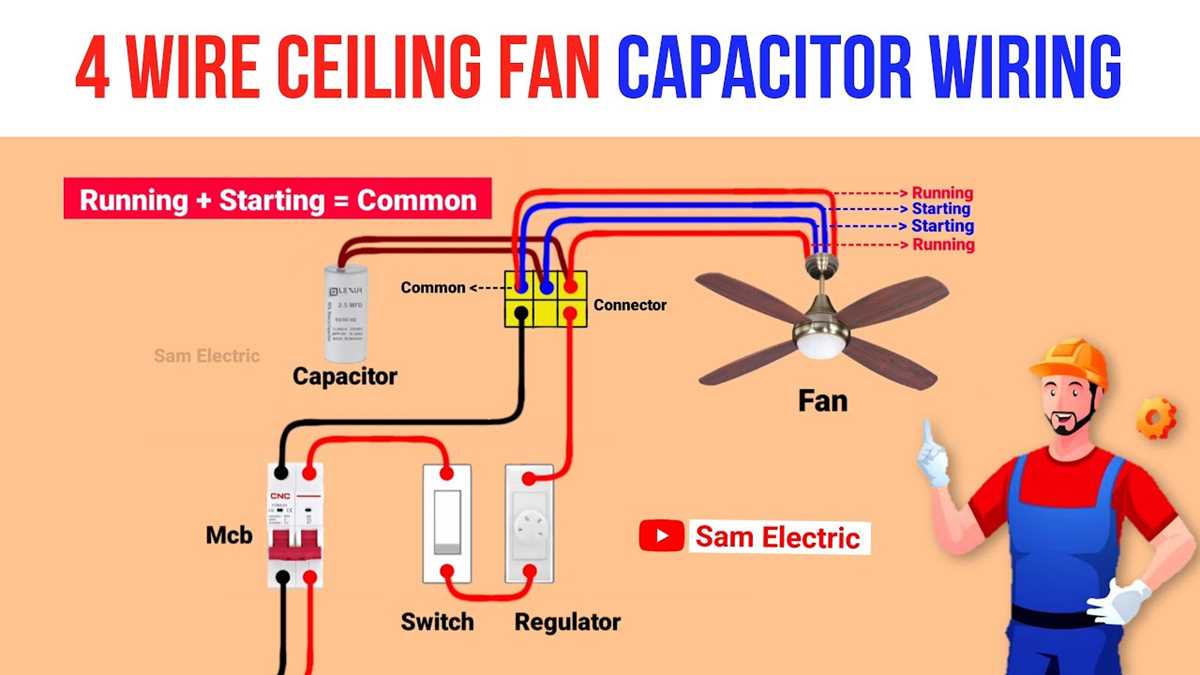

For older buildings with aluminum wiring, apply antioxidant paste to all splices and use CO/ALR-rated connectors to prevent corrosion. If the unit hums but doesn’t rotate, check the capacitor–marked µF–near the motor housing; a swollen or leaking capacitor requires replacement with an identical microfarad rating. Double-check the downward pull-chain direction (usually “forward” for counterclockwise rotation) to optimize airflow patterns. After securing the canopy, test with the wall switch first; only then attach blades or light covers to avoid injury if the fixture rotates unexpectedly.
Essential Gear and Supplies for Installing an Overhead Rotating Device
Begin with a non-contact voltage detector–this handheld tool identifies live circuits without direct contact, reducing shock risks. Models like the Fluke 1AC or Klein NCVT-3 offer audible and visual alerts, ensuring accuracy. Always verify the absence of power before handling any connections, even if the switch is off, as some circuits may retain residual current.
A multimeter ranks second in priority. Use it to confirm voltage levels, test continuity, and diagnose faulty conductors. For this task, a basic digital model (e.g., AstroAI WH5000A) suffices, but ensure it reads AC voltage up to 600V. Manual-ranging meters require more setup but provide finer control for troubleshooting.
| Tool/Supply | Purpose | Recommended Model/Type |
|---|---|---|
| Wire strippers | Remove insulation without damaging conductors | Ideal Industries T-stripper or Kleins 11045 |
| Lineman’s pliers | Cutting, twisting, and gripping thick gauge wire | Channellock 365X or Knipex 09 03 240 |
| Outlet box extender | Adjusts junction box depth if too shallow | Arlington BE1 or Raco 8299 |
| Fish tape | Routes cable through walls or conduit | Greenlee 419-25 or Gardner Bender GST-50 |
Wire nuts must match the conductor size. For 14-gauge copper, use orange (Ideal 72B) or yellow (Scotchcast 341). For 12-gauge, upgrade to red (Ideal 73B). Pre-twist stranded wires before attaching nuts to prevent loosening. Always tug-test connections–if conductors pull free, redo the joint with a larger nut or additional wraps of electrical tape.
Mounting hardware varies by device type. Rotating units weighing under 35 lbs typically use a standard J-hook (e.g., Westinghouse 77058) and 8-32 machine screws. Heavier models require a reinforced brace (Hubbell BCI-2PK) or pancake box (4″ Round, 1/2″ deep). Check the base plate’s pilot holes; misalignment demands drilling new ones or using self-tapping screws for drywall anchors.
Safety gear includes insulated gloves (rated for 1,000V, e.g., Ansell HyFlex 11-800) and ANSI Z87.1-rated goggles. A 6-foot fiberglass ladder (Werner D6206) ensures stability when working overhead. Avoid aluminum ladders near electrical panels–fibrous or wooden alternatives reduce conductivity risks. Keep a flashlight (e.g., Streamlight ProTac 2L) within reach; dim areas obscure junction box labels and conductor colors.
Connecting Electrical Components for Suspended Airflow Device Setup
Turn off the circuit breaker supplying power to the outlet box at the mounting point. Confirm absence of voltage using a non-contact tester on the exposed leads–black (hot), white (neutral), and green or bare copper (ground). Strip 3/8 inch of insulation from each conductor. Attach the black lead from the motor assembly to the black supply wire using a UL-listed twist-on connector, ensuring tight engagement by holding the connector base while twisting clockwise until resistance increases. Repeat for the white leads, then secure the green or bare ground to the metal outlet box with a 10-32 machine screw or to the ground pigtail if present.
Match the motor’s auxiliary feed (often red) to the wall switch’s hot wire if dual control is needed; otherwise, cap it individually with a plastic terminal cap. Align the mounting bracket’s keyhole slots with the outlet box screws, rotate the unit counterclockwise until seated, then tighten the screws to 12-15 inch-pounds. Attach the blades to the flywheel with 1/4-inch hex bolts, tightening each incrementally in a star pattern to prevent imbalance. Restore power at the breaker and test direction, speed, and light functions using the wall switch or remote receiver.
Decoding Electrical Conductor Hues in Rotary Airflow Installations
Begin by locating the main power feed conductor–typically encased in black insulation–within the junction box. This wire serves as the primary current carrier from the circuit breaker to the device’s motor and lighting components. Verify its position using a multimeter set to AC voltage (200–240V range) by probing against the grounding conductor (bare copper or green). A reading confirming 110–120V in North American systems or 220–240V in European setups validates correct identification. Mislabeling this conductor risks short circuits or motor damage.
Neutral conductors–white or light gray in US/Canada, blue in IEC-compliant regions–must connect to both the rotary unit’s motor and any integrated light kits. Cross-check with a continuity tester: neutral wires should show zero resistance between each other, forming a single termination point at the device’s baseplate. In older homes, neutral may appear as an off-white or beige hue; insulation age can distort original coloring, so rely on testing rather than visuals alone. Installations with split-phase power may omit neutral for motor-only operation, but lighting components will require it.
Grounding paths demand priority handling. Bare copper, green, or green-yellow striped conductors must bond to the junction box, unit housing, and all metal components. Use a torque screwdriver (12–15 in-lbs) for terminal connections to prevent loosening from vibration. For aluminum boxes, apply antioxidant paste to prevent corrosion at connections. Skip this step only if the chain-driven unit lacks any exposed conductive parts–modern plastic enclosures still require grounding if internal metal frames exist.
Color conventions shift globally: Australian homes use red for active/hot, black for switched active, and brown for permanent active. Asian markets often default to brown (hot), blue (neutral), and green/yellow (ground), aligning with IEC 60446. For multi-speed units, additional conductors–usually striped or marked with colored tape–indicate speed selector wires (often gray or red). Label these with heat-shrink tubing during disassembly to avoid miswiring during reassembly. Manufacturer deviations exist; consult the unit’s schematic even if colors appear standard.
Switch loop configurations introduce reversed polarity: the traveler between a wall controller and rotary unit will show voltage on the black (or red) wire when the switch is off. Identify this by probing at the wall plate–power flows from the unit to the switch in “off” mode, contrary to standard feed logic. For dimmable lighting, pink or purple conductors may denote rheostat-compatible paths; mixups cause LED flickering or non-functioning light kits. Always cap unused conductors with wire nuts rated for 600V minimum to prevent accidental contact.
